TJ Wasungen manufactures and supplies high-strength prestressed steel wire for contractors, precast concrete producers, infrastructure companies, and distributors worldwide. Our PC wire is produced under strict process control to deliver consistent diameter, tensile strength, and low relaxation performance for demanding structural applications. Whether you need plain, indented, helical, or galvanized prestressed steel wire, we offer factory-direct pricing, export-ready coils, and full documentation support for bulk international orders.
Get Prestressed Steel Wire Price
Prestressed steel wire, also known as PC wire (prestressing concrete wire), is a high-strength cold-drawn steel wire used to reinforce concrete structures by applying tensile force before or during casting. Unlike conventional reinforcement bar, which resists tension only after the concrete has already begun to crack under load, prestressed concrete wire is tensioned first — either before pouring (pre-tensioning) or after the concrete has cured (post-tensioning). This tensioning process places the surrounding concrete into a state of compression, allowing the finished structure to carry significantly higher loads while using less material overall.
Because prestressed steel wire operates at much higher stress levels than ordinary rebar, it is manufactured from high-carbon steel and processed through cold drawing and heat treatment to achieve the tensile strength, elongation, and relaxation properties required for structural safety. This makes PC wire a core material for precast concrete manufacturers, railway infrastructure builders, and utility pole producers who need dependable performance under sustained tension.
TJ Wasungen's prestressed steel wire is engineered around the mechanical and dimensional characteristics that matter most to structural buyers:
High tensile strength — produced to meet or exceed 1570–1860 MPa depending on grade, giving structures greater load capacity per unit of steel.
Controlled diameter — tight tolerance control across the coil length ensures consistent cross-sectional area and predictable force transfer.
Stable elongation — engineered elongation-at-break values that balance strength with ductility, reducing the risk of brittle failure under load.
Low relaxation performance — minimizes long-term stress loss in the wire after tensioning, which is critical for maintaining prestress force over the service life of a structure.
Consistent mechanical properties — batch-to-batch uniformity in strength, hardness, and ductility, verified through in-process testing.
Good dimensional accuracy — roundness and surface finish are monitored throughout drawing to avoid stress concentrations.
Reliable coil quality — coils are wound to export standards with consistent layering to prevent tangling, kinking, or surface damage during transit.
Multiple surface configurations — plain, indented, helical, and galvanized finishes are available to suit different bonding and corrosion-resistance requirements.

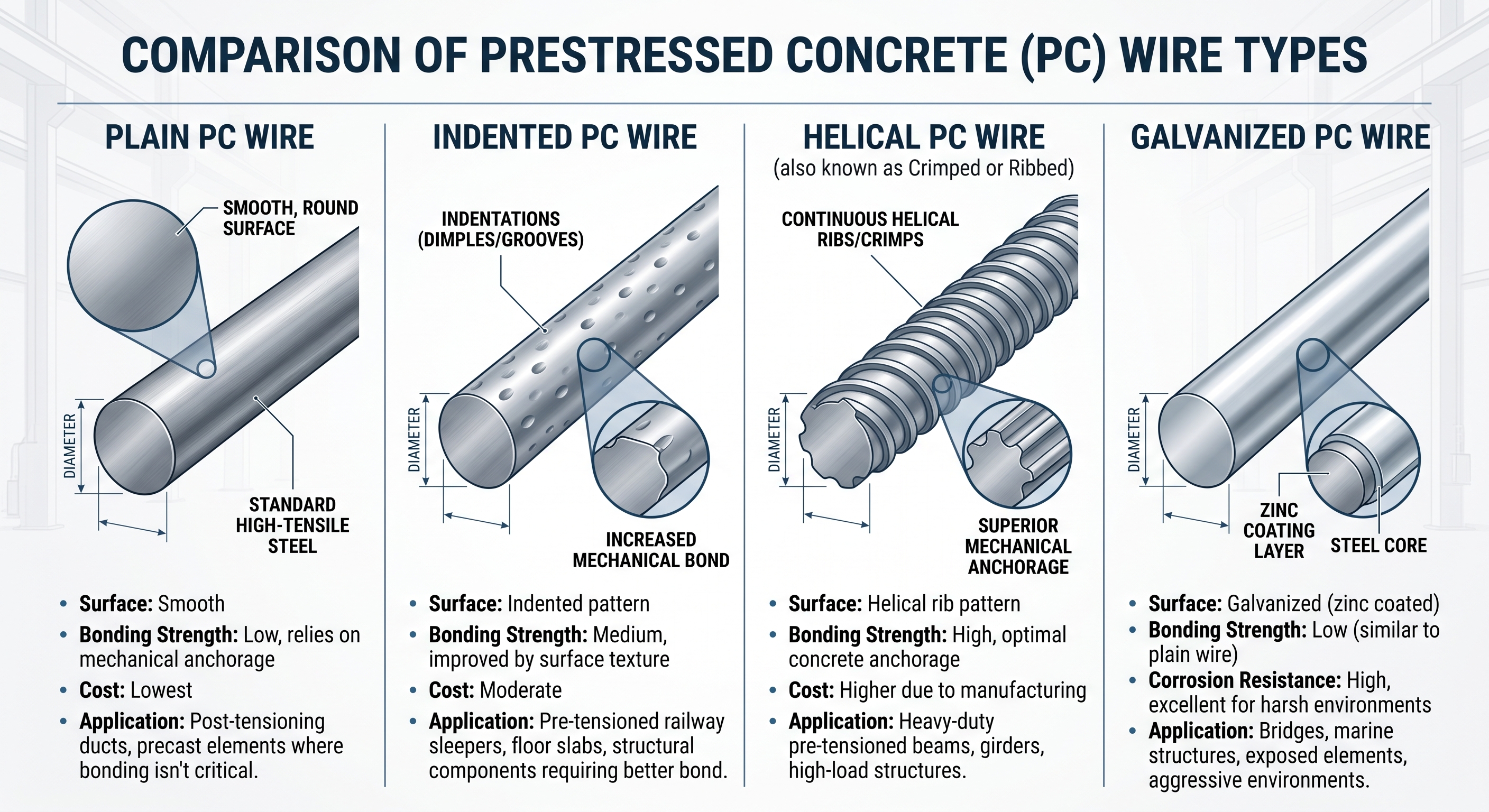

Plain PC wire has a smooth, uncoated surface and relies primarily on the mechanical anchorage of end fittings rather than surface bond for force transfer. It is commonly used in post-tensioned systems and applications where the wire passes through ducts or sheathing, such as certain anchoring and tensioning assemblies.
Indented prestressed steel wire features small, evenly spaced surface indentations rolled into the wire during production. These indentations increase the mechanical interlock between the wire and the surrounding concrete, improving bond strength in pre-tensioned applications such as concrete poles and pipes where direct wire-to-concrete adhesion is required.
Helical (or spiral-ribbed) prestressed steel wire has a continuous spiral rib pattern along its length. This profile further enhances mechanical bonding compared to indentation alone, making it well suited to precast components that experience high bond-stress demands, such as railway sleepers and pressure pipes.
Galvanized prestressed steel wire is coated with a zinc layer to provide additional corrosion resistance. It is typically specified for structures exposed to moisture, coastal environments, or aggressive atmospheric conditions, including outdoor guy wires, fencing systems, and infrastructure in humid climates.

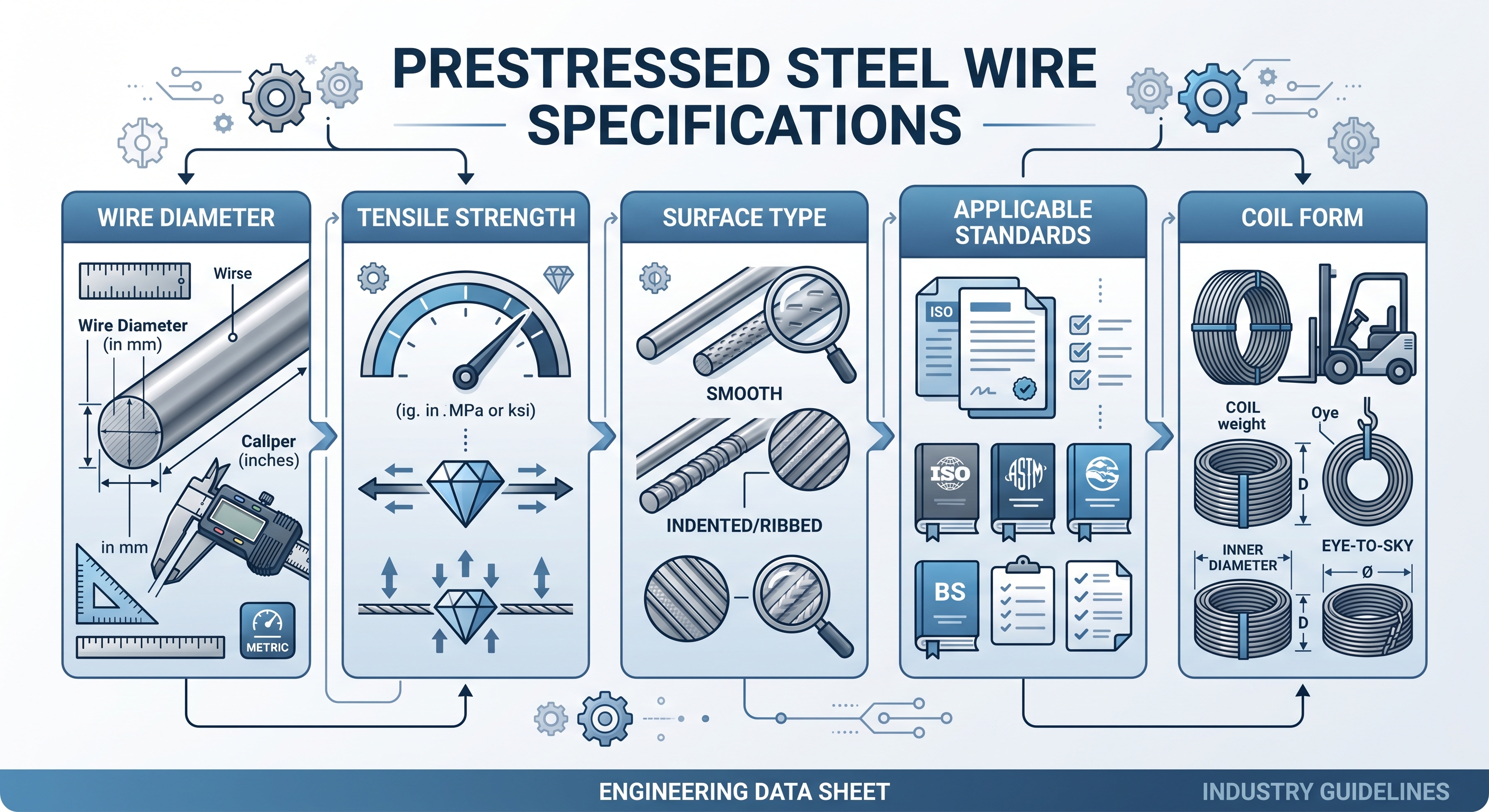

Specification | Details |
Product | Prestressed Steel Wire / PC Wire |
Structure | Single high-strength steel wire |
Diameter | 5 mm / 7 mm / 8 mm / 9 mm |
Tensile Strength | 1570–1860 MPa |
Surface | Plain / Indented / Helical / Galvanized |
Standards | ASTM / EN / GB/T |
Coil Type | Export Coils |
Relaxation | Low Relaxation / Stress Relieved |
Certification | Mill Test Certificate |

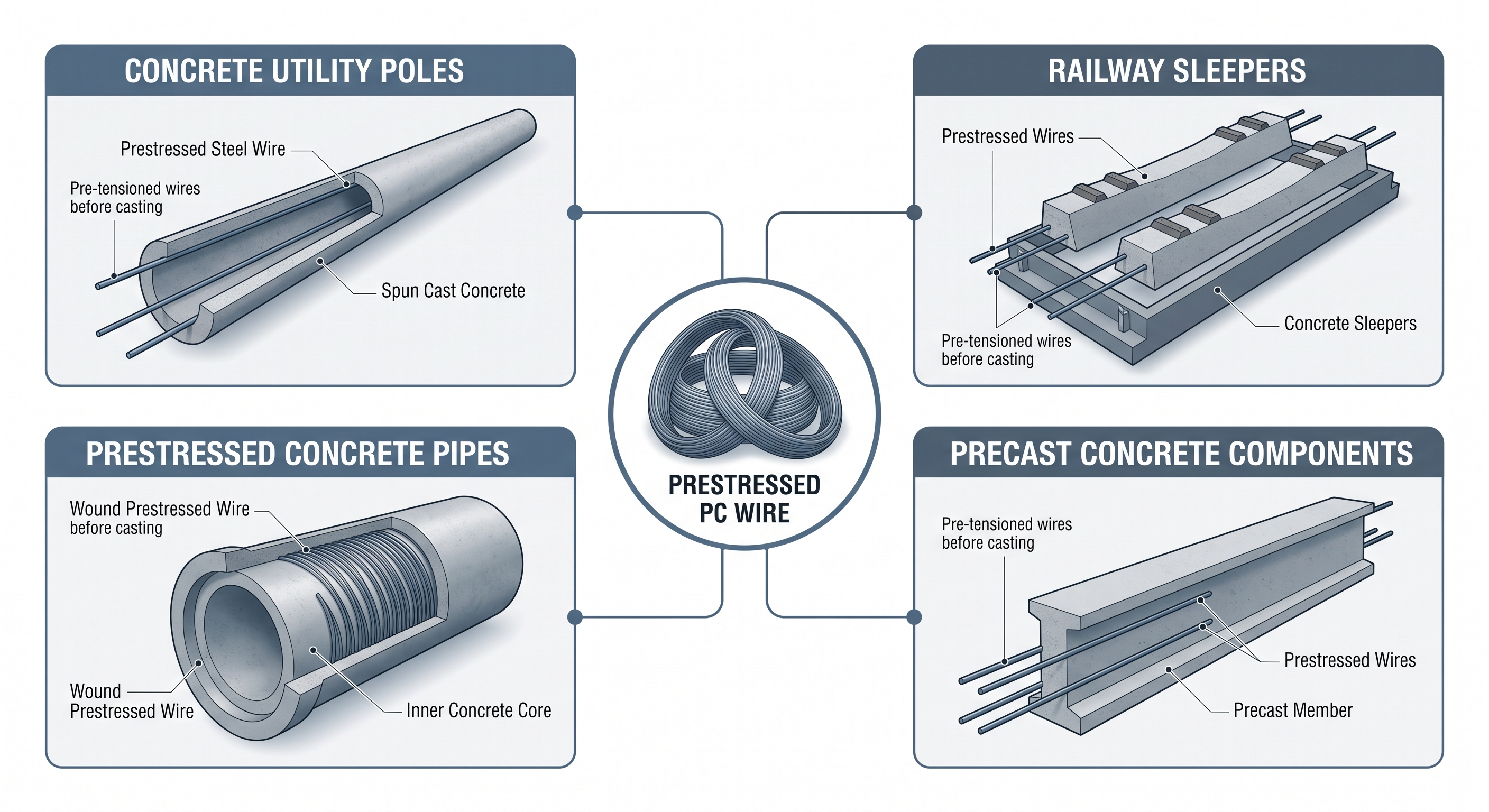

Prestressed concrete poles — used in electricity transmission and telecommunication pole production, where high strength-to-weight ratio reduces pole weight without sacrificing load capacity.
Railway sleepers — provides the sustained tensile force required for precast concrete sleepers to withstand repeated dynamic rail loading.
Prestressed concrete pipes — reinforces pressure and drainage pipes against internal hydraulic loads and external soil pressure.
Precast concrete components — supports beams, slabs, panels, and other factory-cast structural elements that require pre-tensioning before curing.
Anchoring and tension systems — used in post-tensioning assemblies and ground anchorage systems for retaining structures.
Fence and guy systems — galvanized wire variants are applied in tensioned fencing and guy-wire support systems exposed to outdoor conditions.
Industrial reinforcement — general-purpose high-strength reinforcement for custom industrial and structural projects.
High-carbon steel rod selection — raw wire rod is selected for chemical composition and cleanliness to support the drawing process.
Wire drawing — the rod is cold-drawn through progressively smaller dies to achieve the target diameter and increase tensile strength.
Heat treatment — controlled heat treatment (stress-relieving) refines the wire's internal structure, improving ductility and relaxation performance.
Surface treatment — depending on product type, the wire surface is left plain, indented, ribbed, or hot-dip/electro-galvanized.
Diameter and roundness inspection — dimensional checks confirm the wire meets tolerance requirements along the full coil length.
Tensile and elongation testing — sample wires are pulled to verify tensile strength and elongation meet the specified grade.
Coil forming — finished wire is wound into export coils with consistent tension and layering.
Final quality inspection — coils undergo a final visual and dimensional check before release.
Packing and shipment — coils are packed for export using moisture-resistant wrapping suitable for long-distance sea or land freight.
For B2B buyers, compliance with recognized international standards is essential — it determines whether the wire is accepted by engineers, certifying bodies, and project inspectors in the destination country. TJ Wasungen produces prestressed steel wire in line with major international standards, including:
ASTM (American standards for prestressing steel wire)
EN (European standards for prestressing steel)
GB/T (Chinese national standards)
Every production batch is subject to a structured testing regime, including:
Tensile strength testing
Elongation testing
Diameter inspection
Surface inspection
Relaxation testing
Mill Test Certificate (MTC) issuance for each shipment
These test records provide traceability and give buyers documented proof of compliance for customs clearance, project certification, and quality audits.
Buyers often need to decide between prestressed steel wire and PC strand depending on the structural demands of their project.
Feature | ||
Structure | Single wire | Multiple wires twisted together |
Handling | Simple | More complex |
Diameter | Generally smaller | Generally larger |
Typical use | Poles, sleepers, pipes, precast products | Bridges, slabs, large structures |
Surface options | Plain, indented, helical, galvanized | Plain, indented, coated, etc. |
For a more detailed comparison, see our full PC Wire vs PC Strand guide.
Selecting the correct prestressed steel wire depends on several project-specific factors:
Required diameter — matched to the structural design load
Tensile strength grade — 1570 MPa, 1670 MPa, 1770 MPa, or 1860 MPa depending on application
Surface type — plain, indented, helical, or galvanized based on bonding needs
Bonding requirements — pre-tensioned applications generally require indented or helical surfaces
Corrosion exposure — galvanized wire for humid, coastal, or outdoor environments
Relaxation requirements — low-relaxation wire for structures requiring long-term prestress retention
Applicable standard — ASTM, EN, or GB/T depending on the destination market's regulatory requirements
Application — poles, sleepers, pipes, precast panels, or anchoring systems
Quantity / MOQ — order volume affects pricing tiers and lead time
Coil and packaging requirements — export coil weight, wrapping, and container loading specifications
Factory-direct supply from China — competitive pricing without intermediary markups
Multiple PC wire types — plain, indented, helical, and galvanized options from a single supplier
Consistent diameter and tensile properties — controlled production process for reliable batch-to-batch quality
International standards — production aligned with ASTM, EN, and GB/T requirements
Mill Test Certificates — full documentation provided with every shipment
Export-ready coil packaging — coils packed to withstand long-distance international freight
Bulk order support — production capacity suited to large infrastructure and precast projects
Technical assistance — guidance on selecting the right diameter, grade, and surface type for your application
Shipment and documentation support — assistance with export paperwork and logistics coordination
Ready to source prestressed steel wire for your next project? Send us your technical requirements and our team will respond with pricing, lead time, and product recommendations.
Please include the following details for a fast, accurate quote:
Wire type (plain / indented / helical / galvanized)
Diameter
Tensile grade
Required quantity
Surface type
Applicable standard (ASTM / EN / GB/T)
Destination country/port
Send Your Technical Requirements
1. What is prestressed steel wire?
Prestressed steel wire, or PC wire, is a high-strength cold-drawn steel wire used to tension concrete structures before or after casting, placing the concrete into compression to increase its load-carrying capacity.
2. What is prestressed steel wire used for?
It is used in concrete poles, railway sleepers, prestressed concrete pipes, precast panels and beams, anchoring systems, and tensioned fencing or guy-wire systems.
3. What is the difference between PC wire and PC strand?
PC wire is a single high-strength wire, while PC strand is made of multiple wires twisted together. Strand is typically used for larger structures like bridges and slabs, while wire suits poles, sleepers, pipes, and general precast products.
4. What sizes of prestressed steel wire are available?
Common diameters include 5 mm, 7 mm, 8 mm, and 9 mm, though other sizes may be available depending on production capability — contact our team to confirm.
5. What is the tensile strength of prestressed steel wire?
Standard tensile strength grades range from approximately 1570 MPa to 1860 MPa, depending on the wire type and specification requested.
6. What is the difference between plain and indented PC wire?
Plain PC wire has a smooth surface and relies on mechanical end anchorage, while indented PC wire has surface indentations that improve mechanical bond with concrete, making it better suited to pre-tensioned applications.
7. Is low relaxation prestressed steel wire available?
Yes. Low relaxation (stress-relieved) prestressed steel wire is available and is recommended for applications where long-term retention of prestress force is critical.
8. What standards does prestressed steel wire comply with?
Our prestressed steel wire is produced in accordance with ASTM, EN, and GB/T standards, depending on the buyer's regional requirements.
9. Can you provide a Mill Test Certificate for PC wire?
Yes, a Mill Test Certificate (MTC) is issued with every production batch, documenting tensile strength, elongation, diameter, and other tested mechanical properties.
