When it comes to selecting the right GI wire for your project, one of the most critical decisions is choosing between hot dip galvanized wire and electro galvanized wire. Both are steel wires coated with zinc for corrosion protection — but they differ significantly in coating thickness, durability, application suitability, surface finish, and cost.
This guide gives you a complete, side-by-side comparison of hot dip galvanized wire vs electro galvanized wire so you can make the best decision for your specific needs.
Get Factory Direct Price Today

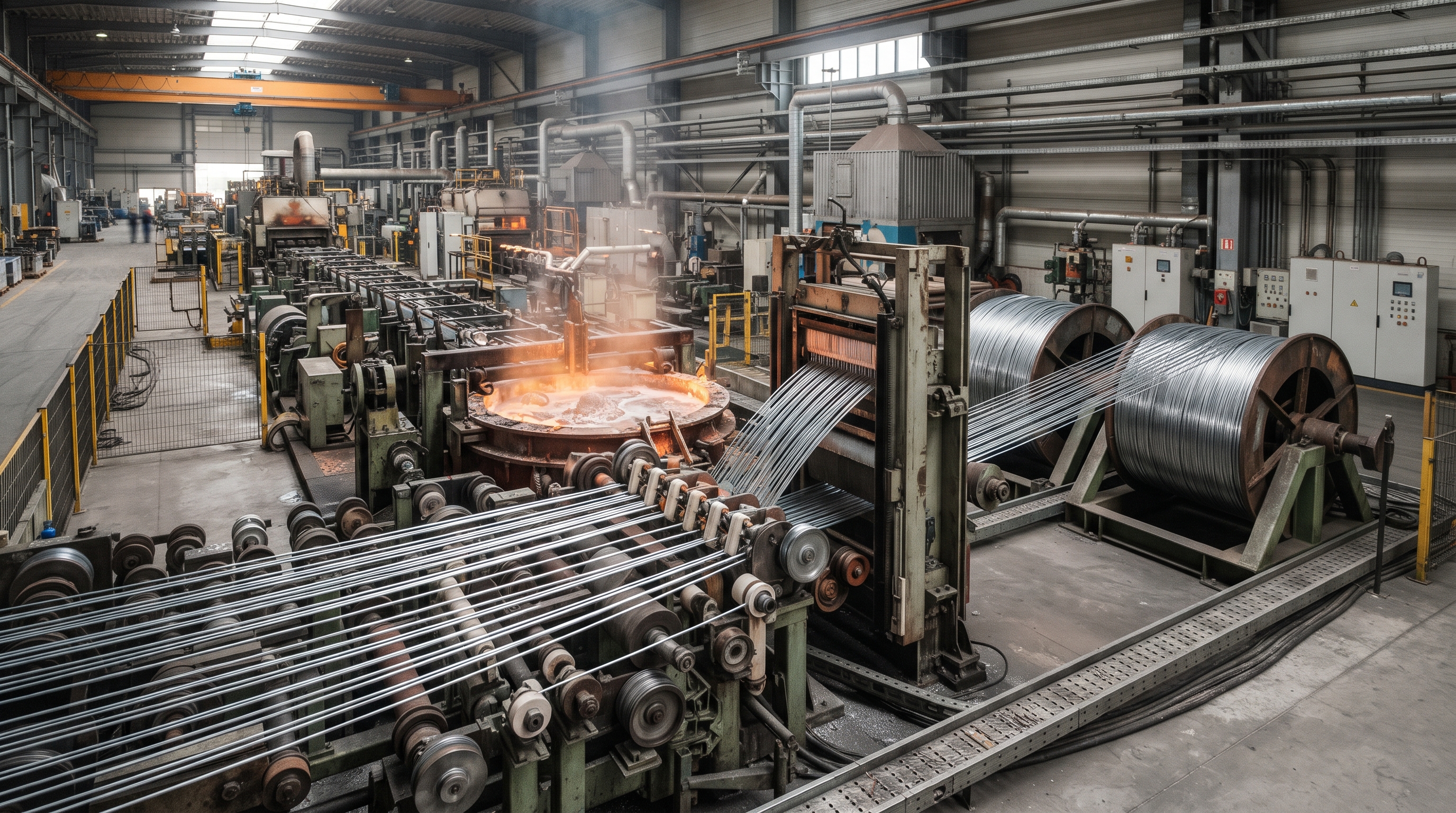

Hot dip galvanized wire is produced by passing cleaned and fluxed steel wire through a bath of molten zinc at approximately 450°C (840°F). As the wire exits the bath, excess zinc is removed through wiping or air-blowing, leaving a thick, metallurgically bonded zinc coating.
Zinc coating thickness: 60–350 g/m² (typically much thicker than electro galvanized)
Coating bond: Metallurgical bond — the zinc alloys with the steel surface
Surface appearance: Matte gray, slightly rough or spangled
Corrosion resistance: Excellent — suitable for decades of outdoor use
Tensile strength: 350–1200 N/mm² depending on wire grade
Wire diameter range: 0.5 mm – 10 mm
Electro galvanized wire (also called electroplated galvanized wire) is produced by running the steel wire through a zinc electrolyte solution while applying an electric current. Zinc ions are deposited onto the wire surface layer by layer.
Zinc coating thickness: 10–30 g/m² (thin layer)
Coating bond: Physical/adhesive bond — no metallurgical alloying
Surface appearance: Bright, shiny, smooth, uniform
Corrosion resistance: Moderate — suitable for indoor or short-term outdoor use
Tensile strength: Similar base steel, but coating offers less long-term protection
Wire diameter range: 0.3 mm – 5 mm (often finer gauges)
Get Your Custom Quotation Within 24 Hours
Feature | Hot Dip Galvanized Wire | Electro Galvanized Wire |
Galvanizing Process | Immersed in molten zinc (~450°C) | Electrochemical zinc deposition |
Zinc Coating Thickness | 60–350 g/m² (thick) | 10–30 g/m² (thin) |
Coating Bond Type | Metallurgical (zinc-iron alloy) | Physical/adhesive |
Corrosion Resistance | Excellent (20–50+ years outdoors) | Moderate (suitable for indoor/light outdoor) |
Surface Finish | Matte gray, rough/spangled texture | Bright, smooth, shiny |
Tensile Strength | 350–1200 N/mm² | 350–900 N/mm² (varies) |
Wire Diameter Range | 0.5 mm – 10 mm | 0.3 mm – 5 mm |
Flexibility | Slightly stiffer due to thicker coating | More flexible, finer gauges available |
Cost | Higher (more zinc, more energy) | Lower (thinner coating, faster process) |
Best For | Outdoor, coastal, heavy-duty use | Indoor, decorative, light-duty use |
Standards | ASTM A641, EN 10244, BS 443, GB | ASTM B633, EN 12329 |
Typical Applications | Fencing, gabions, construction, agriculture | Craft wire, binding, light mesh, indoor use |
Corrosion Resistance: The Most Important Difference
The most significant difference in the hot dip galvanized wire vs electro galvanized wire comparison is corrosion resistance.
The thick zinc layer (60–350 g/m²) provides a long-lasting barrier against moisture, oxygen, and corrosive chemicals. Because zinc alloys with the steel surface during the hot dip process, the bond is exceptionally strong. This wire can withstand:
Outdoor exposure for 20–50+ years
Coastal/marine environments
High-humidity regions
Soil contact (underground use)
Industrial and chemical environments
With only 10–30 g/m² of zinc, electro galvanized wire offers limited protection. The coating is thinner and bonded through adhesion rather than metallurgical fusion. It performs well in:
Dry indoor environments
Light outdoor use with minimal moisture exposure
Short-term applications
Decorative or craft applications
Get an Instant Quote for Your Order

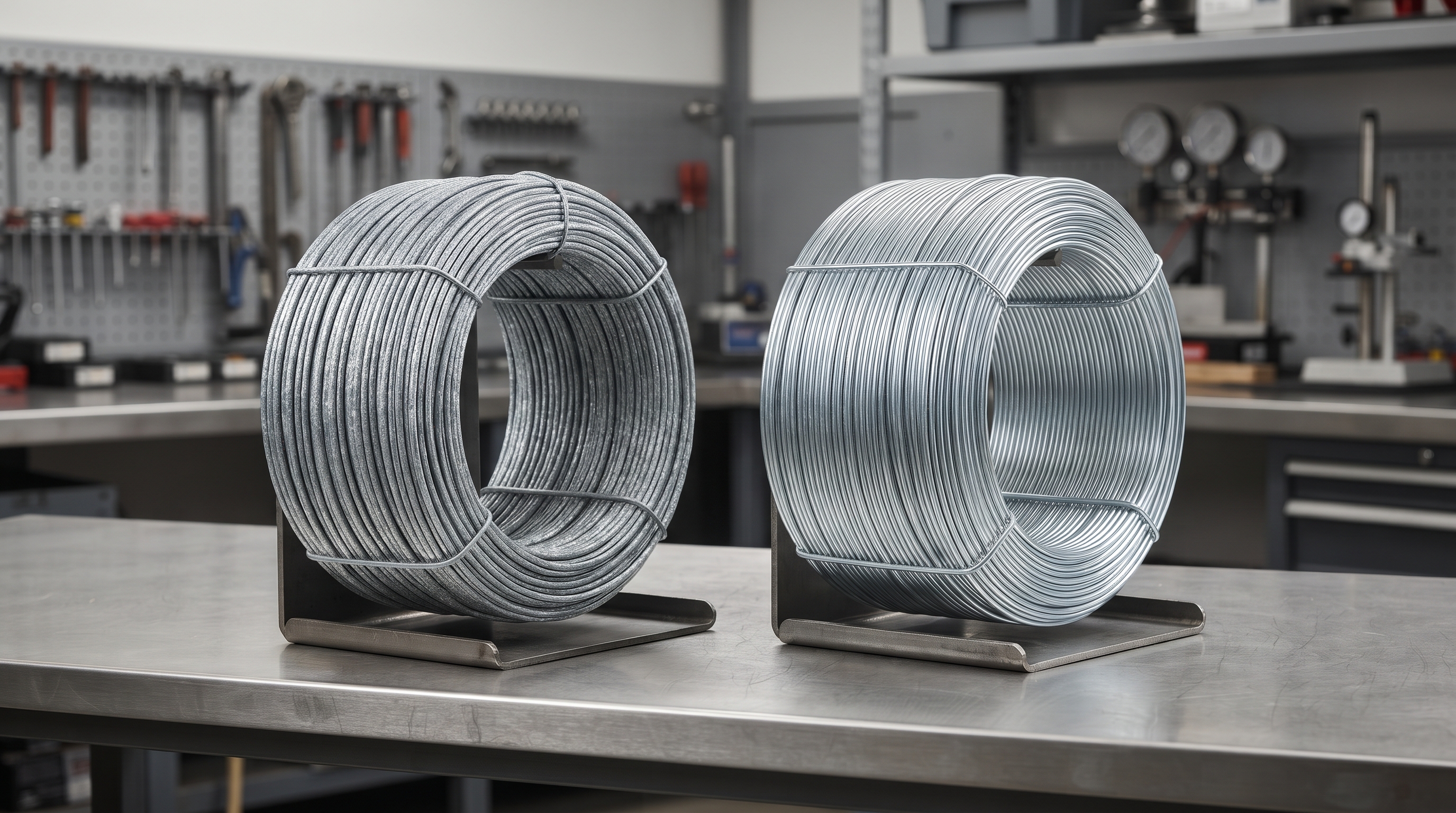

The hot dip process produces a somewhat rough, matte gray, or spangled surface. This texture can actually improve adhesion when used in concrete or coated products. However, it is less visually appealing for decorative uses.
The electroplating process results in a bright, shiny, highly uniform surface finish. The coating is even and smooth, making it preferable where appearance matters — such as display stands, craft projects, fine mesh screens, or products that will be painted or further coated.
Coating weight is measured in grams per square meter (g/m²) and directly relates to how long the wire will last before corrosion begins.
Coating Type | Typical Coating Weight | Salt Spray Test Life |
Hot Dip (Heavy Class) | 200–350 g/m² | 1,000–2,000+ hours |
Hot Dip (Standard Class) | 60–200 g/m² | 500–1,000 hours |
Electro Galvanized | 10–30 g/m² | 100–300 hours |
This data makes clear why hot dip galvanized wire is the preferred choice for demanding, long-life applications.
Electro galvanized wire is generally less expensive than hot dip galvanized wire because:
Less zinc material is consumed
The electroplating process is faster and more energy-efficient for thin coatings
It is easier to produce in fine diameters
Hot dip galvanized wire costs more due to the larger volume of zinc used and the energy required to maintain a molten zinc bath. However, the long-term cost of ownership is lower because it requires little to no maintenance or replacement for decades.
Fencing — Chain link fences, barbed wire, field fencing (long outdoor exposure)
Gabion and rock cage production — Direct soil and water contact
Construction binding — Rebar tying in concrete structures
Agricultural use — Vineyard trellises, animal enclosures, greenhouse frames
Power transmission and telecom — Cable armoring and support wire
Coastal or marine environments — Where salt air accelerates corrosion
Industrial applications — Heavy-duty binding, bundling, and packaging
Craft and hobby work — Jewelry, floral wire, DIY projects
Indoor binding and packaging — Light-duty ties, bundling
Fine mesh screens — Window screens, filter mesh, light industrial screens
Painted or coated products — Where wire will receive additional surface treatment
Short-term outdoor use — Temporary enclosures, seasonal applications
Both types of galvanized wire are produced under internationally recognized standards.
Hot Dip Galvanized Wire Standards:
ASTM A641 / A641M (USA)
EN 10244-2 (Europe)
BS 443 (UK)
GB/T 343 (China)
Electro Galvanized Wire Standards:
ASTM B633 (USA)
EN 12329 (Europe)
When sourcing from manufacturers, always confirm the applicable standard and minimum zinc coating class to ensure the product meets your project requirements.
Choose Hot Dip Galvanized Wire if:
✅ Your application is outdoors, coastal, or underground
✅ You need long service life (10–50+ years)
✅ The wire will be in contact with soil, water, or humidity
✅ You're building fences, gabions, agricultural structures, or construction ties
✅ You need thicker gauge wire (up to 10 mm)
Choose Electro Galvanized Wire if:
✅ The application is indoors or in a dry, controlled environment
✅ You need a bright, shiny, uniform surface finish
✅ Cost savings are the primary concern for short-term use
✅ You're working with fine gauge wire for craft, mesh, or decorative purposes
✅ The wire will be further coated or painted
Q: Is hot dip galvanized wire stronger than electro galvanized wire?
Both types are made from low carbon steel wire, so the base tensile strength is similar. The zinc coating does not significantly affect tensile strength. However, hot dip galvanized wire is often produced in heavier grades designed for construction and industrial use.
Q: Can electro galvanized wire be used outdoors?
Yes, but only for light-duty or short-term outdoor applications in mild climates. For sustained outdoor exposure, especially near the coast or in humid environments, hot dip galvanized wire is strongly recommended.
Q: What is the lifespan difference between the two?
Hot dip galvanized wire can last 20–50+ years in outdoor environments. Electro galvanized wire may begin showing rust in 1–5 years outdoors, depending on environmental conditions.
Q: Which is more environmentally friendly?
Hot dip galvanizing uses more energy and zinc but offers a longer service life, meaning less frequent replacement and less material waste over time. Electro galvanizing uses less zinc per unit but produces shorter-lived products that may need more frequent replacement.
Q: What zinc coating weight should I specify for outdoor use?
For standard outdoor fencing, a minimum of 60 g/m² (hot dip) is recommended. For coastal, marine, or aggressive environments, specify 200–300+ g/m².
