Picking the right PC wire grades and standards for your project isn't something you want to mess up. Use the wrong grade, and you're looking at potential structural failure. Use wire that doesn't meet standards, and inspectors will shut you down.
Let's cut through the confusion and break down exactly what these grades mean and which standards actually matter in the real world.
Here's the deal: prestressed concrete wire works under extreme tension for decades. There's zero room for subpar materials or sloppy manufacturing.
That's where international wire standards come in. They set minimum requirements for strength, testing, and quality control. When wire meets these standards, you know it'll perform as expected.
Think of standards as your safety net. They're written in engineering-speak and reference numbers, but they're really about keeping structures safe and projects running smoothly.

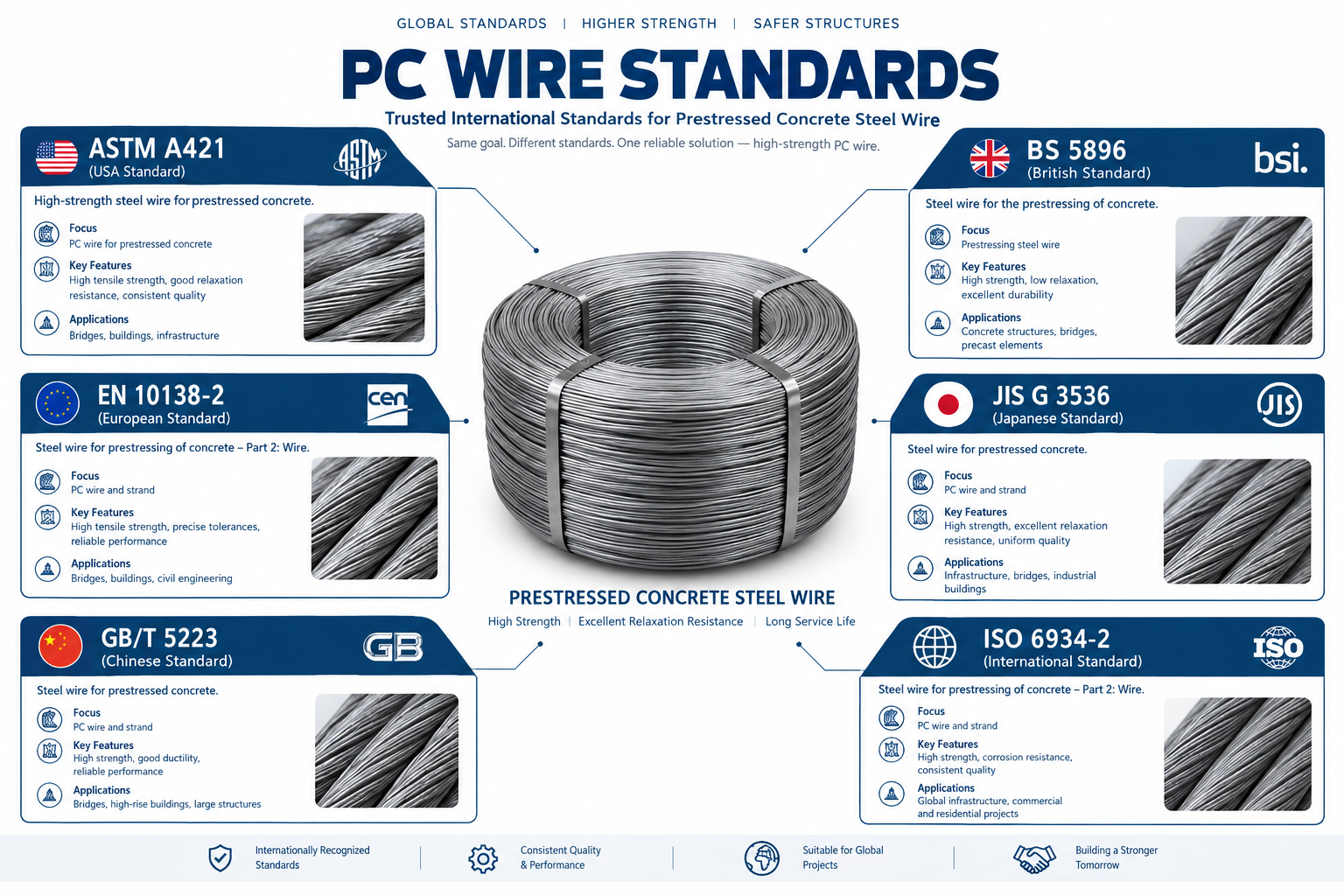

Different countries developed their own PC wire standards, though they're all aiming for the same goal: reliable, high-strength wire for prestressed concrete.
The American Society for Testing and Materials sets the bar for wire used in North American projects and many international applications.
ASTM A421 covers uncoated stress-relieved wire for prestressed concrete. This standard specifies:
Minimum tensile strength requirements
Testing procedures for strength and elongation
Permissible variations in wire diameter
Marking and certification requirements
ASTM A416 deals with a seven-wire strand, which is multiple wires twisted together. It's probably the most widely used standard globally.
Contractors and engineers near you likely reference ASTM standards by default unless the project specifically calls for something else.
The British Standard BS 5896 governs high tensile steel wire and strand in the UK and former British territories. It shares similarities with ASTM but includes specific UK requirements.
This standard covers:
Wire and strand manufacturing specifications
Chemical composition limits
Mechanical property requirements
Testing frequency and methods
Many international projects accept BS 5896 certified wire as equivalent to ASTM specifications.
EN 10138-2 is the European norm specifically for prestressing wire. Part 2 focuses on wire, while other parts cover strand and bars.
European projects must use EN certified wire, though the technical requirements align closely with other international standards. The main differences show up in testing protocols and documentation.
The Japanese Industrial Standard JIS G 3536 governs prestressed concrete wire and strand in Japan and some Asian markets.
Japanese standards often include tighter tolerances and additional testing requirements compared to Western standards. Quality control tends to be extremely rigorous.
GB/T 5223 is the Chinese national standard for prestressed concrete steel wire. With China's massive infrastructure development, this standard covers huge volumes of wire production.
Chinese manufacturers near you producing for export often certify their wire to multiple standards, including GB/T alongside ASTM or EN.
ISO 6934-2 provides international specifications attempting to harmonize various national standards. It's less commonly specified than regional standards but offers a neutral reference point.

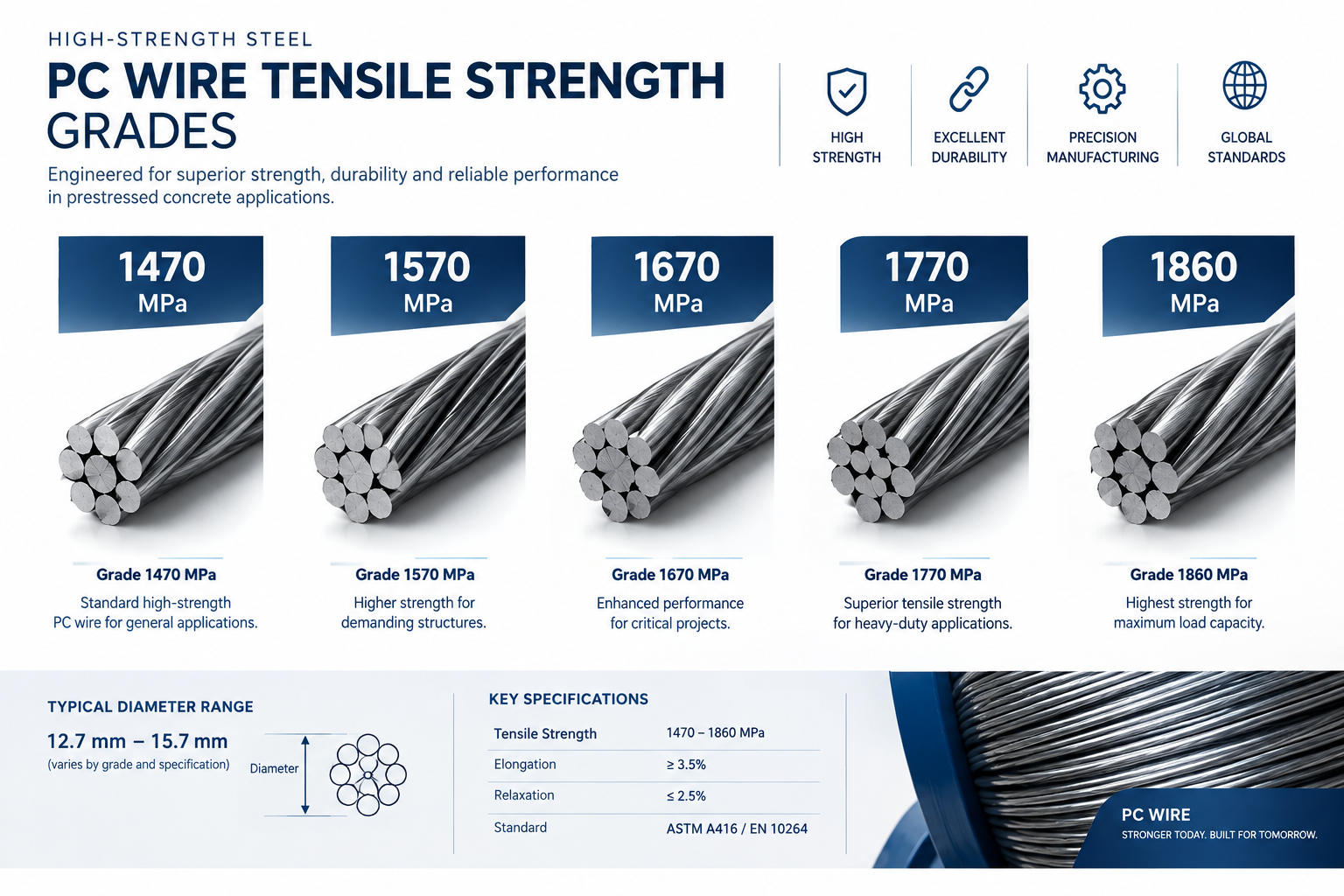

PC wire grades and standards classify wire primarily by tensile strength. The grade number typically indicates minimum tensile strength in megapascals (MPa).
Here's how the wire strength grades break down in real-world terms:
1470 MPa Grade (approximately 213 ksi)
This is the entry-level grade for prestressed applications. It provides adequate strength for moderate spans and loads.
1570 MPa Grade (approximately 228 ksi)
A mid-range option offering better performance than 1470 MPa without the premium cost of higher grades.
1670 MPa Grade (approximately 242 ksi)
Popular for general bridge construction and building applications requiring good strength-to-weight ratios.
1770 MPa Grade (approximately 257 ksi)
Higher-strength option for demanding applications like long-span bridges or heavy-load structures.
1860 MPa Grade (approximately 270 ksi)
The highest commonly available grade, used where maximum strength and minimum weight are required.
When you see specifications listing prestressed wire grades, they'll look something like "1860 MPa Low Relaxation" or "Grade 270 Stress-Relieved."
The number indicates tensile strength. Additional terms describe other properties:
Low Relaxation (LR): Wire loses minimal tension over time
Stress-Relieved (SR): Heat treated to reduce internal stresses
Normal Relaxation: Older designation, rarely used now
Most modern applications specify low relaxation wire because it maintains prestress force better over decades of service.
The minimum tensile strength specified in PC wire grades and standards isn't just a number pulled from thin air. It represents what the wire must achieve under standardized testing.
Manufacturers test wire samples by gripping both ends and pulling until the wire breaks. The maximum force divided by the wire's cross-sectional area gives tensile strength.
Standards specify:
Sample selection methods from production runs
Grip lengths and spacing
Testing machine requirements
Calculation procedures
Quality control testing happens continuously during production. If a batch fails to meet the specified grade, it gets rejected or downgraded.
Choosing the right strength grade affects:
How much load the structure can safely carry
The spacing between support columns or piers
Overall material costs for the project
Long-term performance and durability
Engineers calculate required prestress forces based on design loads, then specify a wire grade that'll deliver those forces reliably.
Using a lower grade than designed means potential structural failure. Using a higher grade than needed wastes money without adding value.

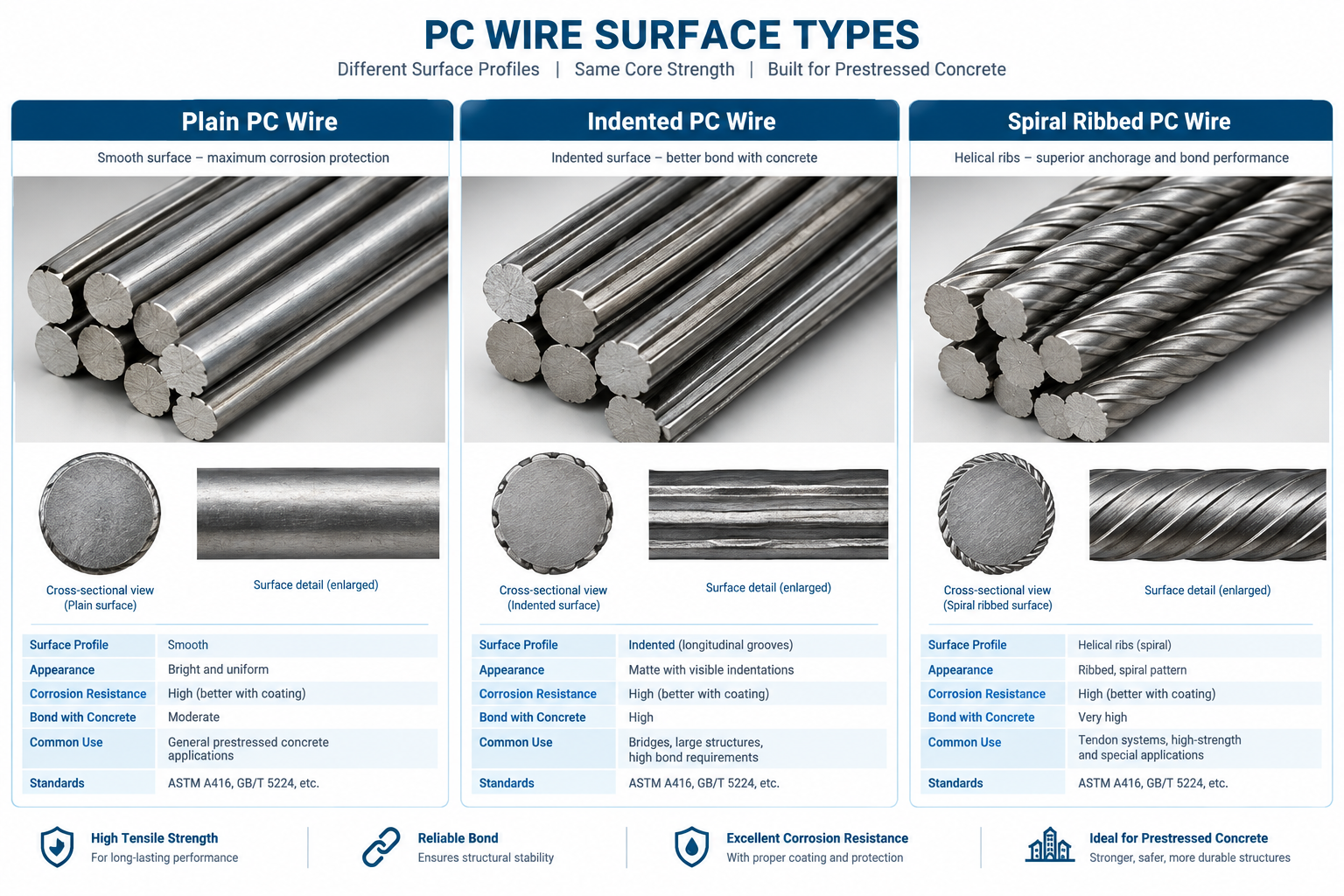

Beyond strength grades, PC wire grades and standards also classify wire by surface configuration, which affects how well it bonds to concrete.
Smooth wire has no surface deformations. It relies on friction and chemical bonding with concrete.
This works fine for many applications, especially pre-tensioned work where transfer lengths aren't critical. The smooth surface also makes it easier to thread through post-tensioning ducts.
Indented PC wire features small dents or grooves pressed into the surface at regular intervals. These indentations create mechanical interlock with surrounding concrete.
Benefits include:
Shorter transfer lengths in pre-tensioned work
Better anchorage in post-tensioned applications
Reduced risk of wire slippage under load
Improved crack control near wire ends
Most modern specifications prefer indented wire for its superior performance.
Helical wire or spiral ribbed wire takes surface enhancement further. The wire gets twisted or formed with continuous helical ribs running its length.
This three-dimensional surface pattern provides:
Maximum bonding with concrete
Excellent anchorage characteristics
Superior performance in aggressive environments
Better distribution of prestress forces
The trade-off is slightly higher manufacturing costs and complexity.
Low relaxation characteristics are a defining feature of quality prestressed wire. Understanding what this means helps you appreciate why standards specify it.
Steel relaxation means gradual loss of tension over time when wire stays under constant load. It's like how a stretched rubber band eventually loses some snap.
In prestressed concrete, relaxation reduces the compressive force holding the concrete. Too much relaxation, and the structure loses its prestress benefits.
PC wire grades and standards typically require maximum relaxation of 2.5% after 1000 hours at 70% of breaking strength.
Here's what that means practically:
Wire tensioned to 70% of its breaking strength
Held at that tension for 1000 hours (about 42 days)
Should lose no more than 2.5% of initial force
Wire meeting this requirement will maintain prestress effectively for decades in real structures.
The thermal stabilization process during manufacturing creates low relaxation properties. Wire passes through furnaces while under tension, permanently relieving internal stresses.
This heat treatment is what separates prestressed wire from regular high-strength steel wire. Without it, relaxation would exceed 10-15%, making the wire unsuitable for prestressing.
Wire diameter is another key classification in PC wire grades and standards. Common sizes range from 4mm to 9mm, though availability varies by region.
Popular wire sizes you'll encounter:
4mm: Light-duty applications, small precast elements
5mm: Common general-purpose size, good balance of strength and handling
7mm: Popular for bridges and larger structures
9mm: Heavy-duty applications requiring maximum strength per wire
Strand products combine multiple wires. A 12.7mm strand typically contains seven 5mm wires twisted together, while 15.2mm strand uses seven 5.5mm wires.
Standards specify allowable variation in wire diameter. Typical tolerances run ±0.2mm to ±0.3mm depending on nominal size.
Tight diameter control matters because:
Tensile strength calculations depend on cross-sectional area
Duct and anchor sizing assumes consistent wire diameter
Automatic prestressing equipment requires predictable dimensions
Environmental conditions determine whether you need coated wire. PC wire grades and standards cover several coating types.
Bare steel wire has no protective coating. It's fine for:
Indoor applications with controlled humidity
Fully grouted post-tensioned systems
Pre-tensioned elements with adequate concrete cover
Non-aggressive environments
Uncoated wire costs less but needs proper protection from the concrete cover and environmental isolation.
Zinc-coated wire provides sacrificial corrosion protection. The zinc corrodes preferentially, protecting the underlying steel.
Galvanized PC wire works well in:
Outdoor structures with normal exposure
Parking garages seeing de-icing salt exposure
Moderate coastal environments
Structures requiring extended service life
Standards specify minimum zinc coating thickness (typically 200-300g/m²) and adhesion requirements.
Epoxy coating creates a barrier preventing moisture and oxygen from reaching the steel. This provides superior protection compared to galvanizing.
Applications include:
Marine structures near saltwater
Industrial facilities with aggressive chemicals
Critical infrastructure requiring maximum durability
Situations where wire replacement would be extremely difficult
The epoxy must withstand handling and tensioning without damage, so standards specify coating thickness, adhesion, and impact resistance.
PC wire grades and standards distinguish between single wires and multi-wire strands. The form you choose depends on application requirements.
Mono wire is used in:
Spun concrete poles (utility poles, lighting poles)
Smaller precast elements like railroad ties
Some pre-tensioned applications with short spans
Situations requiring precise individual wire control
Single wire costs less per ton than strand and offers flexibility in tensioning arrangements.
Seven-wire strand is the workhorse of prestressing. Six wires spiral around one center wire, creating a bundled product.
Strand advantages include:
Higher total force capacity per anchor point
Better flexibility for threading through ducts
Standard sizes simplifying design and procurement
Better resistance to handling damage
Most bridge and building projects use strand rather than individual wires.
While PC wire grades and standards focus on mechanical properties, they also specify chemical composition limits ensuring consistent performance.
High-carbon steel (0.7-0.85% carbon) provides the strength needed for prestressing. Too little carbon, and you can't achieve required strength. Too much makes wire brittle.
Standards limit elements like:
Sulfur and phosphorus: Kept low to prevent brittleness
Manganese: Added for strength and hardenability
Silicon: Helps deoxidize steel during production
Chromium: Sometimes added for corrosion resistance
The exact composition varies by manufacturer, but all must meet standard limits.
When you buy wire meeting PC wire grades and standards, you should receive documentation proving compliance.
Material test reports (also called mill test certificates or MTCs) should include:
Actual tensile strength achieved
Measured elongation at break
Relaxation test results if performed
Chemical composition analysis
Heat/batch identification numbers
These certificates trace back to actual production batches, not just generic data sheets.
For critical projects, independent labs can verify wire properties. This adds confidence that the material meets specifications.
So how do you pick from all these PC wire grades and standards? Let the project requirements guide you.
Engineers determine required prestress forces based on:
Expected service loads
Span lengths
Concrete strength
Desired safety factors
Those calculations specify a minimum wire grade and standard.
Project location often dictates which standard applies. US projects default to ASTM standards, European work requires EN compliance, and so on.
Contract documents will specify exact requirements. Don't assume different standards are interchangeable without checking.
Check what manufacturers near you can supply. Exotic grades or non-standard specifications increase lead times and costs.
Most suppliers stock common grades (1770 MPa and 1860 MPa) in standard diameters. Special orders take longer and cost more.
Understanding PC wire grades and standards helps you specify the right material and verify you're getting what you paid for.
The grades indicate strength. The standards ensure quality. Together, they give you confidence that the wire will perform safely for decades in your prestressed concrete structure.
Don't cut corners here. Use wire meeting recognized standards, properly certified, from reputable manufacturers. The safety of your structure depends on it.
