If you work with concrete, bridges, or heavy structures, you have likely heard this question more than once. What is PC Strand, and why does it show up in so many modern projects? Let’s slow things down and talk plainly, no lab-coat language, no fluff, just real-world answers you can use.
At Tj Wasungen, we deal with prestressing materials every day. Over the years, contractors, engineers, and even curious property owners near you keep asking the same thing. So, let’s clear it up once and for all.
Before diving into details, here’s the straight answer you’re looking for.
What is PC Strand? PC Strand stands for prestressed concrete strand. It is a high-strength steel cable made from multiple steel wires twisted together. These strands are placed inside concrete to help it handle heavy loads, tension, and long spans without cracking.
PC means prestressed concrete. Prestressing puts the concrete under controlled compression before it carries real weight. That small step changes everything.
Concrete is strong when you press on it, but weak when you pull it apart. Over time, that weakness shows up as cracks, sagging, and failure. Engineers needed a fix, and PC Strand became that fix.
By tensioning steel strands inside the concrete, the structure stays tight and stable. The concrete resists cracking, even under heavy traffic, weather, and age. That’s why you see PC Strand in bridges, parking decks, and tall buildings near you.
PC Strand does not come from a single wire. It is carefully built in stages to meet strict standards.
The process usually follows this order:
High-carbon steel rods are drawn into thin wires
The wires are cleaned and treated for strength
Several wires are twisted into a single strand
The strand is tested for tension and durability
Most PC Strand follows standards set by ASTM International, especially ASTM A416. These rules exist so every strand performs the same way on-site, no guessing involved.

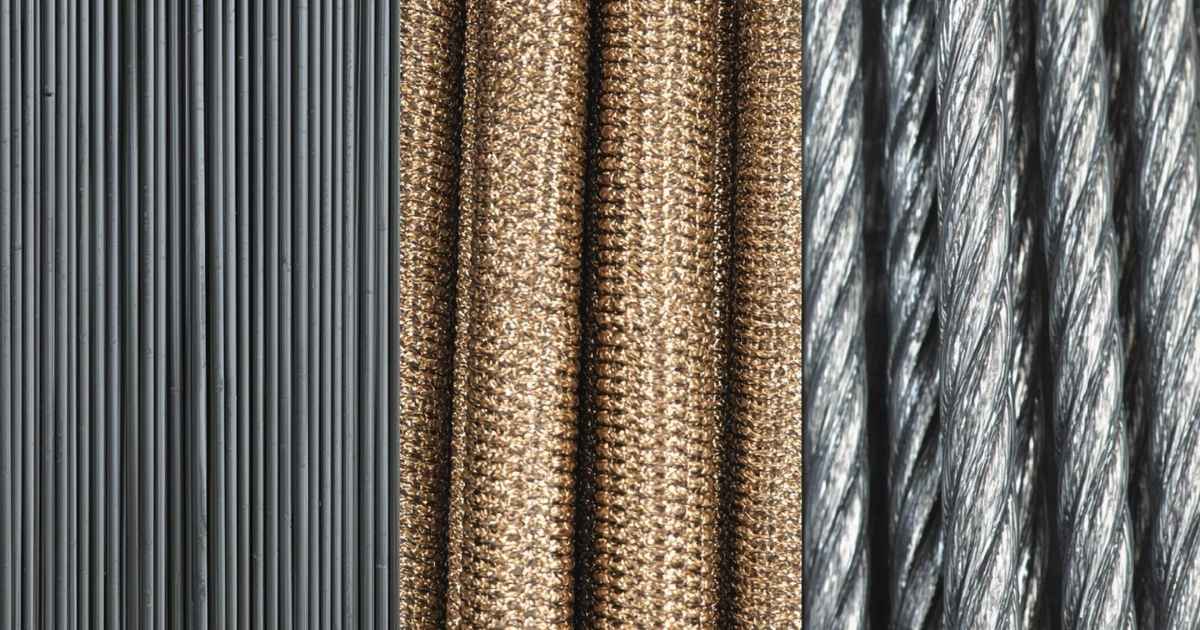

Not all PC Strand is the same. Different jobs need different strengths and coatings.
You will usually see these variations:
7-wire low-relaxation strand for bridges and slabs
Uncoated steel strand for controlled indoor environments
Epoxy-coated strand for corrosion resistance
Galvanized strand for harsh weather exposure
Engineers choose based on load, span length, and exposure conditions. Picking the wrong type can shorten a structure’s life fast.

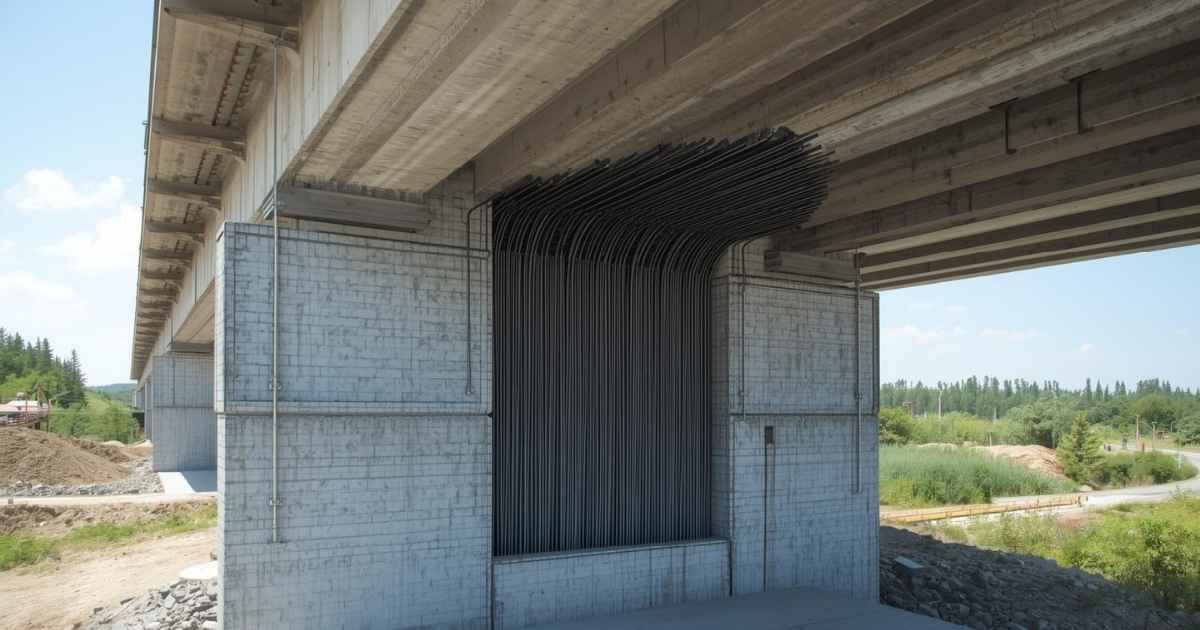

PC Strand shows up in more places than most people realize. If you drive, park, or walk through modern infrastructure, you’re already using it.
Here are the most common uses near you:
Highway and railway bridges
Parking garages and ramps
Precast concrete beams and girders
High-rise floor slabs
Stadiums and large public buildings
Any structure that needs long spans without thick columns usually relies on PC Strand.

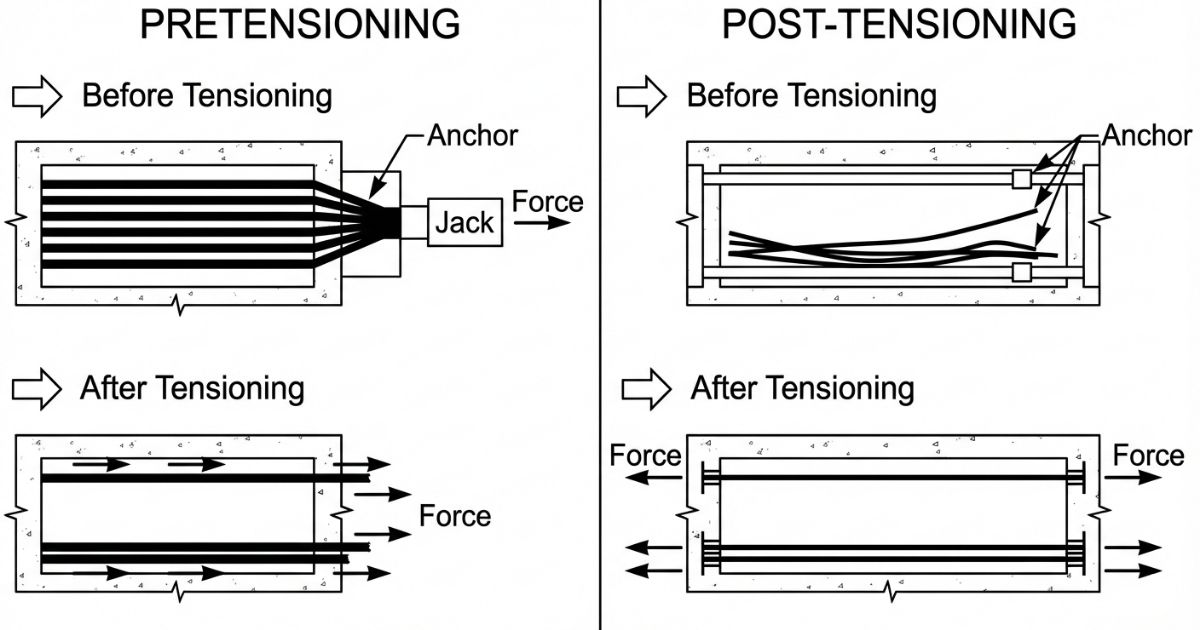

This part confuses many people, so let’s keep it simple.
PC Strand works in two main systems:
The strand is stretched before concrete is poured. Once the concrete hardens, the tension is released into the concrete.
The concrete is poured first. After it gains strength, the strand is tensioned inside ducts.
Both systems rely on the same core idea behind What is PC Strand, just applied at different stages of construction.

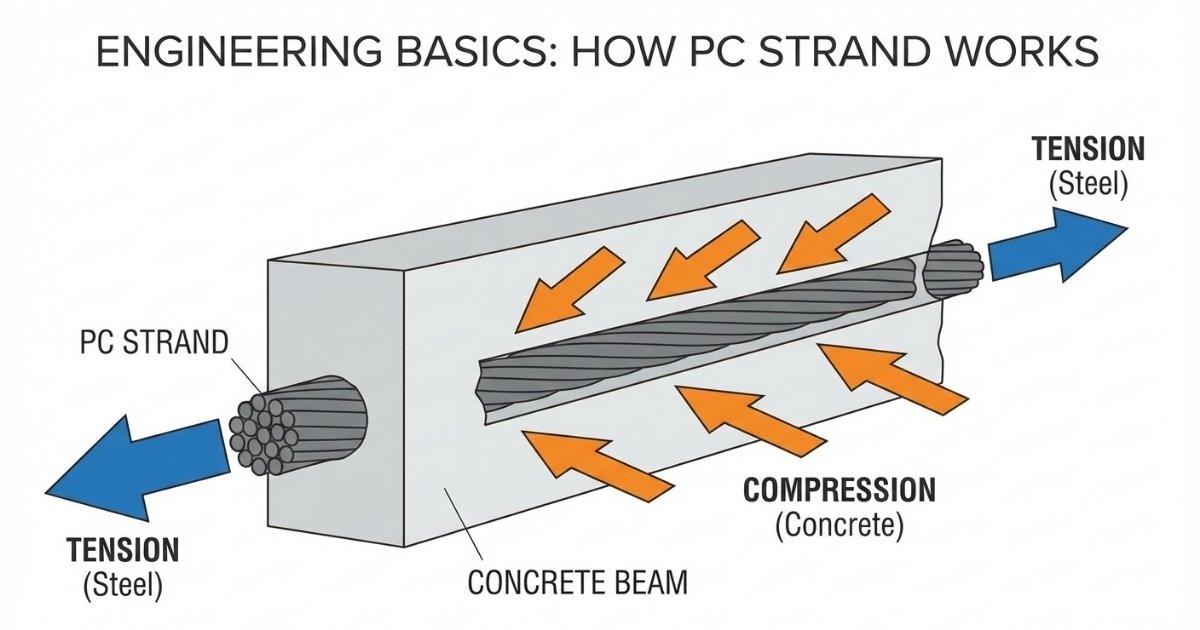

You don’t need an engineering degree to understand the basics. You just need the right concepts explained clearly.
PC Strand works because of:
High tensile strength in steel
Controlled compression inside concrete
Load sharing between steel and concrete
Reduced cracking under service loads
This combination lets engineers design thinner slabs, longer spans, and lighter structures without sacrificing safety.
Engineers don’t gamble with materials. PC Strand has earned its place through decades of performance.
It offers:
Predictable strength values
Long-term durability
Lower maintenance needs
Proven results in large-scale projects
Organizations like TJ Wasungen publish design guides that rely heavily on PC Strand data. That kind of backing matters.
People often ask if PC Strand replaces rebar. The answer is no, they work together.
Rebar handles basic reinforcement. PC Strand handles tension control and long-span strength. When combined properly, the structure lasts longer and performs better.
This difference is key when answering What is PC Strand in real projects.
Steel and moisture don’t get along. That’s why strand protection matters.
To reduce corrosion risk, projects may use:
Epoxy coatings
Galvanized finishes
Proper concrete cover depth
Controlled drainage design
When these steps are followed, PC Strand performs well even in coastal or high-humidity areas near you.
Every PC Strand shipment goes through testing before it reaches a job site.
Tests usually check:
Tensile strength
Elongation limits
Relaxation behavior
Surface defects
Standards from AASHTO also apply for transportation projects. This keeps bridges safe for decades, not just a few years.
Years ago, one contractor told us about a parking structure that kept cracking despite thick concrete sections. The fix was not more concrete. It was better prestressing design using the right strand layout.
Once PC Strand was used correctly, cracking stopped, slab thickness dropped, and material costs stabilized. That’s the kind of quiet win engineers appreciate.
You might not see PC Strand once the job is done, but you feel its impact every day.
It helps structures:
Carry more weight with less material
Stay crack-free longer
Reduce repair cycles
Handle traffic and vibration better
That long-term value is why PC Strand keeps coming up in modern construction talks.
Not all suppliers follow the same discipline. Quality control, traceability, and compliance matter more than price alone.
At Tj Wasungen, we focus on supplying PC Strand that meets strict project specs, code requirements, and real-world job conditions near you. That consistency saves time, money, and stress on-site.
So, what is PC Strand really about? It’s about control. Control over cracking, span length, durability, and long-term performance. It’s a quiet material doing heavy work behind the scenes.
If you’re planning a project or reviewing a design near you, understanding PC Strand helps you ask better questions and make smarter decisions. And honestly, that knowledge goes a long way on any job site.
If you need guidance, specs, or supply support, Tj Wasungen is always ready to help.
