PC strand applications show up everywhere in modern construction, even though most people never notice them. These high-strength steel cables do the heavy lifting in structures you pass every day.
We're talking about bridges you drive across, parking garages where you shop, and buildings where you work. Prestressed concrete strand makes these structures possible, safe, and long-lasting.
Let's break down where you'll find this material and why it matters for your next project.
Before we get into specific PC strand applications, here's why engineers love this material.
High tensile strength means it can handle massive loads without breaking. A single 7-wire PC strand carries forces that would snap regular steel bars like twigs.
The material stays tight over decades. Unlike some materials that loosen up over time, quality low relaxation strand keeps its tension. That's huge for structures that need to last 50 years or more.
You can stress it before or after concrete placement. This flexibility gives engineers options for different construction methods and site conditions.
Bridges eat up more prestressed concrete strand than any other application. And for good reason.

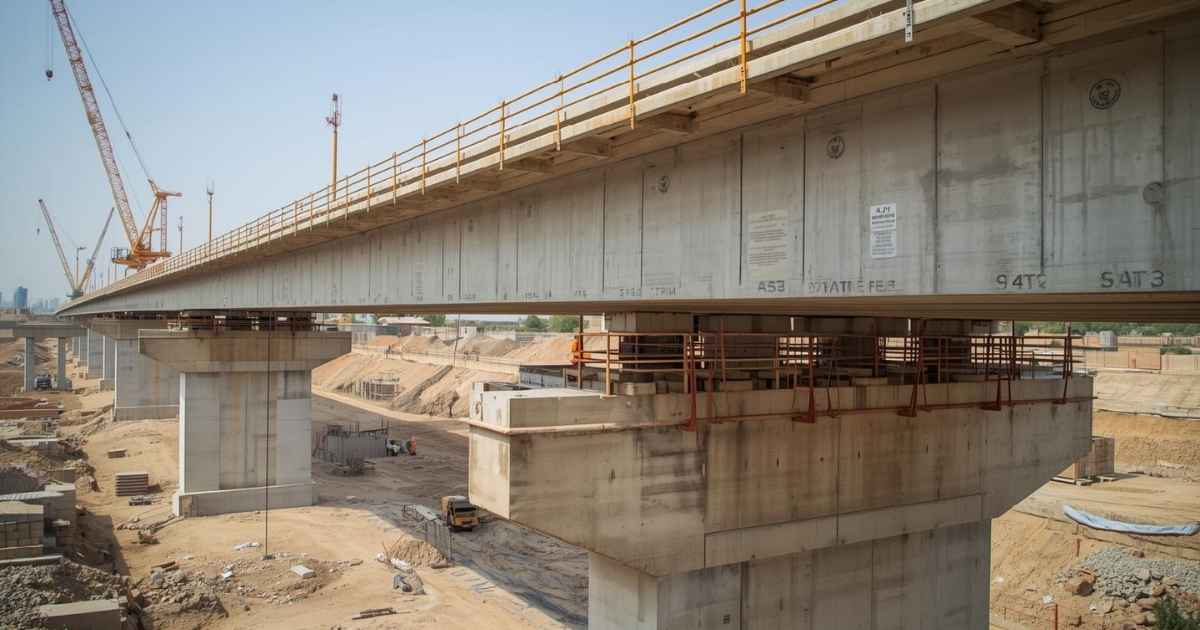

Every time you cross a concrete bridge on the interstate, you're trusting PC strand to keep you safe. These cables run through the deck and support beams, holding everything together under traffic loads.
Modern highway bridges use plain PC strand in the main girders. The strands get tensioned before concrete placement, then released after the concrete cures. This creates compression that fights the tension from traffic weight.
TJ Wasungen supplies materials for bridge projects across Africa and Asia. We've seen our products perform in everything from small rural crossings to major urban overpasses.
Train bridges face different challenges than road bridges. The loads are heavier and more concentrated. A single freight train can weigh thousands of tons.
Engineers specify higher-grade materials for these projects. Grade 270 strand (1860 MPa) handles the punishment that trains dish out.
Don't think pedestrian bridges are simple just because people weigh less than cars. These structures often span long distances with minimal support underneath.
Indented PC strand works great here. The surface pattern gives better grip in the concrete, which matters for longer spans.
PC strand applications in buildings keep getting more creative as architects push for taller, more open spaces.
Walk into any modern office building or apartment complex. There's a good chance you're standing on a post-tensioned concrete slab.
These slabs use unbonded PC strand that runs through plastic sleeves. After the concrete hardens, workers tension the cables. This lets builders create thinner slabs that span farther between columns.
Thinner slabs mean:
Lower building height for the same number of floors
Less concrete needed (saves money and carbon emissions)
More flexibility for room layouts
Faster construction schedules
High-rise buildings sometimes need huge beams that carry loads from multiple floors above. These transfer beams can span 50 feet or more.
Heavy-duty prestressed steel cables make these spans possible without crazy amounts of concrete. The alternative would be steel beams that cost way more and take up more space.
Multi-level parking garages face tough conditions. Cars leak fluids, salt gets tracked in during winter, and the constant loading wears on materials.
Epoxy coated PC strand protects against corrosion in these harsh environments. The epoxy barrier keeps moisture and chemicals away from the steel.
We've worked with contractors who tried using regular strand in parking structures. Bad idea. The corrosion problems started within years, not decades.
Salt water destroys regular steel pretty quickly. Marine PC strand applications need extra protection.
Commercial piers handle container ships and bulk cargo. The deck slabs span between support piles and carry heavy equipment loads.
Galvanized PC strand adds a zinc coating that fights corrosion. For extra protection in tropical ports, epoxy coated strand creates a second barrier.
These structures protect harbors from waves and storms. They take a beating from salt spray and wave impact.
The concrete in breakwaters uses prestressing wire to handle the tension from wave forces. Without it, the concrete would crack and fail within years.
Dams, reservoirs, and water treatment plants all depend on prestressed concrete to contain millions of gallons.
Elevated water tanks store drinking water and provide pressure for distribution systems. The tank walls need to hold back the water pressure without leaking.
PC strand runs horizontally around the tank walls, creating hoop stress that resists the outward pressure. Think of it like metal bands around a wooden barrel.
TJ Wasungen provides PC wire and strand specifically for water storage projects. The materials meet drinking water safety standards.
Treatment basins hold contaminated water during the cleaning process. The concrete needs to contain both pressure and chemicals.
Post-tensioned walls using prestressed strand create watertight structures that last for decades. Regular reinforced concrete would crack and leak in these conditions.
When failure isn't an option, engineers specify the best materials available.
Nuclear power plants use massive concrete containment buildings. These structures need to hold up under accident scenarios that create extreme pressures.
The containment walls use layers of high-strength prestressing cables in complex patterns. This creates redundancy so the structure stays intact even if some cables fail.
Liquefied natural gas storage tanks face unique challenges. The concrete contains super-cold liquid that would crack normal concrete.
Special low relaxation PC strand goes into these tanks. The material needs to maintain tension even when temperatures swing hundreds of degrees.
Light rail and subway projects use PC strand applications throughout.
Elevated guideways carry trains above street level. These concrete structures look like long, skinny bridges and use similar prestressing techniques.
Underground stations need thick concrete slabs that support the weight of the street and buildings above. Post-tensioned construction makes these slabs practical.
Modern airport runways sometimes use prestressed concrete instead of asphalt. The concrete lasts longer and handles heavy aircraft loads better.
The pavement slabs use plain PC wire in both directions to control cracking. Airports can't afford to close runways for frequent repairs.
Here's an application most people never think about.
Roads cut through hills need retaining walls to keep the slope from sliding. Ground anchors using prestressed strand drill deep into the hillside and tension back against the wall.
These anchors can hold back thousands of tons of soil and rock. Without them, many mountain highways couldn't exist.
Some dams use rock anchors to keep the structure from sliding on its foundation. Long PC strands drill into the bedrock and get tensioned to hold everything in place.
Yep, even solar farms use this material.
Large solar installations need foundations that hold panels at the right angle. Solar mounting structures often use prestressed concrete ballast blocks.
The blocks need to resist wind uplift without tipping. Prestressing cable inside creates the strength without excessive weight.
TJ Wasungen manufactures flexible solar supports and related components. We understand how renewable energy projects need reliable materials.
Not all PC strand is the same. Here's how to match material to use.
Plain surface strand works for most applications. The smooth wires transfer load through friction and the anchorage wedges.
Indented wire has dimples pressed into the surface. This gives better bond in the concrete, which matters for certain designs.
Bonded strand sits directly in concrete without any barrier. The concrete grips the steel along its entire length.
Unbonded strand runs through plastic sleeves filled with grease. This lets the cable slide during tensioning and protects against corrosion.
Use bonded for pretensioned work (tension before concrete). Use unbonded for post-tensioned work (tension after concrete).
Bare strand costs less and works fine in dry, protected conditions.
Galvanized coating adds corrosion protection for moderate exposure.
Epoxy coating provides maximum protection for harsh environments like parking garages and marine structures.
We've seen these problems across countless projects.
Not all structures need Grade 270 material. But don't cheap out on critical applications by specifying Grade 250 when you need the higher strength.
Your engineer should specify the right grade based on actual loads and safety factors.
"We'll save money by using bare strand." Famous last words.
If there's any chance of moisture exposure, spend the extra money on galvanized or coated materials. Repair costs will eat up any initial savings.
PC strand needs protection from moisture before installation. Rusty cables lose strength and won't tension properly.
Store coils off the ground, keep them covered, and use them within reasonable time frames. TJ Wasungen ships materials in protective wrapping, but that won't help if you dump coils in the mud.
Check test certificates before accepting materials. Make sure the batch numbers match what's on the coils.
We provide complete documentation with every shipment. Use it.
PC strand applications only work when you start with quality materials.
Look for suppliers who:
Test every production batch
Provide complete traceability
Offer technical support
Maintain consistent quality
TJ Wasungen has supplied prestressed concrete products to projects across three continents. Our customers come back because they know what they're getting.
Check our full range of PC strand products and anchorage systems for your next project.
PC strand applications cover an amazing range of structures. From the bridge on your commute to the building where you work, this material makes modern construction possible.
The key is matching the right material to each use. Don't use bare strand where you need galvanized. Don't use Grade 250 where you need Grade 270.
Work with suppliers who understand these differences and can guide you to the right choice. We're here to help you get it right the first time.
Whether you're building a parking garage in São Paulo or a bridge in Nairobi, quality prestressed concrete strand from TJ Wasungen delivers the performance you need.
