Ever driven over a bridge and wondered what keeps all that concrete from cracking under the weight of trucks and traffic? The answer's probably PC wire prestressed concrete technology working behind the scenes.
Let's break down exactly why prestressed concrete wire has become the backbone of modern infrastructure. We're talking bridges, parking garages, railway tracks, and buildings that simply couldn't exist without it.
Here's the thing about concrete: it's fantastic at handling compression (getting squished), but terrible at handling tension (getting pulled apart). Drop a concrete block, and it'll crush things. Try pulling it, and it cracks.
That's a huge problem in construction. Beams bend when loaded. The bottom stretches (tension) while the top compresses. Regular concrete would crack at the bottom every time.
PC wire prestressed concrete flips this problem on its head. By putting concrete under compression before any loads hit it, engineers create a buffer against those tension forces that'd normally cause cracks.
It's genius, really. Instead of fighting concrete's weakness, we work around it.

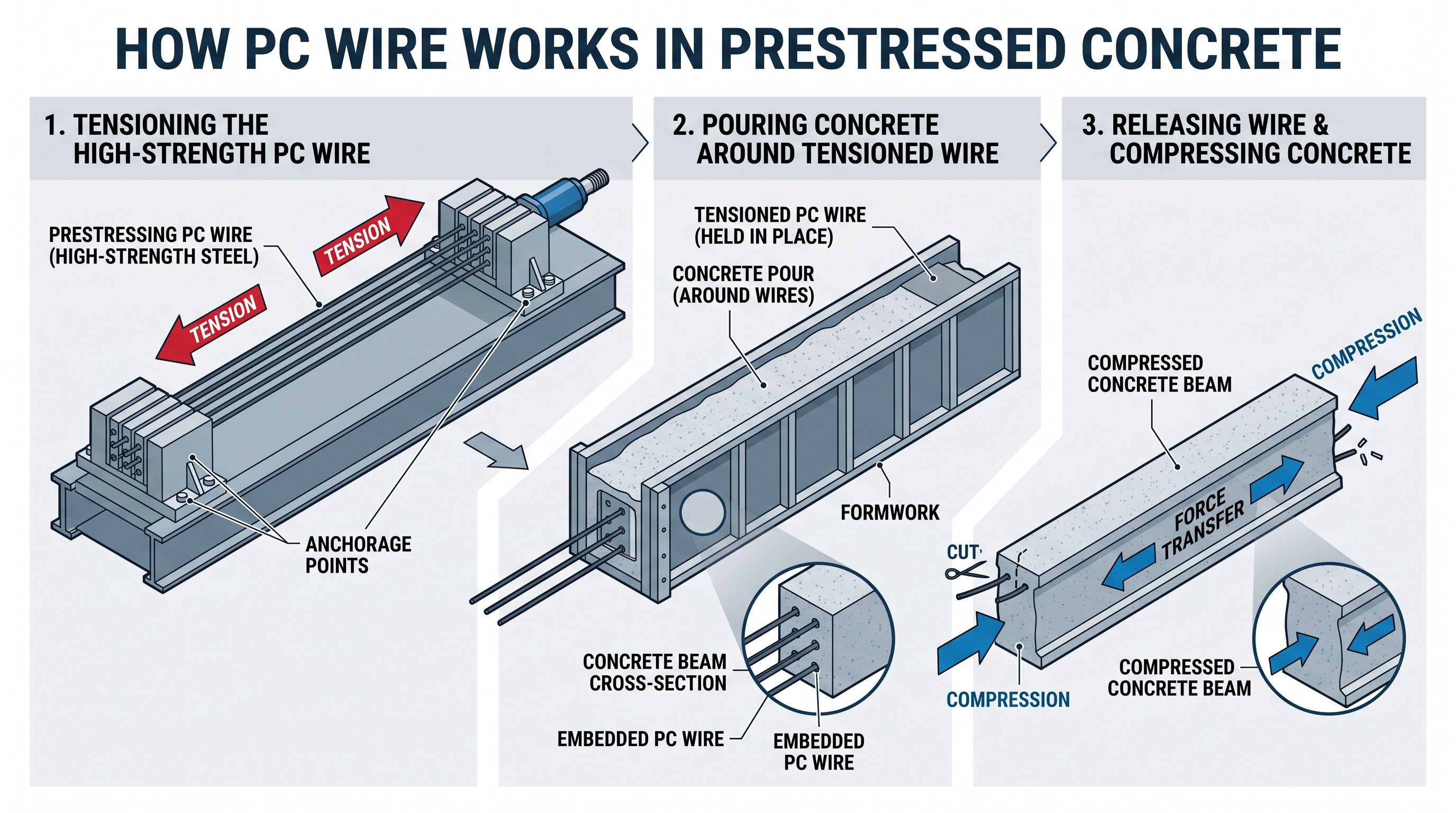

The basic principle of prestressed concrete is simple, even if the engineering gets complex. You're basically pre-loading the structure in the opposite direction of its service loads.
Workers stretch high-strength PC wire to extreme tension before or during concrete pouring. Once the concrete hardens, they release the wire tension.
The wire tries to shrink back to its original length, but it's now bonded into the concrete. Instead of the wire shrinking, it compresses the concrete from the inside.
This internal squeeze gives you concrete that's already compressed. When service loads apply tension, they first have to overcome that pre-compression before any cracking can start.
Think of it like pre-tensioning a rubber band. It's got built-in resistance to stretching.
PC wire prestressed concrete works because the wire itself is incredibly strong. We're not talking about regular steel here - this stuff's in a different league.
Prestressed concrete wire typically hits tensile strengths between 1375 to 2010 MPa. That's about 200,000 to 290,000 psi for those thinking in pounds per square inch.
Regular rebar? Maybe 60,000 psi on a good day. The difference is staggering.
This extreme strength comes from high-carbon steel composition (0.7-0.85% carbon) combined with specialized manufacturing processes. Cold-drawing and heat treatment transform basic steel rod into super-strong wire.
You need serious tensile capacity to effectively prestress concrete. Weak wire would just stretch and fail before creating useful compression.
PC wire stays under constant tension for decades without breaking or losing significant force. That reliability is what makes prestressed structures last 50-100 years or more.

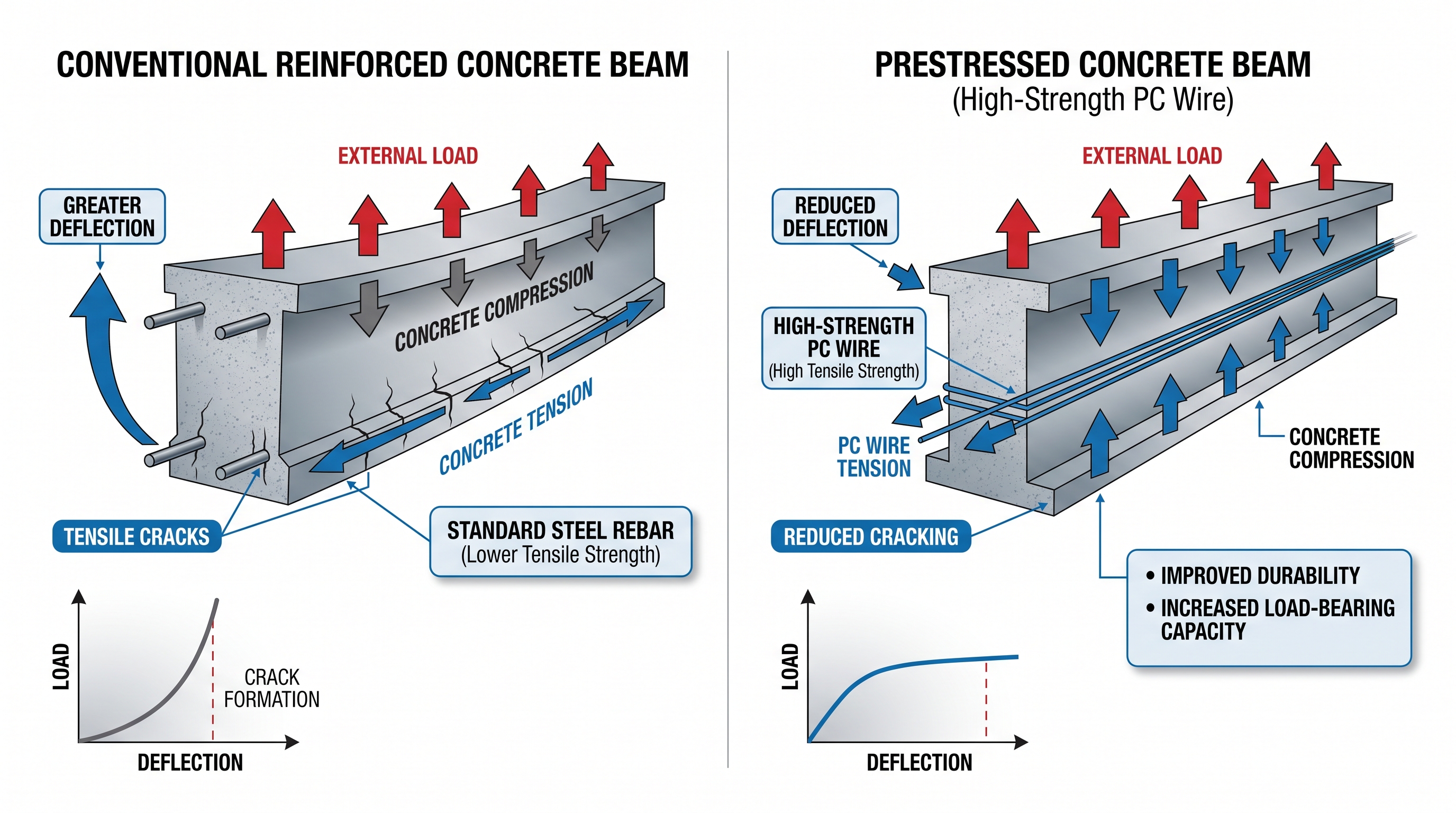

Cracks kill concrete structures. They let in water, which causes rust, freeze-thaw damage, and structural deterioration. PC wire prestressed concrete dramatically reduces cracking.
By keeping concrete compressed, prestressed wire prevents tensile stresses from ever reaching crack-inducing levels under normal service loads.
Here's what happens in real-world conditions:
Traffic loads apply bending moments to bridge decks
The bottom of the beam wants to stretch (tension)
But the prestressing compression counteracts this tension
The net result stays in compression or minimal tension
No cracks form because concrete never reaches its tension limit
It's like having a built-in safety margin against everyday wear and tear.
Structures built with PC wire prestressed concrete consistently outlast conventionally reinforced concrete. We're seeing bridges from the 1950s still going strong because prestressing prevented the crack formation that leads to deterioration.
Less cracking means:
Reduced maintenance costs over the structure's life
Longer service life before major repairs or replacement
Better resistance to freeze-thaw cycles and corrosion
Improved waterproofing since intact concrete doesn't leak
The upfront investment in prestressing pays dividends for decades.
PC wire prestressed concrete enables structures to carry heavier loads than conventional reinforced concrete of the same size. This capacity boost comes from multiple factors.
The compressive pre-stress effectively makes concrete stronger in tension. It can handle bending moments that'd crack ordinary concrete.
This means bridges can:
Span longer distances between supports
Carry heavier traffic loads safely
Use shallower beams reducing overall height
Support more lanes or wider roadways
Parking structures benefit similarly. Longer spans between columns create more usable space and better traffic flow.
Prestressing also limits how much beams sag under load. PC wire in tension pulls the beam upward, counteracting deflection from gravity and service loads.
Contractors sometimes apply extra prestress to create upward camber. The beam curves slightly upward when built, then settles to level under its own weight.
This deflection control matters for:
Floor flatness in buildings
Clearance under bridges
Appearance and user perception of safety
Long-term performance and durability
Here's a surprise: PC wire prestressed concrete often costs less overall than conventional reinforced concrete for the same performance level.
Because prestressing makes concrete more efficient, you need less of it. Beams can be thinner and lighter while supporting the same or greater loads.
The savings add up fast:
Reduced concrete volume cutting material and transportation costs
Lighter structures requiring smaller foundations
Fewer support columns in buildings and parking garages
Smaller reinforcement compared to passive rebar systems
A prestressed bridge deck might use 30-40% less concrete than a conventionally reinforced equivalent.
Precast prestressed elements manufactured off-site speed up construction dramatically. While site prep happens, manufacturers near you produce beams, slabs, and other components.
When components arrive, installation takes days instead of weeks. That faster construction means:
Lower labor costs on site
Reduced construction financing costs
Earlier project completion and revenue
Less disruption to traffic or business operations
Time is money in construction, and prestressing saves both.

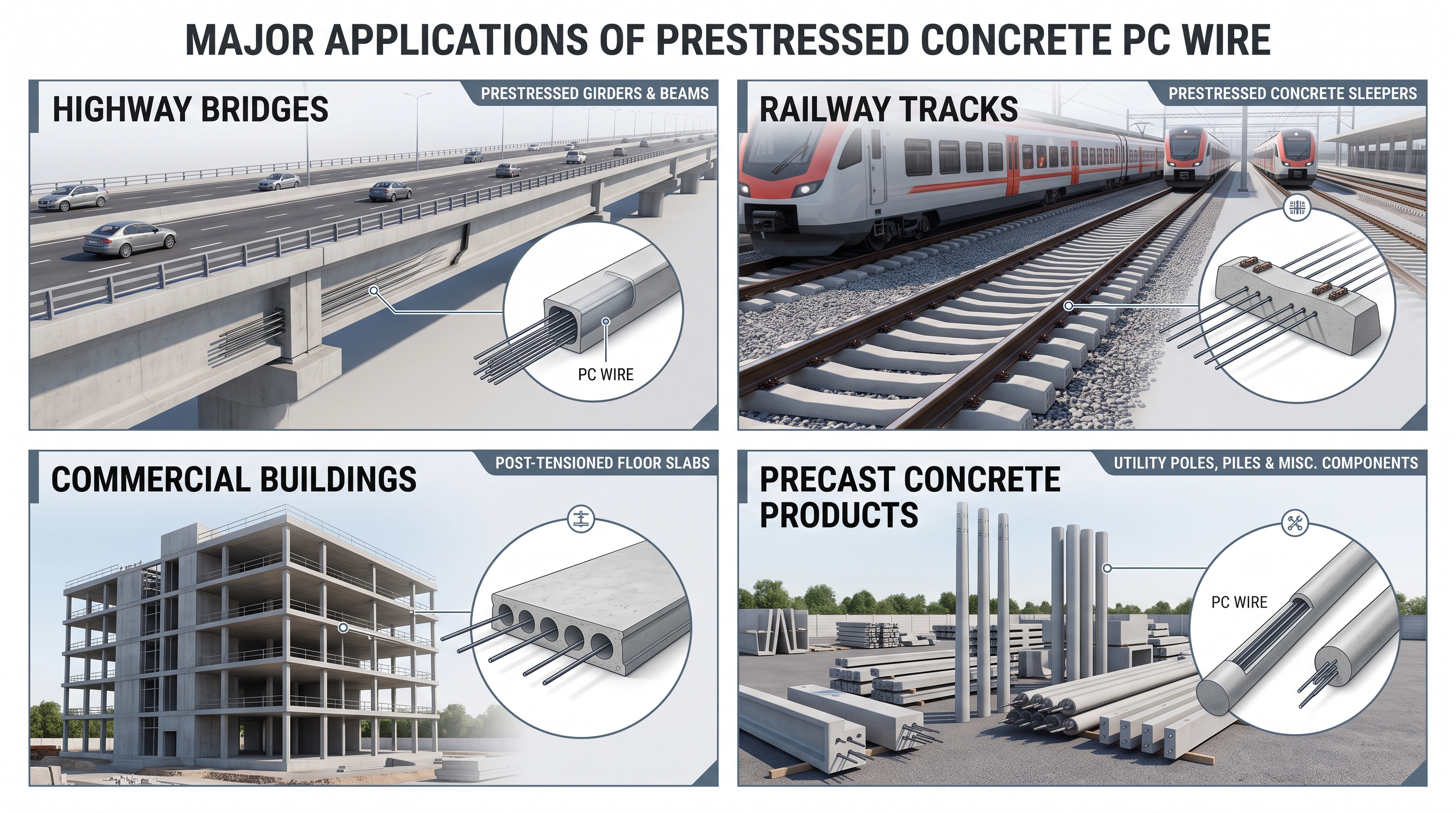

The beauty of PC wire prestressed concrete is how many different structures benefit from it. Let's look at common applications you'll encounter.
Bridges are the poster child for prestressing technology. Nearly every modern bridge over 20 meters span uses some form of prestressed concrete wire or strand.
Highway bridges employ prestressed beams for their main spans. The long, strong beams carry traffic loads efficiently across rivers, valleys, and roadways.
Railway bridges handle even heavier concentrated loads from trains. Prestressing provides the capacity needed without excessive weight or depth.
Pedestrian bridges benefit from prestressing's ability to create slim, attractive designs. Thin decks are possible because the PC wire controls deflection.
Railway sleepers (also called railroad ties) use prestressed concrete extensively. These components sit under the rails, distributing train loads to the track bed.
The high-impact loads from passing trains would crack regular concrete sleepers quickly. Prestressing with high-strength wire prevents crack formation despite constant pounding.
Modern rail networks depend on prestressed sleepers because they:
Last 50+ years compared to 7-10 for wood
Maintain track gauge more consistently
Support higher train speeds safely
Require less maintenance and replacement
Floor slabs in commercial buildings frequently use post-tensioned concrete with PC wire running through. This allows longer spans between columns, creating flexible open floor plans.
Parking structures are another major application. The ability to span 60-70 feet between columns creates efficient parking layouts without obstruction.
Stadium seating and cantilevered structures lean heavily on prestressing for their dramatic overhangs and slim profiles.
Spun concrete poles for utility lines use prestressed wire as their central reinforcement. During manufacturing, the concrete spins around tensioned wire, creating hollow cylindrical poles.
These poles support:
Power transmission lines
Streetlights and traffic signals
Telecommunications equipment
Security and sports lighting
Concrete piles driven into the ground for foundations often incorporate prestressing. The compression helps them resist driving stresses and service loads.
Precast beams for buildings and bridges roll off production lines daily at plants near you. Standardized prestressed shapes keep costs down while delivering reliable performance.
Not just any wire works for prestressing. PC wire prestressed concrete requires specific properties to function effectively over decades.
Relaxation means gradual loss of tension over time. Regular steel wire would lose 10-20% of its initial tension within months.
Low-relaxation PC wire loses less than 2-3% after 1000 hours under load. This stability comes from special heat treatment during manufacturing that permanently relieves internal stresses.
Without low relaxation, prestressed structures would gradually lose compression, allowing cracks to form and performance to degrade.
Plain smooth wire bonds to concrete through friction and chemical adhesion. It works fine for many applications but can slip under extreme loads.
Indented wire features small deformations pressed into the surface. These indentations create mechanical interlock with concrete, preventing slippage even under high stress.
Spiral ribbed wire has helical patterns that further improve bonding. The three-dimensional surface increases contact area and provides superior anchorage.
The right surface treatment depends on application requirements and transfer length considerations.
Since PC wire must function for decades, corrosion protection matters immensely. Several coating options exist:
Galvanized wire with zinc coating protects against rust in normal environments. The zinc sacrificially corrodes, protecting the underlying steel.
Epoxy-coated wire provides barrier protection superior to galvanizing. The polymer coating blocks moisture and oxygen, preventing corrosion entirely.
Stainless steel wire offers maximum corrosion resistance but costs significantly more. It's reserved for the most aggressive environments like marine structures.
Proper protection extends service life dramatically, especially in coastal areas or industrial environments near you.
PC wire prestressed concrete gets installed using two main approaches. Each has advantages depending on the application.
In pre-tensioning, workers stretch the wire before pouring concrete. The sequence goes:
Anchor wire to strong abutments at each end
Use hydraulic jacks to tension the wire
Pour concrete around the tensioned wire
Wait for concrete to cure and gain strength
Cut or release the wire from abutments
Wire transfers compression into the concrete
This method works great for precast elements manufactured in controlled factory settings. The ability to reuse tensioning beds makes it economical.
Post-tensioning reverses the order. Workers pour concrete first, leaving ducts for wire to pass through later. After concrete hardens:
Thread wire through pre-installed ducts
Tension the wire using jacks at the ends
Anchor the wire to plates on the concrete surface
Sometimes grout the ducts to bond wire and concrete
This method suits cast-in-place construction like building floors and parking decks. It allows adjustment during installation and works well on site.
The reliability of PC wire prestressed concrete depends on rigorous quality control throughout manufacturing and installation.
Manufacturers test every production batch for:
Tensile strength meeting minimum specifications
Elongation ensuring adequate ductility
Relaxation characteristics under sustained load
Surface quality free from defects
Dimensional tolerances for diameter consistency
Standards like ASTM A421 specify requirements that wire must meet before it ships to projects near you.
During construction, engineers verify:
Correct tensioning forces using load cells or pressure gauges
Proper anchorage of wire ends
Transfer length where force enters concrete
Cover thickness protecting wire from environment
Careful documentation ensures the structure performs as designed for its entire service life.
PC wire prestressed concrete has transformed what's possible in construction. It enables structures that'd be impossible or impractical with conventional reinforcement.
The combination of extreme strength, low relaxation, and smart application of compression principles creates concrete that performs better, lasts longer, and costs less over its lifetime.
From the bridges carrying your daily commute to the parking garage where you leave your car, prestressed wire is working invisibly to keep structures strong and safe.
Next time you see a long bridge span or a dramatic building cantilever, you'll know PC wire prestressed concrete made it possible.
