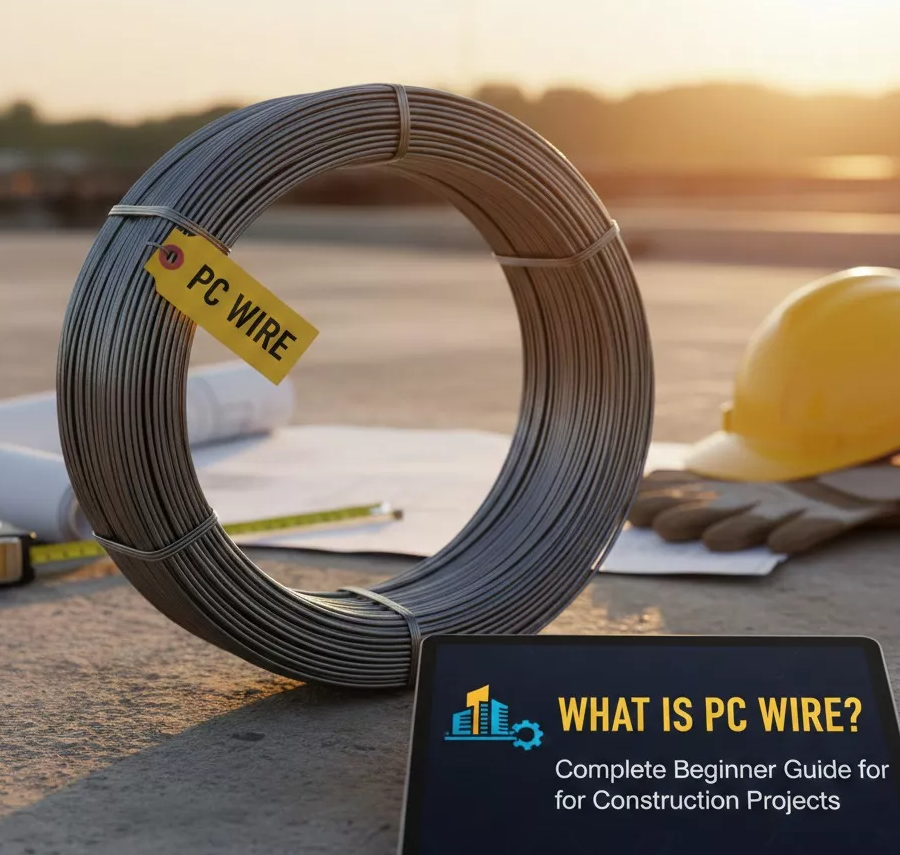

Look, if you're stepping into the construction world or just curious about how modern buildings and bridges stay standing, you've probably heard the term PC wire thrown around. But what is PC wire, really?
Don't worry - we're breaking it down in plain English. No fancy engineering jargon, just the facts you need.
PC wire, or prestressed concrete wire, is basically super-strong steel wire that construction crews use to make concrete tougher. Think of it as giving your concrete structure a backbone that won't quit.
Here's the thing: regular concrete handles compression pretty well (getting squished), but it's terrible with tension (getting pulled apart). That's where prestressed wire comes in. Engineers stretch this wire tight before pouring concrete around it, creating internal compression that counteracts those pulling forces.
It's kind of like putting a rubber band around a stack of papers - the tension holds everything together better.
What is PC wire made of? It's high-carbon steel that's been through some serious processing. We're talking cold-drawing and stress-relieving treatments that transform ordinary steel into something with crazy tensile strength.
Size-wise, you'll find PC wire ranging from 4.0 mm to 9.0 mm in diameter. That might not sound like much, but these thin wires can handle loads that'd make standard rebar sweat.
Here's what makes prestressed concrete wire stand out:
Incredible tensile strength: This stuff can handle tension that'd snap regular steel
Low relaxation properties: It keeps its tension over time without losing grip
Corrosion resistance: Often comes galvanized or coated to fight rust
Flexible forms: Can be used solo or bundled into strands for bigger jobs
Alright, let's get into the nitty-gritty of how PC wire does its magic. The process is actually pretty straightforward.
Step 1: Tensioning
Workers use hydraulic jacks to pull the prestressed wire super tight. We're talking serious tension here - way more than you'd think steel could handle.
Step 2: Casting
Once the wire's stretched, they pour concrete around it. The wire stays under tension while the concrete cures and hardens.
Step 3: Transfer
After the concrete gets strong enough, they release the tension. Here's where it gets cool - the wire tries to shrink back, but it's now bonded to the concrete. Instead of the wire shrinking, the concrete gets compressed from the inside.
This internal squeeze is what makes prestressed concrete wire so effective. When normal loads hit the structure (like cars on a bridge), the concrete's already compressed, so it can handle the pulling forces without cracking.
Pretty neat, right?
PC wire isn't just sitting around looking pretty. It's working hard in projects all around you.
Bridges and flyovers are the big one. If you've driven over a modern bridge lately, chances are good that prestressed wire is what's keeping it from sagging. These structures need to span long distances without support underneath, and that's exactly what this wire enables.
Precast concrete products make up another huge chunk of usage. We're talking:
Concrete beams for buildings
Floor slabs for apartments
Utility poles standing by roads
Railroad ties under train tracks
All these get manufactured off-site using PC wire, then shipped to construction sites near you ready to install.
Parking garages rely heavily on prestressed concrete wire too. Those long, open spans you drive through? They need serious reinforcement to support all those vehicles without columns getting in the way.
Storage tanks and silos use the wire to create what engineers call "hoop stress." Basically, the wire wraps around the structure, helping the walls contain pressure from liquids or grain inside.
Foundation work for tall buildings often incorporates prestressed wire in piles and mat foundations. When you're building up, you need a rock-solid base down below.
Here's where people get confused. Both PC wire and rebar (reinforcing bar) strengthen concrete, but they're not the same thing at all.
Function-wise, rebar just sits there providing passive support. It only starts working when the concrete cracks. Prestressed concrete wire, on the other hand, actively compresses the concrete from day one.
Strength levels aren't even close. PC wire packs way more tensile strength than standard rebar. We're talking about steel that's been specifically processed to handle extreme forces.
Applications differ too. You'll find rebar in everyday construction - foundations, columns, sidewalks, basically everywhere. Prestressed wire shows up in specialized applications where standard reinforcement just won't cut it.
Think of it this way: rebar is your everyday workhorse, while what is PC wire? It's the specialized tool for jobs that need extra muscle.
PC wire comes in different flavors depending on what you need. Let's break it down.
Plain surface wire is your standard option. Smooth finish, reliable performance, works for most applications.
Indented wire has small grooves along its length. These indentations create better bonding with concrete, which means stronger structures. You'll see this in high-performance applications.
Helical wire features a twisted or spiral pattern. This design improves the mechanical bond even more, making it ideal for critical infrastructure projects.
Galvanized PC wire gets a zinc coating for extra corrosion protection. If you're building near the ocean or in humid climates, this coating helps the wire last decades longer.
Epoxy-coated options take protection even further. The epoxy layer shields against aggressive environments where even galvanizing might not be enough.
There's good reasons why prestressed concrete wire has become the go-to for major construction projects. Let's talk benefits.
Longer spans top the list. Without PC wire, many modern bridges simply couldn't exist. The prestressing allows concrete to cover distances that'd be impossible otherwise.
Reduced cracking means structures last longer and need less maintenance. Since the concrete's already compressed, normal loads don't cause the tiny cracks that lead to bigger problems down the road.
Material savings add up fast. Using prestressed wire means you can use less concrete and still get better performance. That saves money and reduces the environmental impact.
Faster construction happens because precast elements made with PC wire can be manufactured off-site while other work continues. When they arrive, installation is quick.
Durability speaks for itself. Structures built with prestressed concrete wire often outlast conventionally reinforced concrete by years or even decades.
Not all PC wire is created equal. Here's what you need to consider when selecting wire for your project.
Project requirements come first. What loads will the structure handle? How long does it need to span? What's the expected lifespan? These questions guide your choice.
Environmental conditions matter big time. Coastal projects need galvanized or coated wire. Industrial areas might require special protection against chemical exposure.
Local availability and suppliers near you can affect both cost and delivery time. Check what's readily available before specifying exotic options.
Budget constraints are real. While PC wire costs more upfront than rebar, the long-term savings often justify the investment. Run the numbers for your specific situation.
Building codes and standards in your area might specify certain types or grades. Always verify compliance before purchasing.
If you're planning to use prestressed concrete wire in a project, here's what the process typically looks like.
Professional expertise isn't optional here. Working with PC wire requires specialized knowledge and equipment. You'll need engineers who understand prestressing calculations and workers trained in tensioning procedures.
Quality control happens at every step. From wire inspection to tensioning verification to concrete strength testing, there's no room for shortcuts.
Safety protocols are strict. The forces involved in prestressing can be dangerous if not handled properly. Proper training and equipment are non-negotiable.
Testing and inspection continue after installation. Engineers verify that the prestressing achieved the desired results and that everything's working as designed.
Let's tackle some questions people often ask about what is PC wire and how it works.
How long does PC wire last?
With proper installation and protection, prestressed concrete wire can last 50-100 years or more. Galvanized or coated versions last even longer.
Can you repair damaged PC wire?
Not really. Once prestressed wire is damaged, the entire prestressing system often needs replacement. That's why protection and quality installation are so important.
Is PC wire expensive?
Initially, yes. But when you factor in the performance gains, longer spans, and reduced maintenance, PC wire often costs less over the structure's lifetime.
Do all bridges use PC wire?
Not all, but most modern bridges use some form of prestressing. Smaller bridges might use conventional reinforcement, while major crossings rely heavily on prestressed concrete wire.
So what is PC wire? It's the backbone of modern infrastructure. From the bridges you drive over to the parking garages you park in, prestressed concrete wire is working behind the scenes to keep structures strong, safe, and standing tall.
Whether you're a construction pro, engineering student, or just someone curious about how things get built, understanding PC wire gives you insight into how we create the impressive structures defining our cities and connecting our communities.
Next time you cross a bridge or walk through a parking garage, you'll know there's probably prestressed concrete wire in there, doing its job silently and reliably - just like it's designed to do.
Need PC wire for your construction project? Contact TJ Wasungen - we manufacture high-quality prestressed concrete wire and PC strand for infrastructure projects worldwide. Our products meet international standards and ship to project sites around the globe. Reach out today to discuss your project requirements.
