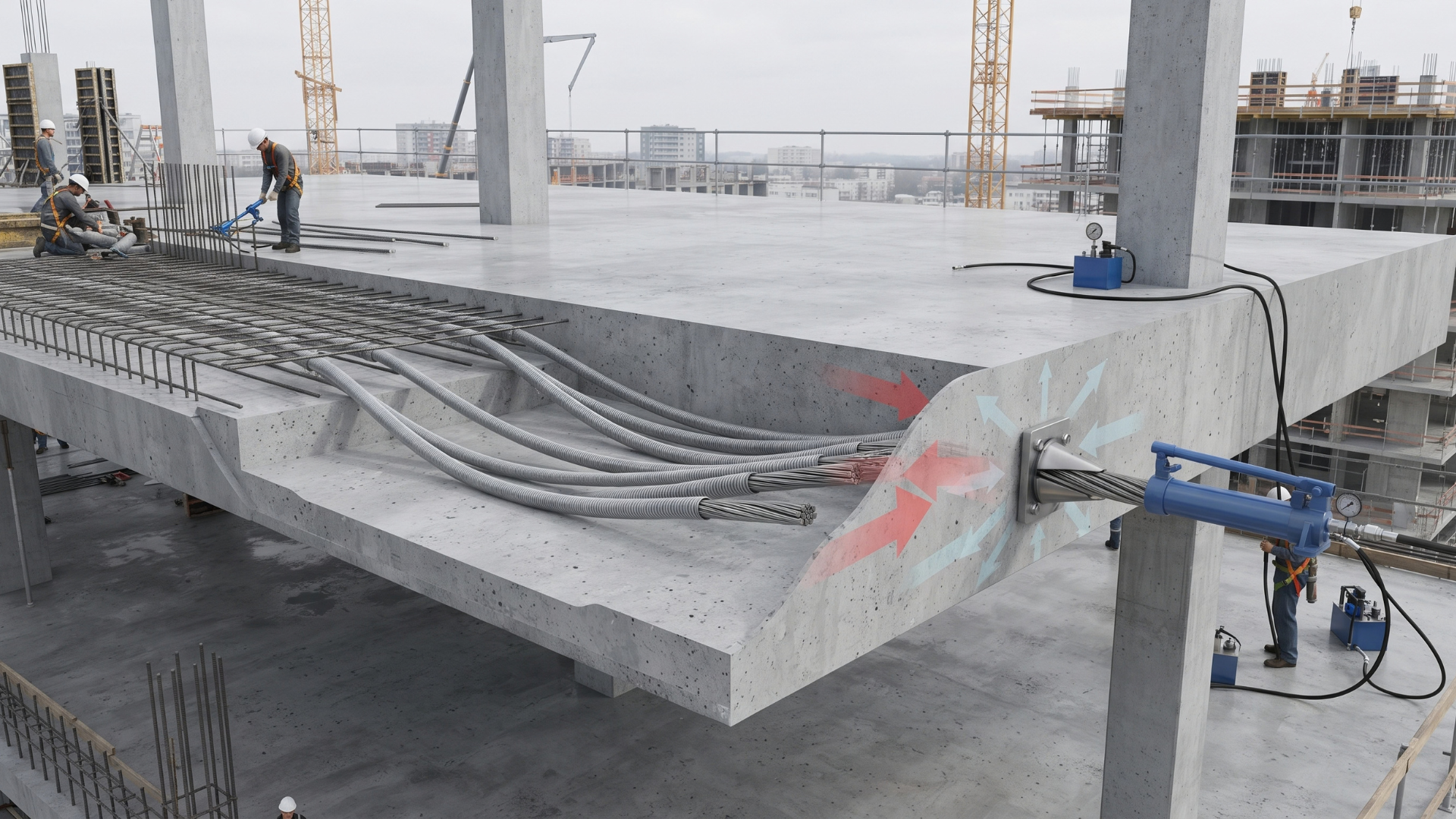

Post-tensioning is a construction method used to improve the strength and performance of concrete structures. It is a type of prestressing in which steel tendons are tensioned after the concrete has reached the required strength.
The tension in the steel creates compression in the concrete. This helps concrete members handle loads and longer spans while controlling cracking and deflection. Post-tensioning is widely used in buildings, bridges, parking structures, slabs, beams, and other large concrete structures.
Post-tensioning is a method of prestressing concrete by applying tension to steel tendons after the concrete has hardened enough to safely receive the force.
During construction, ducts or suitable tendon paths are provided inside the concrete member. Steel tendons are then placed in these paths. Once the concrete reaches the specified strength, hydraulic jacks are used to stretch the tendons. The tendons are then locked in position using anchorages.
The stretched tendons apply a compressive force to the concrete. Since concrete performs well under compression but has limited tensile strength, this added compression can help the structure resist tensile stresses caused by loads.
In simple terms, steel tendons are tensioned after the concrete gains sufficient strength. The force from the tendons then helps the concrete carry structural loads.

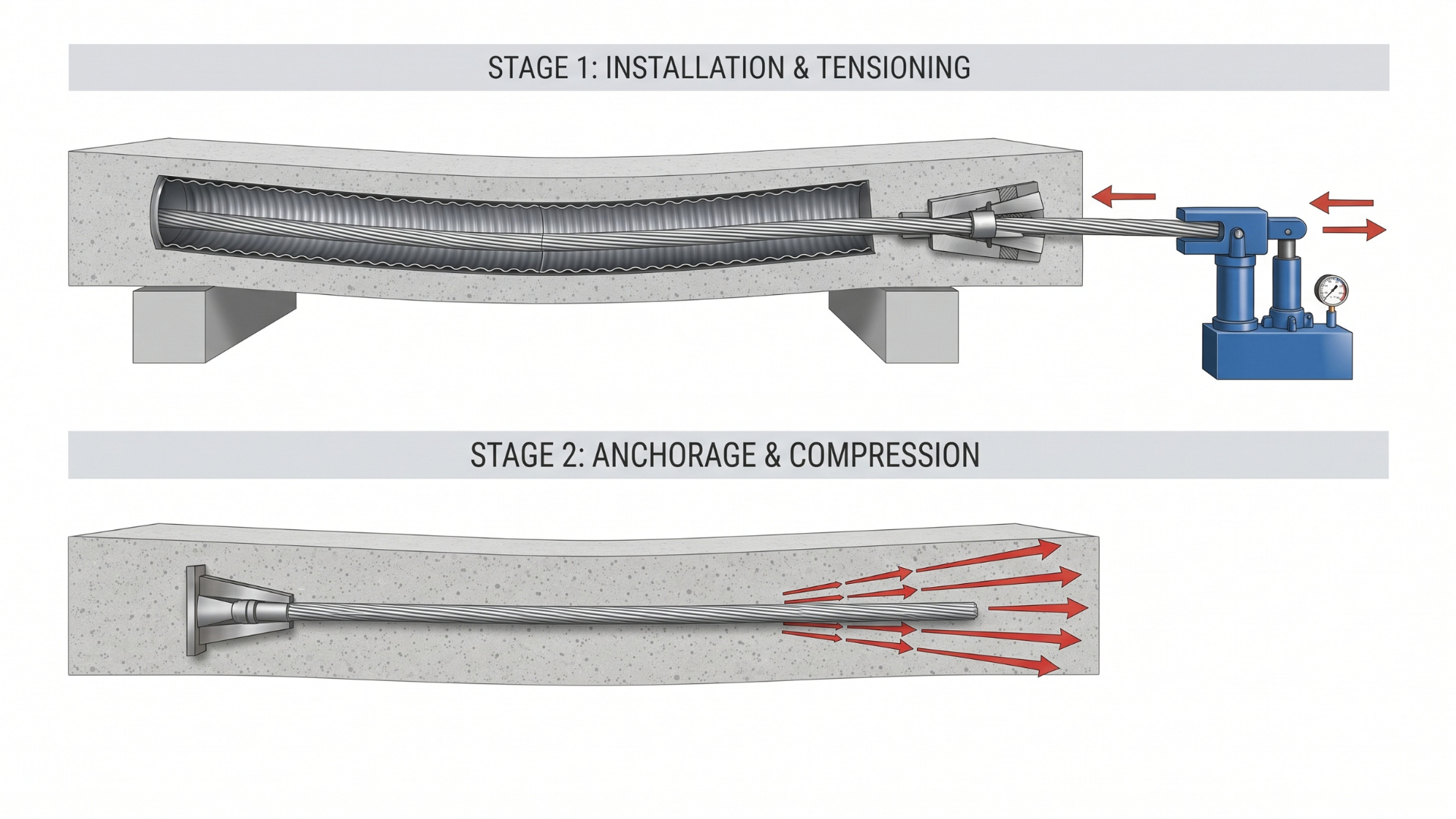

The post-tensioning method involves several important stages. The exact procedure depends on the structural design and the type of system being used.
The concrete member is designed with spaces or ducts for the tendons. These paths must be positioned accurately according to the structural drawings.
Steel tendons are placed inside the ducts or prepared tendon paths. The tendons may be made from high-strength prestressing steel, such as strands or wires.
Concrete is placed around the tendon system and allowed to gain the required strength. The tendon arrangement and anchorage areas need to remain in the correct position during this stage.
After the concrete reaches the required strength, hydraulic jacks are used to pull the tendons. This creates tension in the steel.
Once the required tension is reached, the tendons are secured using anchorage components. The force in the tendons is transferred to the concrete through these anchorages.
Depending on the post-tensioning system, the ducts may be filled with grout to protect the tendons and provide additional bonding with the surrounding concrete.

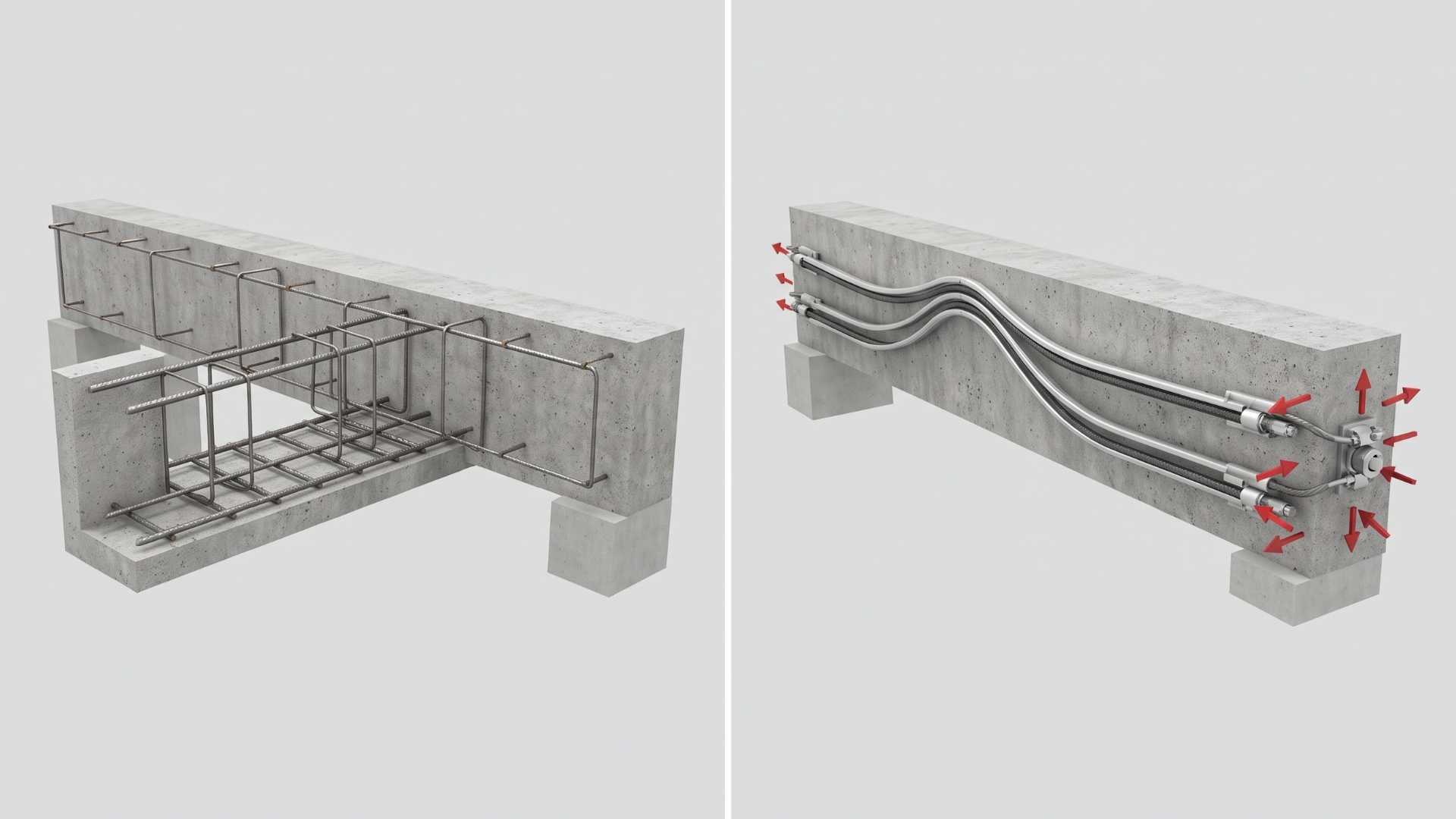

Post-tensioned concrete and conventional reinforced concrete both use steel and concrete, but the steel performs differently.
In conventional reinforced concrete, reinforcing bars mainly provide resistance against tensile forces after the structure is loaded. The reinforcement is not normally tensioned before the structure carries its service loads.
In post-tensioned concrete, high-strength tendons are deliberately tensioned. This creates compression in the concrete before or while the structure is subjected to its normal service loads.
Feature | Conventional Reinforced Concrete | Post-Tensioned Concrete |
Steel | Reinforcing bars | High-strength tendons |
Steel tensioning | Not normally tensioned | Tendons are tensioned after concrete hardens |
Concrete stress | No intentional prestress | Compression is introduced into the concrete |
Span capability | Depends on member size and design | Can be suitable for longer spans |
Common uses | General concrete construction | Slabs, bridges, parking structures and large-span members |
The suitable system depends on the structural design, loading conditions, span requirements, construction method, and project requirements.

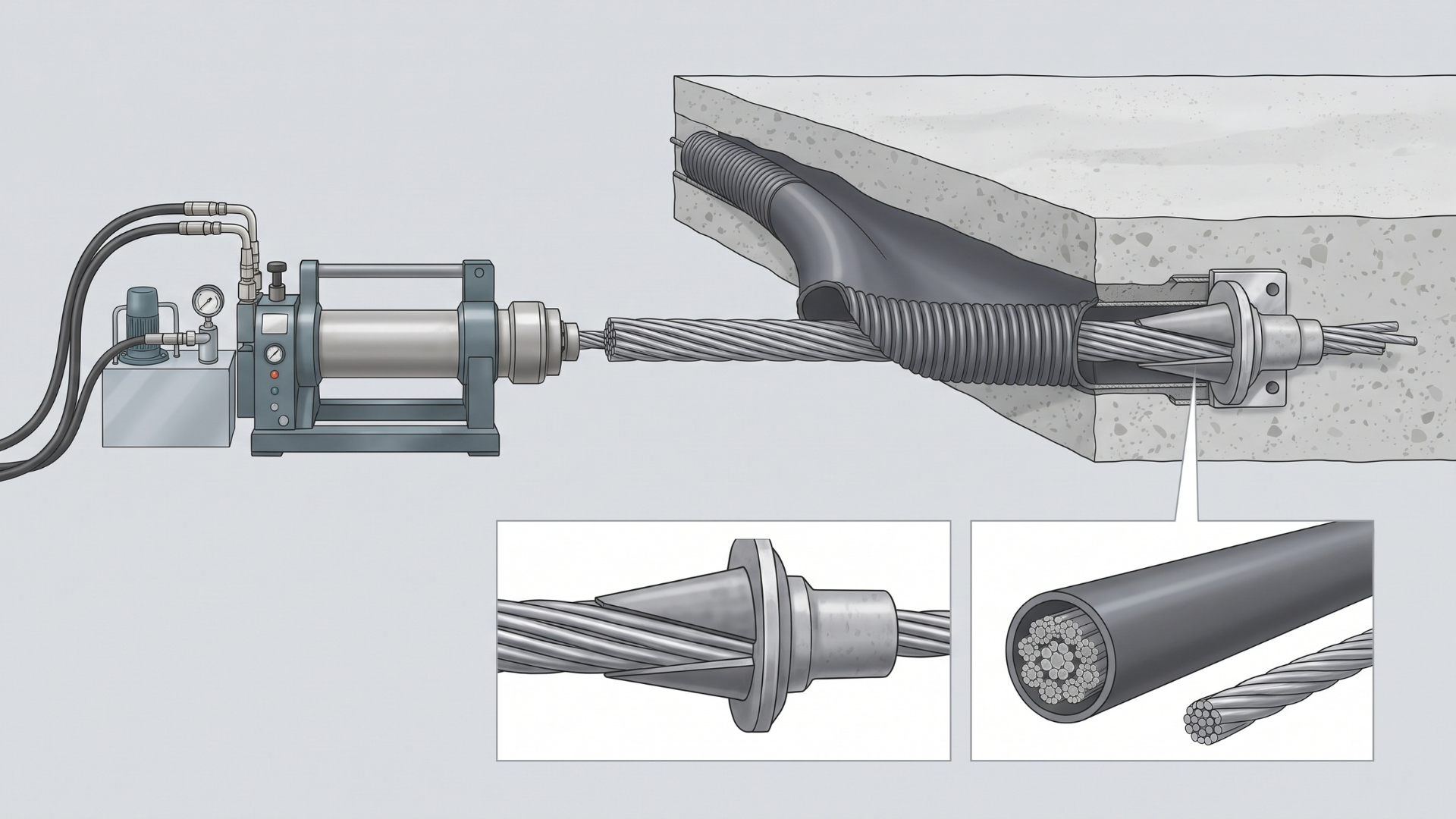

A post-tensioning system contains several components that work together to apply and maintain the required force.
Tendons are high-strength steel elements used to create prestress. They may consist of prestressing strands or wires, depending on the system.
Ducts provide a controlled path for the tendons inside the concrete. They also help separate the tendons from the concrete during tensioning in systems where the tendon is not initially bonded.
Anchorages secure the tendons after tensioning. They also transfer the tendon force into the concrete structure.
Wedges grip the tendon and hold it inside the anchorage after the required tension has been applied.
A hydraulic jack is used to pull the tendon and apply the required tension. The tensioning equipment must be suitable for the tendon size and specified stressing force.
In bonded post-tensioning systems, grout is injected into the duct after tensioning. It helps protect the steel tendon and creates a bond between the tendon and surrounding concrete.

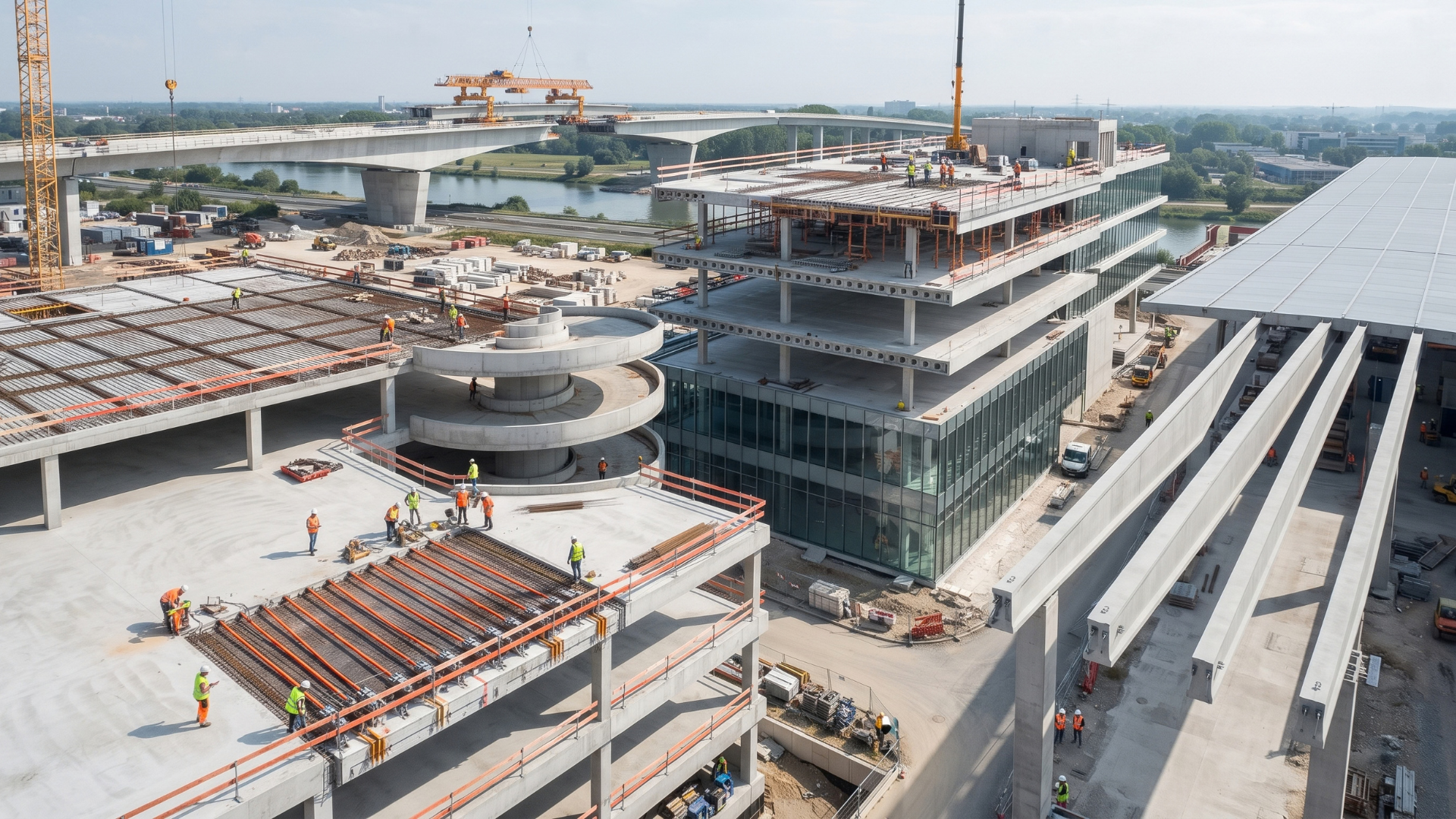

Post-tensioning applications can be found in many types of concrete construction. It is particularly useful where structural designers need to manage long spans, heavy loads, structural depth, or cracking.
Post-tensioning is commonly used in concrete floor slabs. It can allow designers to achieve longer spans and reduce the need for closely spaced columns in suitable buildings.
Parking garages often require open areas for vehicle movement and parking. Post-tensioned slabs can be used to achieve the required spans while managing structural depth.
Post-tensioning is widely used in bridge construction. It can help concrete bridge members handle significant loads and longer spans.
Post-tensioned beams and girders can be designed for projects where conventional reinforced concrete sections would become large or heavy.
Post-tensioning can be used in floor systems and transfer structures in tall buildings where structural space and span requirements are important.
The method is also used in structures such as tanks, transfer slabs, and other concrete members that require controlled structural performance.
There are several post-tensioning advantages when the system is properly designed and installed.
Post-tensioning can help concrete members achieve longer spans. This can provide more open floor areas and greater flexibility in building layouts.
The compression introduced into the concrete can help reduce tensile stress and control cracking under suitable design conditions.
For some projects, post-tensioning can allow a thinner slab or beam to carry the required loads compared with a conventional reinforced concrete solution.
High-strength tendons can provide significant tensile capacity while the concrete carries compression. This combination can make the structural system efficient for certain applications.
The prestressing force can help control deflection in suitable structural members, particularly where longer spans are required.
Longer spans can reduce the need for intermediate columns in some structures. This can provide greater freedom for parking, commercial, industrial, and other layouts.
Post-tensioning is not suitable for every concrete structure. The system must be selected as part of the structural design.
Special attention is required during construction because tendon locations, anchorages, stressing forces, and concrete strength all affect the performance of the system.
Some important considerations include:
Accurate tendon placement
Proper concrete strength before stressing
Correct installation of anchorages
Suitable stressing equipment
Skilled workers and supervision
Protection of tendons from corrosion
Careful detailing around anchorage zones
Proper inspection and testing
Future drilling, cutting, or structural modifications also require care because tendons may be located inside slabs, beams, or other concrete members.
Post-tensioning is one method used to produce prestressed concrete.
Prestressed concrete is a broader term for concrete in which internal stresses are introduced before the structure is subjected to its normal service loads.
There are two common methods of prestressing:
Pre-tensioning: Steel tendons are tensioned before the concrete is cast.
Post-tensioning: Steel tendons are tensioned after the concrete has gained the required strength.
Both methods use high-strength steel and concrete, but the timing and construction methods are different.
Post-tensioning is an important method used in modern concrete construction. By tensioning high-strength steel tendons after the concrete has gained sufficient strength, engineers can introduce compression into the concrete and improve the way structural members respond to loads.
The method is commonly used in slabs, beams, bridges, parking structures, high-rise buildings, and other projects where longer spans or controlled structural performance are needed.
Proper design, accurate tendon placement, suitable equipment, and careful construction are essential for a post-tensioned structure to perform as intended.
Post-tensioning is a method of prestressing concrete in which high-strength steel tendons are tensioned after the concrete has gained sufficient strength.
It is commonly used for slabs, beams, bridges, parking structures, high-rise buildings, and other structures where longer spans or controlled structural performance are required.
No. Prestressed concrete is the broader category. Post-tensioning is one method of creating prestress in concrete.
It can provide longer spans, help control cracking and deflection, reduce structural depth in suitable designs, and allow more open structural layouts.
No. Its suitability depends on factors such as span, loads, structural design, construction conditions, and project requirements.
High-strength steel tendons can withstand the high tensile forces required to introduce compression into the concrete.
