If you have ever reviewed a bridge drawing or precast shop plan, you have likely stopped and asked yourself one thing. What exactly do all these numbers and grades mean? More often than not, the confusion starts with pc strand wire specification.
At Tj Wasungen, we hear this question near you all the time. Contractors, engineers, and inspectors want clear answers, not textbook talk. So, let’s break it down in plain English, step by step, without the noise.
Before we go deeper, let’s define the basics: What is PC Strand? in a way that sticks.
PC stands for prestressed concrete. PC strand is a high-strength steel wire made from several smaller wires twisted together. These strands sit inside concrete and are tensioned to control cracking and carry heavy loads.
When people ask about pc strand wire specification, they are asking about size, strength, grade, coating, and standards. Every one of those details matters on-site.
Specifications are not paperwork filler. They control how a structure behaves for decades.
Wrong size or grade can lead to:
Cracking earlier than expected
Deflection under load
Inspection failure
Costly redesign
Clear pc strand wire specification keeps everyone on the same page from design to placement to final inspection near you.
PC strand sizes are based on nominal diameter. These sizes are recognized across the construction industry.
Here are the most common strand diameters used today:
0.375 inch strand
0.438 inch strand
0.500 inch strand
0.520 inch strand
0.600 inch strand
Each size delivers a different force level when stressed. Larger diameters mean higher load capacity, but also require careful anchorage and spacing.

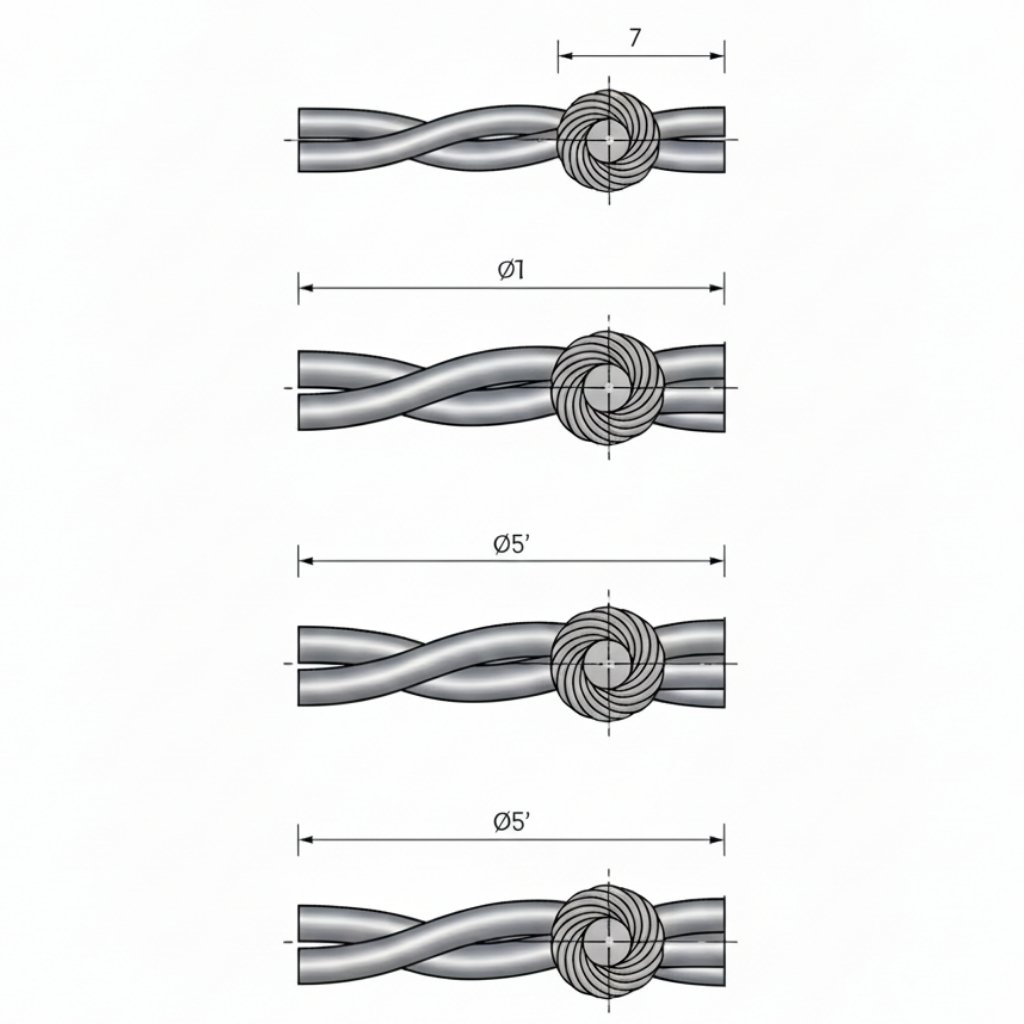

Most PC strands used in North America follow the 7-wire configuration.
This includes:
One straight center wire
Six outer wires helically wrapped
This design balances strength, flexibility, and bonding with concrete. When reviewing pc strand wire specification, this wire count is usually assumed unless stated otherwise.

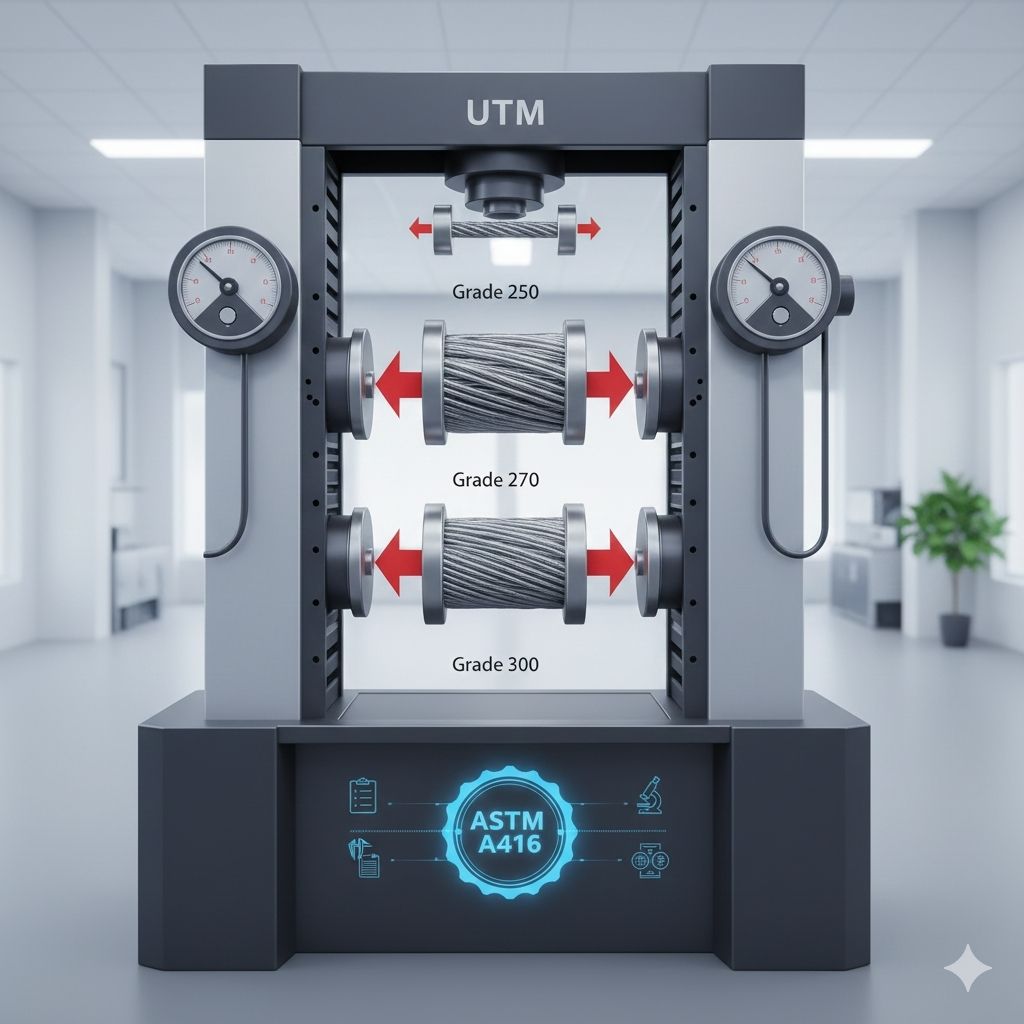

Grades describe the tensile strength of the strand. Strength is measured in pounds per square inch.
The most common grades include:
Grade 250
Grade 270
Grade 270 is the most widely used today. It offers higher strength with controlled elongation, making it suitable for long-span structures near you.
Relaxation describes how much tension the strand loses over time.
There are two main types:
Stress relieved strand
Low relaxation strand
Low relaxation strand loses less force over time and is now the standard choice for most projects. Modern pc strand wire specification almost always calls for low relaxation unless noted otherwise.
Most PC strand in the United States follows standards from ASTM International.
The most important one is ASTM A416.
ASTM A416 defines:
Chemical composition
Tensile strength limits
Elongation requirements
Testing procedures
If a strand does not meet ASTM A416, it usually does not make it onto an approved job site near you.
Bridge and highway projects often follow additional rules from AASHTO.
AASHTO specifications align closely with ASTM but may add:
Tighter tolerances
Additional inspection steps
Project-specific approvals
If your project involves public infrastructure, your pc strand wire specification will likely reference both ASTM and AASHTO.
For precast plants, the Precast/Prestressed Concrete Institute provides design and production guidance.
PCI manuals explain:
Strand spacing rules
Cover requirements
Stressing limits
Handling and storage practices
While PCI does not replace ASTM standards, it helps engineers apply them correctly in real-world precast work.

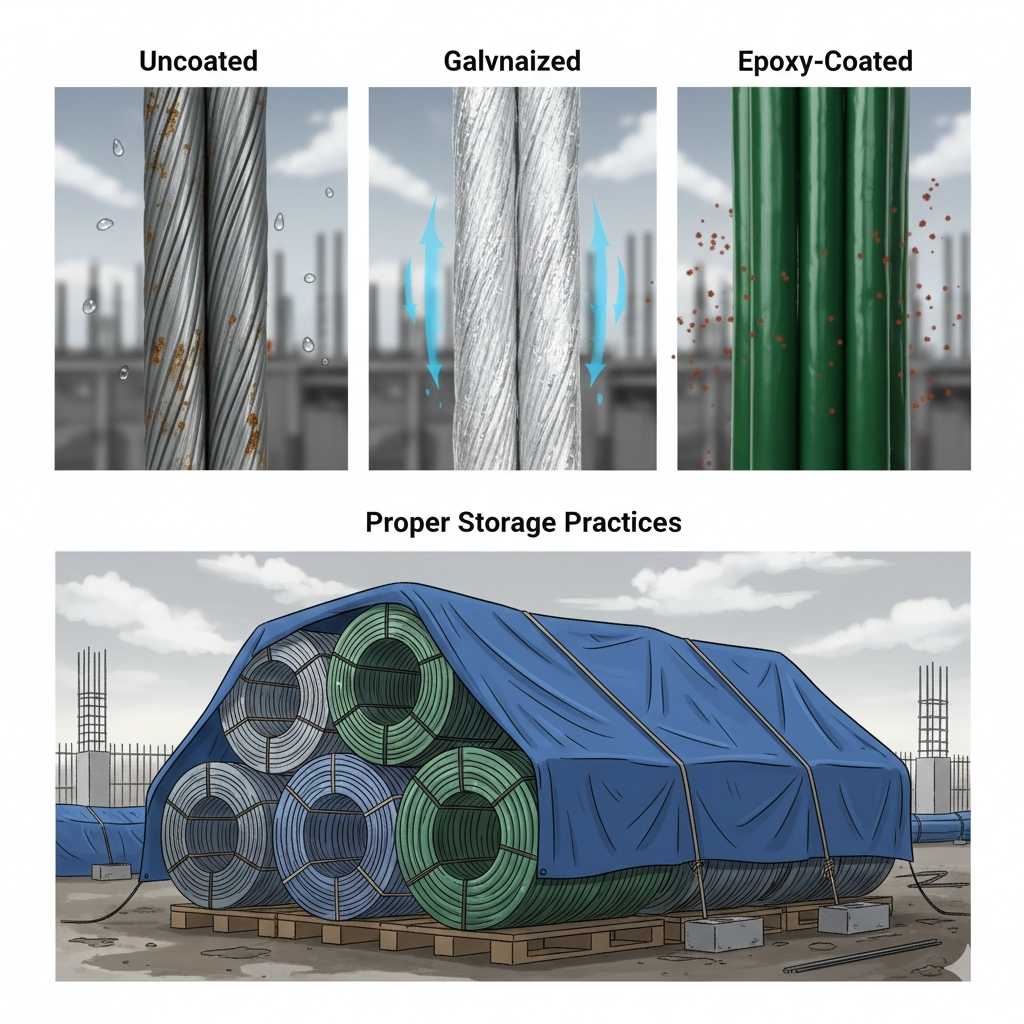

Not every job site faces the same environment. Strand protection depends on exposure.
Common options include:
Uncoated strand for dry conditions
Galvanized strand for moisture exposure
Epoxy-coated strand for aggressive environments
The right coating should always be listed clearly in the pc strand wire specification, especially for coastal or high-humidity areas near you.
PC strand is manufactured under strict tolerances.
Specifications control:
Diameter variation
Weight per foot
Lay length of outer wires
Surface finish
These limits help ensure uniform stressing and predictable performance across long tendon runs.
Every production batch goes through testing before shipment.
Tests usually include:
Tensile strength verification
Elongation measurement
Relaxation testing
Visual inspection
Mill test reports are issued with each shipment. Inspectors rely on these reports to confirm compliance with pc strand wire specification before approval near you.
Even the best strand can fail if handled poorly.
Basic rules include:
Keep strand off the ground
Protect from standing water
Avoid sharp bends
Cover during long storage
These simple steps help preserve coating integrity and mechanical properties until installation.
A contractor ignored storage guidance and left strands exposed during a wet season. Rust formed before placement. The result was rejected material and lost time.
That experience taught a simple lesson. Meeting pc strand wire specification does not stop at paperwork. Field handling matters just as much.
-Tj Wasungen
A typical specification line may include:
Diameter and wire count
Grade and relaxation type
Applicable ASTM standard
Coating type if required
Clear notes prevent guesswork and reduce RFIs during construction near you.
Correct specs help avoid:
Overdesign
Material waste
Stressing errors
Inspection delays
Clear pc strand wire specification keeps schedules moving and costs under control, something every project team values.
At Tj Wasungen, we supply PC strand that meets published standards and project requirements. We work closely with engineers and contractors near you to confirm grades, sizes, coatings, and documentation before delivery.
That extra step avoids surprises on-site and keeps projects moving smoothly.
Understanding pc strand wire specification does not require complicated language. It requires clarity, consistency, and attention to detail. Sizes, grades, and standards all play a role in how a structure performs over time.
If you take one thing away from this guide, let it be this. Good specifications protect your structure long after construction crews are gone. And if you ever need guidance or supply support near you, Tj Wasungen is ready to help.
