When you're building a bridge that'll carry thousands of tons or designing a high-rise that needs to withstand decades of stress, you can't mess around with subpar materials. PC strand (prestressed concrete strand) has become the go-to choice for construction pros who need serious strength without the headache. At TJ Wasungen, we've seen firsthand how the right prestressing steel transforms projects across Africa, South America, and Central Asia.
Here's the deal: PC strand advantages aren't just marketing hype. We're talking real-world benefits that save time, cut costs, and deliver structures that last. Whether you're working on a solar farm foundation or a massive parking garage, understanding what makes prestressed concrete strand tick helps you make smarter material choices.
You've probably seen traditional rebar on job sites. It's thick, heavy, and does its job well enough. But PC strand works on a whole different level.
Prestressed concrete strand consists of seven high-tensile steel wires twisted together in a specific pattern. This isn't your average steel cable. Each wire gets stretched (prestressed) before the concrete sets, creating tension that counteracts the loads your structure will face. Think of it like a drawn bow – the tension's already built in, ready to fight against whatever forces come its way.
Regular reinforcement just sits there waiting for stress to happen. PC strand, on the other hand, actively pushes back against loads before they even occur. That's the fundamental difference that changes everything about how concrete performs.
PC strand can handle way more weight than conventional reinforcement of the same diameter. We're talking tensile strengths of 1860 MPa or higher – that's roughly 270,000 psi for those still working in imperial units.
What's this mean for your project? You can span longer distances without intermediate supports. Bridge designers love this because it cuts down on pier construction. Building engineers appreciate it because parking decks and floor slabs can stretch farther with less material.
At TJ Wasungen, our 7-wire PC strand regularly supports structures where traditional methods would've required twice the steel. One bridge project in Kenya used our 15.2mm strand to create 40-meter spans that would've needed heavy beams otherwise.
Here's where PC strand advantages really shine in your budget. Because prestressed concrete strand packs so much strength into a compact package, you need less concrete overall.
Thinner slabs mean:
Lower material costs
Reduced transportation expenses
Faster installation
Less dead weight on foundations
A parking structure in Peru switched from conventional reinforcement to our 12.7mm PC strand and trimmed 15% off their concrete volume. That saved them thousands in materials and shortened their construction schedule by three weeks.
Concrete cracks. That's just physics. But PC strand gives you serious control over where and when those cracks show up.
The prestressing force keeps concrete under compression, which concrete handles beautifully. Tension's what kills concrete, and prestressed concrete strand minimizes those tension zones. You'll see fewer surface cracks, tighter crack widths, and better long-term durability.
Water infiltration drops significantly when cracks stay minimal. That's huge for structures exposed to weather, salt, or chemicals. Your concrete lasts longer, needs less maintenance, and keeps its structural integrity for decades.
Time is money on construction sites. PC strand speeds things up in ways you might not expect.
Precast concrete elements with prestressing steel can be manufactured off-site while other work continues. Once they arrive, installation goes quick. We've seen crews place precast beams in hours that would've taken days to form and pour conventionally.
The strands themselves are lighter and easier to handle than bulky rebar cages. A small crew can position PC strand that would've required heavy equipment for equivalent conventional reinforcement.
PC strand advantages really stand out when conditions get tough. Our epoxy-coated PC strand and galvanized options handle marine environments, industrial sites, and aggressive chemical exposure.
In coastal Africa, we've supplied corrosion-resistant prestressing strand for bridge projects where salt spray would've destroyed conventional steel in years. These structures are holding strong after a decade with minimal maintenance.
The tight wire configuration and prestressing force create a dense concrete matrix that resists penetration from moisture and contaminants. That protective barrier keeps your prestressed concrete strand safe inside.

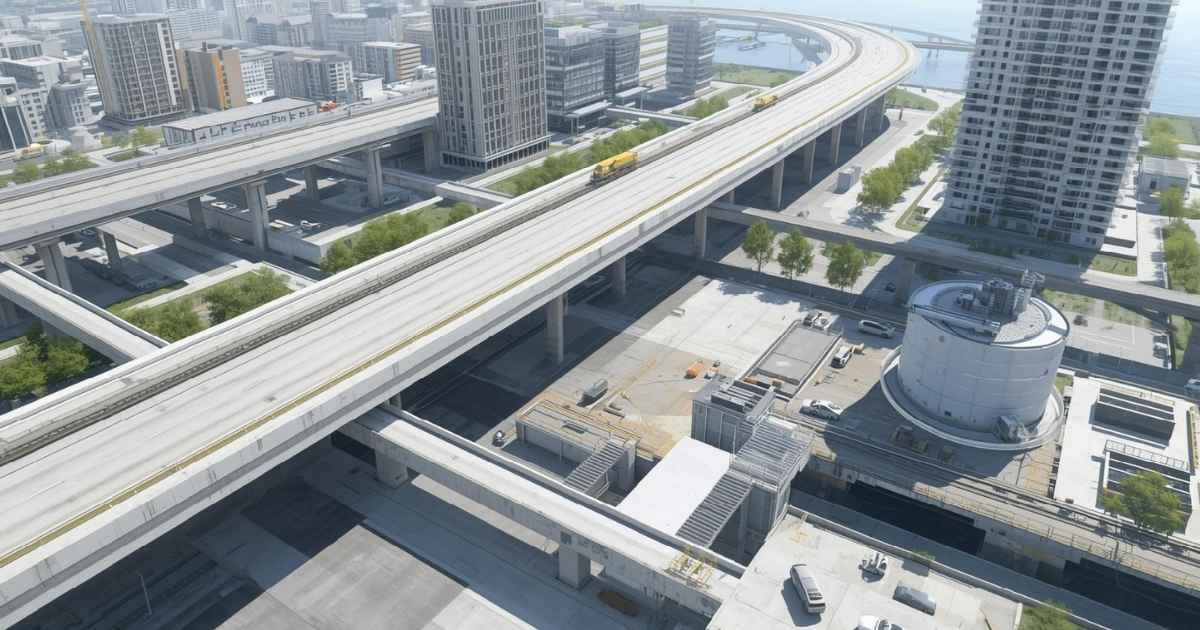

Bridges need to span distances and carry dynamic loads from traffic. PC strand excels here because it allows longer spans without mid-support piers. That's critical when you're crossing rivers, valleys, or highways.
Our bridge strand products serve projects across South America, where challenging terrain makes every pier location expensive and complicated. The ability to stretch spans saves foundation costs and reduces environmental impact.
Post-tensioned bridges use unbonded PC strand that can be stressed after concrete placement. This flexibility lets engineers fine-tune structural behavior and accommodate settlement or movement.
Tall buildings face unique challenges with wind loads, seismic forces, and their own massive weight. PC strand in floor slabs and beams reduces dead load, which means smaller columns and foundations.
A 30-story residential tower in Central Asia used our 15.2mm prestressing strand in their floor systems. The reduced slab thickness gave them an extra floor within the same overall height limit – that's additional sellable space from smarter material choice.
Parking decks need long, clear spans so cars can maneuver easily. Prestressed concrete strand creates those open layouts without columns getting in the way.
The durability benefits matter too. Car traffic brings salt, oil, and constant loading cycles. PC strand systems hold up better than conventional reinforcement in these tough conditions.
Solar installations across Africa and South America increasingly use PC strand in their foundation systems. Ground-mounted arrays need stable bases that won't settle or crack over 25+ year lifecycles.
Prestressed concrete piles with our strand products provide that long-term stability. They're quick to install, resist ground movement, and handle the cycling loads from wind and thermal expansion.

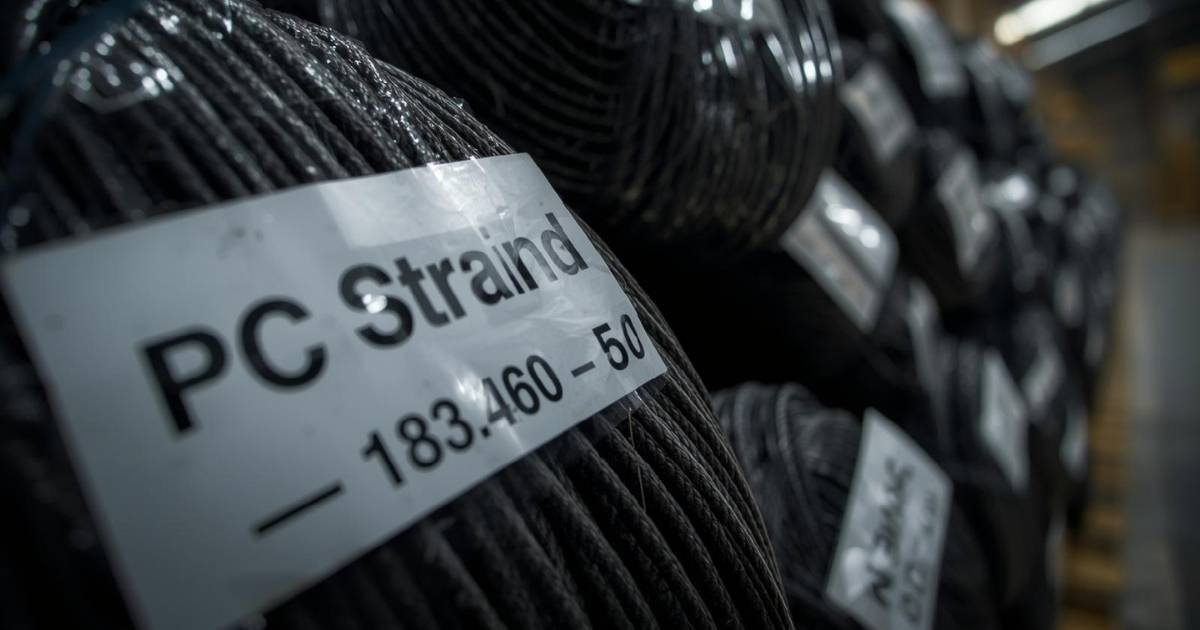

Understanding PC strand specifications helps you spec the right product for your needs. Here's what to focus on:
Diameter options: Common sizes run from 9.5mm to 18mm, with 12.7mm and 15.2mm being most popular. Larger diameters give higher capacity but cost more and require careful handling.
Wire configuration: Most prestressed concrete strand uses 7 wires, but 3-wire and 19-wire versions exist for special applications. The 7-wire design balances strength, flexibility, and cost.
Tensile strength grades: Standard grades include 1860 MPa (270 ksi) and 1770 MPa (250 ksi). Higher grades let you use less strand for the same capacity.
Surface treatments: Bare strand works for most applications. Epoxy coating or galvanizing adds corrosion protection for aggressive environments. TJ Wasungen offers both options depending on your project requirements.
Relaxation characteristics: Low-relaxation strand maintains its prestress force over time better than standard grades. This matters for long-span structures where prestress loss could affect performance.
Conventional reinforcement still has its place, but PC strand advantages make it the better choice for many projects:
Strength: PC strand delivers 3-4x the tensile capacity of typical rebar
Weight: Much lighter for equivalent strength
Crack control: Prestressing keeps concrete compressed
Span capability: Enables longer clear spans
Installation: Faster placement in many applications
Rebar wins on simplicity and familiarity. It's easier to design with and doesn't require specialized stressing equipment. For smaller projects or heavily reinforced sections, conventional steel often makes more sense.
PC wire and PC strand serve similar purposes, but they're not interchangeable. Wire comes as individual strands, while strand bundles multiple wires together.
PC strand offers:
Higher capacity per unit
Better grip on concrete through twisted configuration
Easier handling and installation
More standardized specifications
PC wire works well for smaller prestressing applications and some specialty uses. We've covered the differences in detail in our PC wire vs PC strand comparison.
Let's talk numbers. PC strand advantages translate directly to your bottom line in several ways:
Material costs: While prestressing strand costs more per pound than rebar, you need way less of it. A typical project might use 40% less steel by weight when switching to PC strand.
Concrete savings: Thinner sections mean 10-20% less concrete volume. On a large project, that's substantial savings in material, transportation, and placement.
Labor efficiency: Faster installation cuts labor costs. Precast elements with PC strand go up quick, reducing on-site crew time.
Foundation savings: Lighter structures need smaller foundations. This cascades into lower excavation, forming, and concrete costs.
Lifecycle costs: Better durability means less maintenance spending over decades. That's huge for infrastructure owners working with tight budgets.
A bridge project in Zambia saved $180,000 by using our 12.7mm PC strand instead of conventional design. The material cost more upfront, but reduced concrete volume, faster construction, and smaller foundations more than made up for it.
Even experienced engineers can trip up when working with prestressed concrete strand. Here's what to watch out for:
Inadequate anchorage design: The high forces in PC strand need proper anchoring. Skimping on anchorage hardware or installation quality leads to slippage and potential failure.
Poor storage and handling: Prestressing steel needs protection from moisture and damage. Rusty or kinked strand won't perform as designed. Store it dry, handle it carefully, and inspect before installation.
Incorrect stressing procedures: Prestressing requires specific equipment and trained crews. Overstressing can snap strand. Understressing wastes the material's potential. Follow manufacturer specs and industry standards.
Ignoring relaxation losses: PC strand loses some prestress force over time through relaxation. Your design needs to account for these losses. Low-relaxation strand minimizes this effect.
Mixing incompatible materials: Using the wrong grout, anchors, or ducts causes problems. Stick with compatible systems from reputable suppliers like TJ Wasungen.
You can't just trust that PC strand meets specs – you need verification. Here's how quality control works:
Manufacturing standards: Look for products meeting ASTM A416, BS 5896, or equivalent international standards. These specs define minimum properties for prestressed concrete strand.
Material testing: Reputable suppliers test every production lot for tensile strength, elongation, and relaxation. At TJ Wasungen, we maintain complete test records and provide mill certificates with every shipment.
Inspection before use: Check strand condition on delivery. Look for rust, kinks, or damaged wires. Surface defects can concentrate stress and lead to premature failure.
Proof testing: Critical applications might justify proof loading sample lengths before installation. This confirms actual strength matches specifications.
Our guide to testing PC strand quality covers inspection procedures in detail.
Getting the full PC strand advantages requires proper installation. Here's what works:
Plan your stressing sequence: The order you stress strands affects final concrete stress distribution. Follow your engineer's stressing plan exactly.
Use calibrated equipment: Jacks and gauges need regular calibration. Inaccurate equipment leads to incorrect prestress forces.
Monitor elongation: Measure strand elongation during stressing. This verifies you're achieving target forces and catches slippage issues.
Protect during construction: Cover exposed strand ends to prevent corrosion. Keep construction loads off unstressed members.
Document everything: Record actual stressing forces, elongations, and any issues. This documentation proves compliance and helps troubleshoot problems.
TJ Wasungen supplies prestressed concrete strand across challenging markets where quality and reliability matter:
Africa: We serve projects throughout Kenya, South Africa, Nigeria, Ghana, Tanzania, Ethiopia, and Uganda. Infrastructure development across the continent creates huge demand for durable prestressing solutions.
South America: Construction in Brazil, Argentina, Chile, Peru, Colombia, and Ecuador relies on PC strand for bridges, buildings, and industrial structures.
Central Asia: Projects in Kazakhstan, Uzbekistan, and neighboring regions use our products where extreme temperatures and seismic concerns demand proven materials.
Don't see your country listed? We ship worldwide and support projects in emerging markets. Contact TJ Wasungen to discuss your specific requirements.
PC strand advantages extend beyond structural performance. There's an environmental angle that matters:
Reduced material consumption: Less concrete and steel per project means lower embodied carbon. That's significant when you're building at scale.
Longer service life: Durable structures don't need replacement as often. A bridge lasting 100 years beats one needing replacement after 50.
Recyclability: Steel strand can be recycled at end of life. While prestressed applications make recovery more complex, the material itself remains fully recyclable.
Efficient transportation: Lighter materials mean fewer trucks moving less weight. This cuts transportation emissions and costs.
PC strand delivers way higher strength – typically 3-4 times what you get from conventional rebar of similar diameter. This lets you build longer spans, use less material, and create thinner sections that save concrete and reduce dead weight. The prestressing force also keeps concrete under compression, which controls cracking and improves long-term durability.
Properly installed prestressed concrete strand in quality concrete can last 75-100+ years. We've got bridges from the 1960s still performing great with original strand. The key is good concrete cover, proper anchorage, and protection from corrosion. For harsh environments, epoxy-coated or galvanized PC strand extends service life even further.
Absolutely. PC strand performs well in earthquake-prone areas when designed correctly. The ductility of prestressed concrete systems and the strand's high strength make them suitable for seismic applications. Post-tensioned designs with unbonded strand offer particular advantages because the strand can slip slightly during extreme events, dissipating energy. Many bridges and buildings in seismic regions across South America and Central Asia use our products.
PC strand typically costs 2-3x more per pound than rebar, but you need significantly less of it. Overall project costs often favor prestressed solutions because you save on concrete volume, construction time, and foundation size. A detailed cost analysis for your specific project usually shows 10-25% savings with PC strand, especially on longer spans or specialized structures. Check our PC strand cost analysis for more details.
Yes, you'll need hydraulic jacks, stressing equipment, and trained crews for proper installation. Post-tensioning requires specialized anchors, ducts, and grouting equipment. Many contractors rent this gear for individual projects or partner with prestressing specialists. The equipment investment pays off through faster construction and better results. TJ Wasungen can connect you with installation partners in your region.
Your structural engineer calculates required prestressing forces based on design loads and span lengths. Common sizes like 12.7mm and 15.2mm strand handle most applications. Larger diameters provide higher capacity but cost more and need careful handling. Smaller sizes work for precast elements and specialty applications. The choice balances structural requirements, available space, and project economics. Our technical team can help you spec the right product for your needs.
PC strand advantages aren't just theoretical – they translate to real benefits on actual construction projects. From the superior strength that enables longer spans to the durability that extends service life, prestressed concrete strand delivers value that conventional reinforcement can't match.
At TJ Wasungen, we've supplied prestressing steel for hundreds of projects across three continents. We've seen how the right material choice transforms challenging designs into buildable, economical structures. Whether you're planning a bridge in Africa, a high-rise in South America, or infrastructure in Central Asia, PC strand offers proven performance.
Want to discuss your specific project requirements? Our technical team understands the real-world challenges you face and can recommend the right prestressed concrete strand solution. Visit TJ Wasungen or explore our complete range of PC strand products to get started.
