A strong foundation is essential for any building or infrastructure project. When the surface soil cannot support the weight of a structure, deep foundations are often used to transfer the load to stronger soil or rock below the ground.
PHC piles (Prestressed High-Strength Concrete Piles) are widely used in deep foundation systems for buildings, bridges, factories, ports, and other infrastructure projects. They are made from high-strength concrete and prestressed steel, which help them withstand heavy loads and perform under demanding ground conditions.
PHC piles are manufactured in controlled factory conditions and installed using specialized piling equipment. Their strength, consistent quality, and suitability for deep foundations make them a common choice for large construction projects.
Understanding PHC pile specifications, dimensions, grades, and applications helps engineers and contractors select the right pile for their projects.
PHC stands for Prestressed High-Strength Concrete. PHC piles are precast concrete foundation piles made using high-strength concrete and prestressing steel wires or strands.
These piles are generally hollow and circular in shape. Their design allows them to carry structural loads while keeping their weight manageable for transportation and installation.
The manufacturing process involves several steps:
Steel reinforcement preparation: Prestressing steel wires or strands are arranged inside a cylindrical steel mould.
Prestressing: The steel is tensioned to introduce compressive stress into the concrete after the concrete hardens and the prestressing force is released.
Concrete casting: High-strength concrete is placed into the mould around the reinforcement.
Centrifugal compaction: The mould is rotated at high speed to distribute and compact the concrete, forming a dense, hollow pile.
Curing: The concrete undergoes controlled curing to develop the required strength.
Finishing and inspection: The piles are checked for dimensions, concrete quality, and other requirements before delivery.
The prestressing process helps the concrete resist tensile stresses and cracking during handling, transportation, and service.
PHC piles are available in different structural classifications depending on the manufacturing standard, prestressing arrangement, and required performance.
In some standards, pile types are identified by letters such as A, AB, B, and C. These classifications generally relate to structural design and reinforcement requirements. The exact definitions and properties must be confirmed against the applicable standard and manufacturer's technical documents.
A-Type PHC piles are used in foundation applications where their specified structural capacity meets the project's requirements. They may be suitable for buildings and other structures with moderate foundation loads, depending on the soil conditions and pile design.
AB-Type PHC piles are designed with a different structural reinforcement arrangement from A-Type piles. They may be selected for projects that require a higher structural capacity or different resistance to bending and handling stresses.
B-Type PHC piles are used in projects where the required structural performance calls for a different reinforcement configuration. Their suitability depends on the pile dimensions, material properties, and design loads.
C-Type PHC piles are available under certain classification systems. Their structural characteristics and applications depend on the applicable standard and manufacturer's specifications.
Important: A, AB, B, and C classifications are not universal across all standards. Always confirm the exact classification before selecting a pile.
PHC pile specifications describe the materials, dimensions, strength, and structural properties of a pile. Engineers and contractors use these details to determine whether a pile is suitable for a particular foundation project.
The exact specifications depend on the manufacturing standard, pile design, and project requirements.
PHC piles are manufactured using high-strength concrete. The concrete must meet the strength requirements specified by the applicable standard.
Concrete strength affects the pile's ability to withstand compressive forces and maintain its structural integrity. The required strength is determined during the design and manufacturing process.
Prestressing steel is an important part of PHC pile construction. High-strength steel wires or strands are tensioned before the concrete is fully hardened, and the force is transferred to the concrete during production.
The prestressing steel helps the pile resist tensile stresses and reduces the risk of cracking under certain loading conditions.
The reinforcement arrangement, steel strength, and prestressing force should meet the requirements of the relevant manufacturing standard.
The load-bearing capacity of a PHC pile depends on several factors, including:
Pile diameter and wall thickness
Concrete strength and prestressing arrangement
Soil conditions and pile installation method
Pile length and depth of penetration
Structural loads and the foundation design
A pile's structural capacity is not the same as its allowable foundation load. The geotechnical conditions and the interaction between the pile and surrounding soil must also be considered.
PHC piles have a hollow interior, and their wall thickness affects their structural performance, weight, and resistance to handling and installation stresses.
The required wall thickness depends on the outer diameter, pile classification, and design requirements.
PHC piles must comply with the standards specified for the project. These standards may cover concrete strength, prestressing steel, dimensions, manufacturing methods, testing, and quality control.
Buyers should request technical documents that identify the applicable standard and confirm that the supplied piles meet the required specifications.
PHC pile dimensions vary according to the manufacturer, product classification, and project requirements. The main measurements include outer diameter, pile length, and wall thickness.
These dimensions influence the pile's weight, structural capacity, handling requirements, and installation method.
The PHC pile diameter is the outside measurement across the circular pile. It is one of the main factors considered when selecting a pile for a foundation.
Common nominal outer diameters available in the market include:
300 mm
400 mm
500 mm
600 mm
800 mm
1,000 mm
These are examples of commonly used sizes, not a universal list of standard dimensions. Availability depends on the manufacturing standard and supplier.
Larger-diameter piles can provide greater structural capacity and may support higher loads, but the actual capacity depends on the pile's full design and ground conditions.
PHC pile length refers to the total length of an individual pile section. The required length is determined by the depth of the suitable bearing layer, soil conditions, and foundation design.
Pile sections can be manufactured in standard or project-specific lengths. When the required foundation depth exceeds the length of one section, multiple sections may be joined using suitable mechanical or welded joints, depending on the pile system.
The final pile length should be based on the geotechnical investigation and installation requirements.
Wall thickness is the distance between the outer and inner surfaces of a hollow PHC pile.
A thicker wall can provide a different structural capacity and resistance to handling stresses, but the appropriate thickness depends on the pile's diameter, reinforcement, concrete strength, and design loads.
The following table shows examples of nominal outer diameters and the other dimensions that should be confirmed before ordering.
Specification | Details |
Outer diameter | Examples include 300, 400, 500, 600, 800, and 1,000 mm |
Pile length | Standard or project-specific |
Wall thickness | Depends on diameter and pile classification |
Inner diameter | Determined by outer diameter and wall thickness |
Pile weight | Depends on dimensions and material properties |
For an accurate dimension table, request the manufacturer's product catalogue with the exact diameter, wall thickness, length, and weight for each pile type.
PHC pile grades describe the strength or classification of the pile under a particular manufacturing standard.
The grade may be linked to the concrete's specified compressive strength, the prestressing steel arrangement, and other structural requirements.
Different countries and manufacturers may use different grading systems. Therefore, a grade name should always be read together with the applicable standard and product specifications.
When comparing PHC pile grades, check the following:
Specified concrete compressive strength
Prestressing steel type and strength
Reinforcement arrangement
Structural capacity and design requirements
Manufacturing and quality control standards
A higher concrete strength alone does not guarantee that a pile will perform better in every foundation condition. The full pile design and the surrounding soil must be considered.
PHC piles are used in a wide range of construction projects where deep foundations are needed to support structural loads.

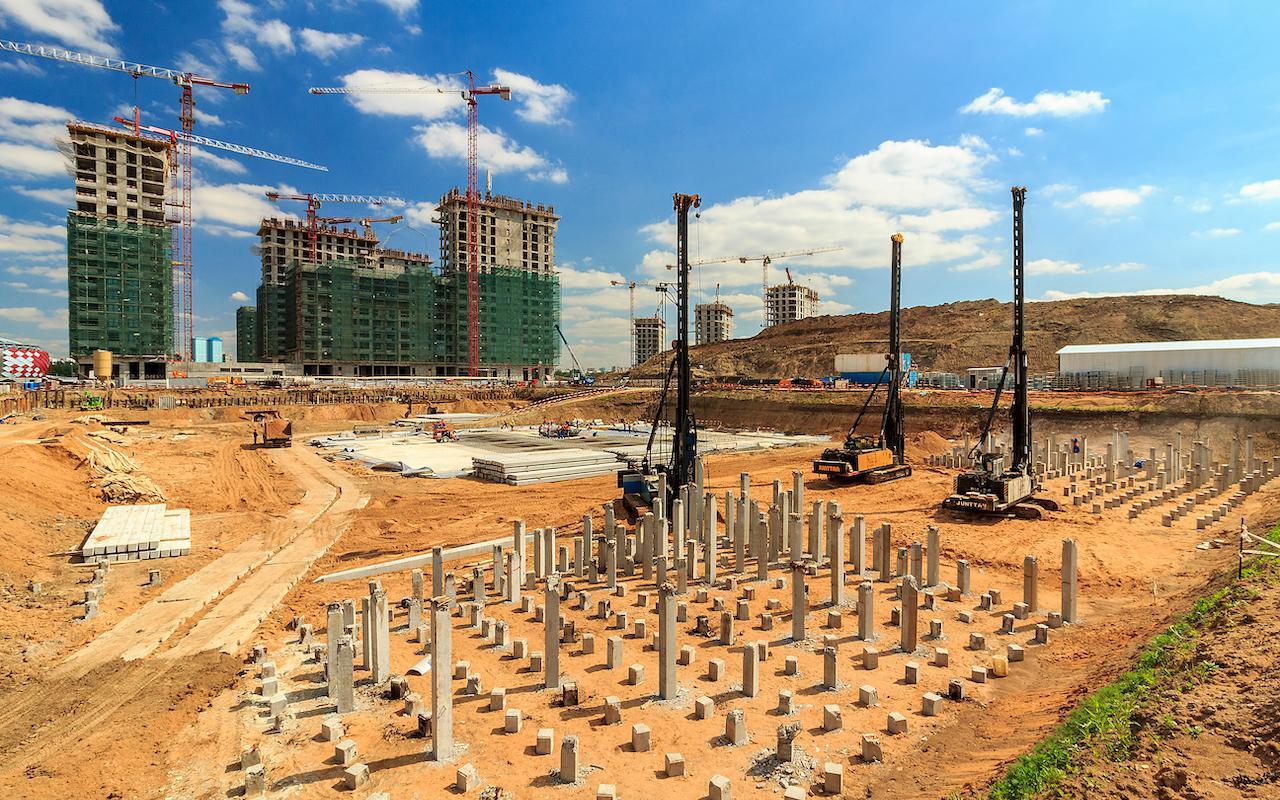

PHC piles are used beneath residential, commercial, and public buildings when the upper soil layers cannot provide sufficient support. They transfer loads to deeper soil layers that can support the structure.

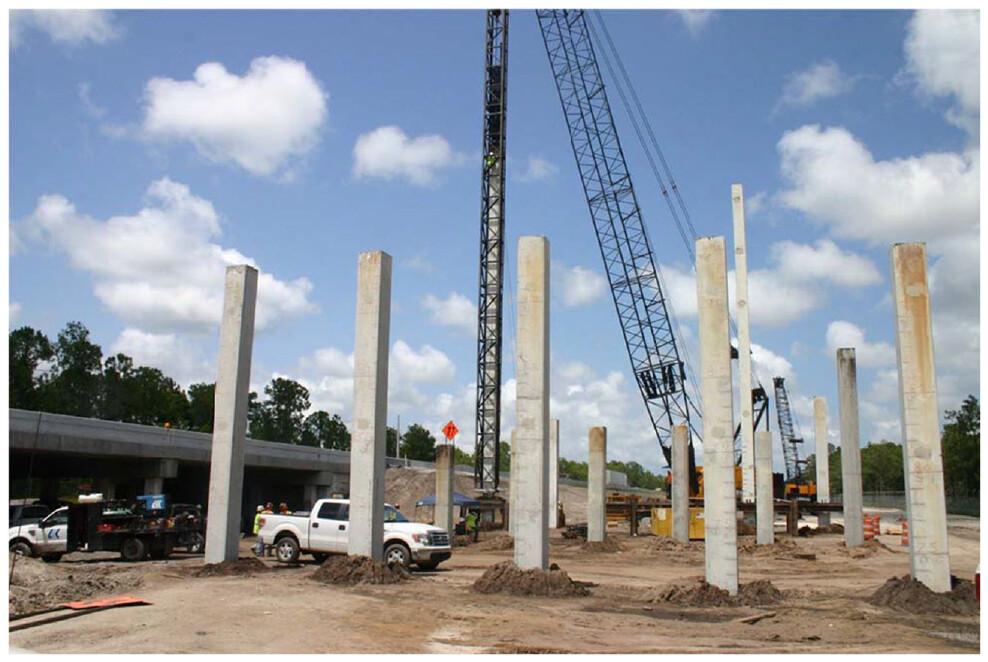

Bridge piers and viaduct foundations often require piles to support heavy loads. PHC piles may be used where the soil conditions and structural design make them suitable.

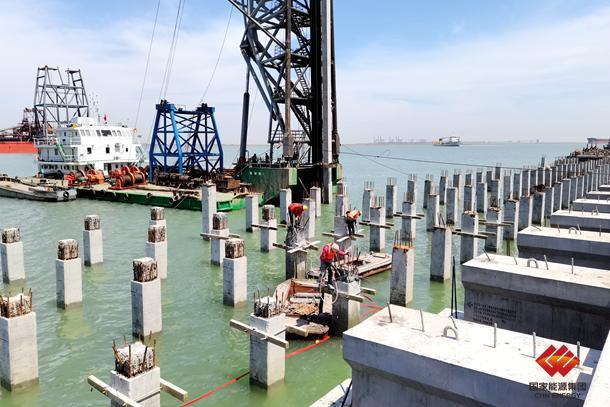

PHC piles can be used in port facilities, waterfront structures, and other marine-related projects. Their suitability depends on exposure to seawater, soil conditions, and the durability requirements of the project.
Factories, warehouses, and industrial facilities may require deep foundations to support heavy structural loads and equipment. PHC piles can be considered where the ground conditions and design requirements are appropriate.
High-rise buildings place significant loads on their foundations. PHC piles can help transfer these loads to suitable soil layers when designed and installed according to the project requirements.
PHC piles are also used in selected infrastructure projects, including transportation facilities, elevated structures, and other developments that require deep foundation support.
PHC piles offer several features that make them suitable for different foundation applications.
PHC piles use high-strength concrete and prestressing steel. This combination helps them resist compressive forces and carry structural loads when properly designed.
PHC piles can support substantial foundation loads. Their capacity depends on the pile's structural properties, soil conditions, and installation method.
PHC piles are manufactured under controlled factory conditions. This allows manufacturers to monitor concrete quality, dimensions, prestressing, and curing during production.
When manufactured, designed, and installed correctly, PHC piles can provide long-term foundation support. Their durability depends on concrete quality, environmental exposure, and protection against corrosion and other forms of deterioration.
PHC piles are designed for deep foundation applications. They can transfer loads through weaker surface soils to deeper soil layers that provide suitable support.

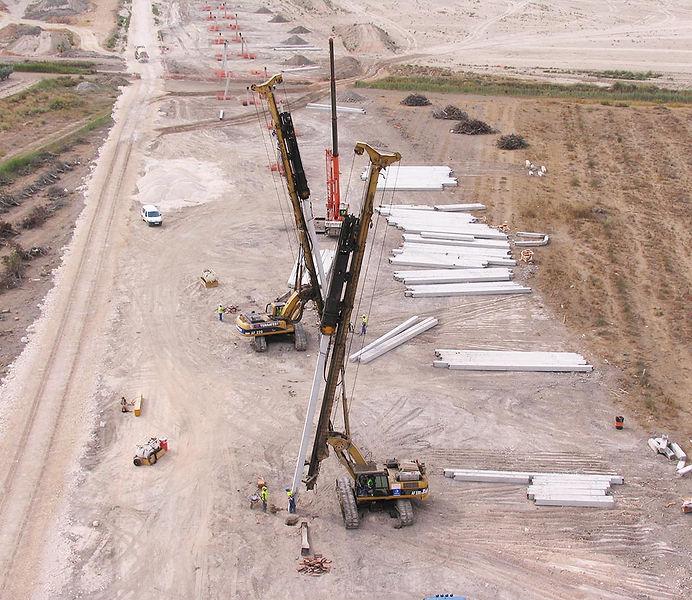

PHC piles can be installed using specialized piling equipment. Their precast construction allows the pile sections to be delivered to the site ready for installation, reducing the need for concrete casting at the foundation location.
PHC piles differ from conventional reinforced concrete piles and other prestressed concrete piles in their manufacturing process, material properties, and structural design.
Feature | PHC Piles | Conventional Reinforced Concrete Piles | Other Prestressed Concrete Piles |
Manufacturing | Factory-made using high-strength concrete and prestressing | Precast or cast in place with conventional reinforcement | Precast using prestressing |
Concrete | High-strength concrete | Concrete strength varies by design | Depends on the product and standard |
Reinforcement | Prestressing steel | Conventional reinforcing bars | Prestressing steel |
Structural performance | Designed for high compressive loads and prestressing stresses | Depends on reinforcement and concrete design | Depends on prestressing and pile design |
Common applications | Deep foundations for buildings and infrastructure | Building and infrastructure foundations | Various foundation and structural applications |
Installation | Usually driven or installed using specialized piling equipment | Driven, bored, or cast in place, depending on the pile type | Depends on the pile design |
The right pile type depends on the project requirements, soil conditions, construction method, and applicable standards.
Selecting the right PHC pile requires careful consideration of the foundation design, ground conditions, and product specifications.
A geotechnical investigation helps determine the soil layers, groundwater conditions, and depth of suitable bearing strata. These findings guide the selection of pile length, installation method, and foundation design.
The pile must support the loads transferred from the structure. Engineers should consider the structural capacity of the pile and its capacity within the surrounding soil.
The pile diameter, wall thickness, and length should match the design requirements. The selected dimensions must also be compatible with the installation equipment and site conditions.
Check that the PHC piles meet the relevant manufacturing and construction standards. The manufacturer's technical documents should clearly state the pile classification, material properties, and dimensions.
Groundwater, soil chemistry, and exposure to seawater or other aggressive conditions can affect pile durability. The pile design should account for these conditions.
Choose a manufacturer that can provide clear technical specifications, quality inspection records, and product information.
Before placing an order, confirm the pile dimensions, grade, required quantity, delivery schedule, and project-specific requirements.
PHC stands for Prestressed High-Strength Concrete. PHC piles are precast concrete foundation piles made with high-strength concrete and prestressing steel.
PHC piles are used in deep foundations for buildings, bridges, factories, ports, high-rise structures, and other infrastructure projects.
PHC pile dimensions vary by manufacturing standard and product type. Common nominal outer diameters include 300 mm, 400 mm, 500 mm, 600 mm, 800 mm, and 1,000 mm. Length and wall thickness depend on the design and manufacturer.
PHC piles are available in different diameters, commonly ranging from around 300 mm to 1,000 mm in many product ranges. The exact sizes available depend on the manufacturer and applicable standard.
PHC pile length depends on the foundation design, soil conditions, and manufacturing capabilities. Multiple pile sections can be joined when a greater installation depth is required and the pile system allows it.
PHC means Prestressed High-Strength Concrete, while PC means Prestressed Concrete. PHC piles generally use high-strength concrete and are manufactured to meet specific strength and production requirements. PC piles may refer to a broader category of prestressed concrete piles, depending on the standard and market.
The selection depends on soil conditions, required load capacity, pile diameter, length, wall thickness, applicable standards, and installation requirements. A geotechnical investigation and structural design are essential for selecting the appropriate pile.
PHC piles are widely used in deep foundation systems because of their high-strength concrete, prestressing technology, and suitability for supporting heavy structural loads. They are used in building foundations, bridges, industrial facilities, ports, and other infrastructure projects.
Choosing the right PHC pile requires careful consideration of its specifications, dimensions, grade, load-bearing capacity, and installation conditions. Engineers and contractors should review the geotechnical report and manufacturer's technical documents before selecting a pile.
