Prestressed steel strand is a high-strength steel reinforcement product used to introduce controlled prestress into concrete structures, allowing them to carry heavier loads and span greater distances than conventionally reinforced concrete. Prestressed steel strand and prestressed concrete strand are terms commonly used to describe the same steel strand used in prestressed concrete construction, though buyers and engineers sometimes use them interchangeably depending on whether they are emphasizing the material or the application.
This guide covers what prestressed steel strand is, how it works, the main types and sizes available, the standards that govern it, typical applications, and what to check before placing an order — giving engineers, contractors, and procurement teams a single, practical reference.
Prestressed steel strand is manufactured from high-carbon steel wires that are cold-drawn to achieve very high tensile strength, then twisted together into a strand. The most common configuration is a 7-wire strand, made of one straight central wire surrounded by six helically wound outer wires. This construction gives the strand excellent tensile capacity while remaining flexible enough to handle, spool, and tension on site.
High-strength steel is essential because prestressing works by stretching the strand under significant tension before or after the concrete is cast. Only steel with very high tensile strength — well above that of ordinary reinforcing bar — can hold this tension over the long service life of a structure without excessive loss of prestress.
Prestressed concrete strand generally refers to this same strand in the context of its role in concrete — introducing and maintaining compressive stress in the finished structure — while prestressed steel strand emphasizes the steel material and its manufacturing properties. In practice, the two terms describe the same core product rather than two different products.

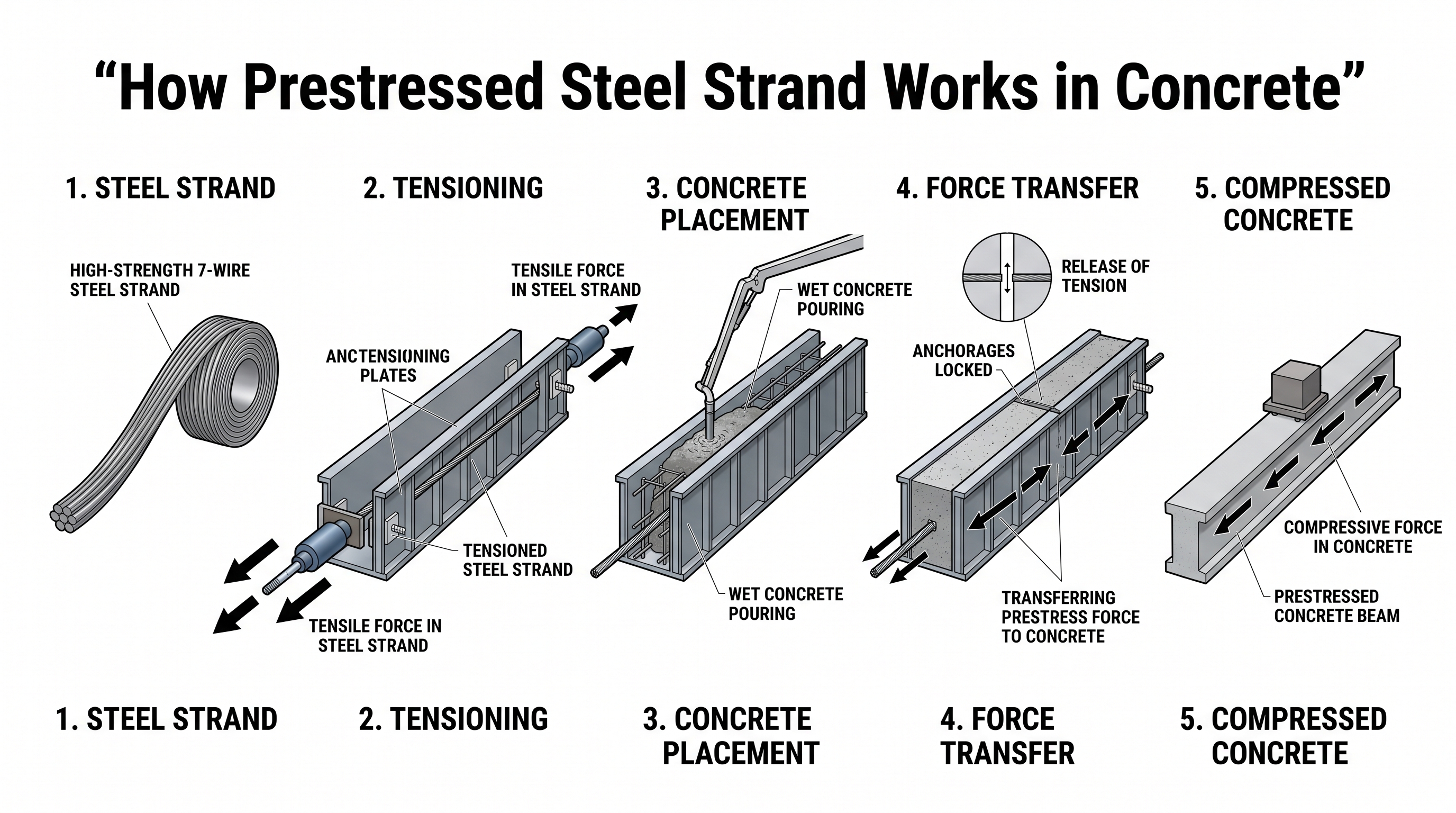

Prestressing works by tensioning the strand so that, once bonded or anchored to the concrete, it keeps the concrete in a state of compression. Since concrete is strong in compression but weak in tension, this pre-compression allows the structure to resist tensile stresses that would otherwise cause cracking under load.
There are two main prestressing methods.
The strand is tensioned against fixed abutments before the concrete is poured.
Concrete is cast directly around the tensioned strand.
Once the concrete has cured to sufficient strength, the strand is released, transferring the prestressing force to the concrete through bond.
This method is widely used for precast elements such as beams, hollow core slabs, and railway sleepers, produced in a factory or casting yard.
The concrete element is cast first, typically with ducts or sheathing left in place for the strand.
After the concrete reaches the required strength, the strand is threaded through and tensioned using hydraulic jacks.
Anchorage systems at each end lock in the tension and transfer the prestressing force into the concrete.
Post-tensioning is common for bridges, long-span slabs, and structures built in stages or on site.
Selecting between pretensioning and post-tensioning depends on the project type, span, casting method, and site conditions, and often determines whether bonded or unbonded strand is required — see our prestressing anchorages range for post-tensioning hardware.

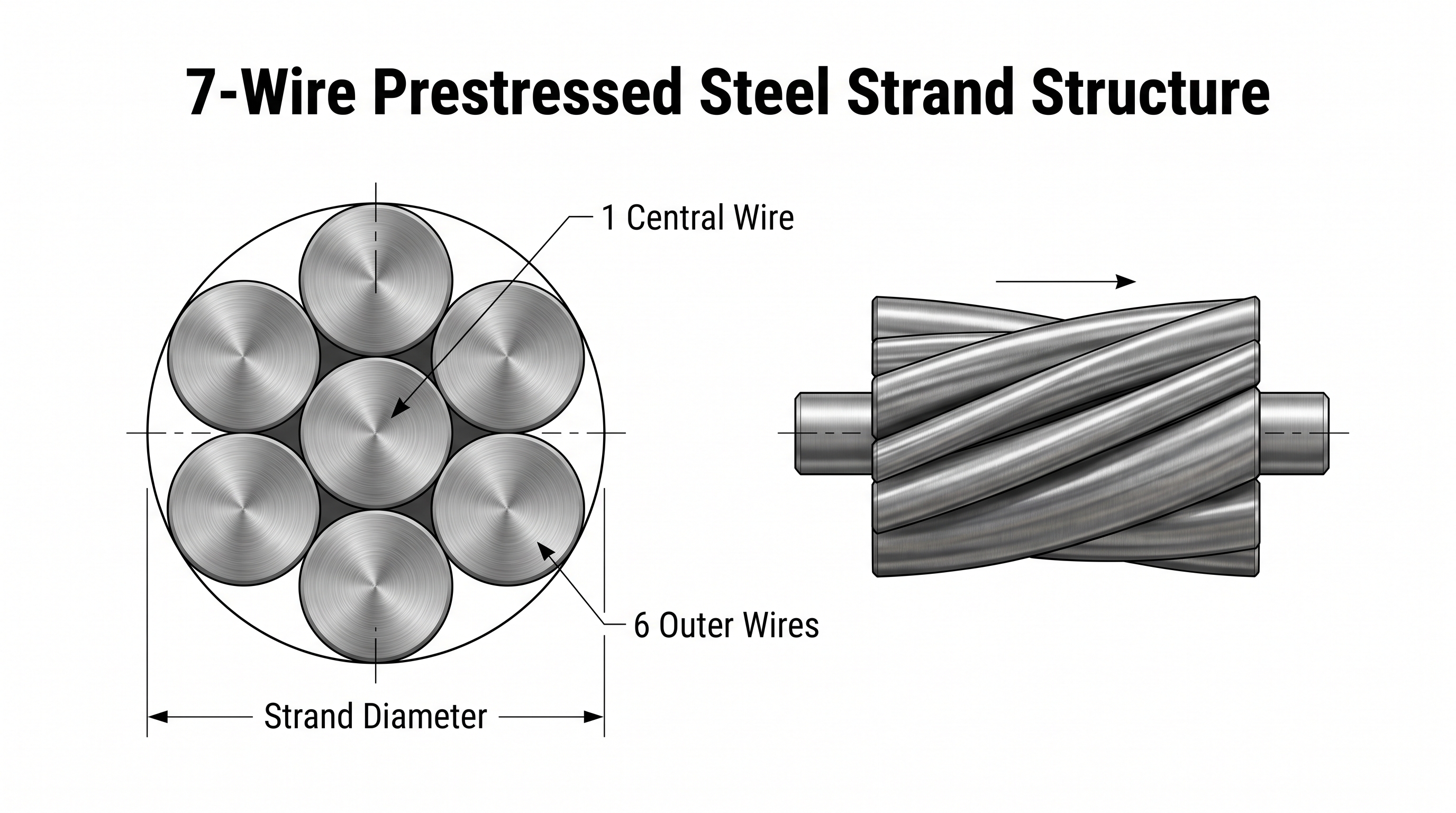

The standard construction for prestressed concrete strand is the 1×7 configuration:
1 central (king) wire running straight through the center of the strand
6 outer wires helically wound around the central wire at a consistent pitch
The helical lay gives the strand flexibility for coiling and installation while maintaining high tensile strength along its length
Low relaxation processing (stabilizing the strand through controlled heat treatment) minimizes long-term loss of prestress force over the life of the structure
The tightly wound wire structure supports strong bonding and efficient load transfer between the strand and the surrounding concrete
This 1×7 wire arrangement is the industry-standard structure specified across ASTM, EN, and GB standards for prestressing strand.
Several strand types are available, each suited to different structural or environmental requirements.
The standard strand used across most prestressing applications, including bridges, beams, slabs, and general precast components. Its low relaxation properties help maintain prestressing force over time, making it the default choice for the majority of structural designs.
Manufactured with a surface indentation pattern to improve mechanical bond with the surrounding concrete. This is useful in applications where a stronger, more reliable load transfer between the strand and concrete is required.
Coated for additional corrosion protection, epoxy coated strand is commonly specified for coastal and marine structures, or any environment with significant moisture or chemical exposure where long-term corrosion resistance is a design priority.
Galvanizing provides an additional layer of corrosion resistance, making this strand suitable for outdoor, exposed, or humid environments where extended service life is required.
Supplied with a protective grease coating and an outer sheathing, unbonded strand is designed so it can move independently within the concrete. It is widely used in post-tensioning applications, particularly building floor and slab systems.
Specification | Common Options |
Strand Structure | 1×7 |
Diameter | 12.7mm, 15.2mm, 15.7mm |
Tensile Strength | Around 1860 MPa / Grade 270 |
Relaxation | Low Relaxation |
Surface | Plain / Indented / Coated |
Standards | ASTM A416 / EN 10138 / GB/T 5224 |
Packaging | Coil / Export Packing |
For a full breakdown of dimensions and load capacities by diameter, see PC strand sizes.
Because prestressing strand is a structural safety-critical product, it is manufactured and tested to recognized international standards. Specifying the correct standard is essential for project compliance and quality assurance.
The most widely referenced standard for prestressed concrete strand in international procurement, particularly for projects following US-based or globally adapted specifications. It defines mechanical property requirements including Grade 270 (1860 MPa) low relaxation strand.
The European standard governing prestressing steel, commonly required for projects built to European design codes or supplied into European markets. It specifies requirements for wire and strand properties, including relaxation classes.
The Chinese national standard for prestressing steel strand, relevant for projects manufactured in China or specifying Chinese-standard materials, and widely used by manufacturers supplying both domestic and export markets.
Buyers should always clearly specify the required standard on their purchase order, since mechanical properties, tolerances, and testing methods can differ between standards. Requesting a Mill Test Certificate (MTC) for each batch, and verifying mechanical properties against the specified standard, are essential steps before strand is accepted for use in a structure.

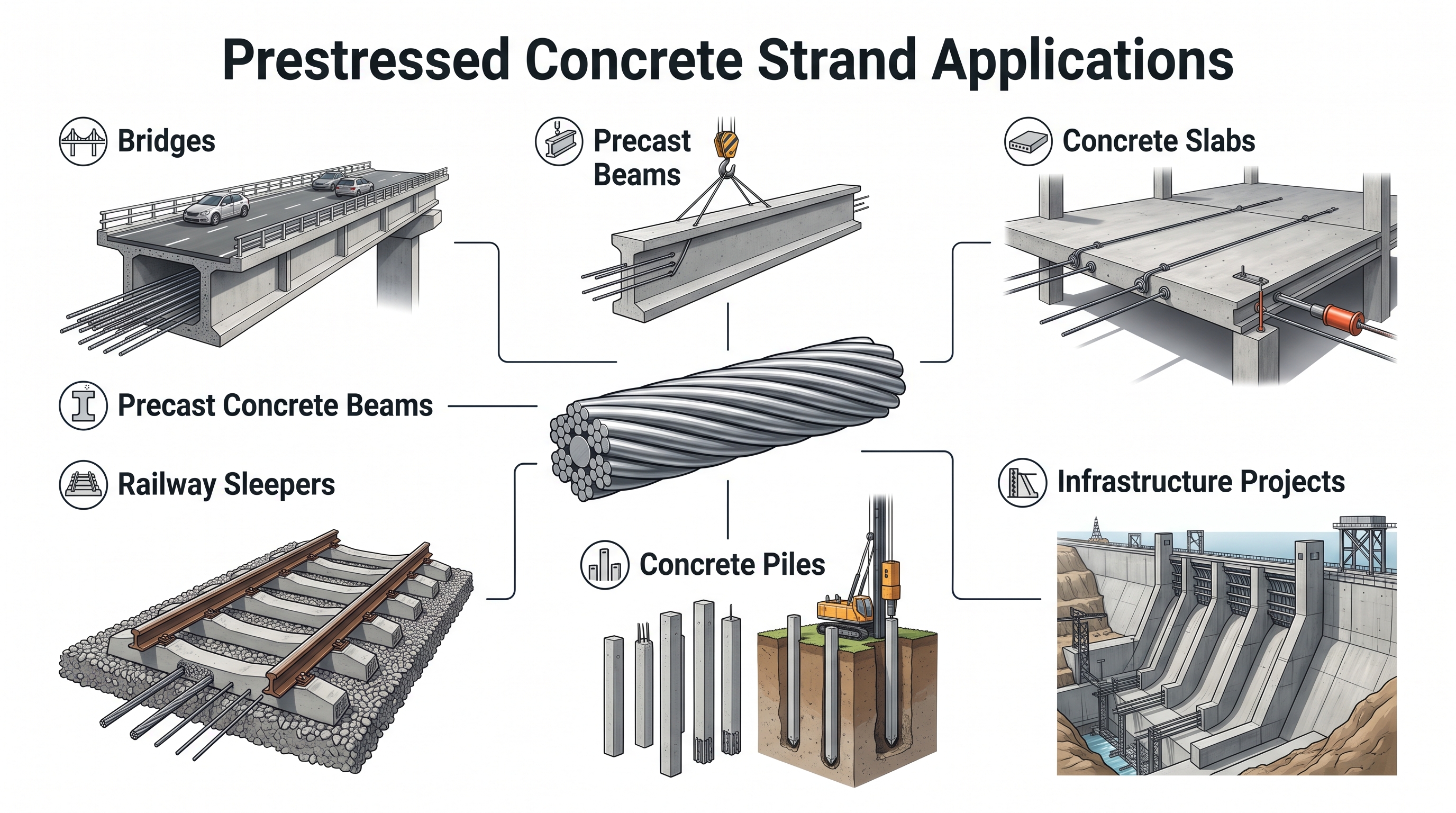

Prestressed steel strand is used across a wide range of structural and infrastructure applications, including:
Used in both pretensioned girders and post-tensioned bridge decks to support long spans and heavy traffic loads.
A core application for factory-produced structural beams used in buildings and infrastructure.
Pretensioned strand is standard in hollow core slab production for floors and roofs.
High-volume precast application requiring consistent strand quality and dimensional accuracy.
Used in prestressed piles and utility poles requiring high load capacity and durability.
Common in commercial and residential building floor systems, often using unbonded strand.
Applied across a range of civil infrastructure elements requiring long-term structural performance.
Used in structural elements requiring long spans or reduced structural depth.
See our PC strand applications page for more detail on how strand selection varies by project type.
High tensile strength relative to strand diameter and weight
Low relaxation performance, helping maintain prestress force over time
Efficient transfer of load between strand and concrete
Improved crack control in finished structures
Suitable for long-span structural designs
Can contribute to reduced structural weight in appropriately engineered designs
Supports long-term structural performance when correctly specified and installed
Compatible with both pretensioning and post-tensioning methods
Selecting the correct strand for a project involves several considerations:

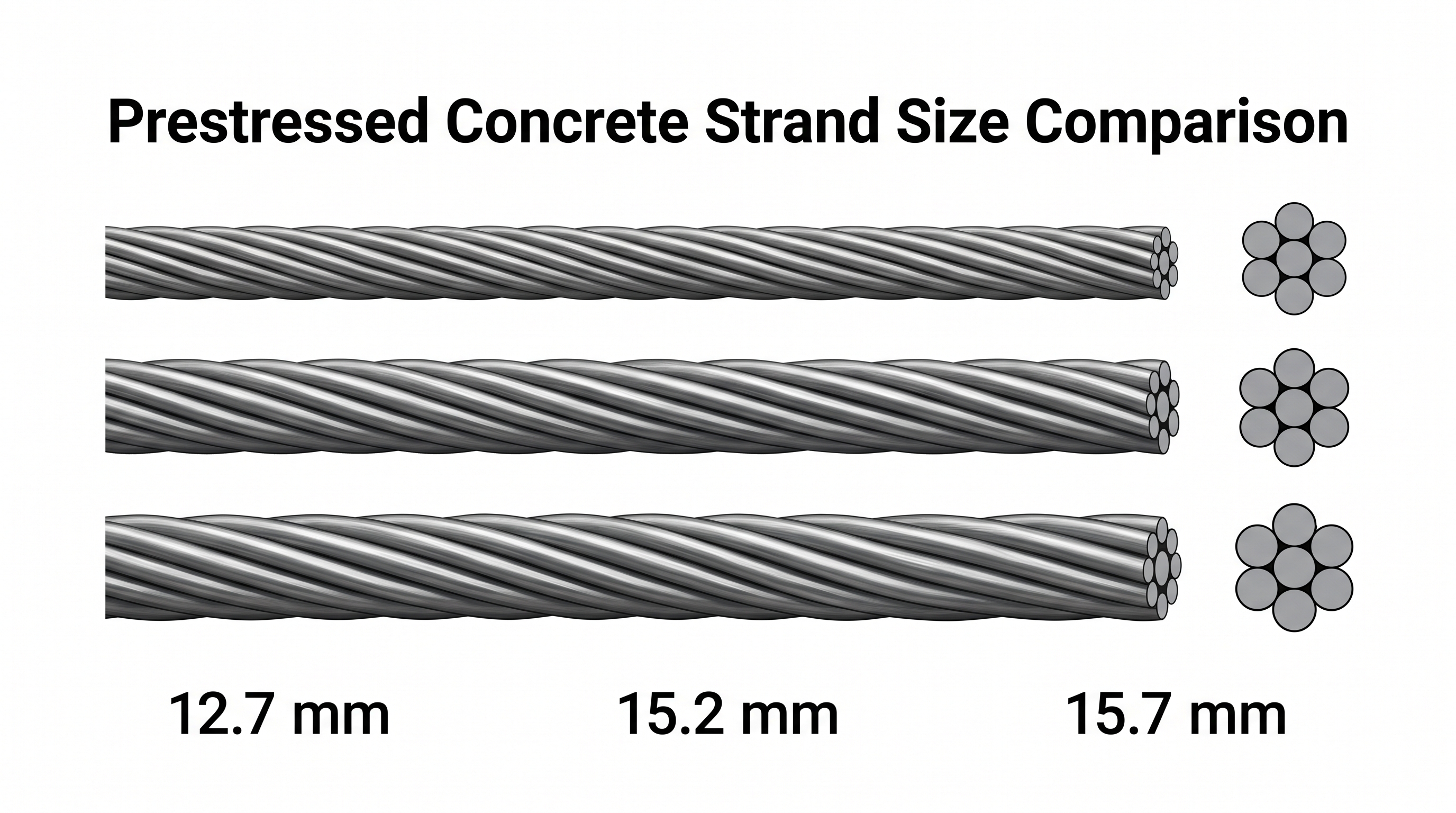

Required Diameter — Typically 12.7mm, 15.2mm, or 15.7mm, depending on the structural design and load requirements.
Tensile Grade — Match the strand's mechanical properties to the structural engineering requirements, such as Grade 270.
Relaxation Class — Low-relaxation strand is generally specified where long-term prestress loss must be tightly controlled.
Surface Type — Plain, indented, epoxy coated, or galvanized, depending on bond requirements and environmental exposure.
Prestressing Method — Pretensioning or post-tensioning, which affects whether bonded or unbonded strand is appropriate.
Applicable Standard — ASTM A416, EN 10138, GB/T 5224, or another project-specified standard.
Corrosion Exposure — Coastal, marine, humid, or chemically aggressive environments may require additional corrosion protection.
Feature | Prestressed Steel Strand | Conventional Reinforcement |
Main Function | Introduces prestress | Provides passive reinforcement |
Tensile Strength | Very high | Generally lower |
Prestressing | Yes | Normally no |
Typical Uses | Bridges, precast, slabs | General reinforced concrete |
Long-Span Efficiency | High | More limited |
Prestressed strand and conventional reinforcement serve different structural purposes and are often used together within the same project, rather than one replacing the other.
Before accepting a shipment of prestressed steel strand, buyers should verify:
Diameter and dimensional tolerance
Tensile strength against the specified grade
Elongation properties
Relaxation performance
Surface condition (plain, indented, or coated as ordered)
Strand construction (1×7 configuration)
Compliance with the specified standard (ASTM A416, EN 10138, or GB/T 5224)
Mill Test Certificate for each batch
Batch traceability
Packaging condition, particularly for export shipments
Third-party inspection, where required by the project
International buyers sourcing prestressed steel strand should prepare the following before requesting a quotation:
Required diameter and strand type
Order quantity
Required standard (ASTM A416, EN 10138, GB/T 5224, or other)
Destination country and port
Packaging requirements
Certification requirements (MTC, third-party inspection, etc.)
Delivery schedule
Having this information ready allows suppliers to provide accurate pricing, lead times, and documentation for your project.
1. What is prestressed steel strand? Prestressed steel strand is a high-strength steel product, typically made of 7 twisted wires, used to introduce controlled prestress into concrete structures.
2. Is prestressed steel strand the same as prestressed concrete strand? In most contexts, yes — both terms describe the same strand product, with one emphasizing the material and the other its application in concrete.
3. What is PC strand used for? PC strand is used to prestress concrete structures such as bridges, precast beams, hollow core slabs, railway sleepers, piles, and post-tensioned slabs.
4. What is 7-wire prestressed steel strand? It's the standard strand construction consisting of one central wire and six outer wires wound helically around it.
5. What are the common PC strand diameters? The most common diameters are 12.7mm, 15.2mm, and 15.7mm.
6. What is Grade 270 PC strand? Grade 270 refers to strand with a minimum tensile strength of around 1860 MPa, as specified under ASTM A416.
7. What is low relaxation PC strand? Low relaxation strand is heat-treated during manufacturing to reduce long-term loss of prestressing force over the service life of a structure.
8. What standards are used for prestressed concrete strand? The main standards are ASTM A416, EN 10138, and GB/T 5224, depending on the project's location and specification requirements.
9. What is the difference between plain and indented PC strand? Plain strand has a smooth surface, while indented strand has a surface pattern designed to improve mechanical bond with concrete.
10. How do I choose the right prestressed steel strand? Consider the required diameter, tensile grade, relaxation class, surface type, prestressing method, applicable standard, and corrosion exposure for your project.
Sourcing the right prestressed concrete strand for your project starts with matching the correct diameter, grade, and standard to your structural requirements. TJ Wasungen supplies plain, indented, epoxy coated, galvanized, and unbonded PC strand manufactured to ASTM A416, EN 10138, and GB/T 5224, with full Mill Test Certificates and export packaging for international delivery.
