If you work with prestressed concrete, you have seen them sitting on trailers or stacked at job sites. Still, many people pause and ask the same thing. What exactly are pc strand coils, and why does handling them feel so sensitive?
You are not alone. We hear this question near you from contractors, yard managers, and site engineers. So let’s talk about pc strand coils in a clear, no-nonsense way. Just practical facts you can use on the ground.
Before we go any further, let’s get the basics right.
PC stands for prestressed concrete. PC strand is a high-strength steel cable made from seven twisted wires. These strands are wound into large circular bundles called coils for shipping and storage. Those bundles are what we call pc strand coils.
Coiling keeps the strand compact, protected, and easier to move from mill to site near you.
There is a simple reason why strands are coiled instead of cut straight.
Long lengths reduce splicing. Fewer splices mean fewer weak points in a structure. Coils also save space during transport and reduce surface damage compared to loose lengths.
That’s why pc strand coils are the standard format across most construction markets.

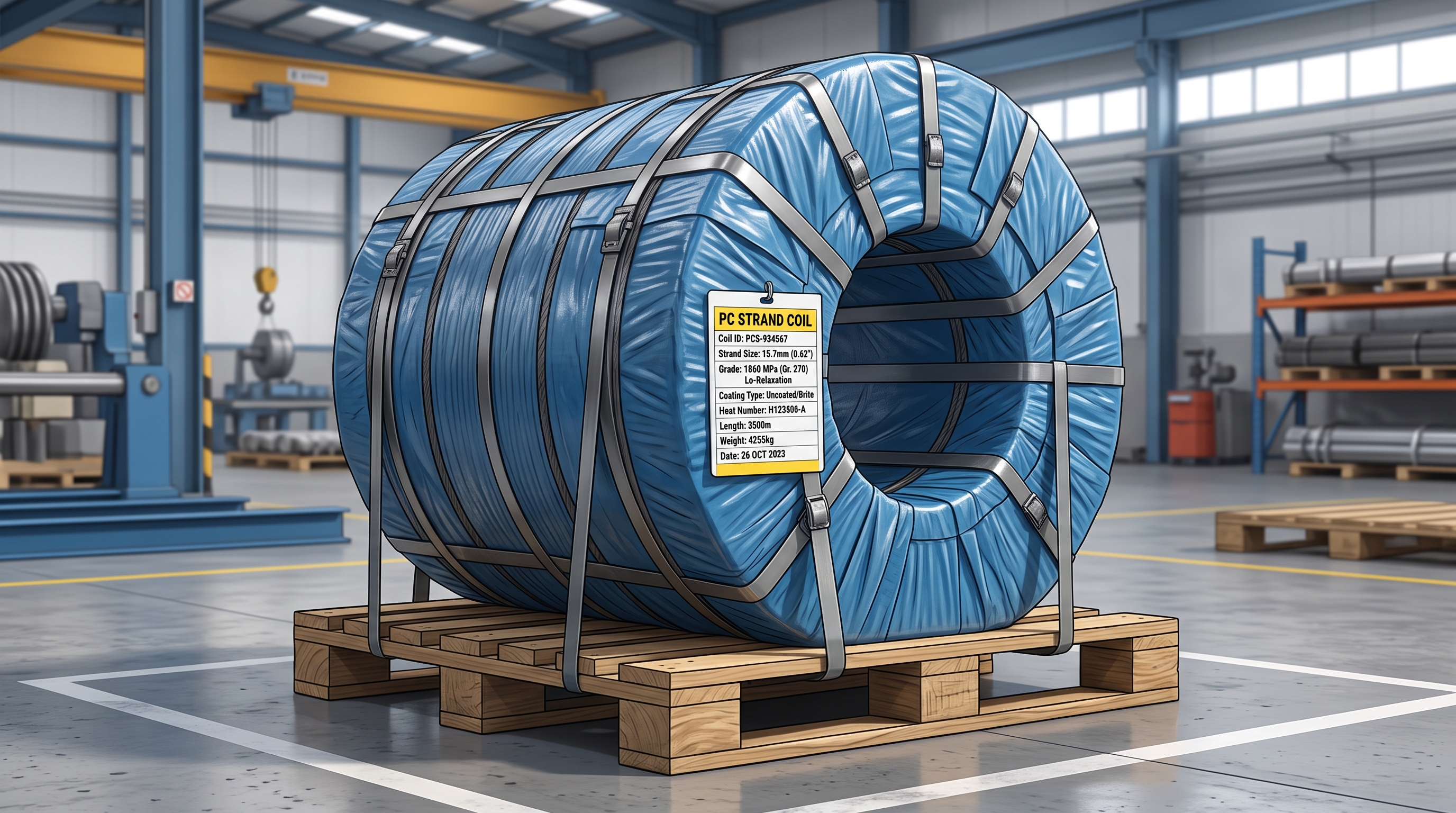

PC strand coils are packaged with safety and stability in mind. The goal is to keep the strand clean, dry, and under control.
Most coils include:
Steel banding to hold the shape
Wooden or steel skids for lifting
Moisture-resistant wrapping
Identification tags
Those tags matter. They list size, grade, coating type, and heat number. Always check them before use.
Not all coils are the same size. Weight depends on strand diameter and total length.
You may see coils that weigh:
3 to 5 tons for smaller diameters
6 to 8 tons for common 0.5 inch strand
More for large infrastructure orders
Knowing coil weight helps plan lifting equipment and yard layout near you.
PC strand packaging follows industry standards set by recognized organizations.
The most referenced body is ASTM International. ASTM A416 defines strand quality, while packaging practices follow accepted industry guidance to prevent damage before installation.
For precast operations, Tj Wasungen also publishes handling recommendations that many plants rely on.
Transportation is where problems often begin if care is missing.
Coils are typically shipped:
Flat on trailers with blocking
Secured with chains or straps
Covered during wet weather
One loose coil can shift during transit. That creates safety risks and surface damage. Proper restraint is non-negotiable.

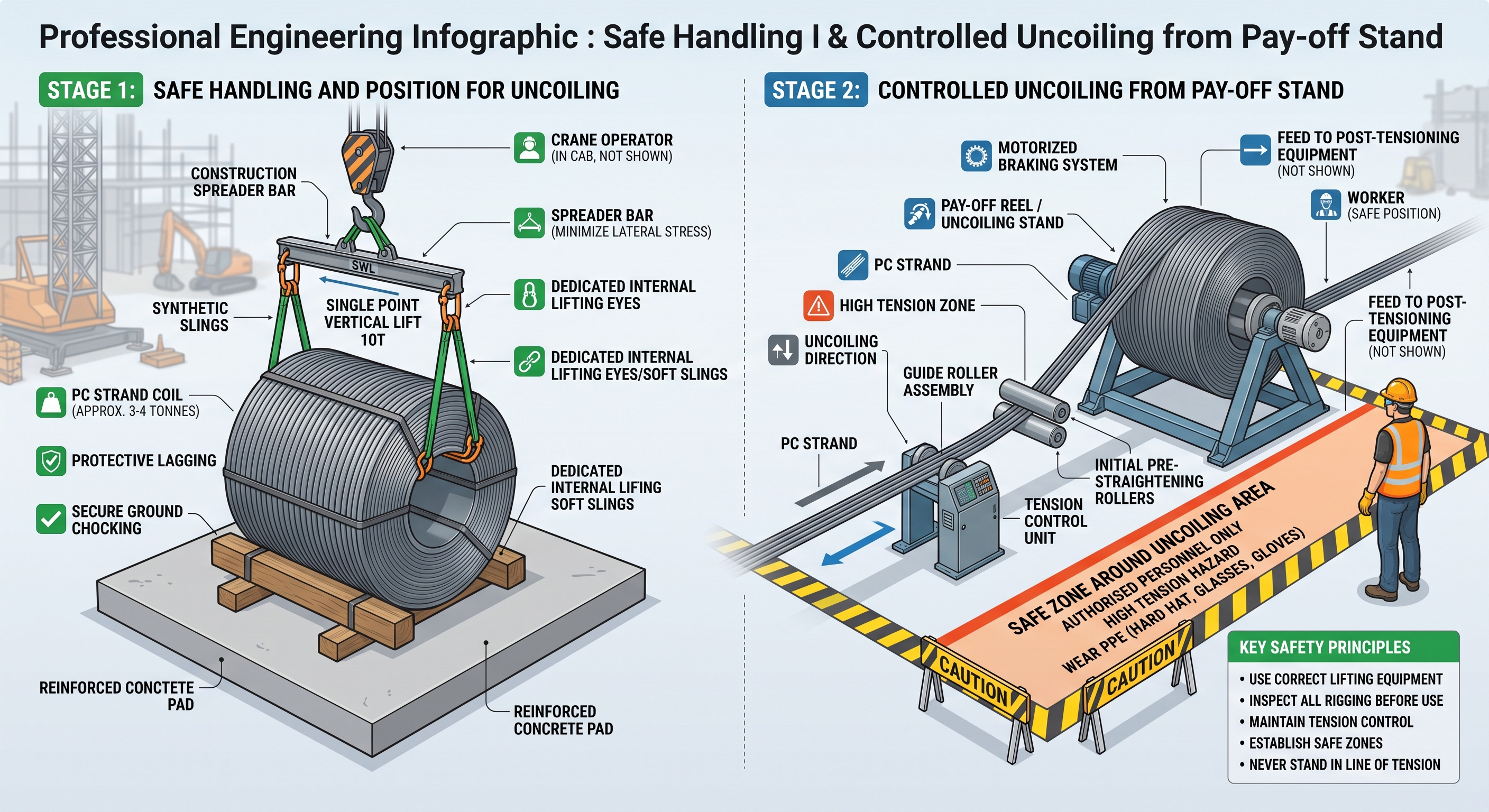

Handling strands is not like handling rebar. One mistake can cause sudden uncoiling.
Here are basic handling rules everyone should follow:
Use spreader bars for lifting
Never cut bands before securing the strand end
Keep people clear during uncoiling
Use controlled payoff systems
Ignoring these steps can cause injuries and wasted material. Safety always comes first near you.
Uncoiling deserves special attention because this is where most accidents happen.
Before cutting any band:
Anchor the coil securely
Identify the strand end
Use a payoff stand or reel
Once tension is released, strand wants to move. Controlled release keeps it from snapping back.

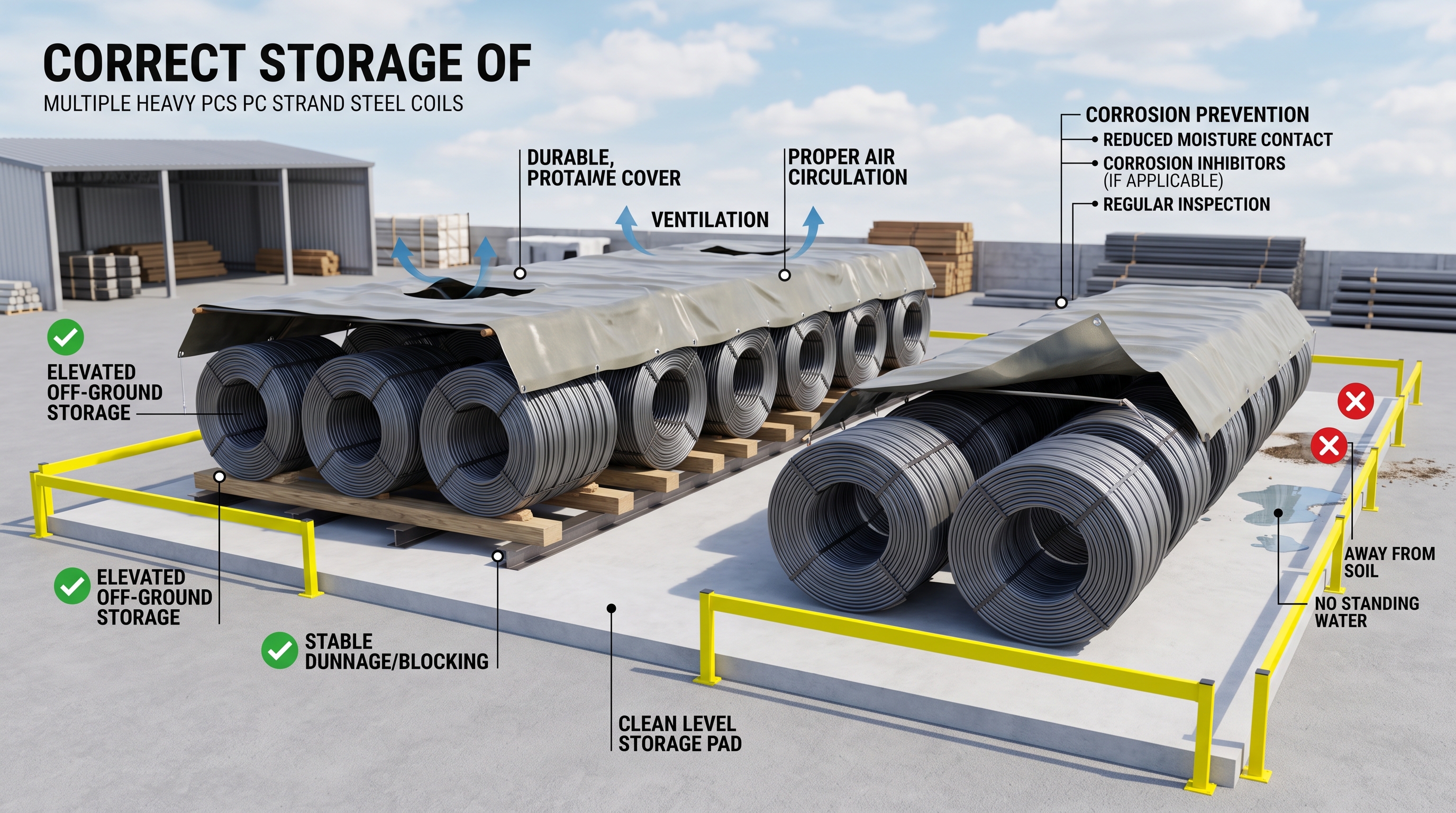

Steel and moisture are not friends. That is why storage rules exist.
PC strand coils should be stored:
Off the ground
On stable blocking
Under cover if possible
Away from standing water
Even short exposure to moisture can start surface corrosion. That damage may not show immediately, but inspectors will catch it later.
Indoor storage is always better, but not always available.
If stored outdoors near you:
Use waterproof covers
Allow air circulation
Check regularly for condensation
Never store coils directly on soil or gravel. Moisture rises faster than you think.
Some projects require extra protection based on the environment.
Common options include:
Uncoated strand for dry conditions
Galvanized strand for moisture exposure
Epoxy-coated strand for aggressive environments
The coating type should match project specs. Always confirm before ordering pc strand coils.
Before installing the strand, take a few minutes to inspect it.
Look for:
Surface rust
Broken wires
Kinks or deformation
Damaged coatings
Minor surface discoloration may be acceptable, but deep rust or wire damage is not. When in doubt, check with the engineer.
Every coil comes with mill test reports. These reports confirm:
Chemical composition
Tensile strength
Relaxation behavior
Compliance with standards
Never separate reports from coils. Inspectors near you rely on that paperwork for approval.
Even experienced crews make avoidable mistakes.
Watch out for these issues:
Cutting bands without restraint
Dragging coils across rough ground
Storing near chemical runoff
Mixing coils without labels
Each mistake increases risk and reduces strand life.
Good handling is not just about safety. It protects structural performance.
Proper care:
Maintains tensile strength
Preserves bond with concrete
Reduces inspection failures
Prevents material waste
That is why pc strand coils deserve attention from delivery to placement.
A little planning goes a long way.
Good yard layout includes:
Clear access paths
Level storage pads
Space for payoff equipment
Protection from traffic
Planning ahead reduces handling steps and accident risk near you.
Understanding pc strand coils is not about memorizing rules. It is about respecting the material. From packaging to handling to storage, each step affects safety and performance.
If you take one thing away, let it be this. Treat strand like the high-strength system it is, not just another steel product. Do that, and your project will thank you years down the road.
If you ever need guidance on packaging, handling, or storage practices near you, reach out to experienced suppliers and engineers before problems start.
