Choosing the right PHC pile size is an important part of foundation planning. The pile diameter, wall thickness, length, concrete strength, and prestressing details all affect how the pile performs under different ground conditions and structural loads.
PHC piles are widely used in building foundations, bridges, industrial facilities, and other construction projects that require deep foundations. However, not every project needs the same pile dimensions or specifications. The right choice depends on the soil conditions, design loads, foundation depth, and applicable construction standards.
This guide explains common PHC pile sizes, their main specifications, and the factors to consider when selecting piles for a construction project.
PHC stands for pretensioned spun high-strength concrete. These piles are made from high-strength concrete and prestressing steel, then formed through a spinning process to create a hollow circular section.

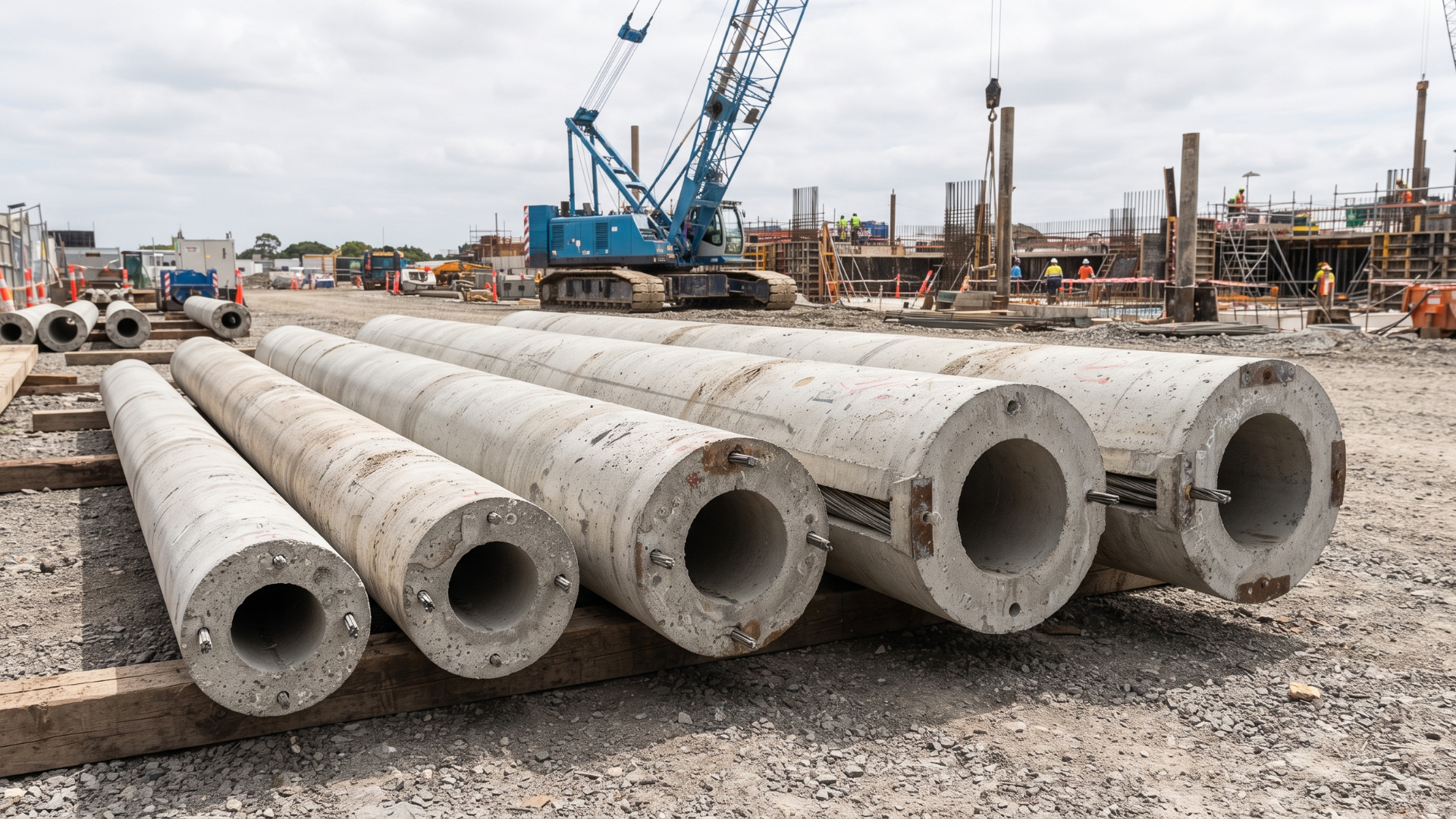

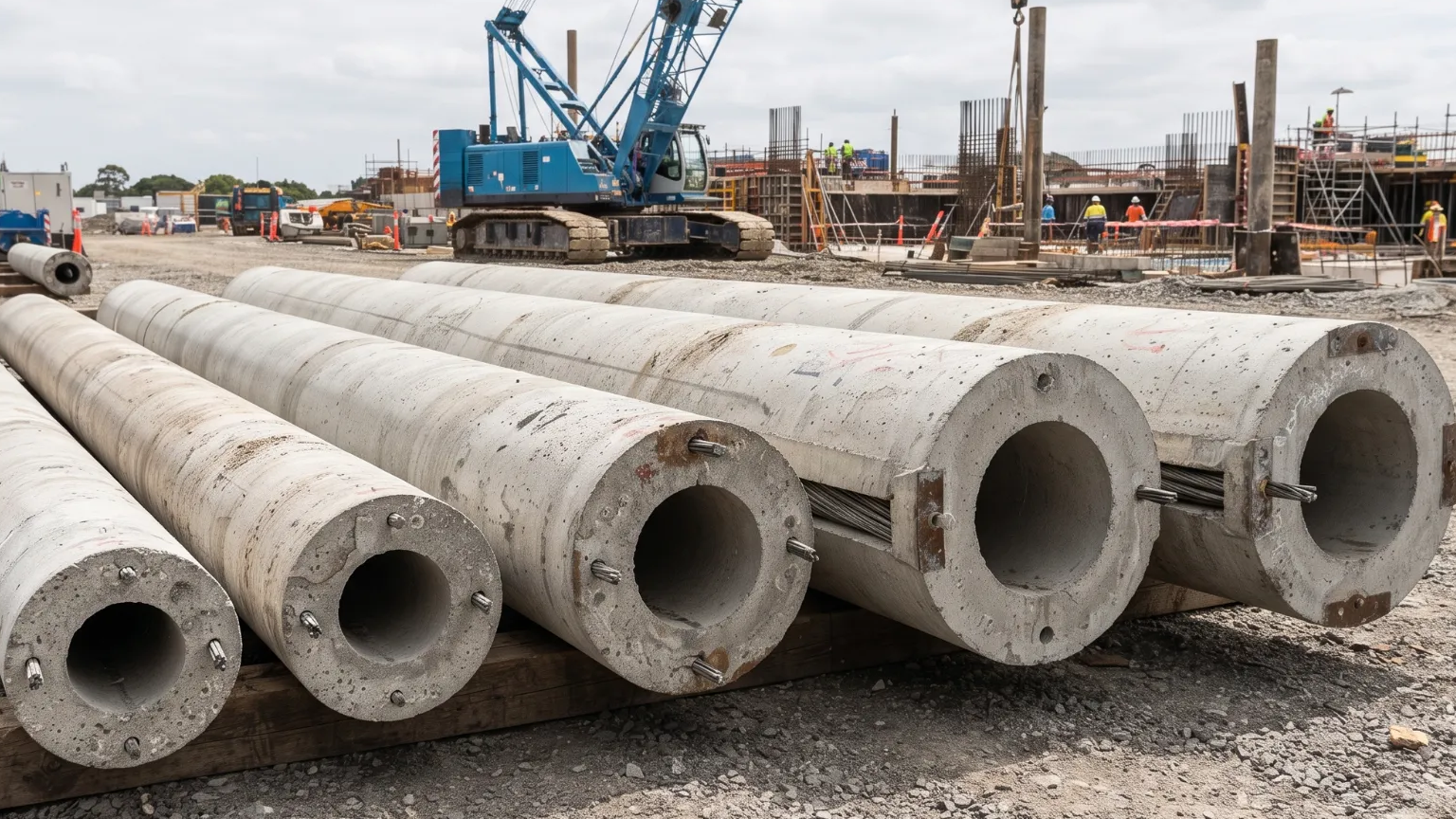

PHC pile sizes usually refer to three main dimensions:
Outside diameter: The total width of the pile across its circular section.
Wall thickness: The thickness of the concrete between the outer surface and the hollow core.
Pile length: The total length of an individual pile section or the installed pile assembly.
These dimensions help engineers assess the pile's structural performance and suitability for a particular foundation design.
PHC piles are available in different sizes to meet the needs of residential buildings, commercial developments, bridges, and large industrial structures. Exact dimensions and available options depend on the manufacturer's product range and the standard used for the project.

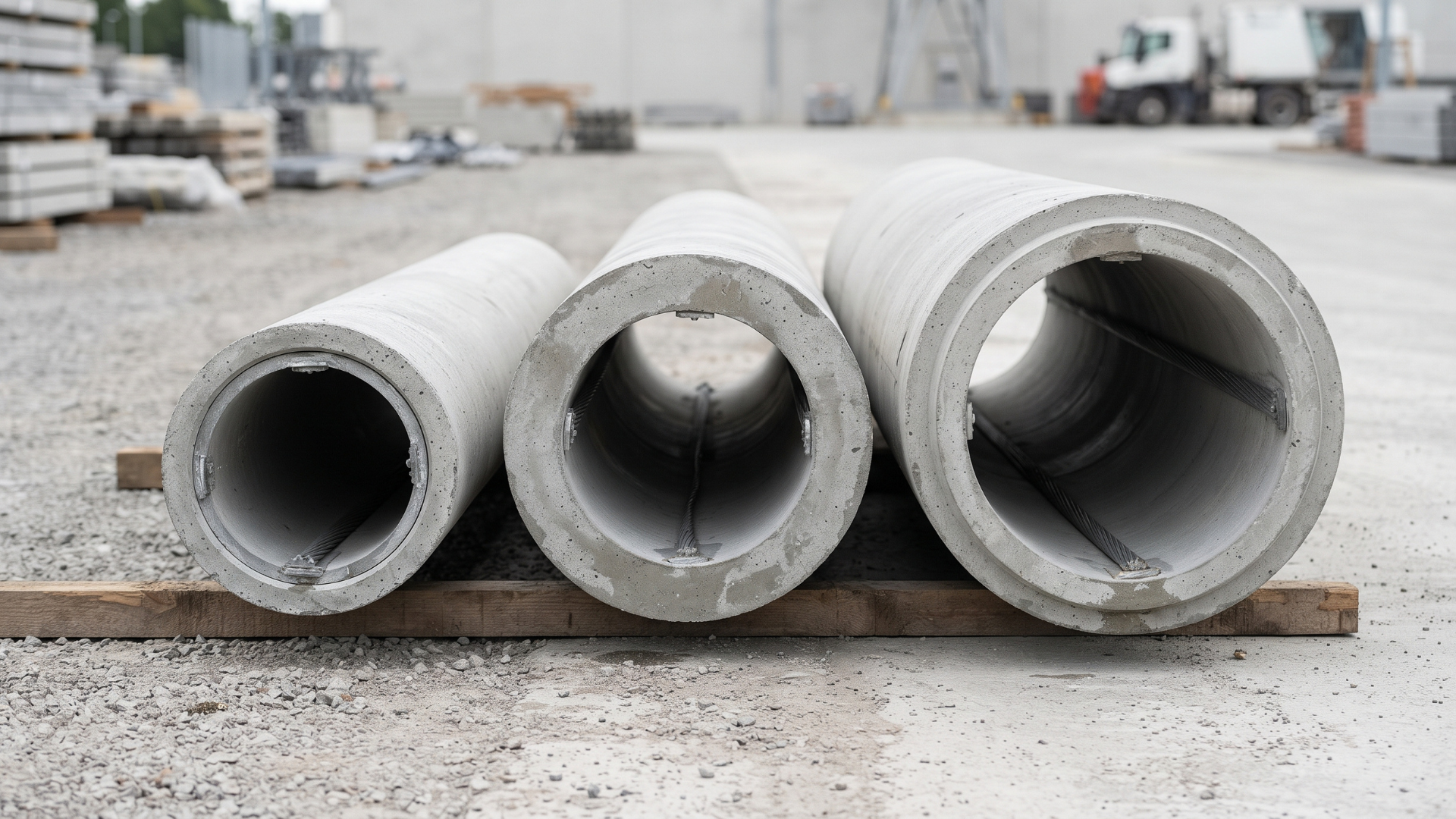

The outside diameter is one of the first details engineers consider when selecting a PHC pile. A larger diameter may provide greater structural capacity, but the final choice must be based on engineering calculations and site conditions.
Common nominal outside diameters include 300 mm, 400 mm, 500 mm, and 600 mm. Other sizes may be available depending on the manufacturer and applicable standard.
The following table provides examples of common diameter options and their general applications. These are not fixed design recommendations; the appropriate size must be confirmed for each project.
Nominal outside diameter | Possible applications |
300 mm | Smaller structures and foundation projects with suitable load requirements |
400 mm | Residential, commercial, and general building foundations |
500 mm | Larger buildings and projects with higher foundation demands |
600 mm | Industrial facilities, major structures, and projects requiring larger pile sections |
These applications are general examples, not rules. A 300 mm pile may be unsuitable for one small building but appropriate for another project with different soil and loading conditions.
Engineers must check the required load capacity, ground investigation results, installation conditions, and relevant design standards before choosing a diameter.
Wall thickness is another important part of PHC pile dimensions. Because PHC piles have a hollow centre, their outside diameter alone does not describe the full cross-section.
The inside diameter depends on both the outside diameter and the concrete wall thickness. For a circular pile with a uniform wall:
Inside diameter = Outside diameter − (2 × wall thickness)
For example, if a pile has an outside diameter of 400 mm and a wall thickness of 70 mm, its inside diameter would be 260 mm.
This is a dimensional example only, not a standard specification for all 400 mm PHC piles.
Wall thickness affects the concrete section and its structural properties. Engineers should use the manufacturer's drawings and verified product specifications rather than estimate wall thickness from the outside diameter.

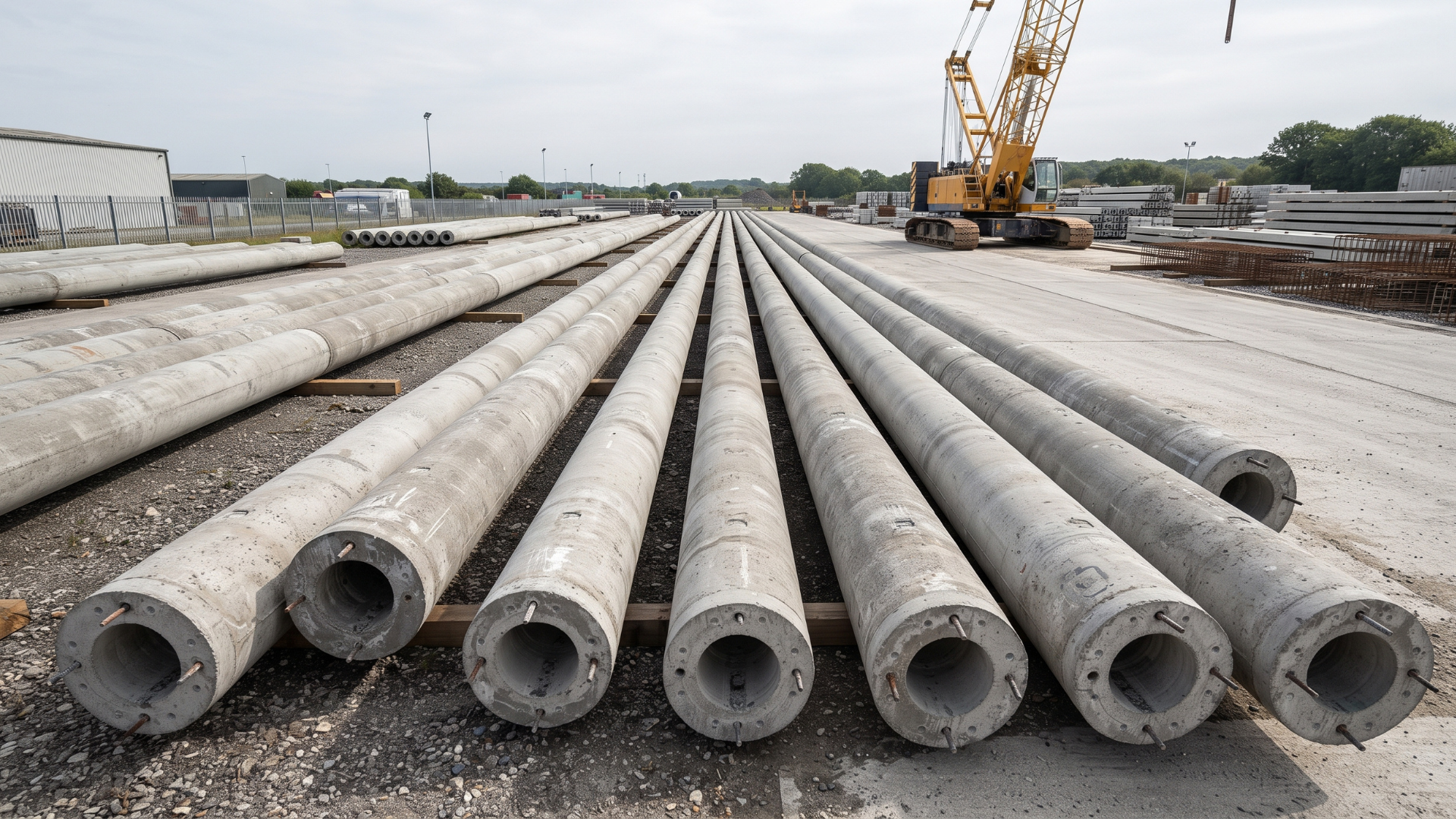

PHC piles are supplied in different lengths to suit foundation depth and installation requirements. The required length depends on factors such as the soil profile, the depth of suitable bearing layers, the structural load, and the foundation design.
Some projects can use standard pile lengths, while others require different lengths or a combination of pile sections.
Manufacturers may offer standard production lengths and, where available, custom lengths. The actual options depend on the production facility, transport restrictions, and project requirements.
When selecting pile length, engineers consider:
The depth of the required foundation.
The location of suitable soil or bearing layers.
The expected settlement and load transfer.
The installation method and equipment.
Transport, lifting, and handling requirements.
Whether pile splicing is permitted and required.
Longer piles are not automatically better. The pile must reach the depth required by the design and perform safely under the expected loads.
Some foundations require more than one pile section to reach the planned depth. In these cases, sections may be joined using an approved splicing method.
The joint must meet the project's structural and installation requirements. Engineers should also consider the effects of handling, driving stresses, alignment, and the expected forces acting on the pile.
The permitted joint details and installation procedures should follow the relevant project specifications and manufacturer's recommendations.
PHC piles may be classified into different grades or types according to the applicable product standard. These classifications can relate to effective prestress, structural performance, and other specified properties.
In some standards, PHC pile types are identified as A, AB, B, and C. However, these designations should not be treated as universal classifications because requirements can differ between standards and markets.
The type of PHC pile can affect its suitability for a particular structural application. The correct type depends on the design requirements, not simply the pile diameter.
Before selecting a grade or type, check:
The applicable product standard.
The specified concrete strength.
The prestressing steel requirements.
The effective prestress.
The required bending and axial load performance.
The manufacturer's test results and technical documents.
A higher type designation does not necessarily mean that a pile is suitable for every project. Engineers must compare the actual properties and design requirements before making a decision.

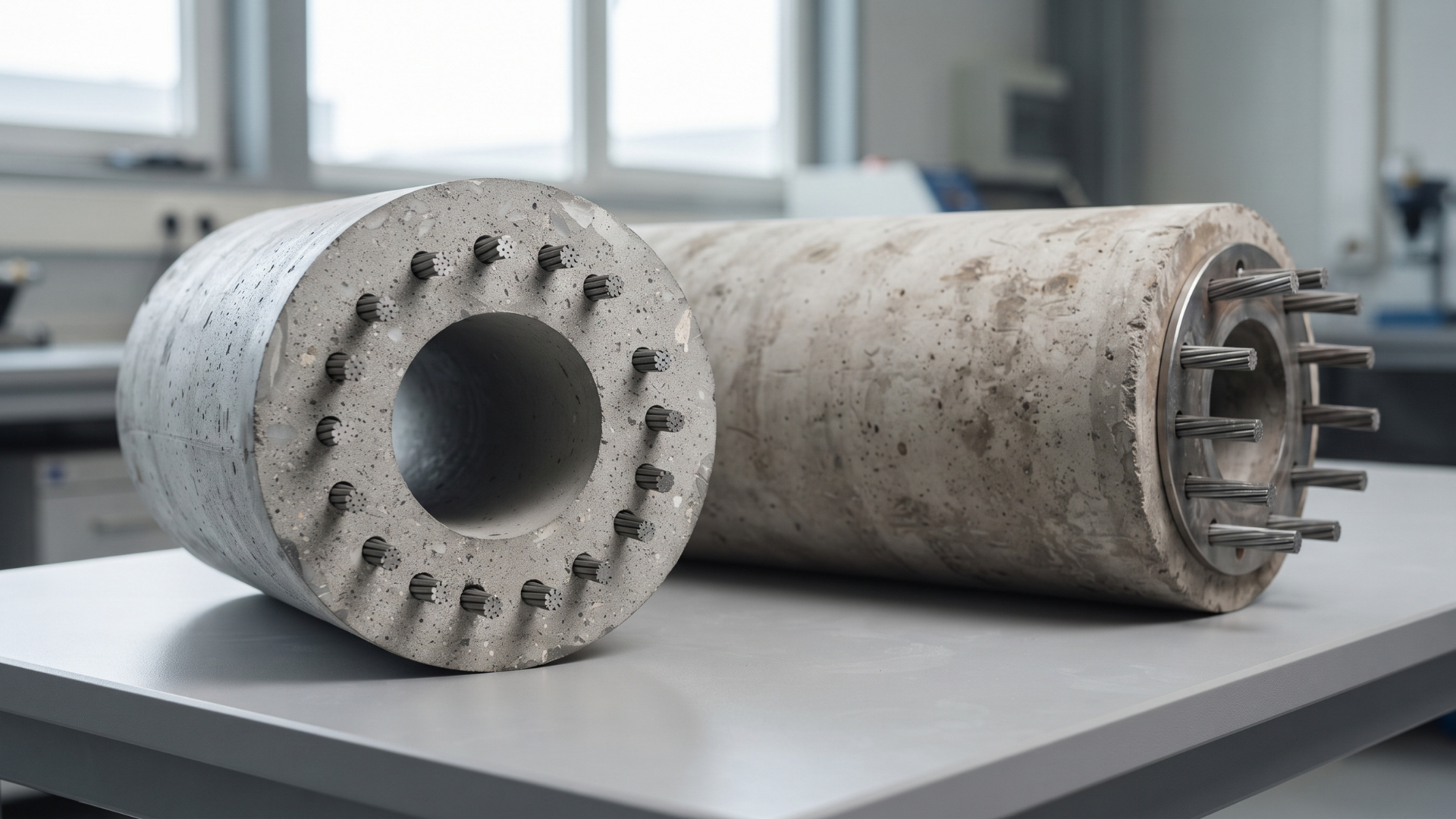

PHC pile specifications provide the technical information needed to assess product quality and suitability. These details should be checked before ordering piles for a construction project.
High-strength concrete is a key feature of PHC piles. The specified concrete strength must meet the requirements of the relevant standard and product design.
The required value should be confirmed from the manufacturer's technical documents and quality-control records. Concrete strength alone does not determine the full load capacity of a pile.
Prestressing steel helps introduce compression into the concrete before the pile is placed into service. This process improves the pile's resistance to tensile stresses and supports its structural performance.
Important details include the steel type, strength, arrangement, and compliance with the applicable standard.
Effective prestress refers to the prestressing force remaining in the concrete after relevant losses have occurred.
This value is important when evaluating the pile's structural behaviour. The required effective prestress depends on the pile type, design, and governing standard.
Axial load capacity describes the pile's ability to resist forces acting along its length. These forces may include compression from the structure above.
The allowable design load cannot be determined from the pile diameter alone. Engineers must consider the pile's structural capacity, soil resistance, settlement limits, installation method, and other relevant factors.
PHC piles may experience bending and shear forces during handling, installation, and service. These forces can result from ground movement, lateral loading, structural connections, or other site conditions.
The pile's verified design properties should meet the expected demands of the project.
Manufacturing tolerances define the permitted variations in dimensions and other specified properties.
Check the permitted limits for outside diameter, wall thickness, length, straightness, and other relevant dimensions under the applicable standard. These limits help ensure that the delivered piles meet the project's requirements.
Quality checks help confirm that the piles meet the required specifications. Depending on the standard and project requirements, documentation may include concrete test results, dimensional inspection records, prestressing information, and other quality-control reports.
Additional testing may be required by the engineer or project specification.
The table below lists the main details to compare when reviewing PHC pile products. Actual numerical specifications should be taken from a verified manufacturer catalogue or the applicable product standard.
Specification | What to check |
Outside diameter | Nominal diameter in millimetres |
Wall thickness | Specified concrete wall thickness |
Inside diameter | Hollow-core dimensions |
Pile length | Standard or project-specific length |
Pile type or grade | Classification under the applicable standard |
Concrete strength | Required concrete strength value |
Prestressing steel | Type, strength, and arrangement |
Effective prestress | Specified effective prestress value |
Load capacity | Verified structural design values |
Dimensional tolerances | Permitted manufacturing variations |
Quality documents | Test reports and compliance certificates |
A useful comparison should include the exact product type and the standard under which it was manufactured. Two piles with the same outside diameter may have different wall thicknesses, prestressing details, or structural capacities.
For this reason, buyers should avoid comparing products by diameter alone.
Selecting the right PHC pile size requires coordination between the structural design, geotechnical investigation, and pile installation plan.
A geotechnical investigation helps identify soil layers, groundwater conditions, and the depth of suitable bearing strata. This information helps engineers determine the required pile length and assess how the pile will transfer loads to the ground.
The building or structure places loads on its foundation. Engineers must calculate the expected forces and select a pile arrangement that meets the required structural and geotechnical performance.
The total foundation capacity depends on the pile design, the surrounding soil, the installation method, and the number and arrangement of piles.

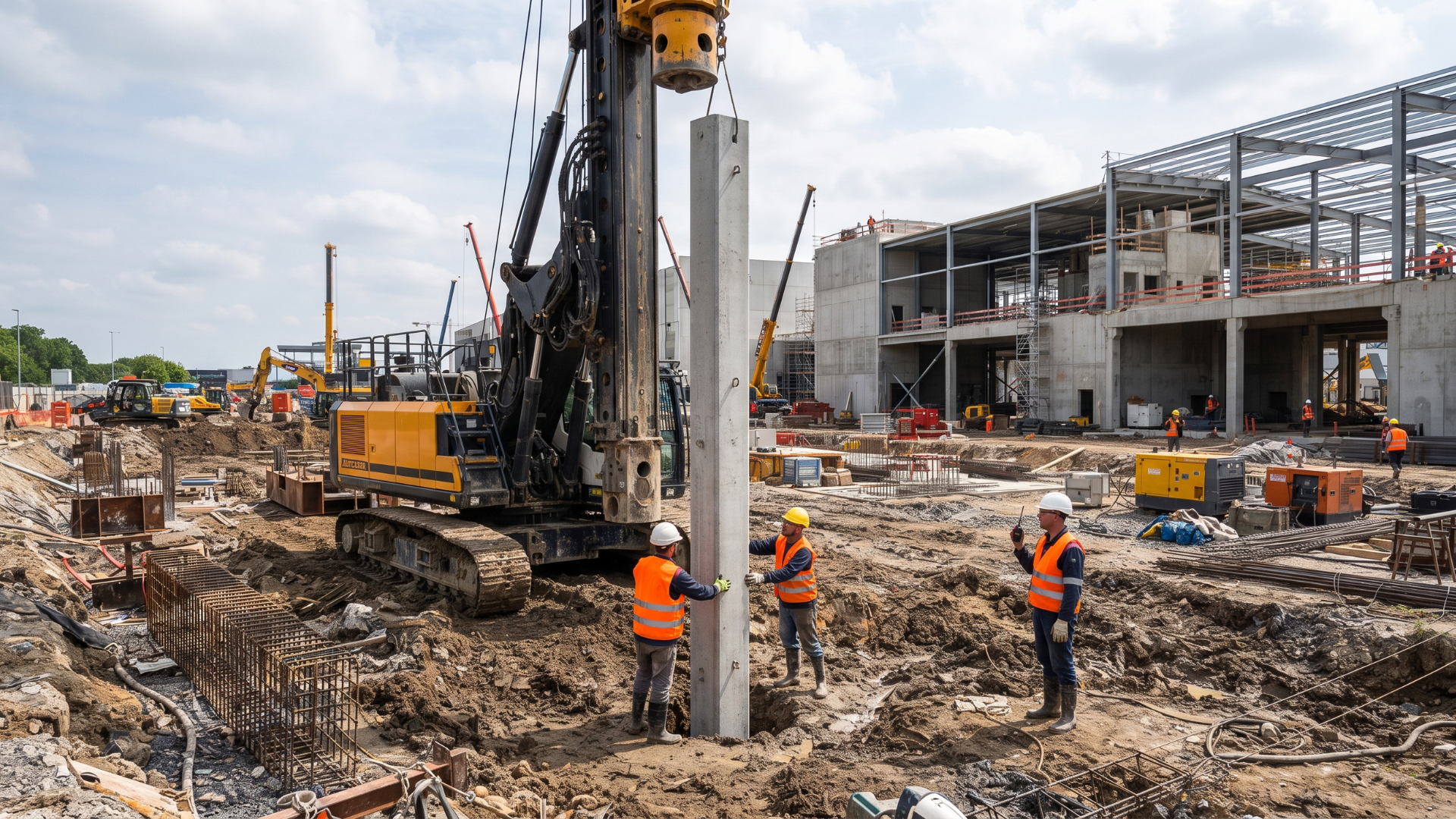

The selected pile dimensions must be compatible with the planned installation equipment and site conditions.
Engineers should consider access to the site, available driving equipment, handling limitations, nearby structures, and the potential effects of installation on the surrounding ground.
Different markets and projects may follow different technical standards. Always confirm the required pile classification, dimensions, concrete properties, testing procedures, and tolerances before placing an order.
After the technical requirements are established, check the manufacturer's available diameters, lengths, grades, production schedule, and delivery options. This helps align the foundation design with practical supply requirements without compromising safety.
Before ordering PHC concrete piles, confirm the following details with the supplier:
Required outside diameter and wall thickness.
Required pile length and section arrangement.
Applicable pile type, grade, and standard.
Concrete strength and prestressing steel specifications.
Required structural design and load-capacity information.
Dimensional tolerances and product inspection requirements.
Required test reports and compliance documents.
Installation, handling, transport, and delivery arrangements.
Providing these details at the quotation stage can reduce misunderstandings and help ensure that the supplied products match the approved design.
Common nominal outside diameters include 300 mm, 400 mm, 500 mm, and 600 mm. Other diameters may be available depending on the manufacturer and applicable standard. The correct size depends on the foundation design and site conditions.
There is no single diameter for all PHC piles. The required diameter depends on the structural load, soil conditions, pile design, and product availability.
Available lengths vary by manufacturer and production requirements. Standard lengths may be offered, while some projects require custom lengths or approved spliced sections to reach the required foundation depth.
These designations are used in some standards to distinguish PHC pile classifications with different specified properties. Their exact meanings and requirements depend on the governing standard, so the relevant technical documentation should always be checked.
Wall thickness varies with the outside diameter, product design, and applicable standard. Buyers should confirm the exact wall thickness from the manufacturer's drawings or product catalogue.
Engineers select PHC pile sizes by considering structural loads, soil investigation results, required foundation depth, installation conditions, and applicable standards. The final selection should be verified through the project design.
Key details include outside diameter, wall thickness, length, pile type, concrete strength, prestressing steel, effective prestress, structural capacity, dimensional tolerances, and quality documentation.
Choosing the right PHC pile starts with a clear understanding of the project's technical requirements. Confirming the required dimensions, pile length, grade, and quality standards helps ensure that the selected products match the foundation design.
