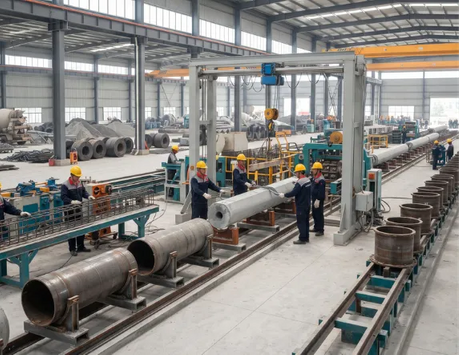

PHC piles are widely used for deep foundation work in buildings, bridges, industrial structures, ports, and other construction projects. These piles are made in a controlled factory environment using high-strength concrete and prestressed steel.
The PHC pile manufacturing process includes several important steps. These include preparing the reinforcement, assembling the mould, mixing and placing concrete, applying prestress, centrifugal spinning, curing, demoulding, and quality inspection.
A controlled production process helps manufacturers produce piles with the required strength, shape, and dimensions for foundation work.
PHC stands for Prestressed High-strength Concrete pile. It is a precast concrete pile with a hollow circular section. Prestressing steel is placed inside the pile and tensioned during production.
PHC piles are normally produced by a spinning process. The concrete is placed inside a cylindrical mould, and the mould is rotated at controlled speeds. This helps form a dense concrete wall around the hollow center.
Because the piles are produced in a factory, the main production steps can be controlled and checked before the piles are sent to a construction site.
The main PHC pile production process can be summarized as:
Raw material preparation → Reinforcement cage making → Mould preparation → Cage installation → Concrete mixing → Concrete filling → Prestressing → Centrifugal spinning → Steam curing → Demoulding → Quality inspection → Storage and delivery
Each step has an important role in the final quality of the pile.
The first step is to prepare all materials needed for production.
Common materials include:
Cement
Fine and coarse aggregates
Water
Concrete admixtures
Prestressing steel or PC bars
Spiral wire
Steel end plates
The materials should meet the required project and production specifications. Their quality can affect the strength, durability, and performance of the finished pile.
For this reason, materials are normally checked before they are used in production.

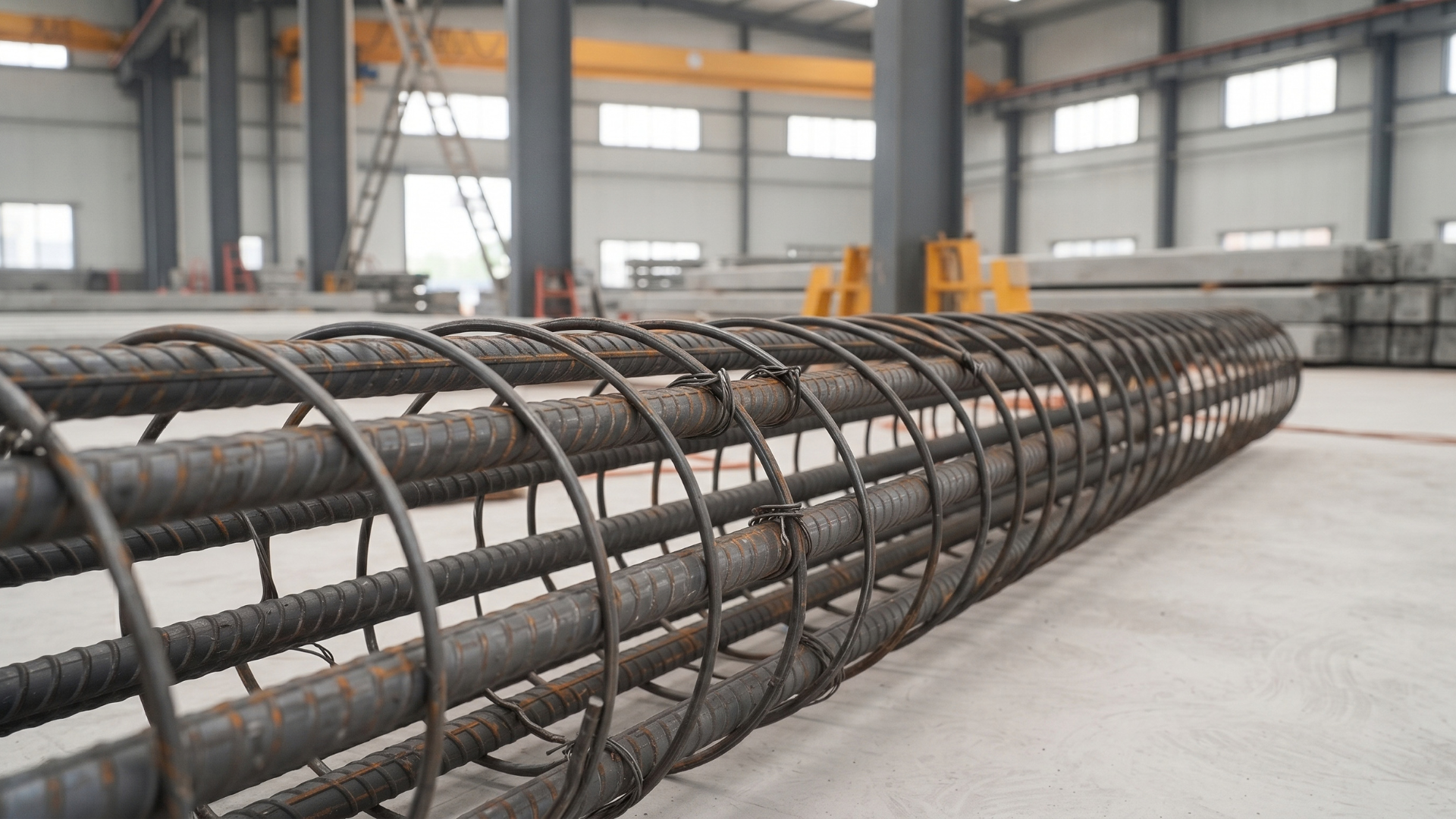

The next step is to prepare the reinforcement cage.
Prestressing steel bars are arranged along the length of the pile. Spiral wire is placed around the longitudinal bars to keep the reinforcement in the required position.
The reinforcement cage is made according to the required pile size and design.
The main points checked at this stage include:
Bar size
Number of bars
Bar spacing
Spiral wire arrangement
Cage length
Connection with the end plates
Correct reinforcement placement is important because the steel must remain in the designed position during concrete filling and spinning.
PHC piles are produced inside specially designed steel moulds.
Before production, the mould is cleaned and checked. Any remaining concrete from the previous production cycle should be removed.
The production team may also check:
Mould dimensions
Mould condition
Connection points
End plate position
Surface condition
Release agent application, where required
A clean and properly prepared mould helps produce a pile with a smooth and accurate surface.
After the mould is prepared, the reinforcement cage is placed inside it.
The cage must be positioned correctly so that the required concrete cover and pile dimensions can be maintained.
End plates are also installed and aligned with the reinforcement system.
Good alignment is important because the end plates may later be used for pile connections or other foundation work.
The next stage is concrete production.
Cement, aggregates, water, and suitable admixtures are measured and mixed according to the required concrete specification.
The mixing process needs good control. Too much or too little water can affect concrete quality. The materials must also be mixed properly so that the concrete has a consistent composition.
For PHC piles, the concrete is designed to achieve the required high strength after curing.

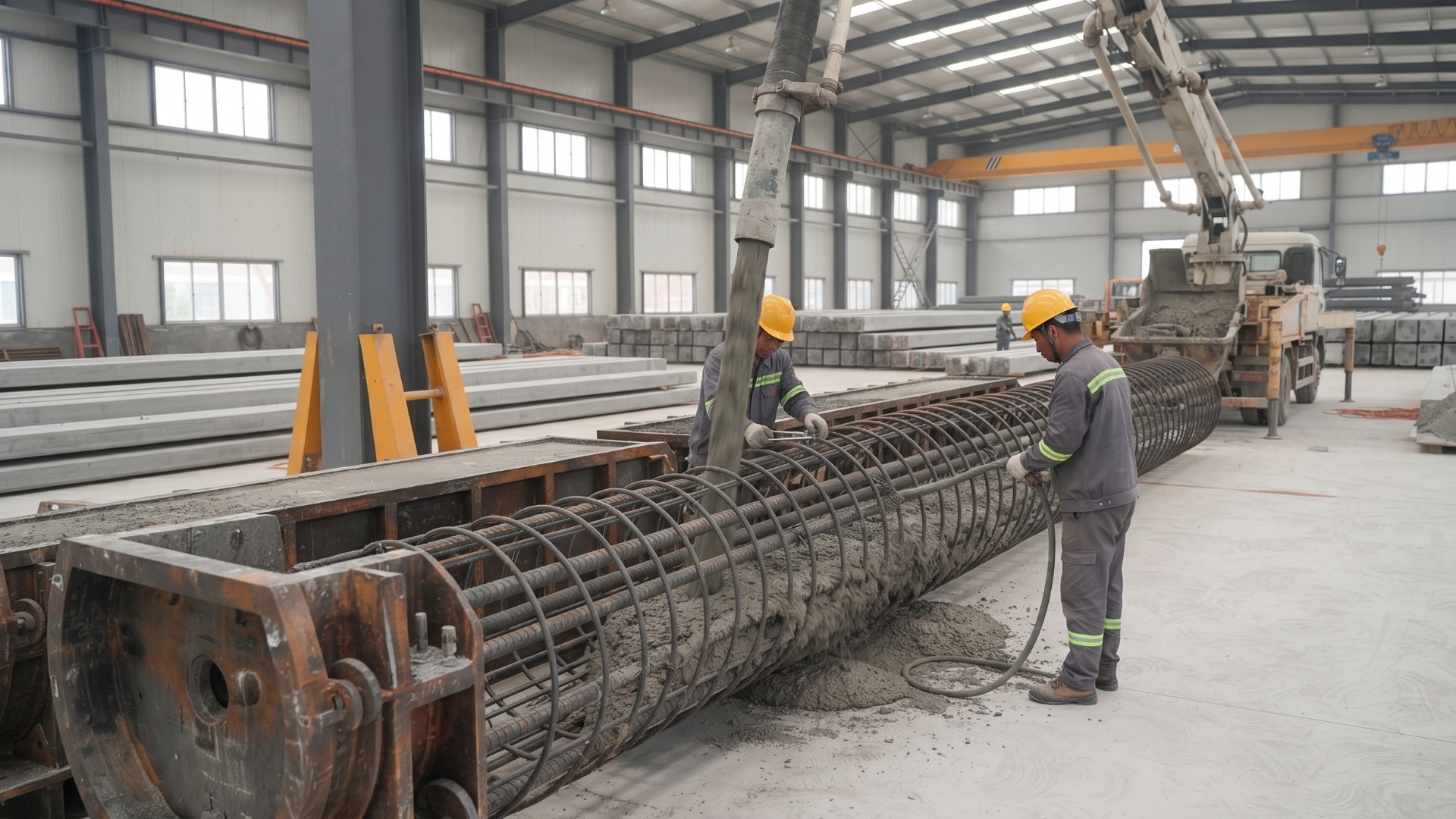

After mixing, the concrete is placed into the prepared mould.
The concrete needs to be distributed properly along the mould. This helps reduce empty areas and supports a uniform concrete wall during the spinning stage.
At this point, the reinforcement cage, concrete, mould, and end plates form the basic pile assembly.
The mould is then closed and secured before the next production stage.
Prestressing is one of the key parts of PHC pile manufacturing.
The prestressing steel is tensioned to the required level before the concrete reaches its final strength. After the concrete gains enough strength, the prestress is transferred to the concrete.
This puts the concrete into compression.
Prestressing helps the pile resist stresses that can occur during handling, transportation, driving, and service.
The exact prestressing method and required tension depend on the pile design, production standard, and project requirements.

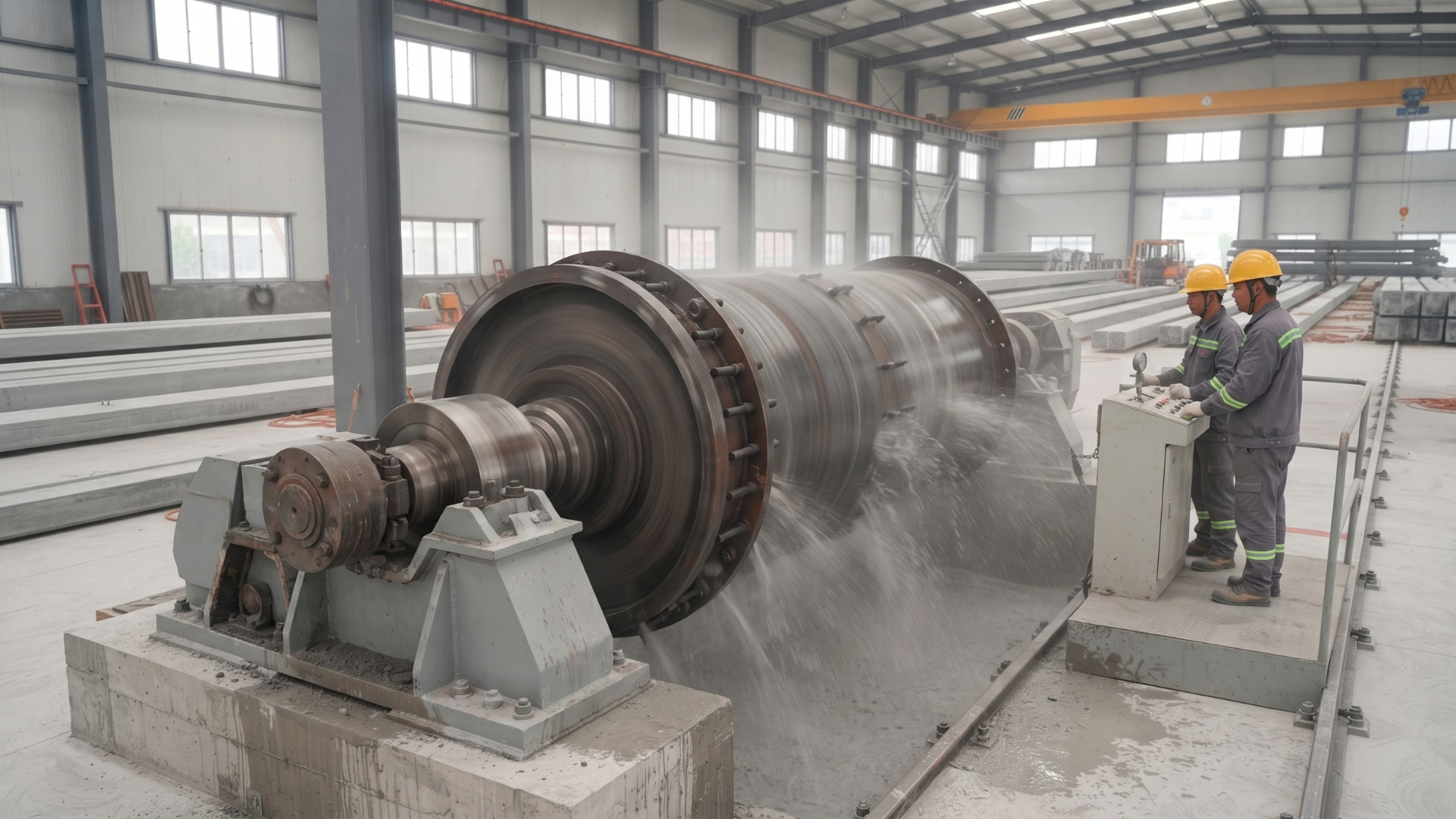

Centrifugal spinning is a major part of the PHC pile production process.
The closed mould is placed on a spinning machine and rotated at controlled speeds.
As the mould rotates, centrifugal force pushes the concrete toward the outer wall of the mould. This creates the hollow center of the pile and helps form a dense concrete wall.
The spinning process also helps distribute the concrete around the pile.
The spinning speed and production sequence need to be controlled according to the manufacturing requirements.
This process is one of the main differences between spun PHC piles and many other types of precast concrete piles.

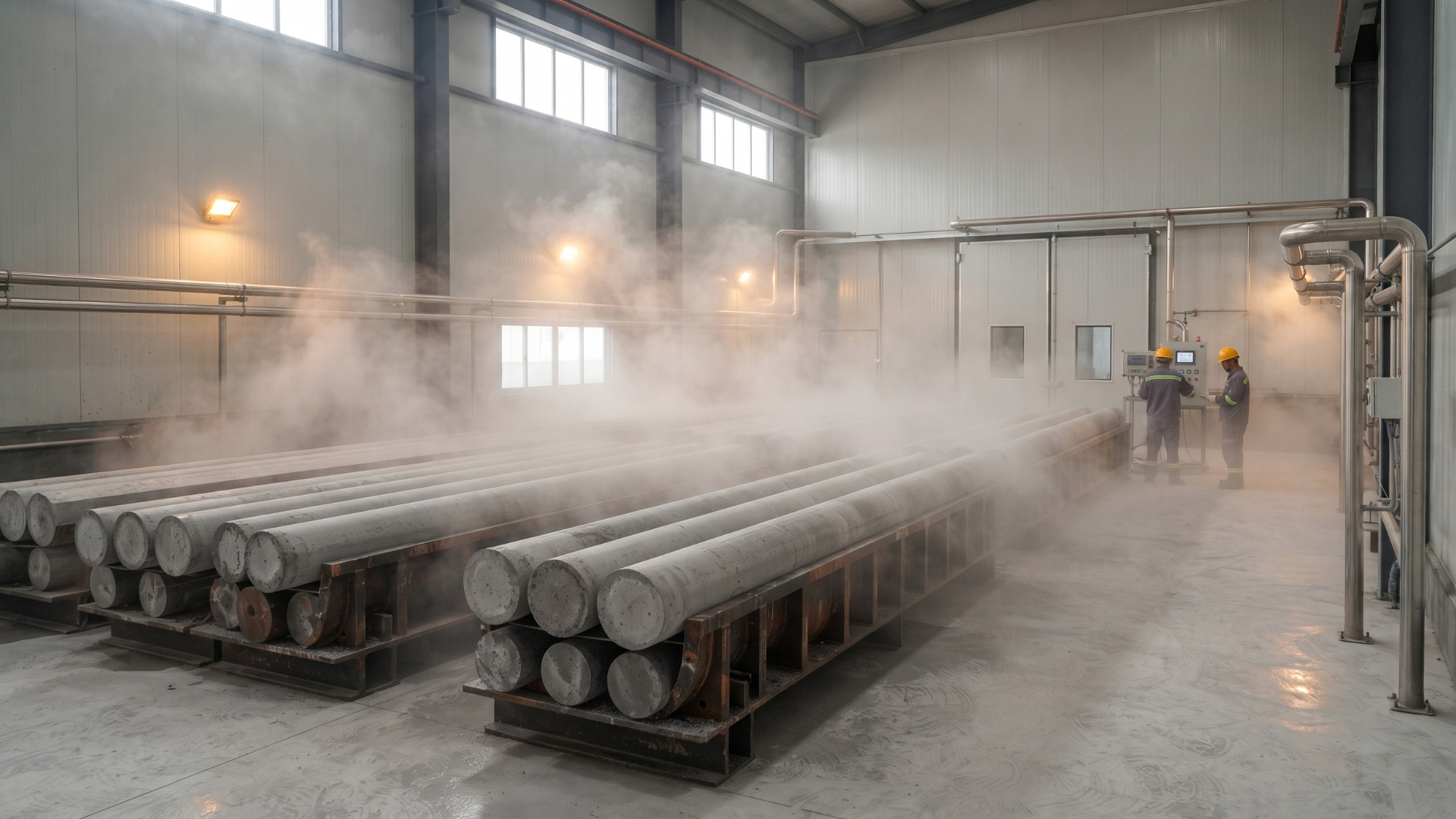

After spinning, the pile is cured under controlled conditions.
Steam curing is commonly used in PHC pile production to help the concrete develop strength within a controlled production cycle.
During curing, important conditions such as temperature and curing time are controlled according to the production method and applicable requirements.
The pile should reach the required strength before the next stage of production.
Proper curing is important because the concrete strength directly affects the performance of the finished pile.
After the required curing stage, the pile can be removed from the mould.
The mould is opened carefully, and the finished PHC pile is taken out using suitable handling equipment.
The pile is checked for visible problems such as:
Cracks
Surface damage
Uneven sections
End plate problems
Shape or dimensional issues
Careful handling is important because a finished pile can be damaged if it is lifted or moved incorrectly.
Quality inspection is an important part of the PHC pile manufacturing process.
The finished pile can be checked for both appearance and technical requirements.
Typical checks may include:
Inspection Area | What Is Checked |
Dimensions | Diameter, length, and wall thickness |
Shape | Straightness and circular shape |
Surface | Cracks, damage, and visible defects |
End plates | Position, condition, and alignment |
Concrete | Required strength and quality |
Reinforcement | Required arrangement and prestressing |
Production records | Materials, production cycle, and curing information |
The exact tests depend on the applicable standard and project specification.
Only piles that meet the required production and quality requirements should be prepared for delivery.
After inspection, PHC piles are moved to the storage area.
Piles should be supported and stacked properly to reduce the risk of damage.
During lifting and transportation, suitable lifting equipment and handling methods should be used.
Each pile can also be identified using production information such as size, length, production date, or batch number.
Proper storage and handling are important because even a well-manufactured pile can be damaged before it reaches the construction site if it is handled incorrectly.
The complete process can be shown in a simple flow:
Raw Material Preparation
↓
Reinforcement Cage Making
↓
Steel Mould Preparation
↓
Cage and End Plate Installation
↓
Concrete Mixing
↓
Concrete Filling
↓
Prestressing
↓
Centrifugal Spinning
↓
Steam Curing
↓
Demoulding
↓
Quality Inspection
↓
Storage and Delivery
This step-by-step process allows manufacturers to control the pile from raw materials to the finished product.
PHC pile production combines several controlled manufacturing methods.
The main features include:
High-strength concrete
Prestressed steel reinforcement
Centrifugal spinning
Hollow cylindrical construction
Controlled curing
Factory-based quality inspection
The spinning process is especially important because it helps form the hollow circular shape and distributes the concrete around the mould.
Factory production also allows manufacturers to control materials, dimensions, curing, and inspection before the piles are delivered to a project.
Quality control should be considered throughout the whole production process, not only after the pile is finished.
Material checks should start before concrete production. Reinforcement and end plates should be checked before assembly. Concrete production, prestressing, spinning, and curing should also follow the required production procedure.
The finished piles then need to be inspected before storage and delivery.
A good quality control system helps identify production problems early and supports consistent pile quality from one batch to another.
For projects that require specific pile dimensions or performance, the manufacturer should follow the applicable standards and project specifications.
The manufacturing process has a direct effect on the quality of the finished pile.
For example, incorrect reinforcement placement can affect the designed section. Poor concrete mixing can affect concrete quality. Improper spinning can affect the concrete distribution, while poor curing can prevent the concrete from reaching the required strength.
This is why every production stage needs proper control.
A well-managed manufacturing process helps produce PHC piles with consistent dimensions, concrete quality, and prestressing performance.
How are PHC piles manufactured?
PHC piles are manufactured by preparing prestressing reinforcement, placing it inside a steel mould, filling the mould with high-strength concrete, applying prestress, and spinning the mould at controlled speeds. The pile is then cured, demoulded, inspected, and prepared for storage or delivery.
What is the spinning process in PHC pile manufacturing?
The spinning process rotates the concrete-filled mould at controlled speeds. Centrifugal force moves the concrete toward the outer wall of the mould and forms the hollow center of the pile.
Why are PHC piles prestressed?
PHC piles are prestressed to place the concrete under compression and improve its ability to handle stresses during production, handling, installation, and service.
What type of concrete is used for PHC piles?
PHC piles use high-strength concrete. The exact concrete requirements depend on the pile design, applicable standard, and project specification.
How is the quality of a PHC pile checked?
Quality can be checked through material inspection, reinforcement checks, dimensional measurements, concrete strength testing, visual inspection, and other tests required by the relevant standard or project specification.
What is the difference between PHC piles and ordinary precast concrete piles?
PHC piles use prestressed reinforcement and are commonly produced using centrifugal spinning. This creates a hollow circular pile with a dense concrete wall. Ordinary precast concrete piles may use different reinforcement systems, shapes, and production methods.
How long does it take to manufacture a PHC pile?
There is no single production time for every PHC pile. The production cycle depends on the pile size, concrete mix, prestressing method, spinning process, curing system, mould availability, and factory production setup.
The PHC pile manufacturing process involves more than simply pouring concrete into a mould. Each stage, from reinforcement preparation to final inspection, has a role in producing a reliable precast foundation pile.
The main production stages are reinforcement preparation, mould assembly, concrete production, prestressing, centrifugal spinning, curing, demoulding, and quality inspection.
Proper control at every stage helps manufacturers produce PHC piles that meet the required dimensions, concrete strength, and project specifications.
