PC wire is one of the most important materials in modern concrete construction because it helps concrete handle tension more effectively. In practice, it is used in both precast concrete production and prestressed concrete systems, but the purpose and application are not exactly the same.
PC wire stands for prestressed concrete wire, a high-strength steel wire designed to work with concrete under tension. It is commonly produced in diameters such as 5 mm, 7 mm, 8 mm, and 9 mm, with tensile strength levels typically around 1570–1860 MPa depending on the grade and application. The wire may be plain, indented, helical, or galvanized, depending on bonding and environmental requirements.
In precast concrete, PC wire is mainly used to manufacture concrete elements in a factory before they are delivered to the site. Typical products include poles, sleepers, pipes, slabs, beams, and other factory-made components where consistent quality and fast installation matter. Because production happens in a controlled environment, precast work often values stable diameter, predictable elongation, and efficient handling.
Prestressed concrete is the broader structural system in which PC wire is tensioned to create internal compression inside the concrete. This prestressing action helps the concrete resist cracking and improves performance under load, especially in bridges, buildings, and infrastructure projects. In this system, the wire is not just reinforcement; it actively contributes to structural behavior from the beginning.

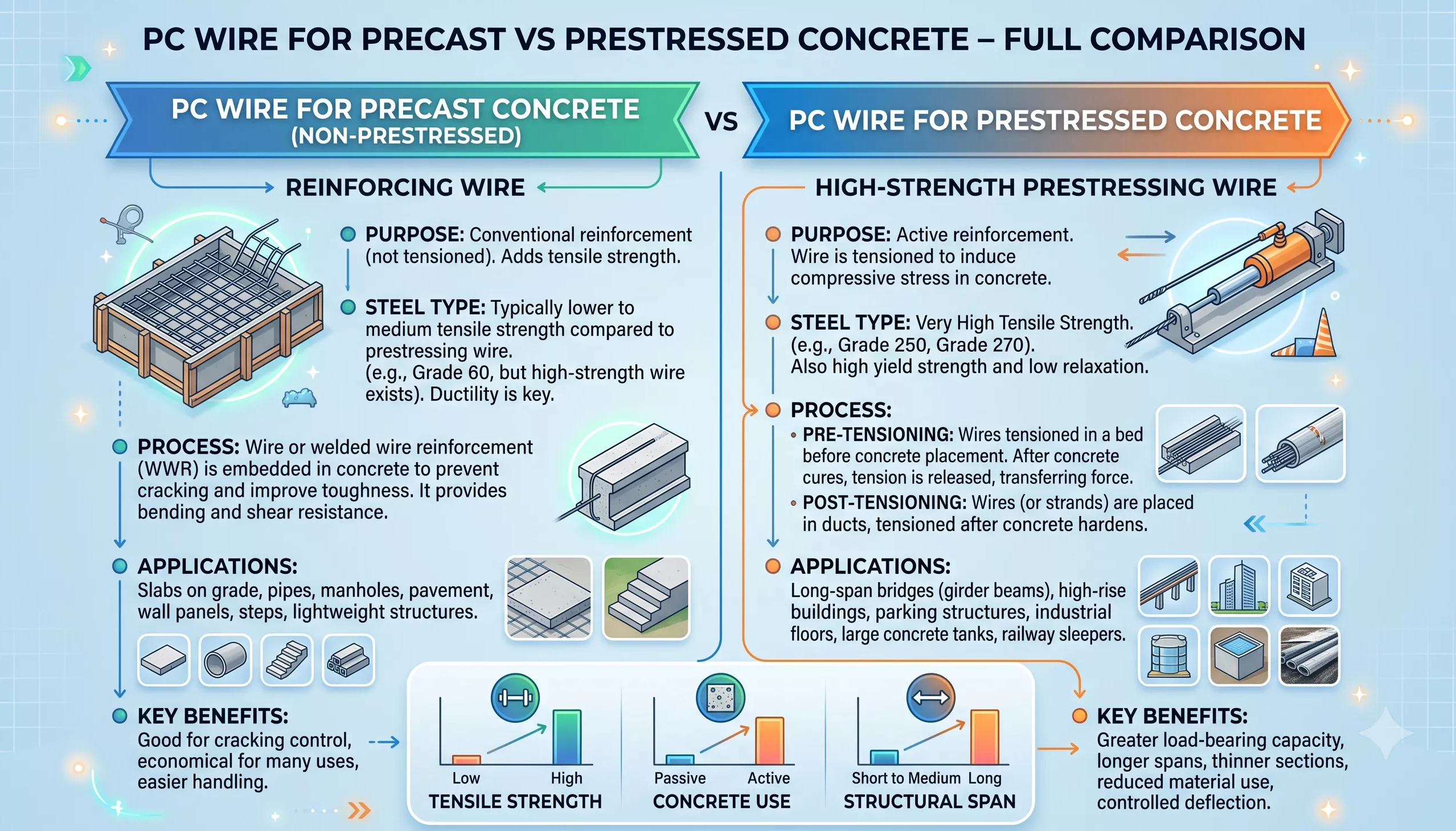

Here is a simple comparison of how PC wire is used in these two applications:
Aspect | Precast Concrete | Prestressed Concrete |
Main purpose | Factory production of concrete elements | Improve structural performance by applying tension |
Working method | Components are cast off-site and installed later | Wire is tensioned to compress concrete and reduce cracking |
Common products | Poles, sleepers, pipes, slabs, beams | Bridges, buildings, slabs, and other load-sensitive structures |
Key priority | Speed, repeatability, consistent production | Strength, crack control, load resistance |
Wire selection | Selected based on structural demand, bonding, and corrosion exposure |
The short answer is that both do, but prestressed concrete defines the structural principle while precast concrete defines the production method. Many precast items use prestressing, which is why the two terms are often connected in construction discussions. If the project needs higher load capacity, longer spans, or less cracking, prestressing becomes especially important.
Plain PC wire is suitable for standard prestressing and general concrete reinforcement applications, while indented and helical wires are better where bonding needs to be stronger. Galvanized wire is a better option for outdoor or humid environments because it adds corrosion resistance. For buyers, the right choice depends on product type, diameter, tensile grade, surface finish, and project environment.
PC wire helps reduce cracking, improve durability, and support lighter or more efficient structural designs. It is especially valuable in precast factories because it supports repeatable production with controlled stressing and reliable output. For international buyers, consistent coil quality, export packing, and mill test certificates are also important procurement factors.
PC wire is essential for both precast and prestressed concrete, but the deciding factor is the project requirement, not just the material itself. Precast focuses on production efficiency, while prestressed concrete focuses on structural performance, and PC wire supports both when selected correctly.
