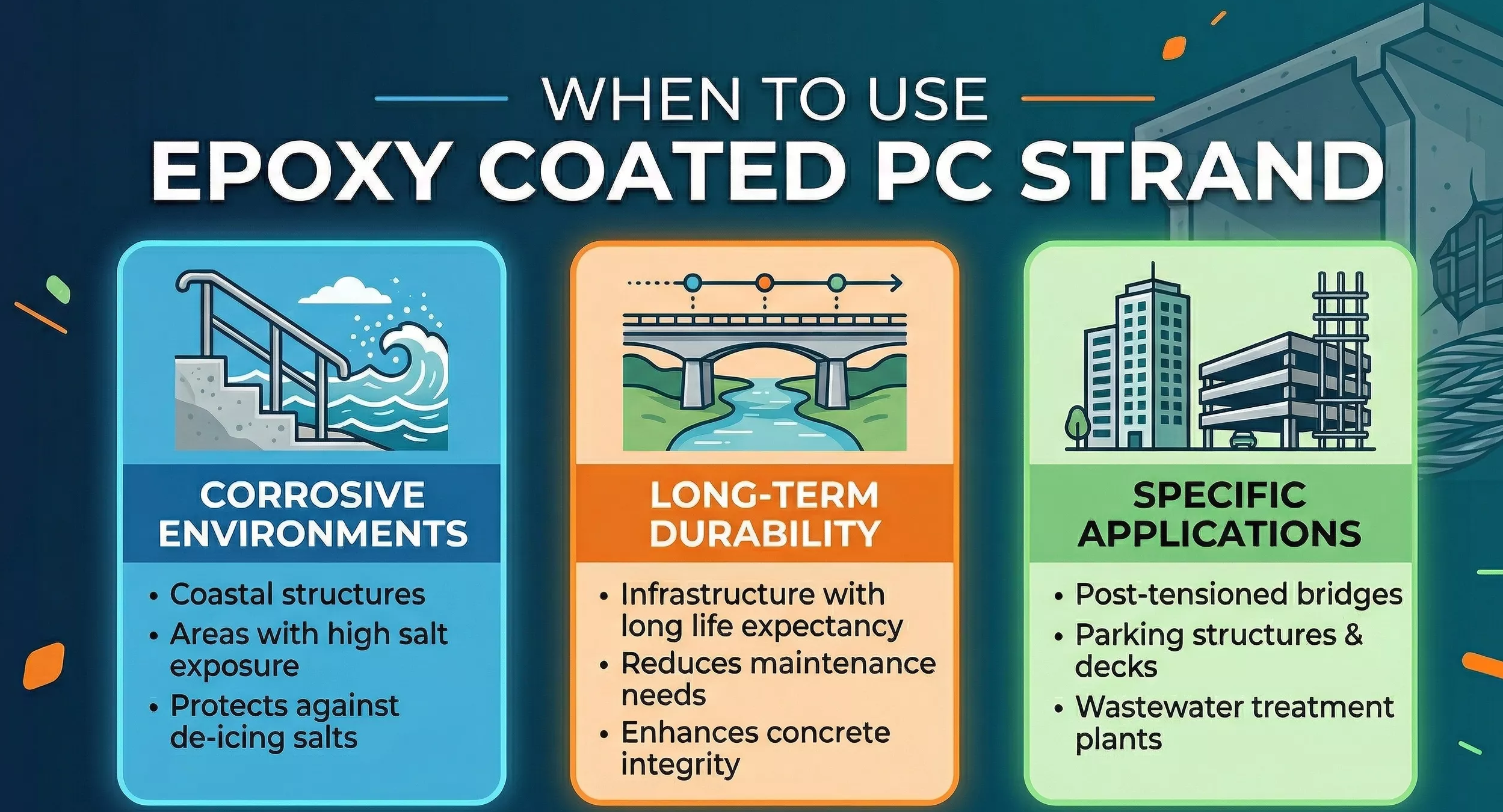

When to Use Epoxy-Coated PC Strand

Epoxy-coated PC strand offers superior corrosion resistance for prestressed concrete in harsh environments. This blog explores its key applications, benefits, and decision factors for construction projects.

What Is Epoxy-Coated PC Strand?

Epoxy-coated PC strand consists of high-strength steel wires twisted together and fully encased in epoxy resin, often filling internal voids for complete protection. Unlike plain or galvanized strands, the epoxy layer bonds tightly to the steel during stressing without cracking, providing a barrier against moisture, chlorides, and chemicals.

This coating comes in variants like smooth, fine-grit, or coarse-grit surfaces to match bond needs with concrete—smooth for low-bond uses, grit-embedded for high-fatigue scenarios. Manufacturers like TJ Wasungen produce it to standards such as ASTM A882, ensuring tensile strengths from 1860 MPa and diameters from 9.53mm to 15.24mm.

Core Benefits Over Uncoated Strand

Epoxy-coated strand excels in corrosion resistance, outperforming galvanized options in accelerated tests by preventing wire-to-wire movement and electrolyte penetration. It also boosts fatigue life, critical for dynamic loads, as the epoxy eliminates fretting between wires.

In pretensioned applications exposed to seawater or deicing salts—like marine pilings or bridge decks—it extends service life without added grout, cutting maintenance costs. Handling remains straightforward, with no environmental pollution during coating and reliable anchoring performance.

Ideal Applications in Bridges

Use epoxy-coated PC strand in bridges facing chloride exposure, such as cable-stayed or segmental designs. For stay cables and external tendons in box girders, grit-embedded versions resist fretting fatigue from wind or traffic vibration.

Bridge decks and transverse post-tensioning tendons benefit from its chloride barrier, especially in deiced roadways. Prestressed girders and piling in coastal areas leverage its marine durability, as seen in U.S. projects like San Francisco widenings.

Marine and Coastal Structures

Coastal projects demand epoxy-coated strand for pilings, seawalls, and docks where saltwater immersion accelerates corrosion. It suits prestressed piling in marine environments, protecting against constant wetting and drying cycles.

Post-tensioned slabs in harbors or offshore platforms use it to avoid rust in splash zones. TJ Wasungen supplies these for long-term exposure, ensuring no degradation over decades.

Parking Structures and Decks

Parking decks with deicing salts require epoxy-coated strand in post-tensioned slabs to block chloride ingress. It prevents corrosion cracking in elevated garages, extending lifespan without frequent repairs.

Horizontal tendons in these structures handle vehicle loads and chemical exposure effectively.

Ground Anchors and Soil Stabilization

Epoxy-coated strand shines in rock and soil anchors for slopes, retaining walls, or dams, where groundwater introduces corrosives. Heavy-duty anchors in mining or geotechnical work resist long-term burial without protective grout.

Its high bond strength suits permanent anchors under constant tension.

Industrial Floors and Slabs

Chemical plants or industrial floors exposed to spills use epoxy-coated post-tensioned slabs for durability. Hollow core slabs and double tees in warehouses benefit from its resistance to aggressive cleaners or moisture.

When NOT to Use It

Avoid epoxy-coated strand in dry, inland structures with no corrosive risk—uncoated is cheaper and bonds better. High-bond interior applications may prefer plain strand over smooth epoxy types. Not ideal for temporary works, as coating adds cost without proportional gain.

Design and Installation Guidelines

Select based on exposure: grit for fatigue, smooth for bond-limited uses. Design per ASTM A882, limiting concrete curing to safe temperatures to preserve coating. Handle with padded sheaves to avoid scratches; patch ends post-stressing.

Stressing maintains steel strength—no loss from coating. TJ Wasungen offers variants for global standards.

Cost-Benefit Analysis

Initial cost exceeds uncoated by 20-50%, but lifecycle savings from reduced maintenance justify it in corrosive zones. Bridges or marine works see ROI in 10-20 years via avoided replacements.

Future Trends and Innovations

Rising sea levels and extreme weather boost demand for epoxy-coated strand in resilient infrastructure. Advances fill voids completely for zero-corrosion paths, suiting extradosed bridges.

Contact TJ Wasungen for tailored epoxy-coated PC strand solutions at Request Latest Price
