Concrete is strong under compression but weak under tension — that's why engineers rely on prestressing steel to carry the load a structure can't handle on its own. When that steel also has to survive rain, humidity, coastal air, or decades of outdoor exposure, one material keeps coming up in specs and tender documents: hot dipped galvanized PC strand.
If you've seen the term on a drawing or a supplier's quote and want a straight answer — what it is, how it's made, and when to use it — this guide covers it in plain language.
Hot dipped galvanized PC strand is a seven-wire prestressing concrete (PC) strand that has been coated with zinc by immersing it in a bath of molten zinc. The result is a high-tensile steel strand with a durable, uniform zinc layer bonded to every wire, giving it strong resistance to rust in outdoor, humid, or corrosive environments — while keeping the mechanical strength needed for prestressed concrete work.
It's a regular PC strand, upgraded with a corrosion-resistant zinc shell for projects that can't afford to rust early.

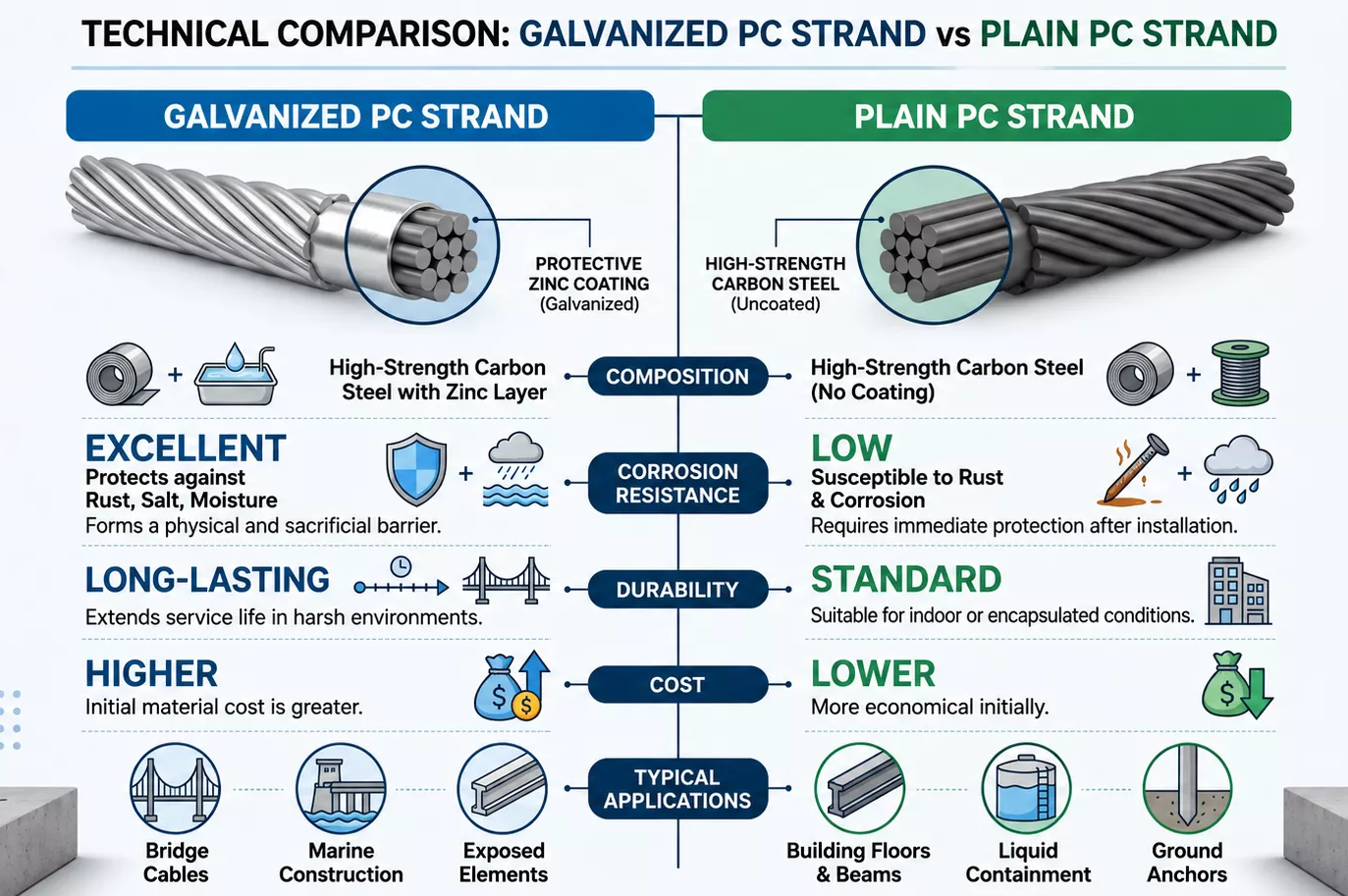

Standard (bare) PC strand is bright, uncoated steel. It performs well structurally but is vulnerable to corrosion if exposed to moisture without adequate concrete cover or protective ducting. Hot dipped galvanized PC strand solves that gap by adding a zinc barrier that:
Physically blocks moisture and oxygen from reaching the steel surface
Sacrifices itself first (zinc corrodes before steel does), buying extra protection time
Bonds more tightly than electro-galvanized or sprayed coatings, because the strand is fully immersed in molten zinc rather than surface-treated
This is also what separates it from electro-galvanized wire: hot-dip coating is thicker, more uniform along the strand's length, and adheres better under the twisting and stressing forces a strand goes through during construction.
The process is mechanical and metallurgical, not cosmetic. A typical production sequence looks like this:
Wire drawing – High-carbon steel wire is cleaned and drawn down to the required diameter.
Stranding – Individual wires are twisted together into the standard seven-wire strand configuration.
Surface preparation – The strand is cleaned to remove oxides and residues so zinc can bond properly.
Hot-dip galvanizing – The strand is immersed in a bath of molten zinc, forming a continuous, adherent coating across every wire.
Coating inspection – Zinc thickness is checked to confirm it meets specification.
Mechanical testing – Tensile strength, elongation, and relaxation properties are verified.
Coiling and export packing – Finished strand is coiled and packed to survive long-distance shipping without coating damage.
Because the coating happens after stranding, zinc reaches the inner contact points between wires too — not just the outer surface — which is one reason hot-dip strand holds up better over time than surface-sprayed alternatives.
This isn't a strand you'd pick for an indoor, climate-controlled structure — it earns its cost premium specifically where corrosion risk is real and ongoing:
Bridges and overpasses exposed to rain, humidity, and de-icing salts
Highway infrastructure with long, low-maintenance-access spans
Precast concrete elements stored or installed outdoors before final assembly
Marine and coastal structures, where salt air accelerates corrosion
Solar mounting and ground anchor systems exposed to weather year-round
Any prestressed structure with a long service-life requirement and limited access for future maintenance
Engineers often specify it as a middle ground between bare strand (cheapest, least protected) and epoxy-coated strand (highest protection, higher cost) — a practical balance when epoxy coating isn't explicitly required but extra corrosion protection still matters.
Property | Why It Matters |
Zinc-coated surface | Slows corrosion from moisture and air exposure |
Hot-dip process | Stronger, more uniform coating bond than electro-galvanizing |
High tensile strength | Still meets standard prestressing load requirements |
Seven-wire strand structure | Distributes tension evenly through the concrete |
Uniform coating thickness | Smoother anchoring and stressing during installation |
Lower long-term maintenance | Fewer corrosion-related repairs over the structure's life |
Hot dipped galvanized PC strand is typically supplied to match the standards engineers already design around:
Diameter: Commonly 12.7mm (other sizes available on request)
Structure: Seven-wire strand
Coating: Hot-dipped zinc, thickness verified per batch
Relaxation class: Standard or low-relaxation
Reference standards: ASTM A416, EN 10138, GB/T 5224
Reputable suppliers issue mill test reports with each shipment so the coating thickness, tensile strength, and elongation values are documented and traceable.
What is hot dipped galvanized PC strand used for?
It's used in prestressed concrete structures exposed to outdoor conditions, moisture, or humidity — bridges, precast beams, highway infrastructure, and similar projects where corrosion protection is a design requirement, not an afterthought.
Is hot dipped galvanized PC strand the same as epoxy coated PC strand?
No. Both protect against corrosion, but they work differently. Hot-dip galvanizing bonds a zinc metal layer to the steel through molten immersion. Epoxy coating applies a polymer barrier over the strand, sometimes combined with grease filling for even higher protection. Epoxy-coated strand generally offers more protection at a higher cost; galvanized strand is a strong middle-ground option.
How is hot dip galvanizing different from electro-galvanizing?
Hot dip galvanizing immerses the strand in molten zinc, producing a thicker, more durably bonded coating. Electro-galvanizing deposits a thinner zinc layer using an electric current, which generally offers less long-term corrosion resistance.
Does galvanizing reduce the strand's tensile strength?
No, when done correctly by an experienced manufacturer. The process is controlled so the strand still meets required tensile strength, elongation, and relaxation properties after coating — this is confirmed through mechanical testing before the strand ships.
Is hot dipped galvanized PC strand suitable for marine or coastal projects?
Yes. It's commonly specified for coastal, marine-adjacent, and high-humidity infrastructure precisely because the zinc coating slows the corrosion that salt air and moisture accelerate.
What size does hot dipped galvanized PC strand typically come in?
12.7mm is the most common diameter supplied, though manufacturers can produce other sizes depending on project requirements — it's worth confirming availability directly with your supplier.
Do suppliers provide test certificates with hot dipped galvanized PC strand orders?
Reliable manufacturers include mill test reports and inspection documents with every shipment, covering coating thickness and mechanical properties, so buyers can verify quality on arrival.
If you're specifying or ordering hot dipped galvanized PC strand for an upcoming project, working with a manufacturer that controls the entire process — wire drawing, stranding, galvanizing, and testing — under one roof helps keep quality consistent from batch to batch. Tianjin Wasungen Metal Products Co., Ltd. manufactures and exports hot dipped galvanized PC strand for bridges, highways, precast yards, and infrastructure projects worldwide, with mill test reports available on every shipment. Reach out with your strand type, diameter, quantity, and destination port for pricing and lead time.
