The post-tensioning process is a method used to strengthen concrete structures by applying tension to high-strength steel tendons after the concrete has reached the required strength. It helps concrete structures handle higher loads, reduce cracking, and achieve longer spans with less concrete.
The process involves several important stages, including tendon and anchorage installation, concrete casting, stressing, anchoring, and tendon protection. Each step needs to be completed carefully because small installation errors can affect the final performance of the structure.
This guide explains the main post-tensioning steps in a simple and practical way.

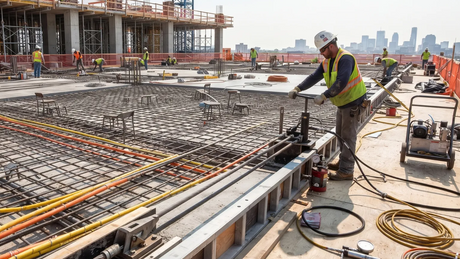

In a typical post-tensioning construction process, steel tendons are placed inside ducts or protective sheathing before concrete is poured. After the concrete gains the specified strength, the tendons are pulled using hydraulic stressing equipment.
The tendons are then locked in position using anchorages. In bonded systems, the ducts are filled with grout after stressing to protect the steel and create a bond between the tendon and surrounding concrete.
The basic sequence is:
Design → Duct Installation → Tendon Placement → Concrete Casting → Strength Check → Tendon Stressing → Anchorage → Grouting → Inspection
Before starting the post-tensioning installation, engineers and contractors review the approved structural drawings and project specifications.
The design normally determines:
Tendon size and type
Number of tendons
Tendon profile and location
Anchorage positions
Required stressing force
Concrete strength requirements
Stressing sequence
Grouting requirements
The tendon layout must follow the approved design because its position affects how the prestressing force works within the concrete member.

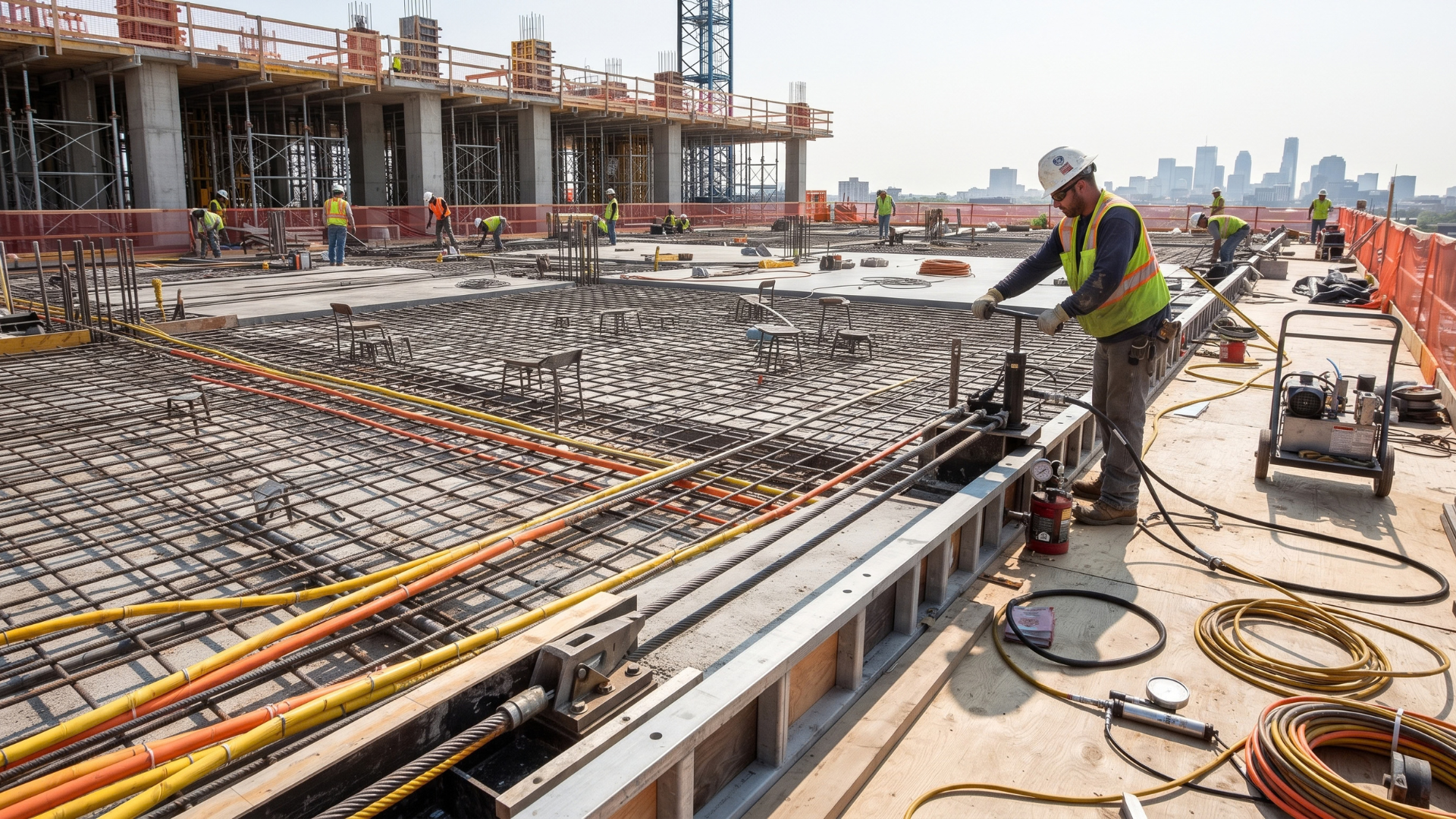

The next step is to install the ducts, sheathing, and anchorages in their specified positions.
Ducts provide a path for the tendons through the concrete. Anchorages are installed at the stressing ends and other specified locations.
During installation, workers need to check:
Duct alignment
Tendon profile
Anchorage position
Anchorage alignment
Bearing plates
Connections between duct sections
Protection of the anchorage area
The ducts should remain in the correct position during reinforcement installation and concrete placement.
For more information about anchorage systems, see the prestressed anchorages and devices used in prestressed concrete construction.

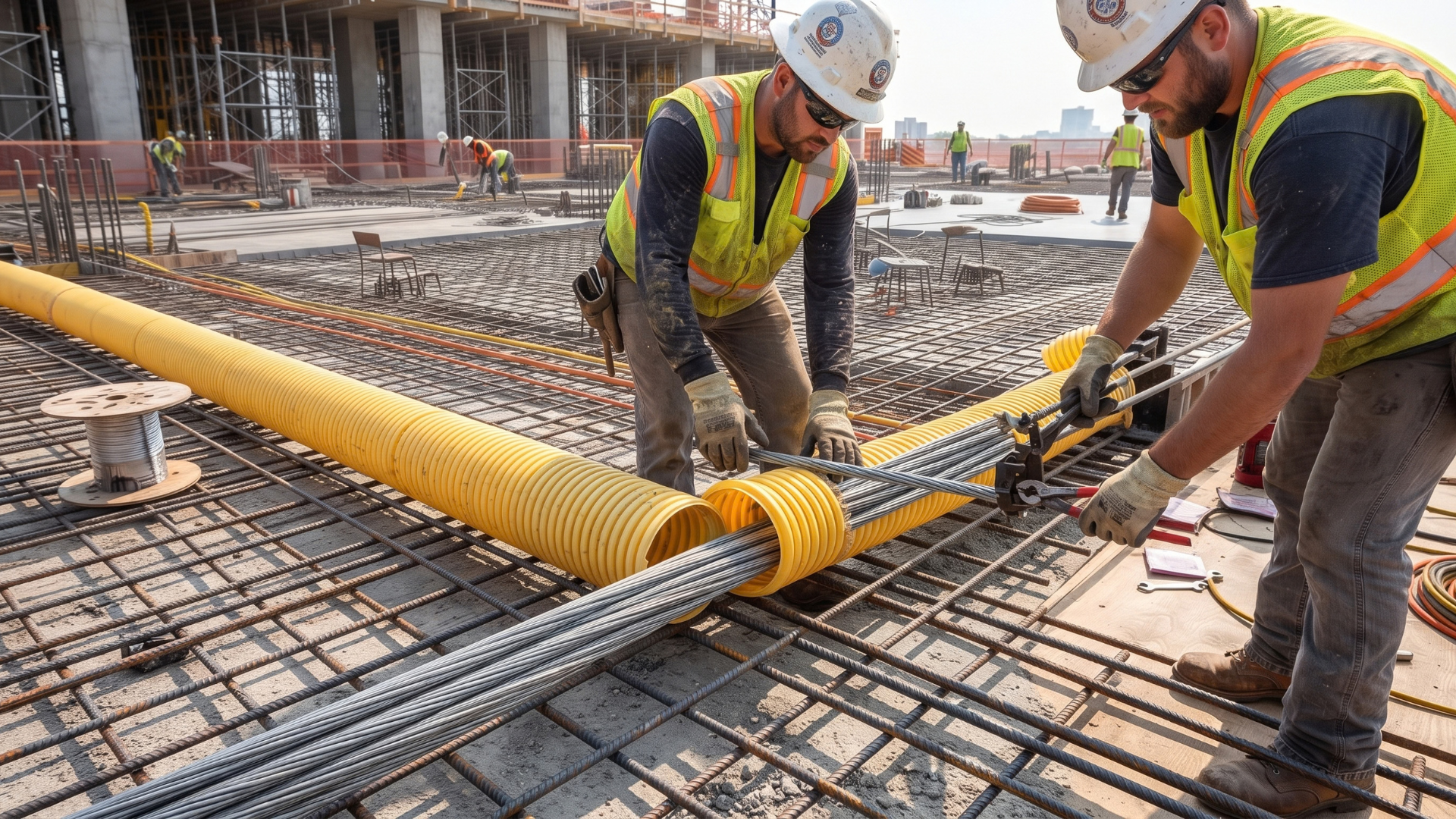

High-strength steel tendons, commonly made from PC strand, are placed through the prepared ducts or protective sheathing.
Workers need to make sure the tendons follow the designed profile. They should also avoid unnecessary bends, damage, or contamination during installation.
The tendon length and position should be checked before concrete casting.
PC strand is widely used in prestressed concrete because it provides the high tensile strength needed to introduce prestressing force into concrete structures.
Before placing concrete, the complete tendon system should be inspected.
The inspection should confirm that:
Ducts are secure
Anchorages are correctly positioned
Tendons have the required profile
Reinforcement does not interfere with the tendon system
Ducts are not damaged
Anchorage areas are properly prepared
Construction openings and access points are available where required
This inspection is important because many installation problems are easier to correct before the concrete is poured.

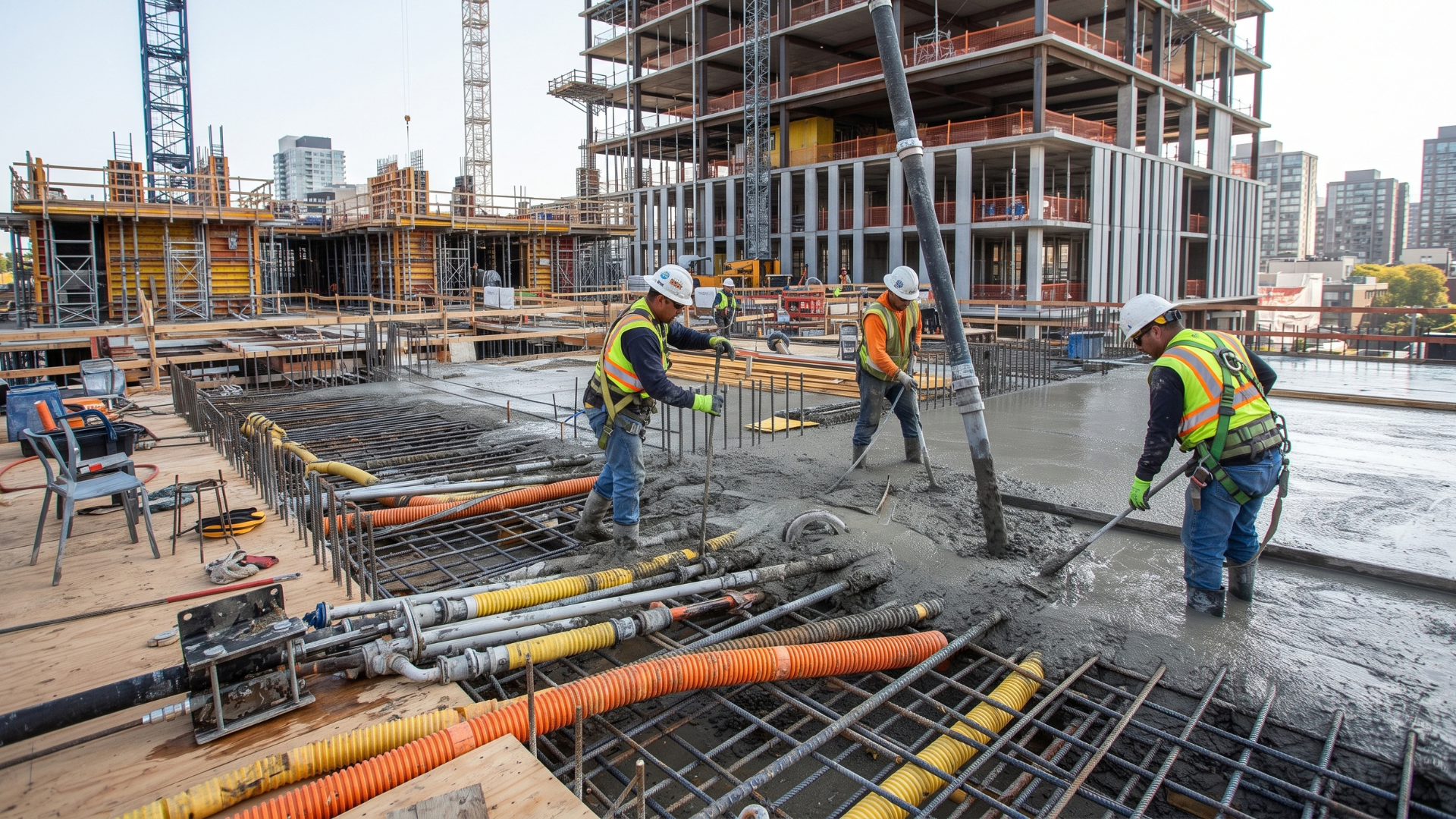

Once the tendon system and reinforcement have been checked, concrete can be placed.
During concrete casting, workers should take care not to move or damage the ducts and anchorages. Proper concrete placement and compaction are especially important around anchorage zones.
The concrete is then allowed to cure until it reaches the strength specified by the structural design.
The tendons should not be stressed before the required concrete strength has been achieved.
Before stressing begins, the concrete strength must be verified.
The required strength depends on the structural design, project specifications, and applicable construction standards.
Concrete test results are reviewed to confirm that the member is ready for stressing.
This step is important because stressing too early can cause damage to the concrete or anchorage zone.
Once the concrete has reached the required strength, the main post-tensioning process begins.

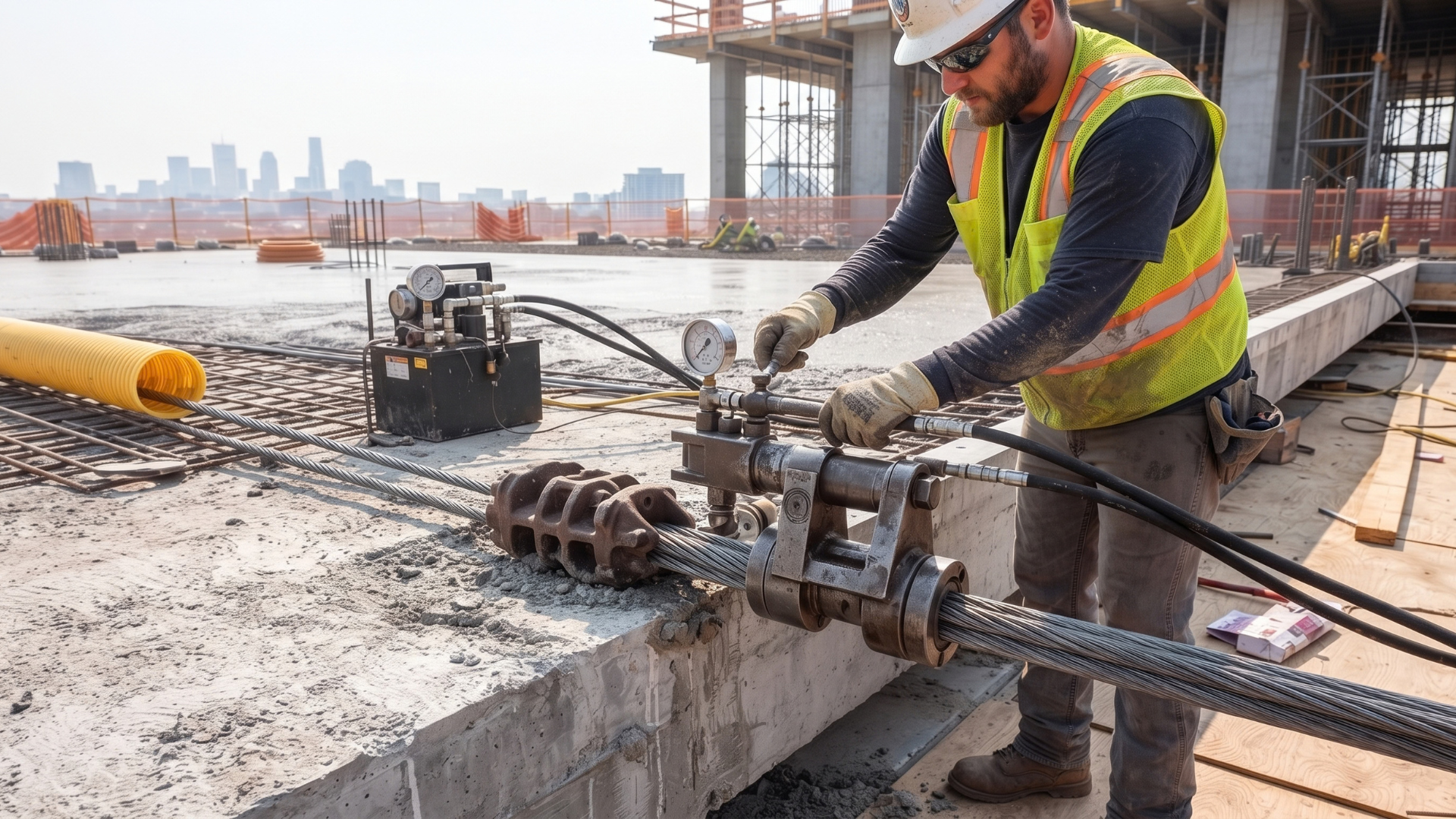

A hydraulic jack is positioned at the stressing end of the tendon. The equipment then applies the specified tension to the steel tendon.
The basic operation includes:
Positioning the stressing equipment.
Connecting the hydraulic jack to the tendon.
Applying the required jacking force.
Monitoring hydraulic pressure.
Measuring tendon elongation.
Comparing the measured elongation with the expected value.
Completing the stressing operation according to the approved procedure.
Both stressing force and tendon elongation are important. The measured results help engineers verify that the tendon has been stressed as expected.
After the required stressing force is reached, the tendon is locked using the anchorage system.
Wedges grip the steel strand and hold the applied tension after the hydraulic jack is released.
The anchorage transfers the prestressing force from the tendon into the surrounding concrete.
In simple terms:
The hydraulic jack creates the tension, while the anchorage holds that tension.
The anchorage area should then be inspected for any visible problems before the next stage.

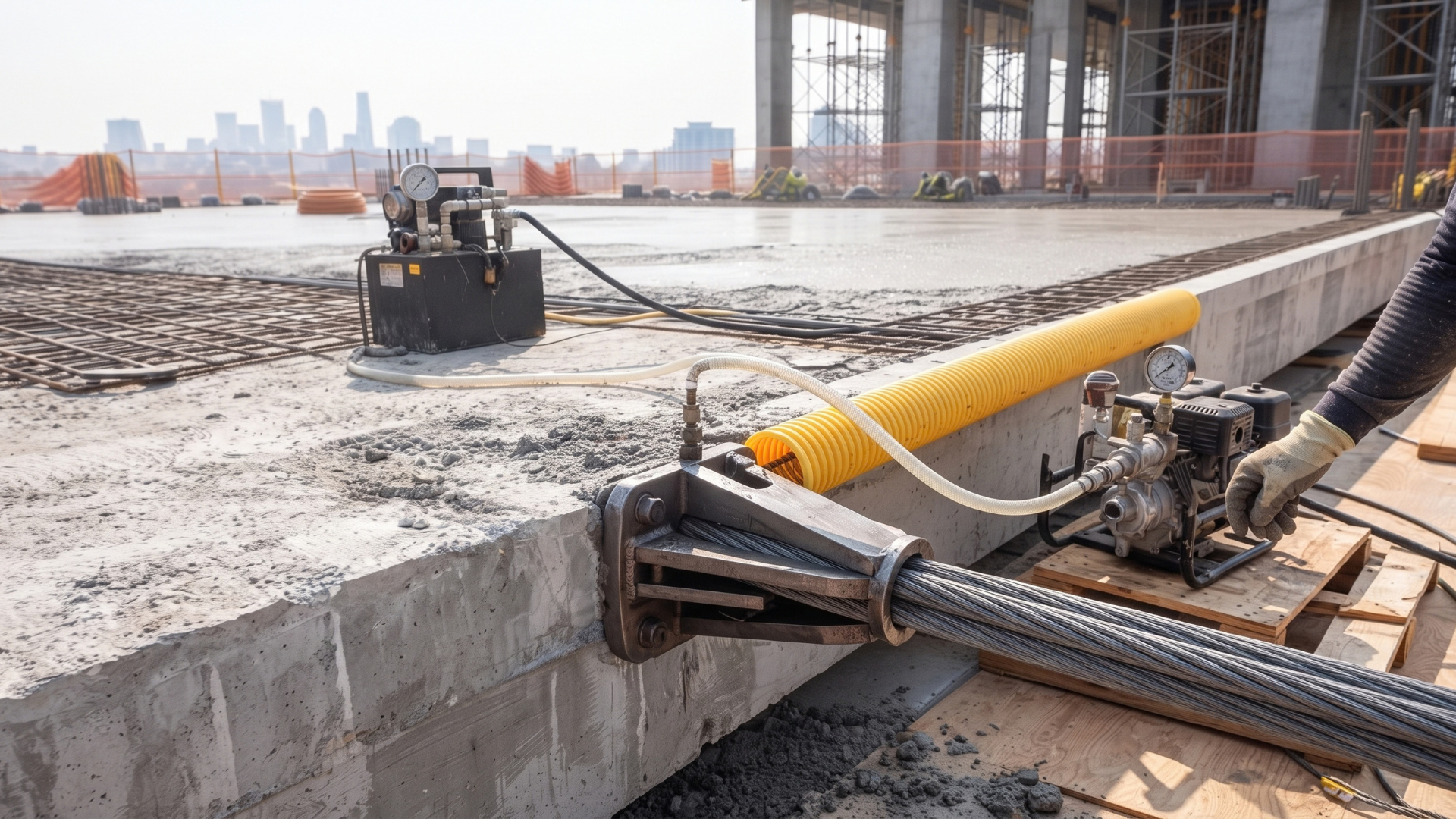

For a bonded post-tensioning system, the duct is normally filled with grout after stressing and anchoring.
The grout helps:
Protect the tendon from corrosion
Fill the space around the tendon
Create a bond between the tendon and concrete
Improve the long-term durability of the system
The grout should be prepared and injected according to the project requirements. Workers should also check that the duct is properly filled and that the grouting operation is documented.
Not every post-tensioning system uses grout. Unbonded systems use protective sheathing and other protection methods instead.
The final stage is to inspect and record the completed post-tensioning installation.
Important records can include:
Tendon identification
Jacking force
Hydraulic pressure
Measured elongation
Concrete strength
Anchorage details
Stressing date
Grouting records
Inspection results
Good documentation allows the project team to confirm that the stressing work was completed according to the approved requirements.
A typical post-tensioning system contains several important components.
Component | Main Function |
PC strand or tendon | Provides the tensile force |
Duct or sheathing | Provides a path and protection for the tendon |
Anchorage | Holds the stressed tendon and transfers force to concrete |
Wedges | Grip the steel strand |
Bearing plate | Transfers and distributes force into the concrete |
Hydraulic jack | Applies tension to the tendon |
Grout | Protects and bonds tendons in bonded systems |
Each component has a specific role, so correct installation is important for the overall performance of the system.
There are two common approaches to concrete post-tensioning: bonded and unbonded systems.
In a bonded system, the steel tendon is installed inside a duct. After stressing, the duct is filled with grout.
The grout provides corrosion protection and creates a bond between the tendon and surrounding concrete.
In an unbonded system, the tendon is protected with a suitable sheathing and does not become bonded to the surrounding concrete along its length.
The choice between bonded and unbonded systems depends on the structural design and project requirements.
Correct installation is important because several problems can affect the performance of a post-tensioned structure.
If a tendon is not installed according to the designed profile, the intended prestressing effect may change.
Damaged ducts or protective sheathing can create problems during tendon installation, stressing, or long-term protection.
Poor anchorage alignment or installation can affect how the stressing force is transferred into the concrete.
Tendons should only be stressed after the concrete reaches the required strength specified for the project.
If measured tendon elongation differs significantly from the expected value, the project team should investigate the reason before continuing.
Possible causes can include friction, tendon position, measurement issues, or equipment problems.
In bonded systems, incomplete or poor-quality grouting can reduce protection against corrosion and leave unwanted voids around the tendon.
Tendon elongation is measured during stressing to help verify that the tendon has received the expected amount of tension.
The hydraulic jack provides the stressing force, while the measured elongation provides another important check.
If the measured value is significantly different from the expected value, engineers may need to investigate the installation, friction, equipment, or measurement process.
This makes elongation measurement an important part of quality control during the post-tensioning procedure.
Post-tensioned concrete is used in many types of construction where strength, span, load capacity, or structural efficiency is important.
Common applications include:
Building floor slabs
High-rise buildings
Parking structures
Bridges
Bridge decks
Concrete beams
Transfer structures
Large-span structures
Post-tensioning can allow designers to achieve longer spans while controlling concrete thickness and structural deflection.
Although both methods use high-strength steel to prestress concrete, the main difference is when the steel is tensioned.
Feature | Post-Tensioning | Pre-Tensioning |
Tendon stressing | After concrete gains strength | Before concrete casting |
Common location | Often construction sites | Commonly precast factories |
Anchorage | Mechanical anchorage is used | Force transfers through bond after release |
Typical applications | Slabs, bridges, beams and large structures | Precast beams, piles and other precast products |
Understanding this difference helps when selecting the right prestressing method for a project.
What are the main steps in the post-tensioning process?
The main steps include design review, duct and anchorage installation, tendon placement, concrete casting, concrete strength testing, tendon stressing, anchoring, grouting for bonded systems, and final inspection.
When are post-tensioning tendons stressed?
Tendons are stressed after the concrete reaches the strength required by the structural design and project specifications.
What equipment is used for post-tensioning?
Common equipment includes hydraulic stressing jacks, pumps, pressure gauges, measuring equipment, anchorages, wedges, and grouting equipment for bonded systems.
What happens after the tendon is stressed?
After reaching the required stressing force, the tendon is locked into the anchorage. For bonded systems, the duct is then grouted to protect the tendon and create a bond with the surrounding concrete.
Why is a hydraulic jack used in post-tensioning?
A hydraulic jack applies a controlled force to the high-strength tendon so that it can be tensioned to the value specified by the structural design.
Are all post-tensioning systems grouted?
No. Grouting is normally used for bonded post-tensioning systems. Unbonded systems use different protection methods.
What is the purpose of a post-tensioning anchorage?
The anchorage holds the stressed tendon and transfers the prestressing force into the concrete structure.
The post-tensioning process involves much more than simply pulling a steel tendon. Proper design, duct and anchorage installation, tendon placement, concrete strength verification, controlled stressing, anchoring, protection, and final inspection all play an important role.
When each post-tensioning step is completed correctly, the system can provide an effective way to improve the performance of concrete structures and support longer spans and higher structural demands.
