Galvanized PC Strand vs Plain PC Strand: Which One Does Your Project Actually Need?

Galvanized PC strand is a seven-wire prestressing strand coated with zinc through hot-dip galvanizing, built for corrosion resistance in outdoor, humid, or marine environments. Plain PC strand is an uncoated seven-wire strand designed for maximum bonding with concrete in controlled, low-exposure conditions. The right choice depends on one factor above all others: how much corrosion exposure your structure will face over its service life.

If you're specifying prestressing strand for a bridge, precast yard, or infrastructure project, this comparison breaks down exactly where each type performs best — and where it doesn't.

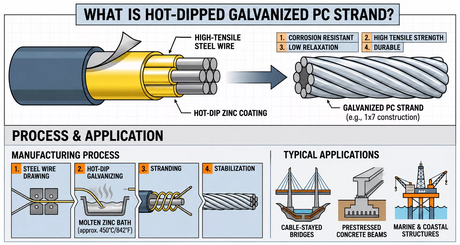

What Is Galvanized PC Strand?

Hot-dipped galvanized PC strand is a high-tensile, seven-wire prestressing strand that has been fully immersed in molten zinc after twisting. The zinc bonds to the steel surface and forms a protective barrier that slows down rust caused by moisture, salt air, and oxygen exposure.

It's the strand engineers reach for when a structure has to survive years of weather with little to no maintenance access — bridges, elevated highways, precast beams stored outdoors, and marine-adjacent infrastructure.

Core traits:

• Zinc coating applied via hot-dip process (not electro-galvanizing)

• Retains the mechanical strength of the base steel

• Seven-wire construction for stable, even force distribution

• Uniform coating thickness for smooth stressing and anchoring

What Is Plain PC Strand?

Plain PC strand is a seven-wire prestressing strand with a bare, uncoated steel surface. Nothing is added between the steel and the concrete, so the bond that forms during curing is direct and highly predictable.

This is the standard strand used in precast beams, girders, sleepers, and piles — anywhere the structure is protected from major environmental exposure, or where corrosion isn't the primary design concern.

Core traits:

• Smooth, uncoated steel surface

• Strong, natural mechanical bond with concrete

• No coating friction, so stressing behavior is predictable

• Lower material cost than coated alternatives

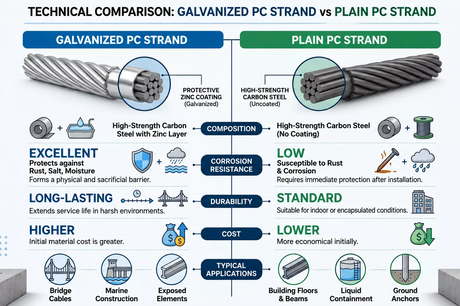

Galvanized PC Strand vs Plain PC Strand: Side-by-Side Comparison

Corrosion Resistance: The Deciding Factor

This is where the two products genuinely diverge. Plain strand relies entirely on the concrete cover to protect it from rust — if that cover is thick, dense, and undamaged, plain strand performs well for decades. But once moisture, cracks, or chlorides reach the steel, corrosion begins immediately because there's no secondary barrier.

Galvanized strand adds that secondary barrier. The zinc layer sacrifices itself before the steel corrodes, buying significant extra service life in conditions where concrete cover alone isn't enough — think coastal bridges, structures exposed to de-icing salts, or open-air precast yards where strand sits uncovered before installation.

Rule of thumb: if your structure will face humidity, salt spray, or long-term outdoor exposure with limited inspection access, galvanized is the safer specification. If the structure is enclosed, indoor, or has reliable concrete cover in a dry climate, plain strand is usually sufficient and more economical.

Bonding Performance: Why Plain Strand Still Wins Here

Zinc coating, while protective, sits between the steel and the concrete. That thin layer can slightly change how the strand bonds during curing compared to bare steel. Plain strand bonds directly, which is why engineers who prioritize precise, predictable load transfer — particularly in pretensioned precast elements — often default to plain strand when environmental risk is low.

This is also why plain strand remains the industry baseline: it's not that galvanized is "better" in every category — it's a trade-off between added protection and slightly more complex bonding behavior.

Cost and Project Budget

Plain PC strand skips the galvanizing step entirely, which keeps material cost lower. For large-volume projects where corrosion risk is minimal, this makes plain strand the more budget-efficient choice without sacrificing structural performance.

Galvanized strand costs more upfront because of the additional coating process, but that cost is often recovered over the structure's lifespan through fewer corrosion-related repairs, less inspection overhead, and a longer service interval before major maintenance is needed.

Manufacturing Process: What Actually Changes

Both strand types start the same way — high-carbon steel wire is drawn, cleaned, and twisted into a seven-wire configuration. The difference appears afterward:

1. Plain strand goes through heat treatment to stabilize strength and elongation, then straight to tensile testing and packing.

2. Galvanized strand takes an extra step: the finished strand passes through a hot-dip zinc bath, and coating thickness is measured before mechanical testing confirms strength and elongation.

That single extra process is what separates the two products in cost, corrosion behavior, and typical application.

Which One Should You Choose?

Ask three questions before specifying either strand:

1. Will the structure be exposed to moisture, salt, or weather over its lifetime? → Choose galvanized.

2. Is the concrete cover reliable, and is the environment controlled or indoor? → A plain strand is usually sufficient.

3. Is budget the primary constraint on a low-exposure project? → Plain strand offers the same tensile performance for less cost.

For mixed projects — a bridge with both exposed and embedded sections, for example — it's common to specify galvanized strand for exterior or above-water sections and plain strand for fully enclosed structural elements.

If your drawings don't specify a strand type, or you're unsure which fits your exposure conditions, it's worth confirming with your supplier before ordering — the wrong choice is expensive to fix after installation.

FAQ: Galvanized PC Strand vs Plain PC Strand

Is galvanized PC strand stronger than plain PC strand?

No. Both use the same high-tensile steel core and meet the same standards (ASTM A416, EN 10138, GB/T 5224). Galvanizing adds corrosion protection, not additional tensile strength.

Can galvanized and plain PC strands be used in the same structure?

Yes. Many projects use galvanized strand in exposed sections and plain strand in enclosed or embedded sections, based on each area's exposure risk.

Does galvanizing reduce the bond strength between strand and concrete?

It can slightly affect bonding behavior compared to bare steel, since the zinc layer sits between the strand and the concrete. In most applications this difference is manageable and accounted for in design.

Is plain PC strand safe to use outdoors?

It can be used outdoors, but corrosion protection should be considered if the structure faces moisture, chemical exposure, or salt air over its service life.

Which strand type costs less?

Plain PC strand is generally less expensive because it skips the hot-dip galvanizing process. Galvanized strand costs more upfront but can lower long-term maintenance costs in corrosive environments.

What diameters are available for both strand types?

Both are commonly available in 12.7mm, with plain strand also offered in 15.2mm. Other diameters may be available on request.

Do both strand types come with test certificates?

Yes. Reputable manufacturers, including TJ Wasungen, provide mill test reports and inspection documents with every shipment for both galvanized and plain PC strands.
