Epoxy coated PC strand significantly extends the service life of prestressed concrete structures, particularly in corrosive environments like marine and coastal applications, by providing a robust barrier against moisture, chlorides, and chemical attack. Unlike bare or galvanized strands, the fusion-bonded epoxy coating—often filled in the interstices—prevents corrosion initiation, reduces fatigue, and maintains prestress levels for decades longer. This leads to lower lifecycle costs and enhanced durability for bridges, wharves, and offshore platforms.
This blog details the mechanisms by which epoxy coated PC strand achieves service life extension, supported by performance data, real-world examples, and design considerations for maximizing its benefits.

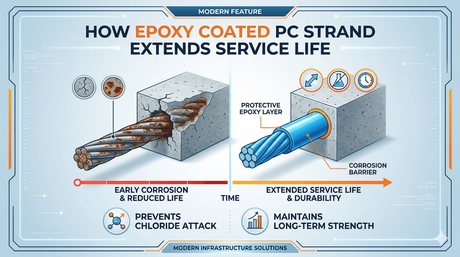

The primary way epoxy coated PC strand extends service life is through its multi-layered corrosion barrier. The epoxy resin, applied as a powder and fusion-bonded at 200–250°C, forms a uniform 0.4 -- 1.0 mm thick coating that seals the high-strength steel wires against water, oxygen, and chlorides. In filled epoxy systems, resin also fills voids between the seven wires, blocking capillary action and hydrostatic pressure that drive corrosive ingress in bare strands.
This protection is critical in marine structures, where chloride concentrations exceed 0.4% by concrete weight, depassivating steel and causing stress corrosion cracking within 10–20 years for unprotected tendons. Epoxy coated strands endure over 3,000 hours of salt spray testing (ASTM B117), compared to under 1,000 hours for galvanized alternatives, translating to 50–100 years of durability even in seawater exposure per Fick's law extrapolations.
Repeated loading in bridges and marine platforms causes fretting wear—micro-movements between wires that abrade protective passivation. Epoxy filling bonds wires tightly, creating a low-friction cushion that reduces internal shear by 70–80% and boosts fatigue life by 3–5 times over bare strand. This prevents progressive wire breakage, a common failure mode that halves service life in high-cycle environments like cable-stayed bridges.
Studies show epoxy coated strands maintain 95% of initial tensile strength after 2 million load cycles at 60% ultimate, versus 70–80% for uncoated, directly extending design lives from 50 to 100+ years.
Loss of prestress from corrosion or relaxation shortens service life by inducing concrete cracking and deflection. Epoxy coatings minimize moisture wicking at anchorages and cut ends, preserving effective prestress at 80–90% after 50 years, compared to 60–70% for bare strands. Low-relaxation grades (≤2.5% at 1,000 hours) combined with epoxy ensure stable camber and load capacity over decades.
In post-tensioned marine girders, this prevents strand slippage and bond degradation, avoiding costly retensioning or replacement every 20–30 years.
Structures using epoxy coated PC strands require 50–70% fewer interventions, as the coating delays spalling and section loss. For a typical coastal bridge, this extends service life from 40–50 years (bare strand) to 75–100 years, saving $500,000–$2M per span in repairs, per lifecycle analysis. Environmental benefits include less concrete patching and lower CO2 from reconstructions.
Field data from U.S. bridges with epoxy coated reinforcement shows 40+ year service life extensions in top mats exposed to deicing salts, analogous to marine chlorides. Japanese projects using filled epoxy strand report zero corrosion failures after 30 years in tidal zones, versus 15–20% failure rates for galvanized. TJ Wasungen's products, meeting ASTM A882 and GB/T21073, demonstrate <2 pinholes per 30m and 3–4% higher tensile strength, supporting 100-year designs.
Metric | Bare PC Strand | Galvanized Strand | Epoxy Coated PC Strand |
Salt Spray Endurance | 200–500 hrs | 500–1,000 hrs | >3,000 hrs |
Fatigue Cycles to 90% Strength | 500k–1M | 1–2M | >2–5M |
Projected Marine Life | 20–40 years | 30–50 years | 75–100+ years |
Prestress Retention (50 yrs) | 60–70% | 70–80% | 80–95% |
Lifecycle Cost Savings | Baseline | 10–20% | 40–60% |
In marine piles and wharves, epoxy coated strands protect against splash-zone corrosion, extending pile life from 30 to 70 years. Cable-stayed and suspension bridges benefit from external tendon use, where inspectable epoxy strands last 80–120 years with minimal grouting needs. Offshore platforms and geotechnical anchors use it for abrasion resistance in dynamic soils.
To realize full extension, specify low-relaxation, 15.2/15.7mm strands with verified 400+ μm coating thickness and adhesion >2,000 psi (ASTM D4541). Use 75–100mm concrete cover, w/c <0.40, and corrosion-inhibiting admixtures. Install with padded reels, >30D bend radii, and vacuum grouting to avoid coating damage.
Third-party testing for pinholes (NACE SP0188) and cathodic disbondment (ASTM G8) ensures quality.
Protection Method | Service Life Gain | Cost Premium | Maintenance Needs |
Bare Strand | Baseline | None | High (every 10–15 yrs) |
Galvanized | +10–20 yrs | +20% | Medium |
Epoxy Coated | +30–60 yrs | +30–50% | Low (every 30+ yrs) |
Stainless/Clad | +50–80 yrs | +200–400% | Very Low |
Epoxy coated PC strand offers the best balance for cost-sensitive marine projects.
Advancements like nano-filled epoxies promise even longer lives, but current ASTM A882/A1007-compliant products from suppliers like TJ Wasungen already deliver proven 75–100 year performance. As climate-driven corrosion risks rise, adoption in coastal infrastructure will grow, supported by updated PTI and fib guidelines.
Epoxy coated PC strand transforms prestressed structures from 40–50 year assets into century-long investments. By shielding against corrosion—the leading cause of failure— it ensures safety, minimizes disruptions, and optimizes economics. For marine projects, contact TJ Wasungen for tailored, certified solutions.
