You're spec'ing materials for a prestressed concrete project, and you've got to decide: plain wire or indented? Before you make that call, you need to understand what you're getting into with each option.
Plain PC wire (prestressed concrete wire) has a smooth surface without any grooves or patterns. It's been around for decades and still gets used in plenty of applications. But is it the right choice for your project? Let's dig into the plain pc wire advantages disadvantages so you can make a smart decision.
Plain PC wire is a single, high-strength steel wire with a completely smooth surface. It's cold-drawn to achieve tensile strengths around 1,570-1,750 MPa, then used in prestressed concrete applications.
Think of it as the original version. Before manufacturers started adding indentations and patterns, this is what everyone used. Simple, clean, effective.
The "plain" part means:
No surface indentations
No grooves or patterns
No mechanical interlocking features
Just smooth, round steel wire
It's different from indented PC wire, which has those grooves pressed into the surface for better concrete bond. It's also different from PC strand, which is multiple wires twisted together.

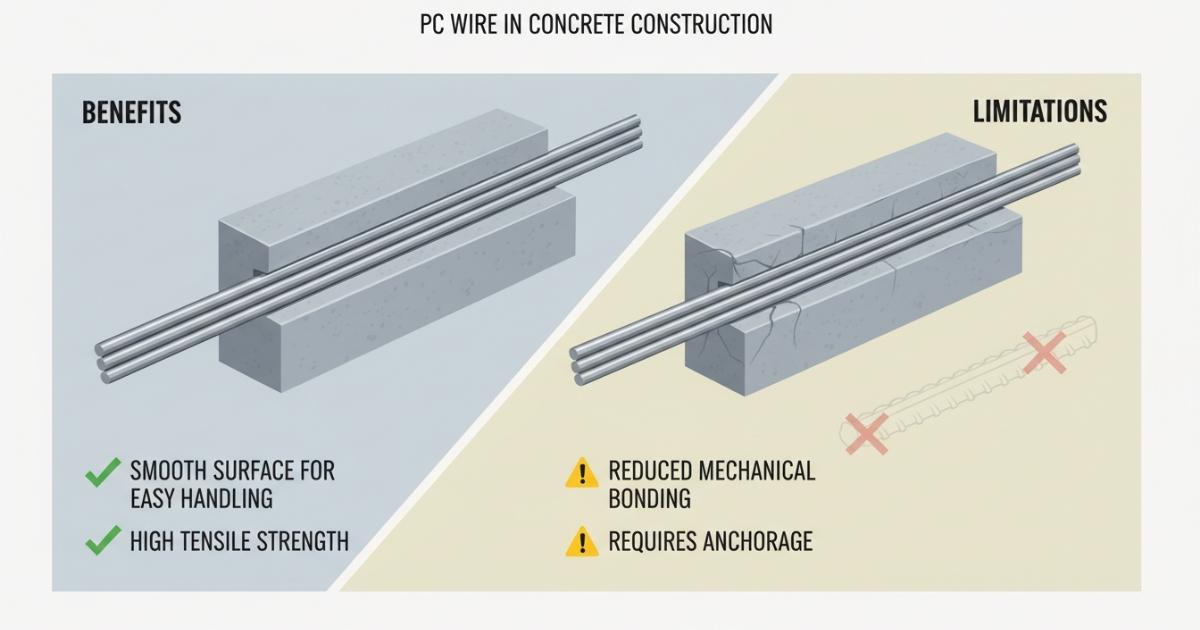

Let's start with the good stuff. What are the benefits of plain PC wire that keep it relevant in today's market?
Here's the biggest advantage: plain PC wire is cheaper to make. The production process is straightforward:
Draw steel rod through progressively smaller dies
Heat treat for strength
Final sizing and quality check
Spool and ship
No extra steps for creating surface patterns. No additional equipment needed. That simplicity translates directly to lower cost.
Typical cost savings: 10-15% less than indented wire
For large projects using dozens of tons of wire, those savings add up fast. If you're building prestressed concrete pipes or standard railway sleepers, that cost difference might be enough to swing your material selection.
Inspecting plain PC wire is easier than checking patterned alternatives. You're looking for:
Surface damage or rust
Dimensional accuracy
Mechanical properties (tensile strength, elongation)
You don't need to verify:
Indentation depth and spacing
Pattern consistency
Bond performance testing
Fewer variables mean faster inspection and lower quality control costs.
That smooth surface makes a difference during handling. Plain wire is:
Less prone to damage during shipping
Easier to straighten if kinked
Simpler to feed through machinery
More forgiving of rough handling
If you've ever tried to un-kink indented wire without damaging the surface pattern, you know what I mean. With plain wire, you've got more flexibility.
Some precast manufacturers prefer plain wire for certain production setups. The smooth surface:
Feeds more consistently through automatic systems
Creates less wear on guides and pulleys
Allows tighter bending radii without surface damage
Works better with older tensioning equipment
If you're running legacy equipment, plain wire might be your only practical option.
Here's the thing: for some applications, the lower bond strength of plain wire doesn't matter. If you've got:
Long embedment lengths available
Low-stress applications
Adequate end anchorage
Non-critical structural members
Then plain wire's smooth surface isn't a problem. It'll perform just fine.
Common applications where plain PC wire works well:
Traditional railway sleeper designs with long wire lengths
Prestressed concrete pipes with continuous embedding
Utility poles with mechanical end anchorage
Some precast lintels and simple beams
Plain PC wire has been used successfully for over 60 years. There's decades of field performance data backing it up. You know exactly how it behaves, how long it lasts, what failure modes to watch for.
That predictability has value. No surprises.
Now let's talk about the drawbacks of plain PC wire. These are the reasons why many modern specs call for indented wire instead.
This is the big one. Plain wire relies only on friction and chemical adhesion to transfer stress to concrete. There's no mechanical interlock.
Bond strength comparison:
Plain wire: 2.5-3.5 MPa bond stress
Indented wire: 4.5-6.0 MPa bond stress
That's nearly half the bond performance. For many applications, that's a deal-breaker.
Because of that weaker bond, you need more embedded length before the wire reaches full effective stress.
Typical development lengths:
Plain wire: 80-100 wire diameters
Indented wire: 50-65 wire diameters
For a 5mm wire, that's an extra 125-175mm of required embedment. In short precast members, you might not have that length available.
Under repeated loading or overload conditions, plain PC wire is more likely to slip within the concrete. That smooth surface just doesn't grip as well.
Bond slip leads to:
Wider crack patterns
Reduced stiffness
Loss of prestress effectiveness
Potential structural issues
In critical applications like bridges or parking structures, that risk isn't acceptable.
Today's prestressed concrete designs push materials harder. Engineers are:
Using thinner sections
Spanning longer distances
Reducing material quantities
Optimizing every element
These optimized designs need reliable, high bond performance. Plain wire's limitations don't support modern efficiency goals.
For hollow-core slabs, double-tees, and other short-span products, plain wire struggles. You simply can't develop the full wire capacity in the available length.
This forces you to either:
Use more wires (increasing cost)
Reduce design loads (limiting applications)
Switch to indented wire or strand
When you're pushing wire close to its capacity limits, you need every bit of bond strength you can get. Plain wire leaves performance on the table.
For structures like:
Long-span bridges
High-capacity parking structures
Heavy-duty railway sleepers
Seismic-resistant construction
Plain wire just doesn't cut it anymore.
Here's a practical disadvantage: fewer manufacturers are focusing on plain wire. The industry's moving toward indented products.
This means:
Less competition (potentially higher prices)
Longer lead times
Fewer options for specialized configurations
Risk of product discontinuation
Let's put the advantages and disadvantages of plain PC wire in context by comparing it to other options.
We've touched on this already, but here's the quick summary:
When Plain Wins:
Lower material cost
Simpler manufacturing and handling
Adequate performance for traditional designs
When Indented Wins:
Better bond strength (60-80% improvement)
Shorter development lengths
Modern design compatibility
Higher reliability
For most new projects, indented wire is worth the extra cost. The plain PC wire vs indented PC wire performance gap is just too significant to ignore.
This comparison gets interesting. PC strand is multiple wires twisted together, creating a much stronger product.
Tensile strength comparison:
5mm plain wire: ~23 kN breaking strength
12.7mm PC strand: ~260 kN breaking strength
That's over 10x the capacity. But strand also costs significantly more per linear foot.
When to use plain wire instead of strand:
Smaller precast elements
Lower load requirements
Cost-sensitive applications
Traditional product lines
When strand makes more sense:
Heavy structural applications
Long spans
High-performance requirements
Modern optimized designs
Helical PC wire has a twisted configuration that provides better bond than plain wire but still uses a single wire element.
Helical advantages over plain:
Better mechanical interlock
Improved bond performance
Still cost-effective
Plain advantages over helical:
Slightly lower cost
Simpler manufacturing
More widely available
Helical wire is kind of a middle ground between plain and indented options.
Given all these plain pc wire advantages disadvantages, when does it actually make sense to specify it?
If budget is tight and you can work around the bond limitations, plain wire delivers acceptable performance at the lowest price.
Examples:
Low-income housing projects
Agricultural structures
Utility construction
Developing market applications
Some manufacturers have been making the same products for decades. If the design uses plain wire and has a proven track record, why change?
This applies to:
Standard railway sleeper patterns
Established pipe designs
Legacy precast shapes
Replacement components matching existing structures
When you've got plenty of room for wire development, plain wire's lower bond strength doesn't matter.
Good candidates:
Long-span beams with full-length embedding
Continuous products like pipes
Members with mechanical end anchorage
Low-stress structural elements
For structures where failure wouldn't be catastrophic and factor of safety is generous:
Agricultural buildings
Temporary structures
Secondary structural members
Utility infrastructure
Equally important: when should you absolutely avoid plain wire?
Anything where lives depend on structural integrity:
Bridges and overpasses
Multi-story parking garages
Commercial and residential buildings
Critical infrastructure
Use indented wire or strand. The performance difference is worth it.
If you can't fit 80-100 wire diameters of embedment:
Hollow-core slabs
Thin architectural panels
Short-span beams
Optimized precast sections
You need indented wire's superior bond.
Earthquake loading creates cyclic stresses and bond slip risks. The lower bond strength of plain PC wire makes it unsuitable for seismic applications.
Stick with indented wire or strand in these areas.
If your engineer has optimized the design to reduce material and weight, they've likely assumed indented wire or strand performance. Don't substitute plain wire without approval.
Both plain and indented wire must meet ASTM A881 standards for prestressed concrete wire.
Minimum requirements for both types:
Tensile strength: 1,570 MPa
Elongation: 3.5% minimum
Dimensional tolerance: ±1%
Surface condition: Free from defects
The standard also covers:
Chemical composition limits
Testing frequency
Manufacturing process controls
Quality documentation
At TJ Wasungen, we manufacture both plain and indented wire to these standards. Every batch gets tested before shipment.
Let's talk real numbers. Is the cost savings of plain PC wire worth the performance trade-offs?
Material cost comparison (approximate):
Plain wire: $800-900/ton
Indented wire: $900-1,050/ton
Difference: $100-150/ton (10-15%)
For a 20-ton project, you're saving $2,000-3,000 with plain wire.
But consider:
Can you achieve the same design with plain wire?
Will you need more wires to compensate for lower bond?
What's the risk cost if performance is marginal?
How much is your professional liability worth?
Often, when you factor in design adjustments needed to use plain wire, the cost advantage disappears.
One question I get a lot: does plain vs indented affect lifespan of plain PC wire?
Short answer: not really. Both types corrode at similar rates if exposed to moisture and chlorides. The smooth surface doesn't provide extra corrosion protection or vulnerability.
Factors that actually affect durability:
Concrete quality and cover depth
Environmental exposure (coastal, industrial, etc.)
Protective coatings if used
Installation quality
For aggressive environments, consider:
Epoxy-coated wire (plain or indented)
Galvanized wire
Increased concrete cover
Better quality concrete
The surface pattern doesn't change the corrosion equation.
Still not sure if plain PC wire is right for your project? Follow this decision tree:
Step 1: Check Design Requirements Does your engineer's design specifically call for indented wire or strand? If yes, use what's specified. Don't substitute without approval.
Step 2: Evaluate Development Length How much embedment do you have available? Less than 80 wire diameters? You need indented wire.
Step 3: Assess Criticality Is this a critical structural application? Lives at risk? Use the better-performing option.
Step 4: Consider Long-Term What's the expected service life? Critical infrastructure lasting 50+ years? Invest in quality.
Step 5: Calculate True Costs Does using plain wire require design changes or additional wires? Factor those costs in.
Step 6: Think About Future Industry's moving toward indented wire. Will plain wire still be readily available in 5-10 years for repairs or expansions?
Here's my honest take after years in this industry: plain PC wire still has legitimate uses in cost-sensitive, traditional applications with adequate embedment length. It's not obsolete.
But the trend is clear. Modern prestressed concrete increasingly demands the performance that indented wire and strand provide. The bond strength gap is just too significant for optimized designs.
Use plain wire when:
Budget is the primary constraint
Traditional, proven designs with long embedment
Non-critical applications
You understand and accept the limitations
Skip plain wire when:
Structural performance is critical
Development length is limited
Design is optimized for material efficiency
Long-term reliability matters most
The plain pc wire advantages disadvantages aren't mysterious. Lower cost, simpler production, adequate traditional performance versus lower bond strength, longer development needs, falling industry preference.
Your job? Match the material to the application. Use the right tool for the job.
Need help deciding which PC wire type fits your project? We've got technical staff who can review your specifications and recommend the best solution. Because the only thing worse than overpaying for unnecessary performance is under-specifying and dealing with field issues later.
Choose wisely. Your structure's counting on it.
