Prestressed concrete (PC) strand is one of the most widely used materials in modern structural engineering, giving concrete elements the tensile capacity they would otherwise lack on their own. Among the various sizes available, 12.7mm PC strand is one of the most commonly specified — a versatile choice for beams, slabs, piles, and a wide range of precast and post-tensioned structures.
Because prestressing strand carries significant structural load, getting the diameter, tensile strength, relaxation class, and applicable standard right is essential before ordering. This guide walks through the specifications, strength characteristics, applications, and buying considerations for 12.7mm PC strand.

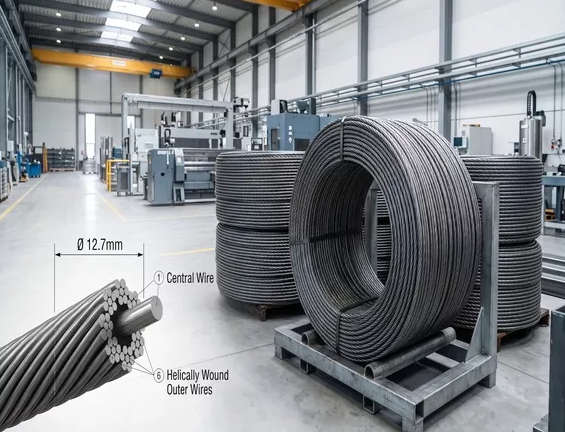

PC strand is a high-strength steel product used to introduce compressive stress into concrete, either before the concrete is poured (pretensioning) or after it has cured (post-tensioning). The "12.7mm" refers to the nominal diameter of the strand itself.

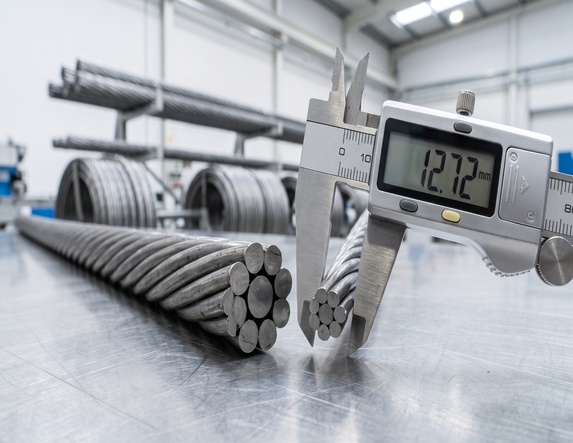

Most 12.7mm PC strand is manufactured as a 7-wire strand, consisting of one straight central wire surrounded by six outer wires helically wound around it. This construction gives the strand its characteristic strength-to-weight efficiency and allows it to elongate slightly under load before reaching its rated capacity — a property that's central to how prestressing works.
In simple terms: the strand is tensioned, anchored, and then released (or grouted, in post-tensioning), transferring a compressive force into the surrounding concrete. This compressive stress counteracts the tensile stresses the concrete will experience in service, allowing for longer spans, thinner sections, and greater load capacity than conventionally reinforced concrete.
Specifications for 12.7mm PC strand can vary depending on the governing standard, but the table below outlines typical values seen across common specifications.
Specification | Typical Value |
Nominal Diameter | 12.7mm |
Structure | 7-Wire |
Tensile Strength | 1860 MPa / Grade 270 |
Surface | Plain / Specialized options (galvanized, epoxy-coated) |
Standard | ASTM A416 / EN 10138 / GB/T 5224 |
Application | Prestressed & Post-Tensioned Concrete |
These figures serve as a general reference. Exact mechanical properties — including breaking load, elongation, and relaxation class — should always be confirmed against the specific standard and mill test certificate for the batch being purchased, since values differ slightly between ASTM, EN, and GB specifications.

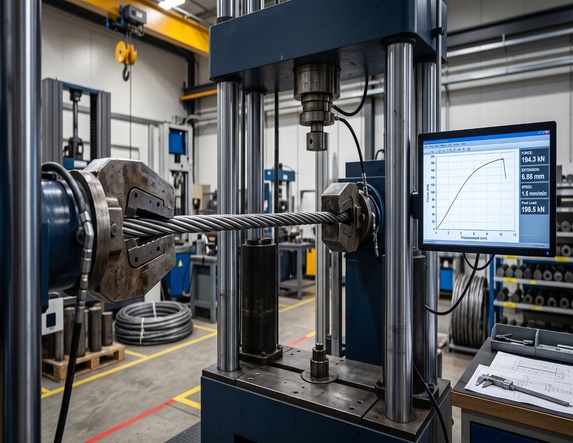

Strength is usually discussed in two related but distinct terms: tensile strength and breaking load.
Tensile strength is expressed as a stress value — essentially, how much force the steel can resist per unit of cross-sectional area.
Breaking load is the actual force at which the strand fails, calculated from the tensile strength and the strand's cross-sectional area.
12.7mm strand is most commonly supplied at Grade 270 (1860 MPa), which has become something of an industry default because it balances strength, ductility, and manufacturability well for most prestressing applications. Because breaking load depends directly on cross-sectional area — which itself can vary slightly between standards and manufacturers — two strands both labeled "12.7mm" are not always identical in rated capacity.
This is why engineers and buyers should always request certified technical data (mill test certificates, or MTCs) rather than estimating breaking load from diameter and grade alone. Relying on a general industry figure instead of a verified batch-specific value can introduce risk into structural calculations, particularly on projects with tight safety margins.
The nominal mass of 12.7mm PC strand is typically expressed in kilograms per meter (kg/m) or kilograms per 1,000 meters, and — like breaking load — the exact figure depends on the applicable standard and the strand's precise construction.
Weight matters for several practical reasons:
Transportation planning — freight costs and container/truck loading are calculated by weight, not length.
Coil planning — manufacturers pack strand into coils of a standard weight or length, which affects how many coils are needed for a given project.
Quantity calculations — buyers often need to convert a required strand length into a total tonnage for procurement and budgeting.
12.7mm and 15.2mm are two of the most frequently specified PC strand diameters, and buyers often want to understand how they compare.
Feature | 12.7mm PC Strand | 15.2mm PC Strand |
Diameter | 12.7mm | 15.2mm |
Typical Use | General prestressing applications | Higher-capacity applications |
Material Quantity | Lower per strand | Higher per strand |
Project Suitability | Depends on design | Depends on design |
A larger diameter isn't automatically the "better" choice. Strand selection should be driven by the structural design, the required prestressing force, anchorage system compatibility, and the governing project standard — not by the assumption that bigger strand is always stronger or more cost-effective. In many projects, 12.7mm strand is specified precisely because it matches the design load without over-engineering the tendon.

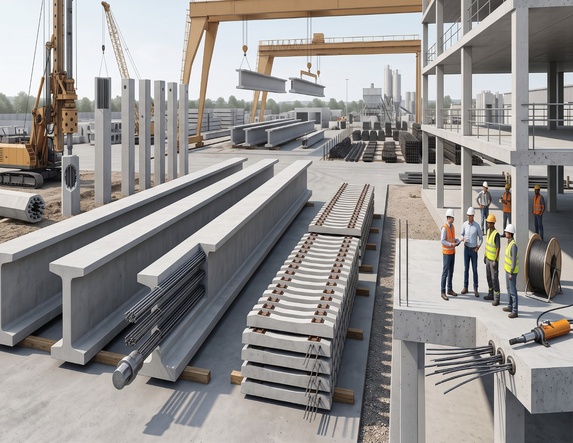

12.7mm PC strand is used across a broad range of structural and infrastructure applications, including:
Prestressed concrete beams
Bridge construction
Precast concrete elements
Concrete slabs
Railway sleepers
Concrete piles
Concrete poles
Post-tensioning systems
Large-scale infrastructure projects
Its combination of strength, flexibility in application (pretensioned or post-tensioned), and availability across multiple standards makes it a practical default for many general prestressing needs, from small precast components to major bridge girders.
Because PC strand is a structural material, it's manufactured and tested against internationally recognized standards. The three most commonly referenced are:
ASTM A416 — the U.S. standard for uncoated seven-wire steel strand for prestressed concrete, commonly used in North America and by projects following American design codes.
EN 10138 — the European standard covering prestressing steels, including strand, used widely across the EU and in projects following Eurocode design.
GB/T 5224 — the Chinese national standard for steel strand for prestressed concrete, widely used in Asia and in projects sourcing from Chinese manufacturers.
Each standard defines its own requirements for dimensions, mechanical properties, relaxation behavior, and testing procedures, and the values are not always directly interchangeable. Buyers should confirm which standard is required by the project's engineering specification before placing an order, since supplying strand to the wrong standard can create compliance issues during inspection or certification.
Before finalizing a purchase, it's worth working through a practical checklist:
Nominal diameter
Tensile strength
Strand construction (7-wire, etc.)
Low-relaxation requirement
Applicable standard (ASTM / EN / GB)
Breaking load
Elongation
Relaxation performance
Surface/coating type
Mill Test Certificate availability
Packaging and coil requirements
Required quantity and delivery destination
Working through this list with your supplier before ordering helps avoid mismatches between what's specified in the design documents and what actually arrives on site — a mismatch that can be costly to correct once material has shipped.
Not all 12.7mm PC strand is the same once you factor in surface treatment and protective coating. The right option depends on the environment and durability requirements of the project.
Plain PC Strand Suited to standard prestressed concrete applications where the strand will be fully embedded in concrete and additional corrosion protection isn't required.
Galvanized PC Strand Used where enhanced corrosion resistance matters — coastal structures, marine environments, or projects with long design-life requirements. TJ Wasungen offers a 12.7mm hot-dipped galvanized PC strand option for these applications.
Epoxy-Coated PC Strand Provides an additional layer of corrosion protection and is often specified for structures requiring long-term durability in aggressive environments.
Unbonded PC Strand Used where the strand needs to remain separated from the surrounding concrete, typically wrapped in a protective sheathing with grease or another corrosion-inhibiting compound — common in post-tensioned slabs and certain post-tensioning tendon systems.
Selecting the right strand is a structured process rather than a single decision:
Identify the structural application — beam, slab, pile, bridge girder, etc.
Confirm required strand diameter — based on the structural design.
Confirm tensile grade — typically Grade 270 (1860 MPa) for 12.7mm strand.
Select the applicable standard — ASTM A416, EN 10138, or GB/T 5224.
Determine corrosion protection requirements — plain, galvanized, or epoxy-coated.
Check anchorage compatibility — the strand must match the anchorage and tensioning system being used.
Request technical certificates and test reports — verify mechanical properties before ordering.
Confirm packaging and delivery requirements — coil size, weight, and export packaging suited to the shipping method.
Ultimately, final strand selection should always follow the structural engineer's design and project specification rather than general guidance alone — this article is intended to help buyers understand the options and ask the right questions, not to replace engineering judgment.
Because PC strand carries structural load, the reliability of the manufacturer matters as much as the specification on paper. Look for suppliers that can demonstrate:
Consistent diameter and dimensional control
Stable mechanical properties across batches
Controlled manufacturing processes
Batch testing and quality control
Compliance with international standards
Availability of Mill Test Certificates
Proper export packaging for long-distance shipping
Responsive technical support
Capacity for bulk orders and reliable lead times
TJ Wasungen manufactures and supplies 12.7mm PC strand across multiple standards and coating options, backed by mill test certification and export-ready packaging for international buyers.
What is 12.7mm PC strand?
It's a 7-wire prestressed concrete strand with a nominal diameter of 12.7mm, used to introduce compressive stress into concrete for pretensioned and post-tensioned structural applications.
What is the strength of 12.7mm PC strand?
It's most commonly supplied at Grade 270 (1860 MPa), though exact breaking load depends on the governing standard and should be confirmed via mill test certificate.
Is 12.7mm PC strand the same as 1/2-inch PC strand?
12.7mm is the metric equivalent of 1/2 inch, and the two terms are often used interchangeably, though buyers should confirm which standard's exact tolerances apply.
How much does 12.7mm PC strand weigh?
Nominal mass is typically around 0.775 kg/m, though this figure varies by standard and should be verified with the supplier's datasheet.
What is 12.7mm PC strand used for?
Common applications include prestressed beams, bridges, precast elements, slabs, railway sleepers, piles, poles, and post-tensioning systems.
What standards apply to 12.7mm PC strand?
The most common are ASTM A416, EN 10138, and GB/T 5224, each with its own requirements for mechanical properties and testing.
What is the difference between 12.7mm and 15.2mm PC strand?
15.2mm strand has a larger diameter and higher material quantity per strand, generally suited to higher-capacity applications, but selection should always be based on structural design rather than diameter alone.
How do I choose the right 12.7mm PC strand?
Confirm the application, required diameter and grade, applicable standard, corrosion protection needs, and anchorage compatibility, then request certified technical data before ordering.
Can 12.7mm PC strand be supplied with corrosion protection?
Yes — options include hot-dip galvanized and epoxy-coated strand for projects requiring enhanced durability in corrosive environments.
