You're planning a bridge or building project, and suddenly you're staring at specs for pc wire diameter options. Here's the thing, picking the wrong size isn't just an engineering hiccup. It's a structural liability that'll haunt you through inspections and stress tests. PC wire diameter directly controls how much tensile load your prestressed concrete can handle, and getting it right from day one saves you from costly rework and safety concerns.

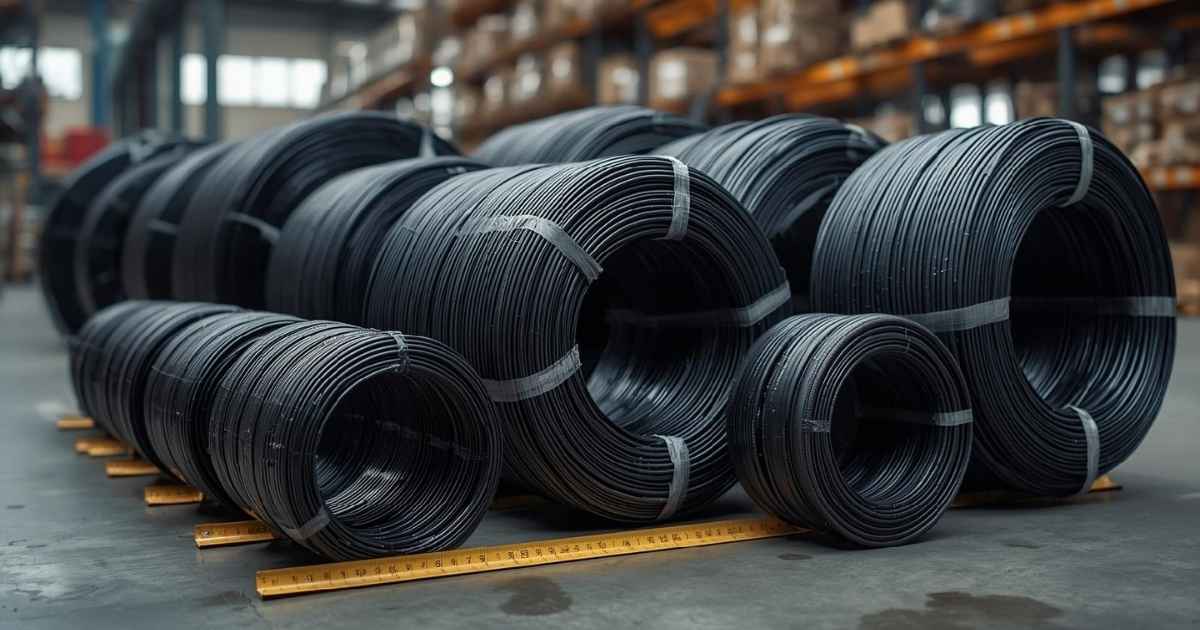

TJ Wasungen manufactures prestressed concrete wire in standardized diameters from 3mm to 9mm, with 5mm, 7mm, and 8mm being the workhorses of most infrastructure projects. Each millimeter of diameter change alters the wire's cross-sectional area, which means it changes everything about load distribution, anchorage requirements, and concrete stress patterns. Let's break down exactly how pc wire diameter influences load capacity so you can spec the right size for your project.
The diameter of your PC wire isn't just a number on a datasheet. It's the primary factor determining tensile strength, elongation behavior, and how well the wire transfers prestressing forces into concrete.
Here's what happens structurally. Larger diameters provide greater cross-sectional area, which translates to higher ultimate tensile strength. A 7mm wire typically handles 35-40 kN of force, while an 8mm wire can manage 50-55 kN. That's a 40% capacity jump from just one millimeter of additional diameter.
But there's a trade-off. Thicker wires are stiffer and less flexible during installation. They require larger anchorage devices and more forceful tensioning equipment. You'll also see reduced duct efficiency because you can't pack as many wires into confined spaces.
Smaller diameters like 3mm and 4mm offer installation flexibility and tighter spacing, but they're limited to lighter structural applications. You'd use these for precast panels, railway sleepers, or architectural elements where load demands are moderate.
TJ Wasungen produces plain PC wire, indented PC wire, and helical PC wire across the full diameter range, each with surface treatments that improve bond strength with concrete. The diameter you choose needs to match both your load requirements and your construction method.
Different projects demand different pc wire diameter options. Here's what's available and where each size fits best.
3mm to 4mm Diameters: These are your light-duty wires. They're used in precast concrete products like wall panels, hollow-core slabs, and architectural facades. Tensile strength ranges from 15-25 kN per wire. You'll see these in residential construction and non-critical structural elements.
5mm Diameter: This is the most common size for general prestressed concrete work. Plain PC wire 5mm handles around 30-35 kN and fits standard anchorage systems without special equipment. It's the go-to for railway sleepers, bridge girders under 30 meters, and medium-span building beams.
7mm Diameter: When you need serious load capacity without jumping to strand systems, 7mm wire delivers. It handles 35-40 kN and works well for longer bridge spans, parking structures, and industrial floors with heavy machinery loads. The larger diameter also improves fatigue resistance under cyclic loading.
8mm to 9mm Diameters: These are for heavy infrastructure. An 8mm wire can handle 50-55 kN, while 9mm pushes toward 65 kN. You'll use these for major bridge projects, long-span prestressed beams, and structures where high tensile forces are non-negotiable. They require hydraulic tensioning equipment and specialized anchorages.
Each diameter increase means you need fewer wires to achieve the same total prestressing force, but it also means larger anchorage zones and more complex installation procedures. The trick is finding the balance between material efficiency and construction practicality.
The relationship between pc wire diameter and tensile strength isn't linear, it's exponential. That's because strength depends on cross-sectional area, which increases with the square of the diameter.
Let's get specific. A 5mm wire has a cross-sectional area of about 19.6 mm². An 8mm wire has 50.3 mm². That's a 2.5x area increase, which translates directly to 2.5x the load capacity if the steel grade stays constant.
But here's where it gets interesting. Manufacturing processes affect how much tensile strength you actually get from each millimeter of diameter. Wire drawing creates work hardening in the steel, and smaller diameters undergo more severe deformation during production. This creates higher tensile strength per unit area in smaller wires.
A 5mm wire might have 1,770 MPa tensile strength, while an 8mm wire of the same steel grade could be 1,620 MPa. The larger wire still handles more total force because of its greater cross-section, but the strength-per-area drops slightly.
This is why you can't just scale calculations linearly. You need to reference actual test data for each diameter. TJ Wasungen provides certified tensile test results with every shipment, showing the actual breaking load for the specific diameter you're using.
Temperature also plays a role. Larger diameters dissipate heat more slowly during prestressing, which can cause thermal expansion issues if you're not careful. Smaller wires cool faster and stabilize quicker, which matters for construction schedules.
You need actual numbers, not just theory. Here's how to calculate load capacity from pc wire diameter specs.
Step 1: Find the cross-sectional area. Use the formula A = π × (d/2)², where d is diameter in millimeters. For a 7mm wire, that's 3.14 × (3.5)² = 38.5 mm².
Step 2: Get the tensile strength rating. This comes from material certificates, usually expressed in MPa. Standard PC wire grades range from 1,570 MPa to 1,860 MPa depending on steel quality.
Step 3: Calculate ultimate tensile load. Multiply area by strength: 38.5 mm² × 1,770 MPa = 68,145 N, or roughly 68 kN. That's the theoretical breaking point.
Step 4: Apply safety factors. Working load is typically 70-80% of ultimate strength. So your safe working load for that 7mm wire is around 48-54 kN.
But here's the catch, you're never using just one wire. You're bundling multiple wires through ducts, and the total prestressing force is the sum of all individual wires. If your beam design calls for 500 kN of prestress, you'd need about 10 wires of 7mm diameter at safe working loads.
You also need to account for losses. Friction losses along duct paths, anchorage slip, elastic shortening, creep, and shrinkage all reduce the effective prestressing force over time. Design codes typically assume 15-25% total losses.
This is why precise pc wire diameter selection matters. One size too small means you need more wires, bigger ducts, and more congested reinforcement zones. One size too large means you're over-engineering and wasting material costs.
Getting the prestressing force from the wire into the concrete isn't automatic. It depends heavily on pc wire diameter and surface characteristics.
Larger diameters have more surface area per wire, which theoretically improves bond. But they also concentrate forces over smaller contact zones at anchorage points, creating higher local stresses.
Here's what actually happens during force transfer. When you release prestress, the wire tries to shorten as tension releases. But it's bonded to the concrete, so the shortening force compresses the concrete instead. This creates the prestressing effect.
The bond length, the distance over which this force transfers, depends on wire diameter. Larger wires need longer development lengths. You typically need 50-100 times the diameter to achieve full bond. So a 7mm wire needs 350-700mm of bonded length, while a 5mm wire only needs 250-500mm.
This affects your anchorage design. If you're using dead-end anchorages, the larger diameter requires more concrete cover and heavier bearing plates. If you're using grouted systems, the larger diameter needs more grout volume and longer curing time before load transfer.
Surface treatment changes everything. Indented PC wire has mechanical deformations that improve grip, reducing required bond length by 20-30%. Helical PC wire uses spiral ribs for even better bond performance, especially in unbonded applications.
But there's a practical limit. Wires larger than 9mm start to see diminishing returns on bond efficiency because the surface-area-to-volume ratio decreases. That's when engineers switch to PC strand systems instead, which provide better force distribution through multiple smaller wires twisted together.
You've got your load calculations sorted, but can you actually install the wire on site? PC wire diameter directly affects construction feasibility.
Bending and Threading: Smaller diameters bend more easily through curved ducts. A 5mm wire can navigate 3-meter radius curves without kinking. An 8mm wire needs at least 6-meter radius curves or you'll create stress concentrations that reduce capacity.
Tensioning Equipment: Hydraulic jacks are rated for specific wire sizes. Light-duty jacks handle up to 6mm. Heavy-duty equipment is needed for 8mm and 9mm wires. If your site only has standard tensioning gear, you're locked into smaller diameters unless you rent specialized equipment.
Anchorage Compatibility: Each pc wire diameter requires matching anchor heads, wedges, and bearing plates. You can't just swap a 7mm wire into an anchorage designed for 5mm. The wedge grip won't engage properly, and you'll get slippage or premature failure.
Duct Sizing: Ducts need to accommodate bundled wires with enough clearance for grout flow. As a rule, duct diameter should be 2-2.5 times the bundled wire diameter. If you're running six 7mm wires, you need at least 85mm duct. Switch to 8mm wires, and you need 95mm duct, which might not fit within your concrete section dimensions.
Threading Through Congested Areas: Construction sites aren't perfect. You've got rebar congestion, formwork obstacles, and existing structure interference. Thinner wires thread through tight spots more easily. Thicker wires get hung up and require more labor hours to position correctly.
TJ Wasungen provides installation guides specific to each diameter, covering minimum bend radii, recommended duct sizes, and compatible anchorage systems. Following these specs prevents field problems that delay your schedule.
Bigger wire costs more per meter, but you need fewer meters to achieve the same total force. So which pc wire diameter is actually more economical?
Let's run the numbers. Say you need 500 kN of prestressing force in a beam. Using 5mm wire at 30 kN safe working load, you need 17 wires. Using 7mm wire at 40 kN, you need 13 wires.
The 5mm wire costs less per meter, maybe $1.50 versus $2.20 for 7mm. But you're buying more meters and more anchorages. Total material cost for 5mm: $1,785. Total for 7mm: $2,002. The difference is only $217, but you save labor time with fewer wires to thread and tension.
Now factor in duct costs. Seventeen 5mm wires need a larger duct than thirteen 7mm wires because you need grout clearance. Duct costs can add $5-8 per meter, and on a 40-meter beam, that's $200-320 additional expense.
There's also the equipment rental angle. If you already have tensioning jacks for 7mm wire, using that diameter costs nothing extra. If you need to rent different equipment for 5mm or 8mm, you're adding $500-1,000 to the project.
PC wire price fluctuates with steel markets, but diameter premium stays relatively stable. You typically pay 15-20% more for each millimeter increase in diameter. The cost-effectiveness sweet spot is usually the smallest diameter that meets your structural requirements without requiring excessive quantity.
Don't forget long-term considerations. Larger diameters have better fatigue performance, which matters for bridges with traffic loads. The upfront cost difference gets offset by longer service life and reduced maintenance.
Sometimes wire isn't the answer, you should be looking at PC strand instead. Here's how to know when pc wire diameter limits push you toward strand systems.
PC wire is a single solid wire. PC strand is seven wires twisted together, six outer wires around one center wire. This gives strand better flexibility, higher capacity, and improved bond characteristics.
When you need more than 60-70 kN per tendon, strand becomes more efficient than wire. A standard 12.7mm strand handles 186 kN, which would require three 8mm wires to match. But those three wires take up more space and need three separate anchorage points.
Strand also handles misalignment better. The twisted configuration tolerates bending without creating the stress concentrations that plague large-diameter solid wire. If you've got complex geometry or curved post-tensioning paths, strand is usually the better choice.
But wire has advantages strand can't match. For pretensioned applications where you need tight spacing and precise force control, individual wires give you more flexibility. You can also mix diameters within the same beam to fine-tune prestress distribution.
PC wire vs PC strand isn't about one being better, it's about matching the system to your application. Short-span pretensioned work typically uses wire. Long-span post-tensioned structures lean toward strand. Mid-range projects could go either way depending on equipment availability and contractor preference.
TJ Wasungen manufactures both wire and strand products, so you're not locked into one system. The engineering team can help you evaluate which approach optimizes your specific project requirements.
Not all pc wire diameter products perform identically, even if they measure the same. Manufacturing quality directly impacts load capacity and reliability.
Tensile strength variation: Quality wire maintains strength within ±3% of the nominal rating. Low-quality wire might vary by ±8% or more, which means your design calculations become unreliable.
Diameter tolerance: Standard tolerance is ±0.1mm. If you spec 7mm wire and receive 6.9mm, you've lost 3% of your cross-sectional area and load capacity. TJ Wasungen maintains ±0.05mm tolerance to minimize this issue.
Surface defects: Nicks, scratches, or corrosion spots create stress concentration points where failure initiates. Quality control processes catch these before shipping, but field handling can still cause damage.
Steel composition: Wire is typically made from high-carbon steel with 0.70-0.85% carbon content. Variations in carbon, manganese, and silicon content affect hardness and ductility. You need consistent metallurgy for predictable performance.
Heat treatment: Wire undergoes patenting and drawing processes that create the desired strength properties. Improper heat treatment leaves residual stresses that reduce fatigue life and increase creep losses.
International standards like ASTM A421, BS 5896, and ISO 6934 specify testing protocols for tensile strength, elongation, relaxation, and fatigue. Certified wire includes test reports showing actual performance data for each production lot.
PC wire manufacturing process details matter because shortcuts in production create long-term structural problems. You're not just buying steel, you're buying verified performance that engineers can rely on for design calculations.
Let's look at where different pc wire diameter sizes actually get used in construction projects.
3mm to 4mm: Railway sleepers (concrete ties), precast wall panels for residential buildings, hollow-core floor slabs in commercial structures, architectural precast elements, lightweight bridge deck panels.
5mm: Standard prestressed concrete beams for building construction, bridge girders up to 30-meter spans, parking structure beams, stadium seating risers, industrial mezzanine floors, precast double-tee sections.
7mm: Medium-span bridge girders (30-50 meters), post-tensioned building slabs with heavy live loads, crane runway beams, prestressed concrete tanks and containment structures, marine pier beams.
8mm to 9mm: Long-span bridge girders, major highway overpasses, industrial buildings with extreme loading, nuclear containment structures, offshore platform components, large-diameter prestressed concrete pipe.
TJ Wasungen ships pc wire diameter products to infrastructure projects across Africa, South America, and Central Asia. The 5mm and 7mm sizes dominate general construction, while 8mm+ is reserved for specialized heavy infrastructure.
Geographic factors influence diameter selection too. Regions with seismic requirements often favor multiple smaller-diameter wires over fewer large-diameter wires because the distributed reinforcement provides better ductility. Hot climates might prefer larger diameters to reduce thermal expansion issues during tensioning.
You've got the technical background, now here's the practical selection process for pc wire diameter.
Step 1: Calculate required prestressing force from your structural design. This comes from your engineer's calculations based on loads, span length, and concrete properties.
Step 2: Check available anchorage systems on your project site or from your supplier. If you're limited to certain anchorage types, that constrains your diameter options.
Step 3: Evaluate duct and formwork dimensions. Larger diameters need bigger ducts, which must fit within your concrete section without interfering with rebar or compromising cover requirements.
Step 4: Consider installation equipment availability. If you're working with local contractors who have standard tensioning gear, stick with common diameters like 5mm or 7mm.
Step 5: Review project specifications and approval requirements. Some projects mandate specific PC wire grades and standards that limit your diameter choices.
Step 6: Run cost comparisons between diameter options. Include material, anchorages, ducts, labor, and equipment rental. The lowest material cost isn't always the most economical overall.
Step 7: Verify that your chosen diameter meets fatigue and durability requirements for the structure's expected service life. Heavy-use structures need larger diameters for better long-term performance.
Still not sure which pc wire diameter fits your project? TJ Wasungen's engineering team reviews project specs and provides diameter recommendations based on 30+ years of prestressed concrete experience. You'll get specific product suggestions matched to your structural requirements, installation conditions, and budget constraints.
TJ Wasungen manufactures PC wire in standard diameters from 3mm to 9mm, with surface options including plain, indented, and helical configurations. Every wire shipment includes certified tensile test reports showing actual breaking loads and elongation properties for the specific diameter and production lot you receive. Whether you're building bridges across African rivers, constructing commercial buildings in South America, or developing infrastructure in Central Asia, the right pc wire diameter ensures your prestressed concrete performs exactly as designed. Contact the technical team at TJ Wasungen for diameter recommendations, load capacity calculations, and project-specific engineering support.
