How PC Strand Improves Structural Load Capacity

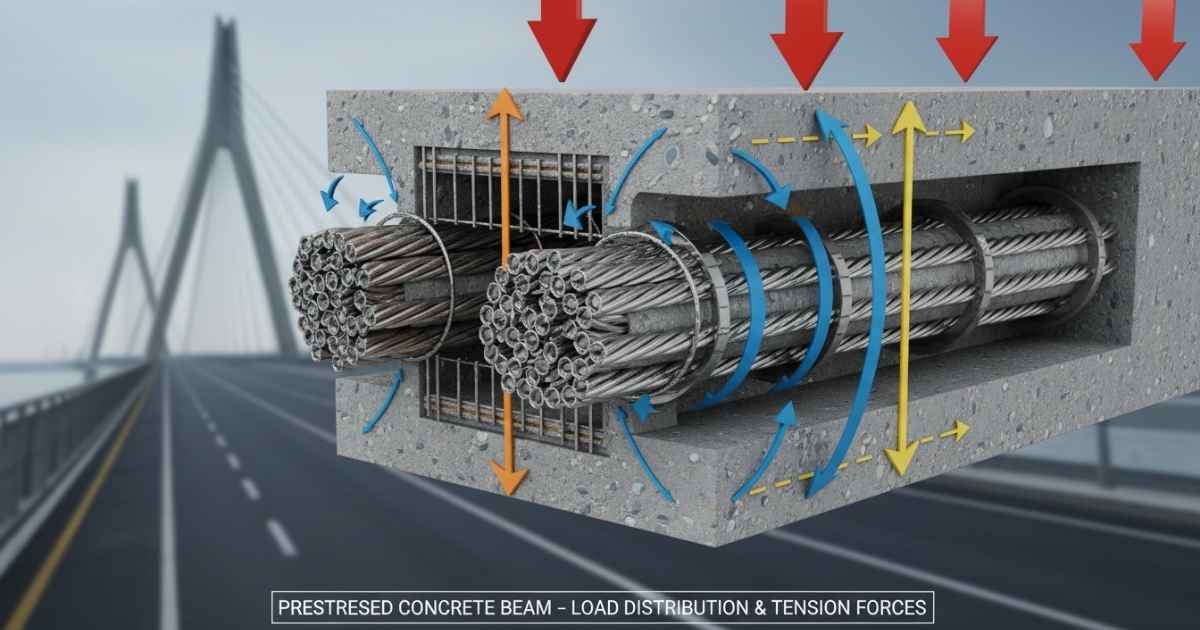

Ever wonder how bridges hold up thousands of cars at once? Or how those massive parking garages don't collapse under the weight of hundreds of vehicles? The secret's in the steel – specifically, prestressed concrete (PC) strand.

Here's the deal: concrete's great under compression (squeezing), but it cracks easily under tension (pulling). That's where PC strand steps in. It's like giving your concrete structure superpowers to handle way more weight than it could on its own.

Let's get into exactly how this works and what you need to know about structural load capacity pc strand.

What Does Load Capacity Actually Mean?

Before we go deeper, let's clear something up. Load capacity is just a fancy way of saying "how much weight something can hold before it breaks."

For PC strand, we're talking about:

• Breaking strength (when the strand actually snaps)

• Design load (the safe working limit engineers use)

• Prestressing force (how much tension you apply during installation)



Think of it like this: your car might have a speedometer that goes to 140 mph, but you're not driving that fast every day. Same concept here. The strand can handle more than what we actually use it for. That's your safety buffer.

The Numbers That Matter: PC Strand Strength Capacity

Let's talk hard numbers. A standard 7-wire PC strand with a 12.7mm (0.5 inch) diameter has a breaking strength of around 260 kN (58,500 pounds). That's roughly the weight of 8 adult elephants hanging from a single strand.

Here's a quick breakdown:

Grade 250 Strand

• Minimum tensile strength: 1,725 MPa (250,000 psi)

• Typical breaking load: 235 kN for 12.7mm diameter

• Common in residential construction



Grade 270 Strand

• Minimum tensile strength: 1,860 MPa (270,000 psi)

• Typical breaking load: 260 kN for 12.7mm diameter

• Used for bridges, commercial buildings, heavy infrastructure



You'll notice PC strand comes in different grades. The number (250, 270) tells you the minimum tensile strength in thousands of psi. Higher number? Stronger strand.

How Diameter Changes Everything

Size matters. A lot. The load capacity of prestressed concrete strand increases dramatically with diameter.

Standard Diameter Sizes and Capacity

Notice the pattern? Double the diameter, and you're looking at way more than double the capacity. This isn't linear math – it's exponential.

For big projects like bridges, engineers often spec the 15.2mm diameter. You get massive structural load strength of pc strand without needing as many individual strands.

What Affects Your Strand's Load Capacity?

Several things can mess with your pc strand structural capacity. Let's break them down:

1. Material Quality

Not all steel is created equal. The carbon content, heat treatment process, and manufacturing quality directly impact strength. That's why ASTM A416 standards exist – to make sure you're getting what you paid for.

At TJ Wasungen, every batch goes through rigorous testing. We're talking tensile tests, relaxation tests, chemical composition analysis. Because when you're building something that needs to last 50+ years, you can't cut corners.

2. Wire Configuration

Most PC strand uses seven wires twisted together – one center wire with six wound around it. But there's also 19-wire strand for specialized applications.

7-Wire vs 19-Wire Load Performance

7-Wire Strand

• Standard configuration

• Better bond with concrete

• Easier to handle and install

• Most common for building and bridge work



19-Wire Strand

• Higher compaction ratio

• Slightly higher strength per cross-section

• More flexible

• Used in nuclear containment, special structures



For 99% of projects, you're using 7-wire. It's the industry standard for good reason.

3. Environmental Exposure

Here's something that keeps engineers up at night: corrosion. Even tiny amounts of rust can reduce load capacity significantly.

A strand in a dry, protected environment? It'll maintain its strength for decades. Same strand in a coastal area with salt spray? That's a different story.

This is why epoxy-coated PC strand exists. The coating adds a protective barrier against moisture and chemicals. For aggressive environments, you might also use hot-dipped galvanized PC strand.

4. Installation Quality

You can have the strongest strand in the world, but if it's installed wrong, you're wasting money. Common issues that reduce structural load capacity pc strand performance:

• Kinks or sharp bends during handling

• Over-tensioning (yes, that's a thing)

• Improper anchoring

• Concrete voids around the strand



This is why you need trained crews who know what they're doing.

Understanding the Safety Factor

Here's an important concept: the design load is always way less than the breaking strength. Why? Safety.

Engineers typically use these allowable stress levels:

• 70-80% of breaking strength during tensioning

• 60-70% for permanent service loads



So if your strand can handle 260 kN, you're probably designing for around 182 kN max. That 30% buffer accounts for unexpected loads, material variations, and long-term effects.

It's like having insurance. You hope you never need it, but you're glad it's there.

How to Calculate Structural Load Capacity for PC Strand

Okay, time for some actual engineering. Don't worry – I'll keep it simple.

Basic Formula

Load Capacity = Number of Strands × Breaking Strength per Strand × Safety Factor

Let's say you're designing a precast concrete beam:

• You need to carry 500 kN of load

• Using 12.7mm plain PC strand (260 kN breaking strength)

• Safety factor of 0.6 (60% allowable stress)



Effective capacity per strand = 260 kN × 0.6 = 156 kN Strands needed = 500 kN ÷ 156 kN = 3.2

Round up to 4 strands for safety.

Real-World Complications

Of course, actual structural design is more complex. You've got to account for:

• Losses from relaxation (strand loses stress over time)

• Friction losses (in post-tensioned systems)

• Anchorage slip

• Concrete creep and shrinkage



Total losses can be 15-25% of your initial prestressing force. This is where a structural engineer earns their fee.

PC Strand vs Other Load-Bearing Materials

How does PC strand stack up against alternatives? Let's compare.

PC Strand vs Rebar

• Strength: PC strand is 4-5x stronger than regular rebar

• Efficiency: You need way less steel by weight

• Cost: Higher material cost, but lower overall project cost

• Application: PC strand for long spans, rebar for conventional reinforcement



PC Strand vs PC Wire People often ask:what's the difference between PC strand and PC wire? Simple answer: strand is multiple wires twisted together, wire is a single element.

• PC Wire: Lower capacity per unit, used for smaller precast elements

• PC Strand: Higher capacity, better for larger structural members



For serious structural load capacity needs, strand wins every time.

Standards That Keep Everyone Safe

ASTM A416 is the bible for PC strand standards in North America. It covers:

Mechanical Requirements

• Minimum breaking strength

• Elongation at failure (min 3.5%)

• Relaxation properties

• Modulus of elasticity (195 GPa typical)



Testing Requirements

• Tensile test every 30 tons

• Relaxation test for low-relaxation claims

• Dimensional checks

• Surface condition inspection



International projects? You'll reference ISO 6934 instead. The requirements are similar but not identical.

Maximum Load Capacity: The Real Limits

What's the absolute max a PC strand can handle? Let's be specific.

For a 12.7mm Grade 270 strand:

• Breaking load: 260 kN (58,500 lbs)

• Initial prestress: ~182 kN (70% of breaking)

• Long-term design load: ~156 kN (60% of breaking)



The maximum load capacity for 7-wire pc strand varies by grade and diameter, but you're generally looking at this range:

Small diameter (9.5mm): 147 kN max Medium diameter (12.7mm): 260 kN max Large diameter (15.2mm): 327 kN max

Want more capacity? Add more strands or go up in diameter.

Load Testing: How We Verify Capacity

You can't just trust the numbers on paper. Load capacity testing for pc strand confirms everything.

Laboratory Testing

Tensile Test

1. Clamp strand sample in testing machine

2. Pull at constant rate until failure

3. Record breaking load and elongation

4. Calculate actual tensile strength



Relaxation Test

1. Stress strand to 70% of breaking strength

2. Hold for 1,000 hours at constant length

3. Measure stress loss

4. Compare to specification limits



Field Testing

Sometimes you'll do load tests on actual structures:

• Apply calculated design loads plus safety margin

• Monitor deflections and crack patterns

• Hold load for specified duration

• Check for permanent deformation



Pass these tests? Your structure's good to go.

Application-Specific Considerations

Different projects need different approaches to structural load capacity pc strand design.

Bridge Construction

PC strand load capacity for bridges is serious business. You're looking at:

• Higher safety factors (often 2.0 or more)

• Fatigue considerations from traffic loads

• Corrosion protection requirements

• Redundancy in load paths

Bridge specs often call for Grade 270 with protective coatings. No shortcuts allowed.

Parking Structures

Medium-duty application. Typical setup:

• Grade 270 strand

• 12.7mm or 15.2mm diameter

• Moderate cover for corrosion protection

• Standard safety factors



Precast Elements

For precast manufacturers, you're working with standard load tables. The pc strand load capacity per foot depends on:

• Strand pattern (number and location)

• Concrete strength

• Member geometry

• Support conditions

Most plants have in-house design software that handles these calculations automatically.

Climate Considerations

Temperature and moisture affect pc strand load capacity in different climates more than you'd think.

Hot, Humid Climates

• Accelerated corrosion risk

• Higher creep and shrinkage losses

• Recommend protective coatings

• More frequent inspections




Cold Climates

• Freeze-thaw cycles stress concrete

• De-icing salts increase corrosion

• Thermal expansion/contraction effects

• May need higher prestress levels



Dry Climates

• Lower corrosion risk

• Higher concrete shrinkage

• Temperature extremes require consideration

• Generally favorable conditions



Your local climate should influence material selection and protection strategies.

Improving Load Capacity: Your Options

Need more structural load capacity? You've got several paths:

1. Increase strand diameter (most common)

2. Add more strands (cost-effective)

3. Use higher grade strand (Grade 270 vs 250)

4. Improve concrete quality (better bond strength)

5. Optimize strand pattern (better moment resistance)



For existing structures, you're limited to external prestressing or adding new structural elements. Prevention beats retrofit every time.

Common Mistakes That Kill Capacity

I've seen these errors way too many times:

Design Errors

• Underestimating long-term losses

• Ignoring environmental factors

• Wrong safety factors

• Poor anchorage design



Construction Errors

• Damaging strand during handling

• Over-stressing during tensioning

• Inadequate concrete cover

• Poor quality control



Each of these can reduce your effective load capacity by 10-30%. Stack a few together? You're asking for trouble.

The Bottom Line on Load Capacity

Structural load capacity pc strand isn't rocket science, but it does require attention to detail. You're balancing material properties, design requirements, installation quality, and environmental factors.

Use the right grade and diameter for your application. Follow pc strand load capacity standards. Work with qualified engineers and contractors. Test your materials. Protect against corrosion.

Do all that, and your PC strand will deliver reliable performance for decades.

Whether you're specifying indented PC strand for better bond or standard plain strand, understanding load capacity fundamentals helps you make smarter decisions.
