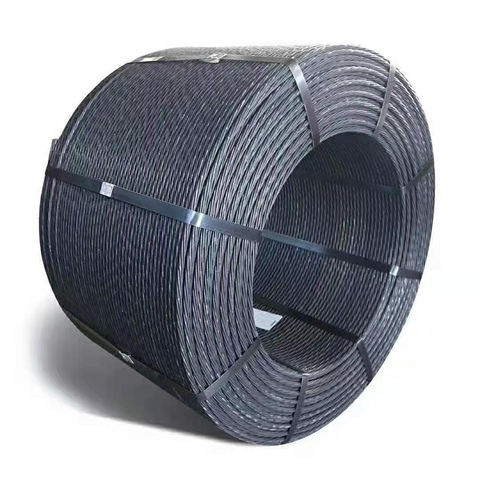

PC Strand, short for Prestressed Concrete Strand, is a high-strength steel reinforcement used to prestress concrete structures. It consists of multiple high-tensile steel wires helically twisted to form a strand designed to withstand high tensile forces. PC Strand is essential in civil engineering, enabling concrete—naturally strong in compression but weak in tension—to perform effectively under tensile stresses through prestressing.
By applying tension to PC Strand before or after concrete curing, a pre-compressive force is induced in the concrete. This reduces tensile stresses during service, minimizing cracks, increasing load capacity, and allowing longer spans and more efficient structural designs like thinner slabs and fewer supports.
High-carbon steel wire rods are selected for their tensile strength and elasticity. These rods undergo cleaning, heat treatment, and drawing to refine mechanical properties.
Raw steel rods are cold drawn through dies to reduce diameter (commonly 5–15 mm) and increase tensile strength up to 1860 MPa or more. After drawing, wires are stress-relieved via heat treatment to reduce relaxation losses.
Seven wires are typically twisted helically around a central wire in a uniform pitch to create the common 7-wire PC Strand. The twisting is controlled for consistent mechanical properties.
Pre-Tensioning: Strand is tensioned on a bed, concrete cast and cured around it, then tension is released transferring compression to the concrete.
Post-Tensioning: Strand is placed in ducts, concrete cast, then strand tensioned and anchored afterward.
Bare (Uncoated): Used indoors or non-corrosive environments.
Galvanized: Zinc coating for corrosion resistance in outdoor/aggressive environments.
Epoxy-Coated: Polymer coating for marine/industrial chemical resistance.
7-Wire Strand: One core wire, six helically wrapped wires (most common).
Multi-Strand: Larger cables with more wires for very high strength.
Bonded Strand: Strand directly bonded to concrete for load transfer.
Unbonded Strand: Grease-coated and plastic-sheathed inside ducts to allow movement, typical of post-tensioned structures.
Parameter | Typical Values |
Diameter | 5 mm to 15.7 mm (commonly 15.24 mm) |
Tensile Strength | 1570 – 1860 MPa |
Yield Strength | Approx. 1380 – 1420 MPa |
Cross-Sectional Area | Approx. 140 mm² for 15.24 mm 7-wire strand |
Relaxation Loss | <2% over 1000 hours (low relaxation) |
Elongation at Break | Minimum 3.5% |
Surface Condition | Bare, Galvanized, Epoxy-Coated |
Diameter Tolerance | ±0.05 mm |
Max Deviation Length | 12 mm per meter of strand |
ASTM A416 (United States)
BS 5896 (United Kingdom)
EN 10138 (Europe)
ISO equivalents
National standards such as GOST, SFS, JIS, and others depending on region
Low relaxation strands are specially heat treated to limit loss of initial prestressing force over time, essential for ensuring long-term structural integrity.
Used extensively in prestressed concrete bridges, flyovers, highways, railway sleepers, tunnels, and wharfs. PC Strand provides the strength needed for long spans and heavy traffic loads.
In commercial and residential construction, PC strand is found in post-tensioned slabs, beams, and columns, allowing thinner floor structures and column-free spaces.
Used in transmission poles, dams, reservoirs, water tanks, and critical nuclear containment structures demanding high strength and durability.
Employs galvanised and epoxy-coated strands for corrosion resistance in rock anchoring, soil stabilization, underwater, and offshore applications.
To strengthen and extend the life of existing concrete structures, PC strands are installed to add prestress and control further cracking.
Provides superior tensile strength and flexibility.
Improves crack resistance resulting in longer service life.
Enables slender and longer spanning structural elements.
Cost-effective due to material optimization and long-term durability.
Variety of coatings for diverse environmental conditions.
Complies with international standards for safety and quality assurance.
Store PC strands off the ground in vertical positions covered from weather elements. Handle carefully to avoid damage to protective coatings.
Use hydraulic jacks and calibrated tensioning equipment to maintain specified prestress. Monitor elongation and tension to ensure design parameters.
Secure anchorage is critical to maintain prestress. Ducts housing unbonded strands should be properly grouted for corrosion protection and bond transfer.
Periodic inspection for corrosion, strand elongation, and anchorage integrity is vital, especially in harsh environments. Protective coatings help reduce maintenance needs.
PC Strand is indispensable in modern engineering, providing the high tensile strength and durability needed for prestressed concreteconstruction. Its correct specification, manufacturing, and installation contribute directly to the safety, efficiency, and longevity of diverse infrastructure and buildings worldwide. Mastery of PC strand technology empowers engineers to innovate with confidence in prestressed concrete design.
