The Power of Prestressing Wire
Prestressing wire is a high-strength steel product engineered to revolutionize the performance and longevity of concrete structures. By integrating compressive forces into concrete components—before any external loading is applied—the use of prestressing wire drastically elevates concrete’s ability to resist tensile stresses, providing remarkable advantages in a range of construction applications.
Core Functions and Benefits
Prestressing wire refers to high-tensile steel wire or strand specifically designed for use in prestressed concrete—concrete in which internal compressive stresses are introduced to counteract anticipated tensile stresses during service. These wires are strong, durable, and optimized for critical engineering properties like bond performance, relaxation, and long-term durability.
Traditional reinforced concrete is limited by its relatively low tensile strength; steel reinforcement helps, but shrinkage, cracking, and deflection remain challenges. Prestressing wires actively pre-compress concrete, greatly increasing its mechanical performance and reducing these common issues.
Prestressed Concrete: The Big Picture
Prestressed concrete is a composite material where internal stresses are deliberately induced via steel wire or strand. This is achieved in two key ways:
Pre-tensioning: Wires are tensioned before concrete is poured. Once the concrete hardens, tension in the wires is released, transferring compressive force to the concrete.
Post-tensioning: Tendons (bundles of wires or strands) are tensioned after the concrete has set and then anchored externally at the ends, forcing compression through the structural member.
These processes produce slender, lightweight, crack-resistant elements that enable efficient use of materials and bold architectural designs.

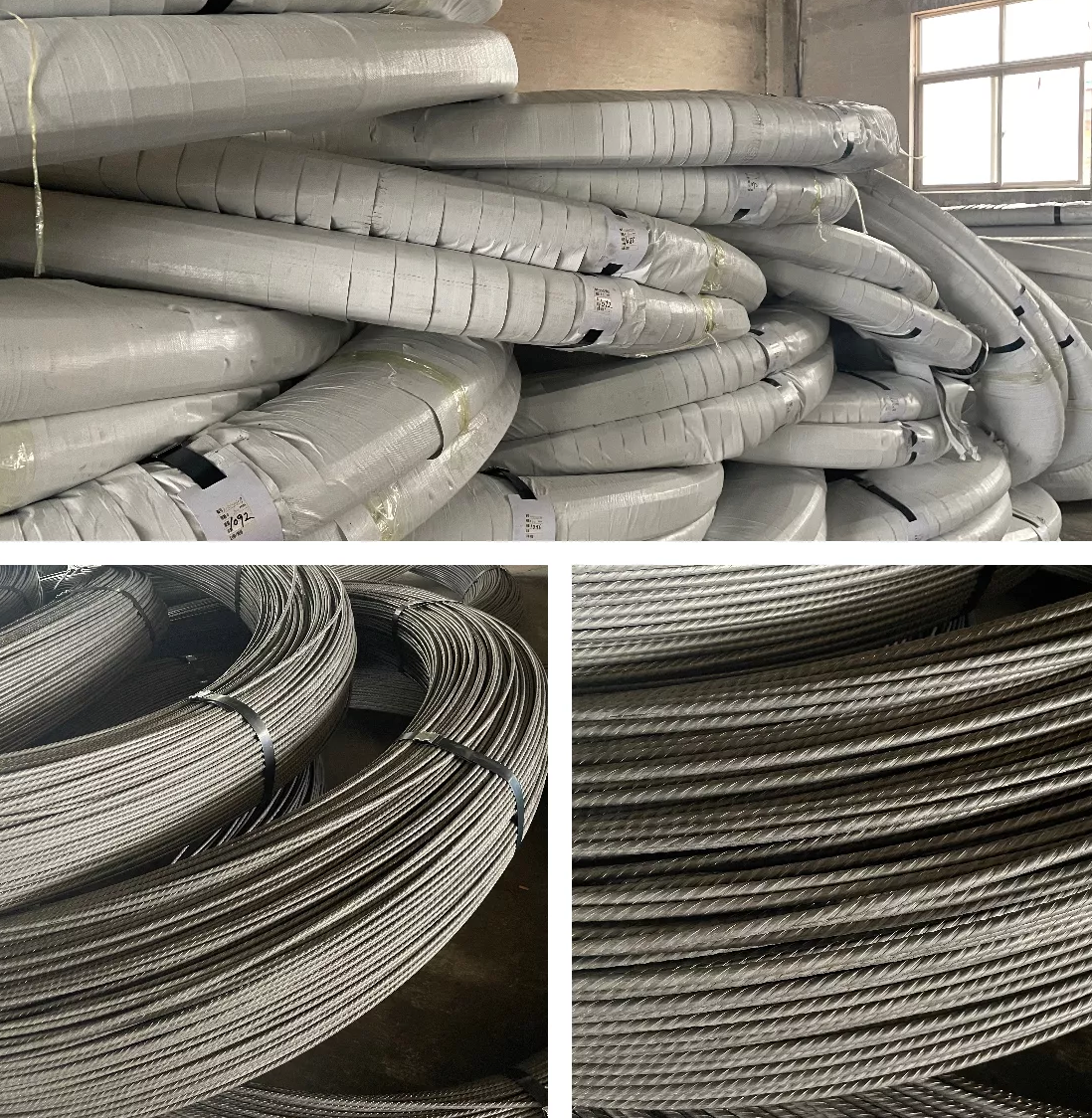

Materials: High Tensile Steel Wire and Steel Strand
High tensile steel wire is made from high-carbon steel drawn to precise dimensions, with tensile strengths typically from 1,570 MPa up to 1,960 MPa or higher.
Steel strand usually consists of seven wires (one central, six helically wound) to achieve extra flexibility and strength.
Both formats are available with smooth or indented surfaces, the latter providing improved bond performance with the surrounding concrete.
Prestressing wires must meet rigorous standards to ensure performance, safety, and durability:
Standard | Scope | Example Strength (MPa) |
ASTM A416 | Seven-wire steel strand for prestressed concrete | 1,770–1,960 |
BS 5896 | High tensile wire and strand | Typically 1,570–1,860 |
EN 10138-3 | European standard for wire and strand | Various, up to 1,860 |
Wires can range from diameters of 3 mm (e.g., rails, poles) up to 15.7 mm in some indented or compacted applications, with strict controls on dimensional tolerances and physical properties.
Manufacturing and Processing
Raw Material Selection: High-quality, high-carbon steel billets are used for optimal performance.
Wire Drawing: The steel is continuously cold-drawn through dies, increasing its tensile strength and reducing the diameter to tight tolerances.
Heat Treatment: Stress-relieving by thermal treatment minimizes internal stresses and relaxes the steel, lowering the loss of prestress over time.
Surface Processing: Wires may be indented or grooved and sometimes coated with zinc for enhanced bond and corrosion resistance.
Each batch is tested for defects, strength, ductility, relaxation class, and dimensional accuracy per standards such as BS 5896 and ASTM A416.
Anchorage, Bond Performance, and Jacking Force
In post-tensioned systems, it’s critical to anchor the wire or strand effectively since the prestressing force is applied after the concrete cures. Sophisticated anchorage devices ensure efficient force transfer and safeguard against slip, failure, or corrosion at these points. Pre-tensioned systems transfer the force through a robust bond between the wire and concrete as the tension is released.
Indented or ribbed wire surfaces improve the mechanical connection with concrete, distributing stresses more evenly and minimizing the risk of slippage during tension transfer.
The initial tensioning—called the jacking force—must be calculated to account for friction, stress loss (relaxation), and the type of wire or strand being used, all governed by standard calculations and quality control procedures.
Corrosion Protection and Durability
Because prestressing wires are often embedded deep inside critical infrastructure, their resistance to long-term corrosion is vital to structural safety. Protection measures include:
Using specially alloyed or galvanized steel.
Applying epoxy coatings for extra defense in highly aggressive environments.
Ensuring grouting in post-tensioned ducts is comprehensive, keeping out air and moisture.
Specifying extra cover or protective sheaths in areas exposed to marine or de-icing salts.
High-quality manufacturing and field practices, as mandated by codes and standards, are essential to ensuring long service life and low maintenance requirements for prestressed concrete systems.
Prestressing Wire in Bridge Construction
Prestressing wire is integral to modern bridge design—enabling longer spans, reduced self-weight, and overall cost savings. Applications include:
Precast bridge beams and girders, where factory conditions allow optimal curing, tensioning, and quality checks.
Post-tensioned in-situ concrete slabs and decks, which allow for seamless structures with fewer joints.
Stay cable systems for cable-stayed bridges, using high-strength strands.
These benefits translate to lighter, more durable, and more aesthetically pleasing bridge designs meeting demanding load and safety criteria.
Applications Beyond Bridges
High-rise building floors and slabs, resisting deformation under heavy loading.
Water tanks, silos, and towers, preventing cracking from internal pressure.
Railways, power poles, and marine structures, leveraging enhanced bond and corrosion resistance.
Soil stabilization and ground anchoring for slopes and retaining walls.
The adaptability of prestressing wire to different environments and stress conditions makes it a favorite tool for engineers across the construction spectrum.
Key Considerations in Specification and Selection
Always reference applicable standards (ASTM, BS, EN, etc.) in design documentation for clarity and compliance.
Choose the relaxation class to match project requirements—low relaxation wires minimize stress losses, essential for long spans.
Consider mechanical (indented) versus smooth wire for the intended bond performance.
Verify that supplier quality assurance and traceability documents accompany delivery—these ensure each batch is tested and meets project specs.
Prestressing wire fuses cutting-edge metallurgy with practical engineering, making it a pivotal material for modern construction. Its integration into prestressed concretesystems yields lighter, stronger, and more durable bridges, buildings, and infrastructure projects across the globe. By mastering the essentials—high tensile steel, effective anchorage, robust corrosion protection, and adherence to industry standards—engineers empower their projects with greater durability, cost-efficiency, and reliable structural safety for years to come.
