When you're working with prestressed concrete, getting accurate results from a pc strand tensile test matters more than you think. These tests tell you if your materials can handle the job or if they'll fail when it counts.
We'll walk you through everything about testing pc strand tensile strength – from what happens during the test to why the numbers matter for your project.

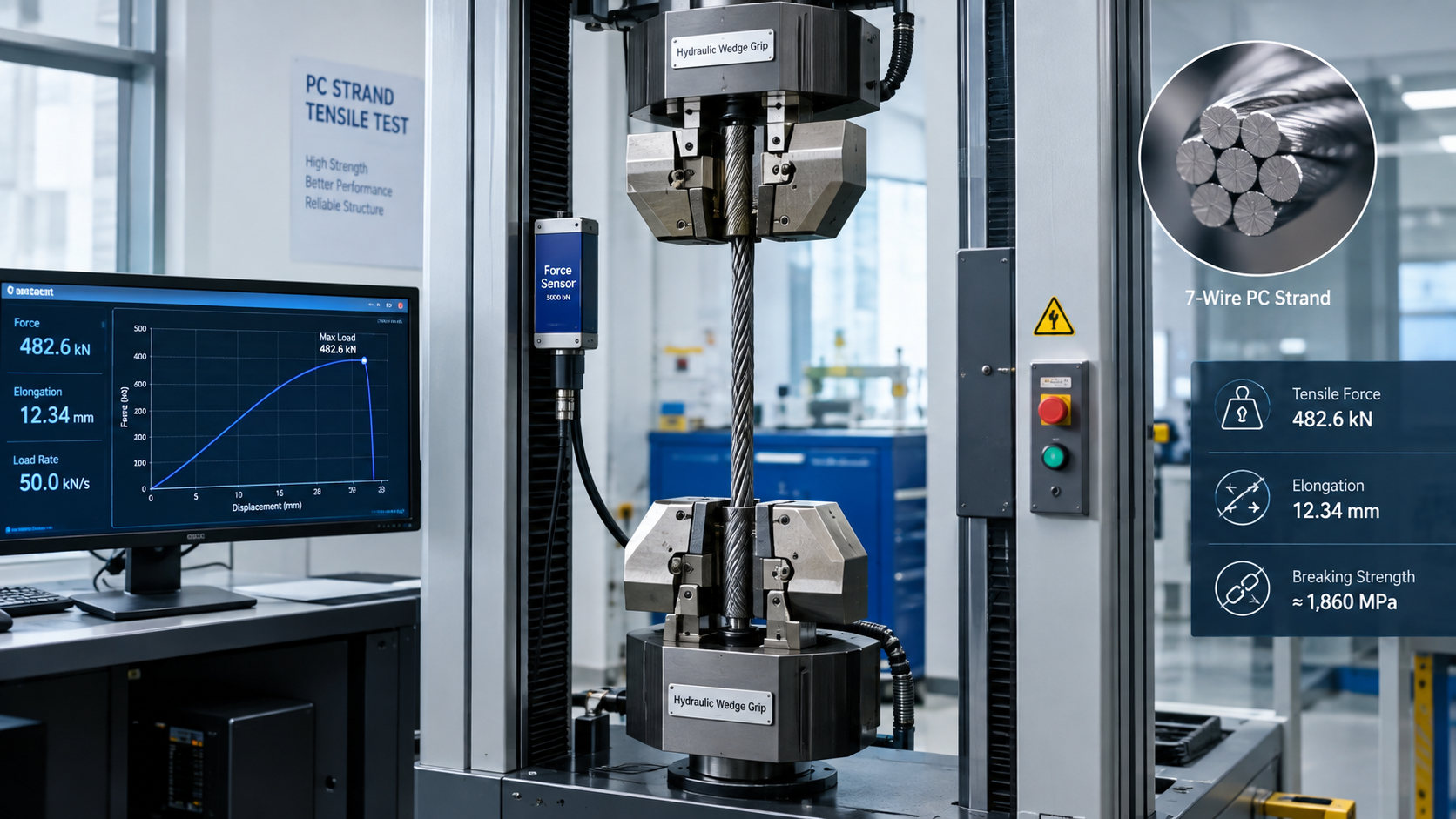

A pc strand tensile test measures how much pulling force a prestressed concrete strand can take before it breaks. Think of it like this: you're checking if a rope can hold a heavy weight without snapping.
The test pulls the strand from both ends until it fails. Sensors record the maximum force and how much the strand stretches. These numbers tell you if the material meets the standards your project needs.
TJ Wasungen tests every batch of PC strand we manufacture. We know that construction projects can't afford weak materials.
Here's the thing – pc strand tensile strength directly affects how safe your structure will be. Bridges, parking garages, and tall buildings all depend on these strands holding up under pressure.
When engineers design a structure, they calculate loads based on the strand's rated strength. If the actual strength is lower than what's listed, you've got a problem. That's why testing isn't optional – it's part of the job.
Buildings move. They shift with temperature changes, settle over time, and deal with wind loads. The prestressed concrete wire inside needs to handle all of that without losing its grip.
We've seen projects where cheap materials passed basic checks but failed when stress increased. Don't let that happen to you.
The testing process follows strict standards (like ASTM A416 or ISO 6934). Labs use specialized machines that can apply massive pulling forces – we're talking about 260 kN or more.

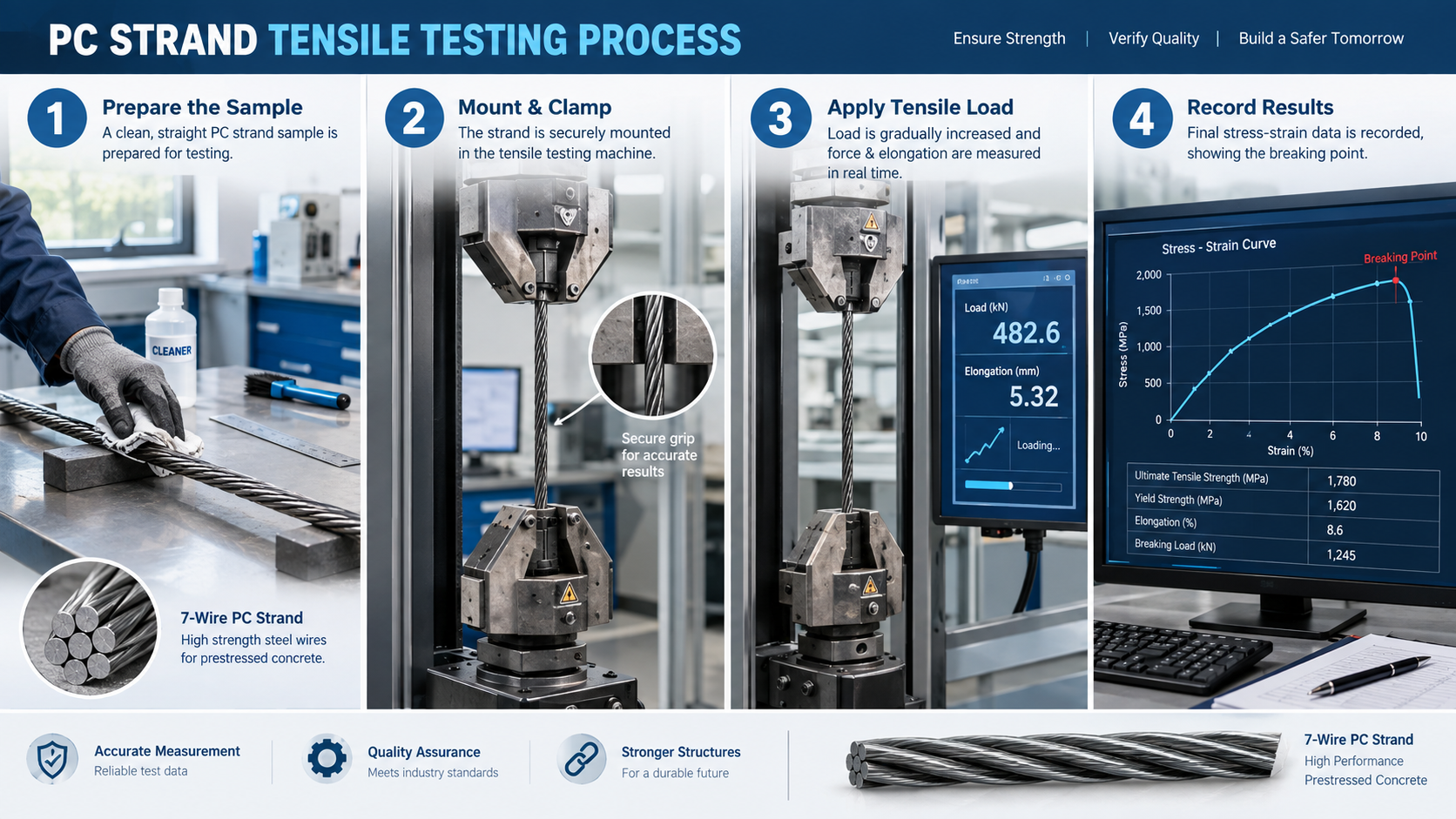

Step 1: Sample Preparation
You need a clean, straight piece of strand. The test sample should be at least 20 inches long. Any kinks or damage will throw off your results.
Step 2: Mounting the Strand
The strand gets clamped into grips on both ends of the testing machine. These grips need to hold tight without slipping – otherwise, you're not measuring the strand's strength, you're measuring grip failure.
Step 3: Applying Load
The machine slowly pulls the strand. It starts gentle and keeps increasing the force. Sensors track:
Force applied (measured in kilonewtons)
Strand elongation (how much it stretches)
Breaking point (when it finally snaps)
Step 4: Recording Data
Modern machines generate detailed graphs showing stress versus strain. You'll see exactly when the strand hit its limit.

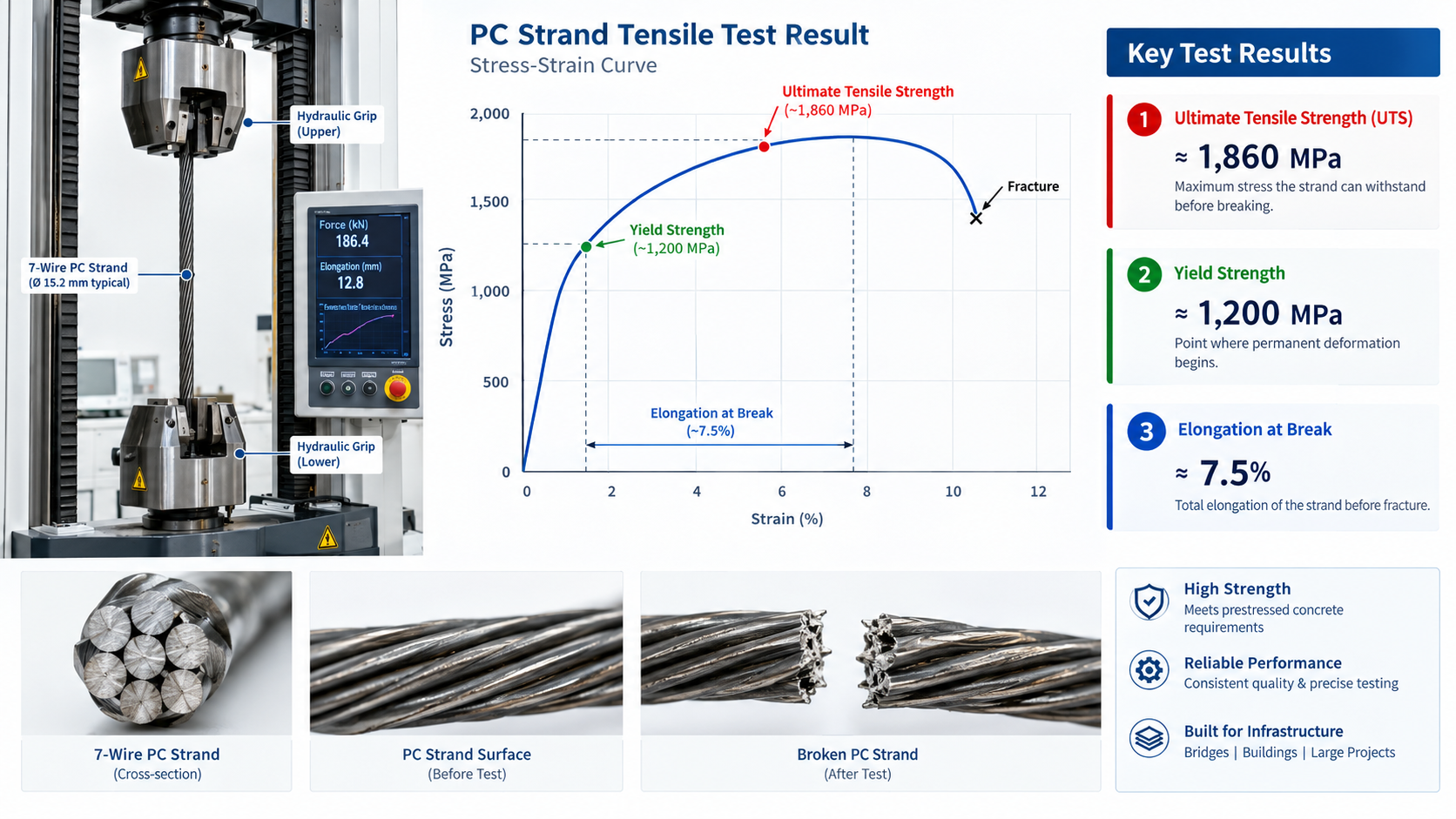

The numbers from a pc strand tensile test tell you several things about the material.
This is the maximum force the strand can handle. For low relaxation PC strand, you're typically looking at 1860 MPa for Grade 270 material.
TJ Wasungen manufactures strands that consistently meet or exceed these specifications. Our plain PC strand products undergo rigorous testing before shipping.
This marks the point where permanent deformation starts. Before reaching yield strength, the strand will bounce back to its original length if you release the load. After that point, it stays stretched.
This percentage shows how much the strand stretched before breaking. Higher elongation means more ductility – the material gives you warning before failing completely.
For prestressed concrete applications, you want some elongation. It's like having a safety margin built into the material.
Different regions use different standards for pc strand tensile strength testing. Here's what you'll encounter:
ASTM A416 (North America): This standard covers both Grade 250 and Grade 270 strands. It specifies minimum breaking strength, yield strength, and elongation requirements.
ISO 6934 (International): Used globally, particularly in Europe and Asia. The requirements are similar but not identical to ASTM.
BS 5896 (UK): British standards that many Commonwealth countries still reference.
Your supplier should provide test certificates showing compliance with the relevant standard for your location. We provide complete documentation with every shipment of PC wire and strand products.
Even experienced labs run into issues. Here's what can mess up your results:
If the strand slips in the grips, you'll see lower strength numbers that don't reflect the actual material quality. Proper clamping pressure and grip design prevent this.
The strand needs to be perfectly straight in the machine. Any angle creates uneven stress distribution and premature failure.
Pulling too fast or too slow affects the results. Standards specify the rate of load application for a reason.
Nicks, cuts, or bends in the test sample will show up as weak points. Always inspect samples before testing.
Several factors influence the results you'll get from a pc strand tensile test.
The way manufacturers draw the wire affects its properties. Indented PC strand goes through additional forming that changes its surface but shouldn't reduce strength.
TJ Wasungen uses controlled production processes that deliver consistent strength across every coil. We don't cut corners on quality control.
The individual wires that make up the strand need to meet specifications too. Seven-wire strand uses six wires wrapped around a center wire. If any wire is weak, the whole strand is compromised.
Proper stress-relieving heat treatment reduces relaxation losses over time. This doesn't directly show up in tensile testing but matters for long-term performance.
Galvanized PC strand and epoxy coated PC strand protect against corrosion. The coating process must not reduce the base material strength.
When you receive materials with test certificates, here's what to look for:
Batch Identification: Each batch should have a unique number tying it to specific production dates.
Test Date: Recent tests matter more than old ones. Materials don't improve with age.
Measured Values: Look at actual tested values, not just "pass/fail" statements. You want to see the margin above minimum requirements.
Testing Lab: Independent third-party testing carries more weight than manufacturer self-testing.
TJ Wasungen provides detailed certificates for all our prestressed concrete steel wire products. We test regularly and keep records for traceability.
How often should you test? That depends on your project requirements and local regulations.
Producers typically test every production batch. For large manufacturers, that might mean daily testing or more.
Many contractors do spot checks on delivered materials. You don't need to test every coil, but random sampling catches problems.
Major infrastructure projects often require additional testing beyond standard certificates. Bridge work and high-rises usually mandate third-party verification.
Most pc strand tensile test work happens in controlled lab environments. But sometimes you need field verification.
Portable testing equipment exists but doesn't match lab accuracy. Field tests work for quick checks but shouldn't replace proper lab testing for critical applications.
If you're working on a remote project, plan ahead. Get your materials tested before they ship to the site.
These warning signs mean you should question your test results or material quality:
Strength values barely meet minimum requirements
High variation between samples from the same batch
Missing or incomplete documentation
Certificates that look photocopied or altered
Prices significantly below market rates
Quality PC strand costs money to produce. If the price seems too good to be true, the materials probably won't perform as expected.
Your supplier relationship matters as much as the test results themselves. Here's what to look for:
Suppliers who deliver materials with minimal variation between batches make your life easier. You're not chasing problems or dealing with rejected materials.
Complete, accurate test certificates should come standard – not something you have to request separately.
Good suppliers help you understand test results and answer questions about applications. TJ Wasungen provides technical guidance for all our prestressed concrete products.
You should be able to track any coil back to its production date, batch number, and test results.
Here's something nobody likes to hear: quality testing costs money. But skipping tests costs more when structures fail.
Budget for proper testing as part of your project costs. The expense is tiny compared to the cost of structural repairs or worse, injuries from material failure.
TJ Wasungen builds testing into our manufacturing process. You're not paying extra for quality – it's part of what we deliver.
Testing technology keeps improving. Digital sensors provide more accurate readings. Automated systems reduce human error. Data analysis software spots trends that manual review might miss.
Some labs now use acoustic monitoring that detects internal defects before they cause failure. These advances make pc strand tensile strength testing more reliable than ever.
Now you know what goes into pc strand tensile test procedures and why the results matter. Here's how to use this information:
Don't accept materials without proper test certificates. If something seems off about the documentation, ask questions.
Work with suppliers who take testing seriously. TJ Wasungen maintains strict quality standards because we know what's at stake.
When your project requires prestressed steel strand, don't gamble on untested materials. The few dollars you might save aren't worth the risk.
Ready to source quality materials? Check out our complete range of tested and certified products:
Plain PC strand for standard applications
Unbonded PC strand for specialized uses
Indented PC wire when bond strength matters
Every product comes with complete test documentation and technical support. We're here to help you get the right materials for your project.
Testing pc strand tensile strength isn't just paperwork – it's your assurance that the structure you're building will stand up to real-world conditions. Make it count.
