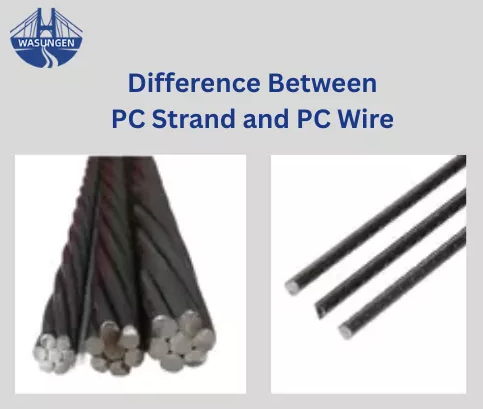

Difference Between PC Strand and PC Wire

In the construction industry, the selection of appropriate materials for reinforced concrete structures is vital to ensure durability, strength, and safety. Among the key materials used in pre-stressed concrete technology are PC Wire and PC Strand. Although these terms might seem similar, they represent distinct products with unique characteristics and applications. This comprehensive blog explores the differences between PC Strand and PC Wire, their properties, uses, and how to choose between them for specific construction needs.

Understanding Pre-stressed Concrete

What Is Pre-stressed Concrete?

Pre-stressed concrete is reinforced concrete where steel is tensioned beforehand to improve strength before the concrete is poured and set.This pre-tensioning improves the concrete's ability to withstand tensile forces, increasing its load-bearing capacity and resistance to cracking.

Role of PC Wire and PC Strand in Pre-stressed Concrete

PC Wire and PC Strand are the two primary types of steel reinforcement materials used to apply pre-stressing forces in concrete elements. They help counteract the tensile stresses imposed during use, thereby enhancing structural performance and longevity.

What Is PC Wire?

PC Wire, short for Pre-stressed Concrete Wire, is a high-strength steel wire made primarily from high-carbon steel. It is a single, solid wire with a circular cross-section. The diameter of PC Wire typically ranges between 4mm and 12mm, designed to provide moderate pre-stressing forces.

Physical Characteristics

• Single straight wire

• Flexible and easy to handle

• Usually uncoated or galvanised for corrosion protection

• Pre-stressed (tensioned) before embedding in concrete

Common Applications of PC Wire

PC Wire is used to prestress smaller concrete elements, enhancing strength and durability in structures like sleepers and pipes.Typical uses include:

1. Beams, slabs, and columns in small to medium-scale construction

2. Precast concrete poles and pipes

3. Railway sleepers and minor infrastructure components

What Is PC Strand?

PC Strand, short for Pre-stressed Concrete Strand, consists of multiple high-strength steel wires twisted together helically to form a single strand. The most common configurations are 7-wire strands (one core wire surrounded by six wires) or 19-wire strands. These strands provide significantly higher tensile strength due to the combined effect of multiple wires.

Physical Characteristics

• Twisted multiple wire strands

• Larger diameter than single PC wires, typically 9.5mm to 15.7mm

• Higher load-bearing capacity

• Less flexible due to twisted wire construction

• Commonly coated (galvanized, epoxy) for corrosion resistance

Common Applications of PC Strand

PC Strand is preferred in applications demanding higher pre-stressing forces and enhanced load distribution, including:

1. Large precast concrete beams and girders

2. Bridge construction and long-span structures

3. High-rise building frameworks

4. Foundation slabs and heavy infrastructure

Detailed Comparison Between PC Wire and PC Strand

Advantages and Disadvantages

Advantages of PC Wire

1. Easier handling and installation due to less rigidity

2. Suitable for smaller scale or less demanding projects

3. Lower cost for projects with moderate strength requirements

Disadvantages of PC Wire

• Limited load capacity compared to strands

• Less effective for large structures needing uniform stress distribution



Advantages of PC Strand

1. Higher tensile strength and load capacity

2. Better force distribution throughout the concrete element

3. Improved durability and resistance in harsh environments

4. Preferred for critical and large-scale infrastructure

Disadvantages of PC Strand

• More rigid and difficult to handle

• Generally higher cost than PC wire

Manufacturing Process Overview

PC Wire Manufacturing

PC Wire is manufactured by drawing high-carbon steel into a specified diameter wire. It undergoes heat treatment and surface coatings like galvanization to enhance corrosion resistance if required. The wire is then stress-relieved (pre-stressed) before use.

PC Strand Manufacturing

PC Strand production involves twisting multiple cold-drawn wires helically around a core wire. This process increases tensile strength by combining the strength of individual wires. The strands may be coated or treated to improve corrosion protection and prolong service life.

Selection Criteria: When to Use PC Wire vs. PC Strand

Project Size and Load Requirements

• Use PC Wire for smaller structural elements that do not demand high pre-stressing forces.

• Use PC Strand for large-scale infrastructure needing strong and evenly distributed stresses.

Structural Design and Engineering Specifications

• Choice depends on design calculations related to load bearing, tension force, and flexibility.

• PC Strand is selected when higher tensile strength and durability are required.

Cost Considerations

• PC Wire is more economical for smaller-scale applications.

• PC Strand presents better long-term investment for critical projects due to its superior properties.

Environmental Factors

• For projects exposed to harsh weather or corrosive environments, coated PC Strand provides enhanced protection.

Installation and Handling Differences

Handling PC Wire

• Flexible and easier to install manually or with simple machinery

• Easier to cut and manipulate on-site

Handling PC Strand

• Requires specialized equipment for tensioning and anchoring due to rigidity

• Handling care needed to avoid strand damage and maintain pre-stress integrity

Common Standards and Specifications

PC Wire and PC Strand used in construction must meet national and international standards to guarantee safety and quality. Typical specifications cover tensile strength, elongation, diameter tolerance, and coating requirements.

Conclusion: Choosing Between PC Strand and PC Wire

The choice between PC Wire and PC Strand fundamentally depends on the specific structural requirements of the construction project. PC Wire offers flexibility and moderate strength suited for lighter and smaller precast elements, while PC Strand delivers higher strength, durability, and better load distribution ideal for large infrastructure projects.

Project engineers must evaluate loading conditions, environmental factors, cost considerations, and compliance with engineering standards to make informed material choices. PC Wire and PC Strand are essential in modern pre-stressed concrete, boosting the strength and safety of concrete structures for improved durability and performance.
