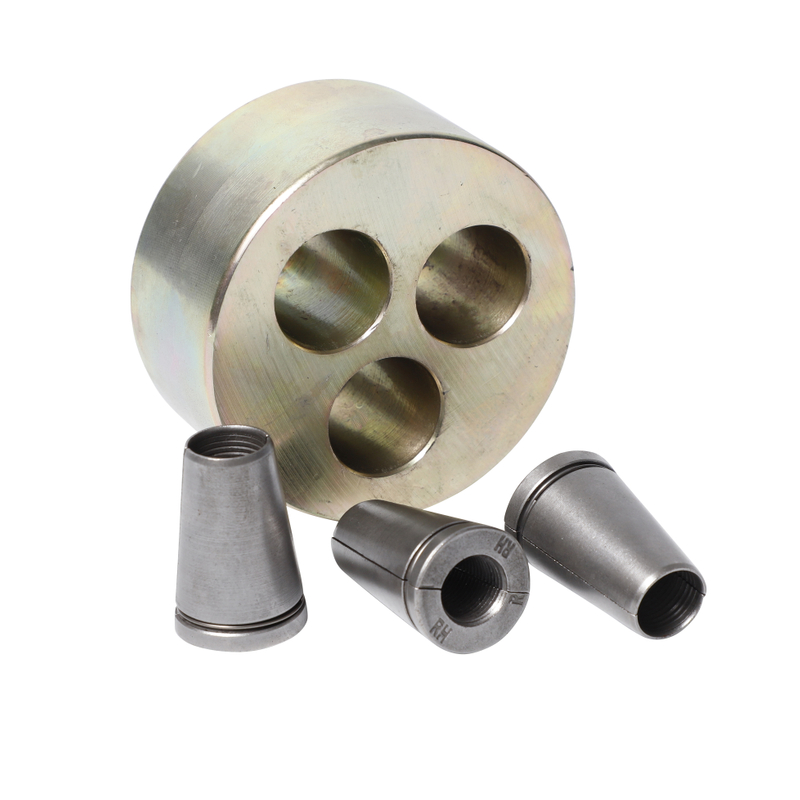

Pre-Stressed Anchorage Accessories for Strength Steel
High-performance Pre-Stressed Anchorage Accessories are designed for strength steel, ensuring secure tendon fixation and optimal force transfer in prestressed concrete structures and are built for durability, precision, and ease of installation.
Strong Fixation: Provides secure and reliable tendon anchoring, ensuring optimal force transfer into concrete.
Corrosion Resistant: Made from high-quality materials with advanced anti-corrosion treatments for long-lasting performance.
Precision Engineered: Manufactured with strict dimensional accuracy for consistent and dependable results.
Easy Installation: Designed to simplify assembly and reduce construction time.
Versatile Options: Available in multiple types to accommodate single-strand, multi-strand, and anchor plate applications.
PRESTRESSED ANCHORAGES are widely used in:
Bridges & Viaducts: Anchoring tendons in bridge beams, cable-stayed towers, and other critical elements.
Buildings: Reinforcing prestressed columns, beams, slabs, and other structural components.
Hydraulic Structures: Enhancing durability in dams, spillways, and other water-related constructions.
Foundations: Strengthening underground structures and foundations for long-term stability.
Basic Info
Model NO. | Round Anchorages | Application | Machine Parts, Transportation, Decorations |
Certification | ISO | Surface Treatment | Yes |
Technics | Casting | Material | Metal |
Type | Fasteners | Delivery Time | 7-15days |
Head Type | Round | Shape | Round and Rectangle |
Diameter | 9.53-21.8mm | Transport Packages | Wooden Box |
Transport Package | Export Packing(Customized) | Specification | LBM13L-4 |
Trademark | WASUNGEN | Origin | Tianjin, China |
HS Code | 7316000000 | Production Capacity | 100000piece/Month |
Anchorage Devices play a critical role in prestressed concrete systems by anchoring the ends of tendons and transferring forces into concrete components. Our devices are engineered to meet strict quality standards, ensuring stability and reliability in all engineering applications.
Product Parameters
Model | Anchor Head | Anchor Plate | Corrugated Pipe I.D. | Spiral Reinforcement/Bar | Matched Tension Jack Model | |||||
ØD | B | A | L | ØC | ØG | H | Ød | n | ||
LYM15(13)-1 | 48 | 50 | 90 | 35 | 80(85) | 30(35) | 6 | 4(4) | QYC270 | |
-40 | -50 | -90 | -35 | |||||||
LYM15(13)-2 | 94 | 50 | 135 | 110 | 45(40) | 120(110) | 40(50) | 8(8) | 3(3) | YDC650 |
-80 | -50 | -120 | -110 | (YDC650) | ||||||
LYM15(13)-3 | 94 | 50 | 135 | 110 | 50(50) | 130(130) | 50(50) | 10(8) | 4(3) | YDC1000 |
-80 | -40 | -120 | -120 | (YDC650) | ||||||
LYM15(13)-4 | 98 | 50 | 150 | 120 | 50(50) | 150(150) | 50(50) | 14 | 4(4) | YDC1500 |
-85 | -50 | -135 | -120 | -10 | (YDC650) | |||||
LYM15(13)-5 | 108 | 50 | 180 | 130 | 55(50) | 170(160) | 50(50) | 14 | 4(4) | YDC1500 |
-94 | -55 | -150 | -120 | -14 | (YDC1500) | |||||
LYM15(13)-6,7 | 127(108) | 50 | 190 | 160 | 70(60) | 200(190) | 50(50) | 14 | 4(5) | YDC2000 |
-55 | -165 | -150 | -14 | (YDC1500) | ||||||
LYM15-8 | 137 | 60 | 230 | 180 | 80 | 240 | 60 | 16 | 5 | YDC2000 |
LYM15(13)-9 | 154 | 60 | 240 | 190 | 80(60) | 240(220) | 60(50) | 16 | 5(5) | YDC2500 |
-128 | -60 | -180 | -160 | -16 | (YDC1500) | |||||
LYM15(13)-10 | 167 | 60 | 250 | 210 | 80 | 270 | 60 | 16 | 6 | YDC2500 |
LYM15(13)-11/12 | 167 | 60 | 260 | 210 | 90(80) | 270(240) | 60(60) | 16 | 6(5) | YDC3000 |
-148 | -60 | -215 | -190 | -16 | (YDC2000) | |||||
LYM15-14/15 | 187 | 65 | 270 | 220 | 90 | 310 | 60 | 18 | 6 | YDC3500 |
LYM15-16 | 207 | 65 | 290 | 250 | 90 | 330 | 60 | 18 | 6 | YDC4000 |
LYM15(13)-19 | 207 | 70 | 310 | 265 | 100(90) | 350(310) | 60(60) | 18 | 7(6) | YDC5000 |
-178 | -65 | -270 | -260 | -18 | (YDC3000) | |||||
LYM15(13)-22 | 227 | 70 | 380 | 265 | 120(100) | 380(330) | 60(60) | 20 | 7(6) | YDC5000 |
-188 | -65 | -290 | -260 | -18 | (YDC3000) | |||||
LYM15(13)-24 | 237 | 75 | 380 | 380 | 120(100) | 380(340) | 60(60) | 20 | 7(6) | YDC6500 |
-208 | -75 | -300 | -270 | -18 | (YDC4600) | |||||
LYM15(13)-25,27 | 247 | 90 | 380 | 300 | 120(100) | 400(360) | 60(60) | 20 | 7(6) | YDC6500 |
-208 | -80 | -320 | -280 | -18 | (YDC4600) | |||||
LYM15(13)-31 | 277 | 90 | 390 | 355 | 130(105) | 450(380) | 70(60) | 22 | 8(6) | YDC6500 |
-238 | -90 | -340 | -320 | -20 | (YDC4600) | |||||
LYM15(13)-37 | 287 | 100 | 430 | 435 | 140(120) | 500(430) | 70(70) | 22 | 8(6) | YDC8000 |
-238 | -100 | -370 | -370 | -22 | (YDC6500) | |||||
LYM15(13)-42 | 268 | 100 | 395 | 380 | 130 | 450 | 70 | 22 | 7 | YDC10000 |
LYM15(13)-44 | 327 | 110 | 460 | 465 | 160 | 550 | 70 | 22 | 8 | YDC10000 |
LYM15(13)-55 | 360 | 120 | 530 | 515 | 160(140) | 630(510) | 70(70) | 25 | 9(7) | YDC12000 |
-298 | -110 | -460 | -460 | -22 | (YDC10000) | |||||
Model | Flat anchor round | Flat corrugated Pipe I.D. | Flat anchor plate | Flat Spiral Reinforcement/Bar | |||||||
D | E | F | G | A | C | B | H | I | n | t | |
LBM15L-2 | 90 | 46 | 52 | 22 | 160 | 70 | 140 | 160 | 100 | 5 | 45 |
LBM13L-2 | |||||||||||
LBM15L-3 | 120 | 46 | 65 | 22 | 180 | 70 | 150 | 180 | 100 | 5 | 45 |
LBM13L-3 | |||||||||||
LBM15L-4 | 155 | 46 | 74 | 22 | 220 | 80 | 210 | 220 | 100 | 5 | 45 |
LBM13L-4 | |||||||||||
LBM15L-5 | 190 | 46 | 90 | 22 | 260 | 80 | 270 | 260 | 100 | 5 | 45 |
LBM13L-5 | |||||||||||
Our anchorage devices guarantee long-term reliability and superior performance in a variety of construction projects, ensuring both safety and structural integrity.
Q: What are prestressed anchorage devices?
A: Prestressed anchorage devices are critical components used in prestressed concrete structures to anchor the ends of prestressing tendons securely. They transfer the prestressing forces into concrete, ensuring structural stability and safety.
Q: What types of strands are compatible with these anchorage devices?
A: Our devices support a wide range of PC strands, including 9.3mm, 9.53mm, 10.8mm, 12.5–12.9mm, 15.2–15.7mm, 17.8mm, and 21.6–21.8mm, with specific models like LYM10, LYM11, LYM13, LYM15, LYM18, and LYM22 designed for precise compatibility.
Q: Are these anchorage devices resistant to corrosion?
A: Yes. They are manufactured from premium-grade materials and treated with advanced anti-corrosion processes, making them highly durable even in harsh environmental conditions.
Q: Where are prestressed anchorage devices commonly used?
A: They are widely used in bridges, viaducts, building structures, hydraulic projects (like dams and spillways), and foundation engineering, providing secure tendon anchoring and enhancing structural integrity.
Q: How easy is it to install these devices?
A: Our anchorage accessories are designed for user-friendly installation. Their precision engineering allows for quick, accurate, and secure assembly, reducing construction time while ensuring reliable performance.
